Analysis of Trusses (Joint Method)

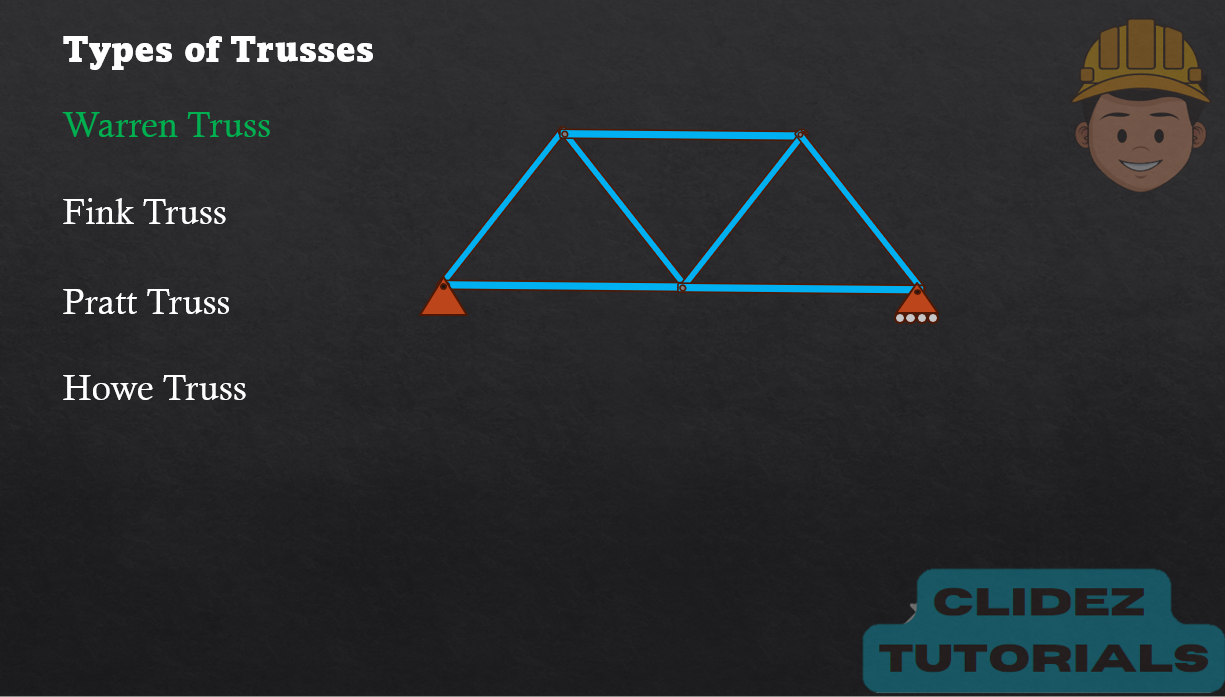

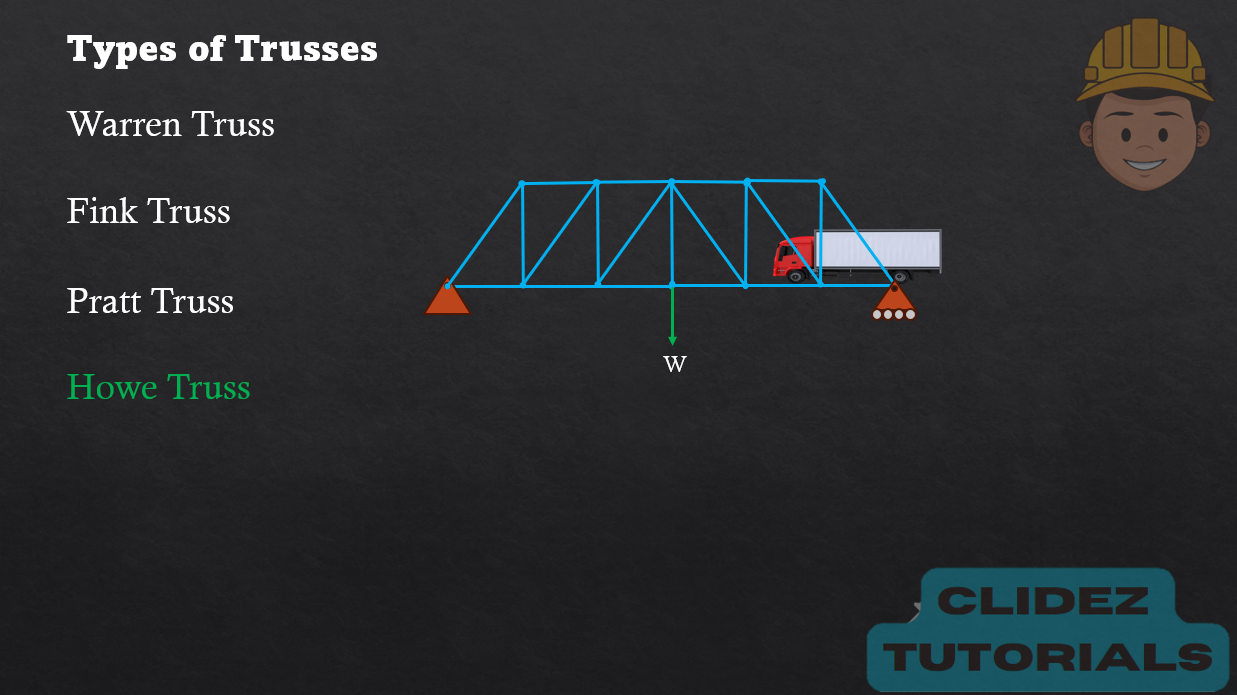

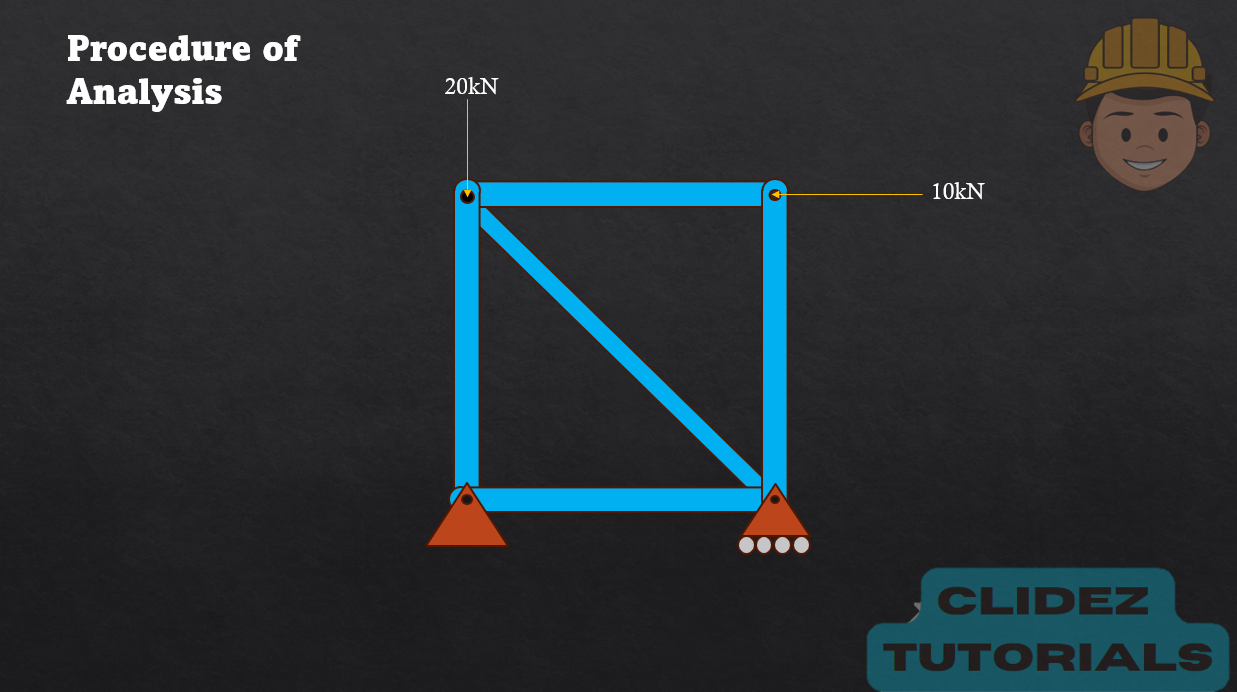

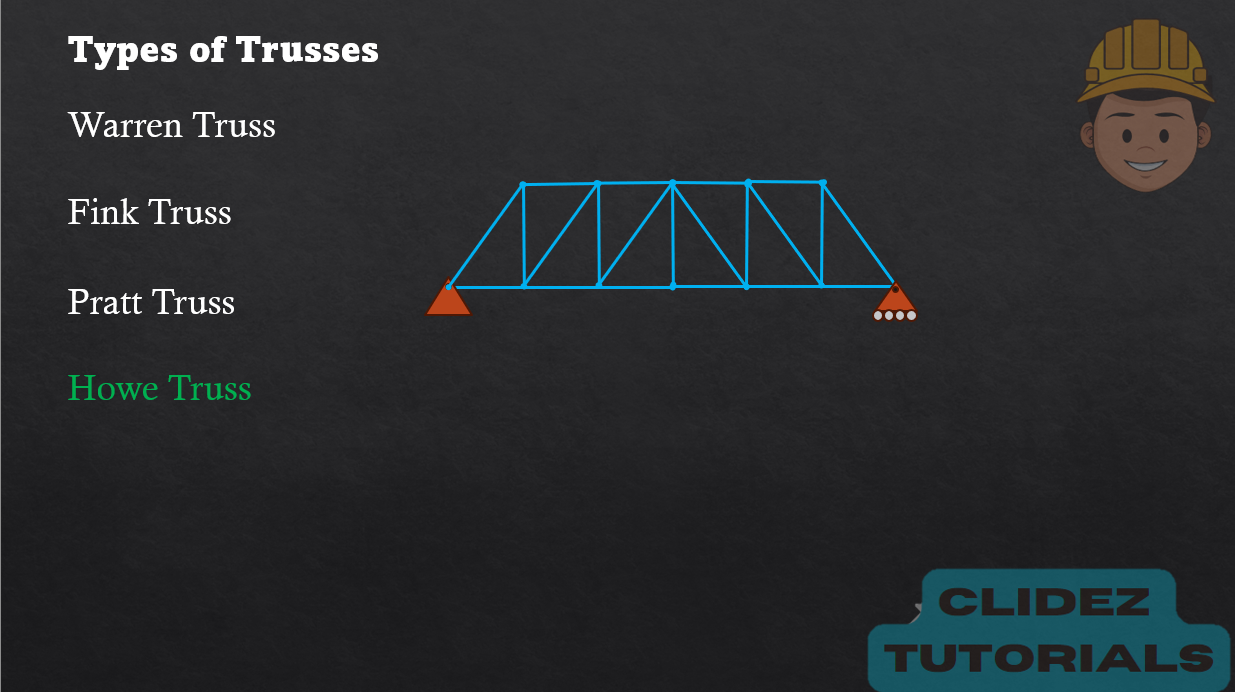

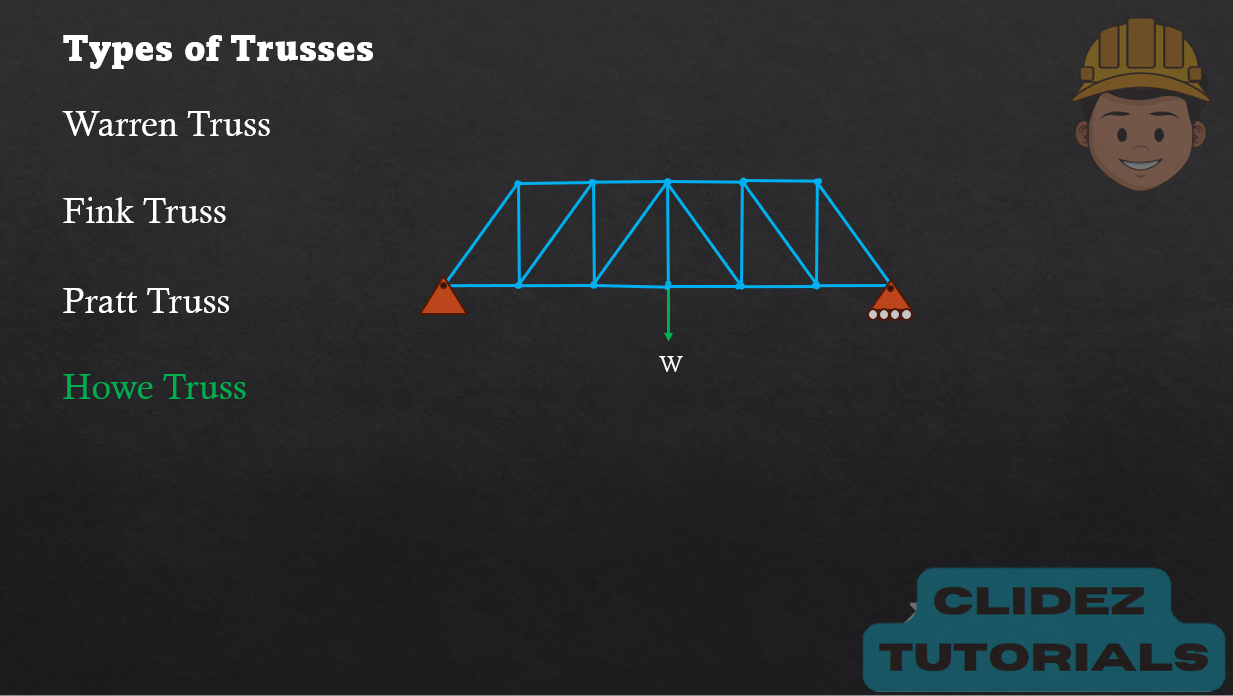

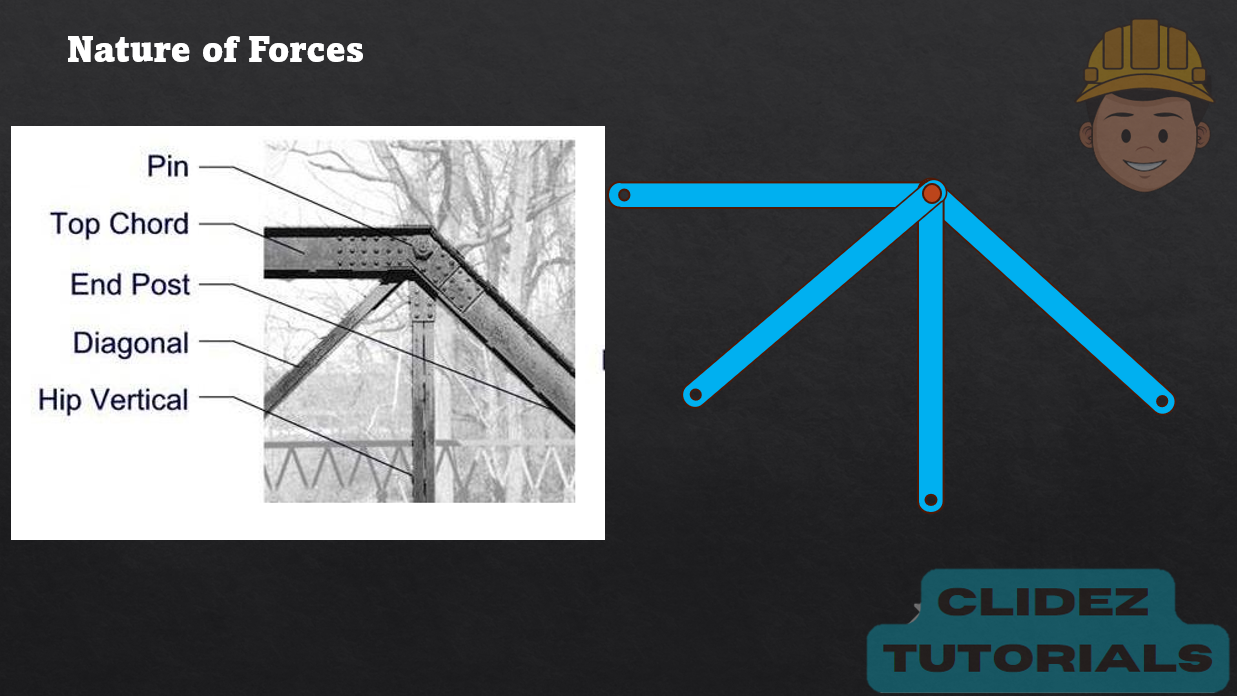

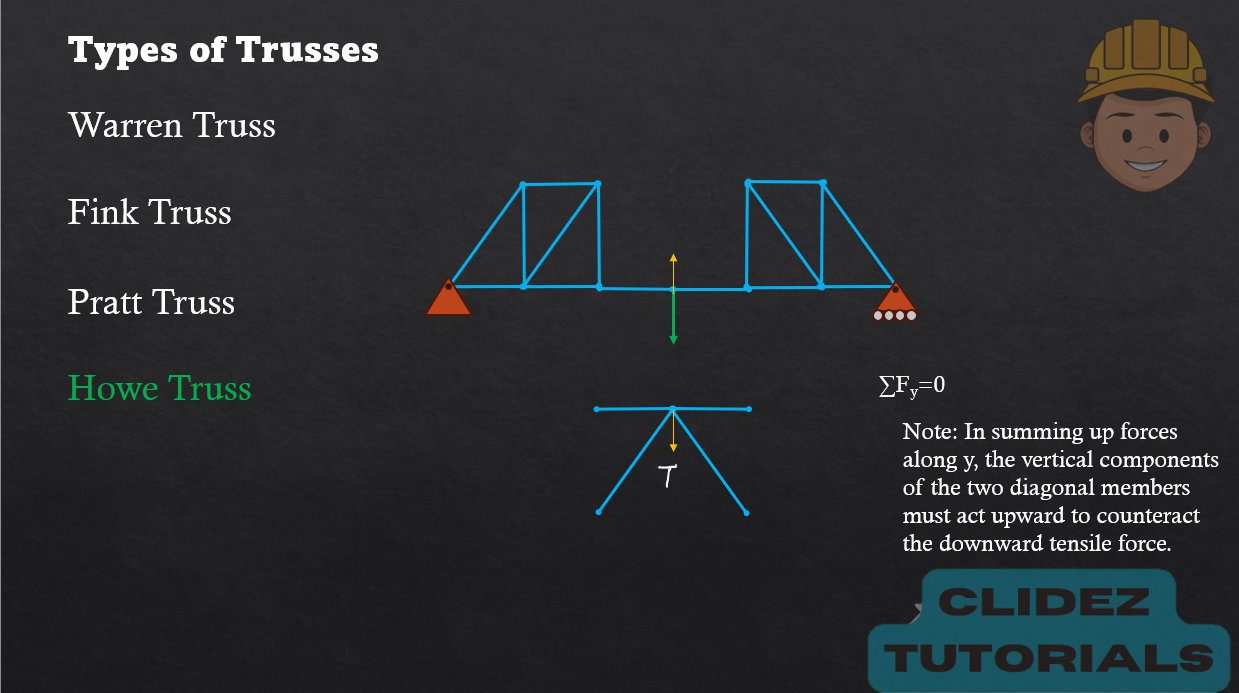

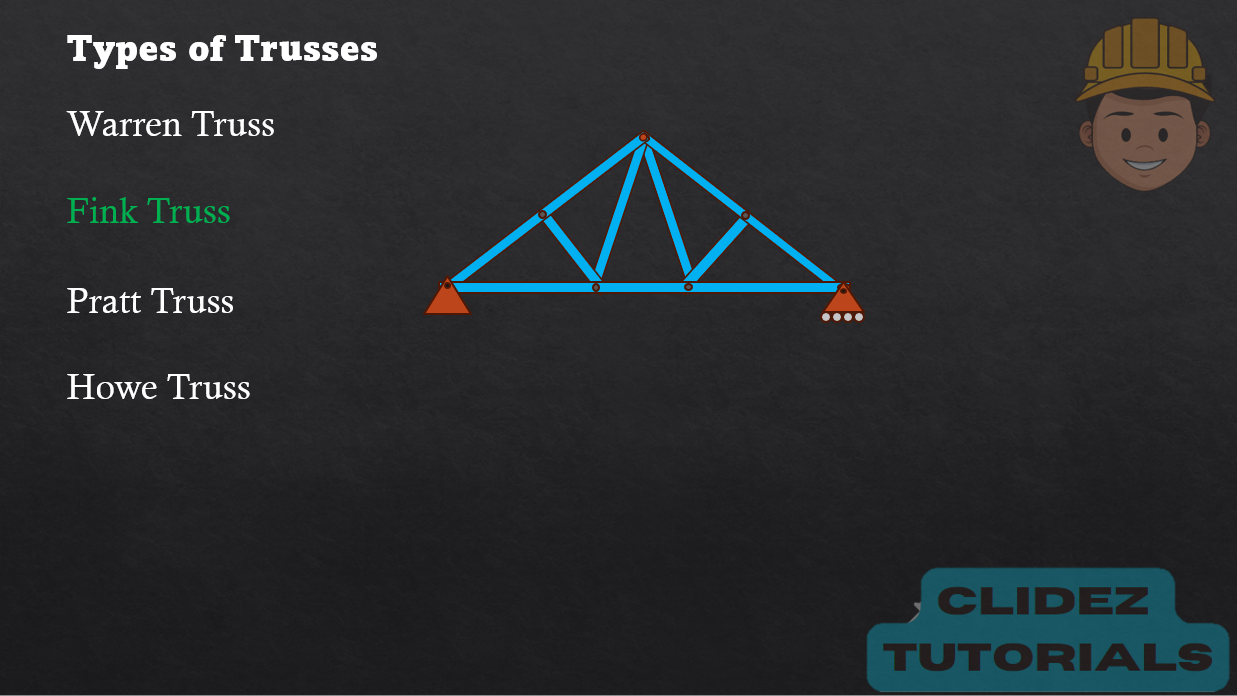

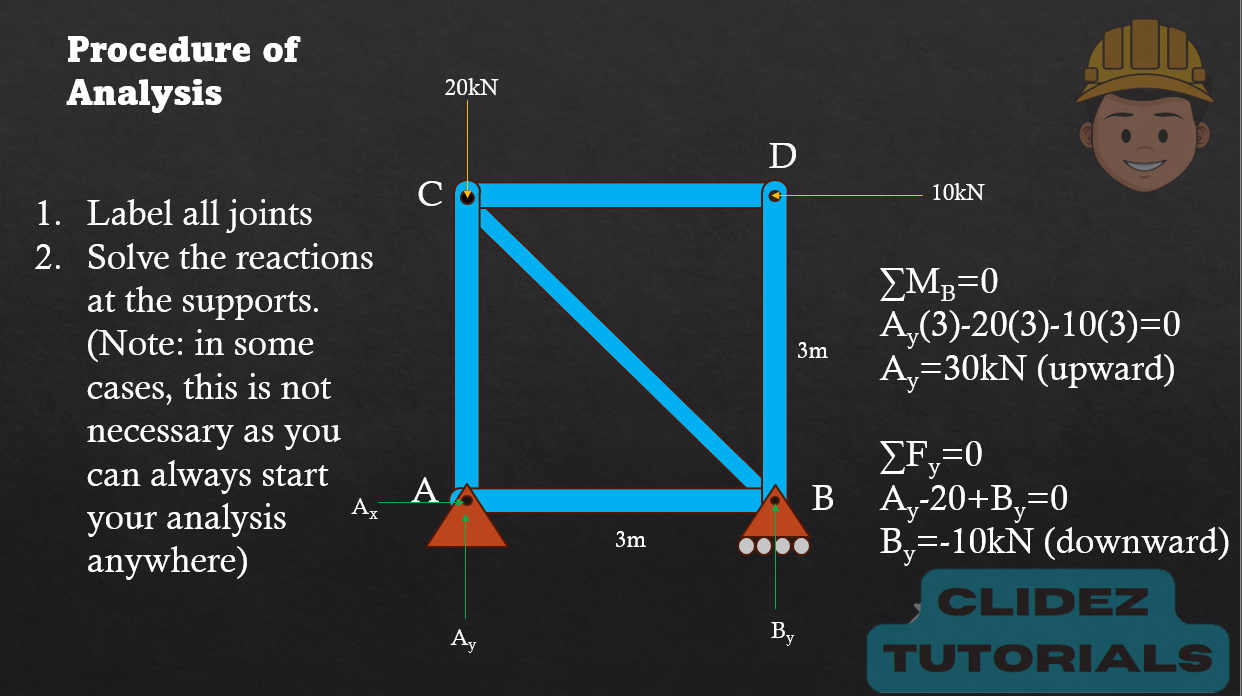

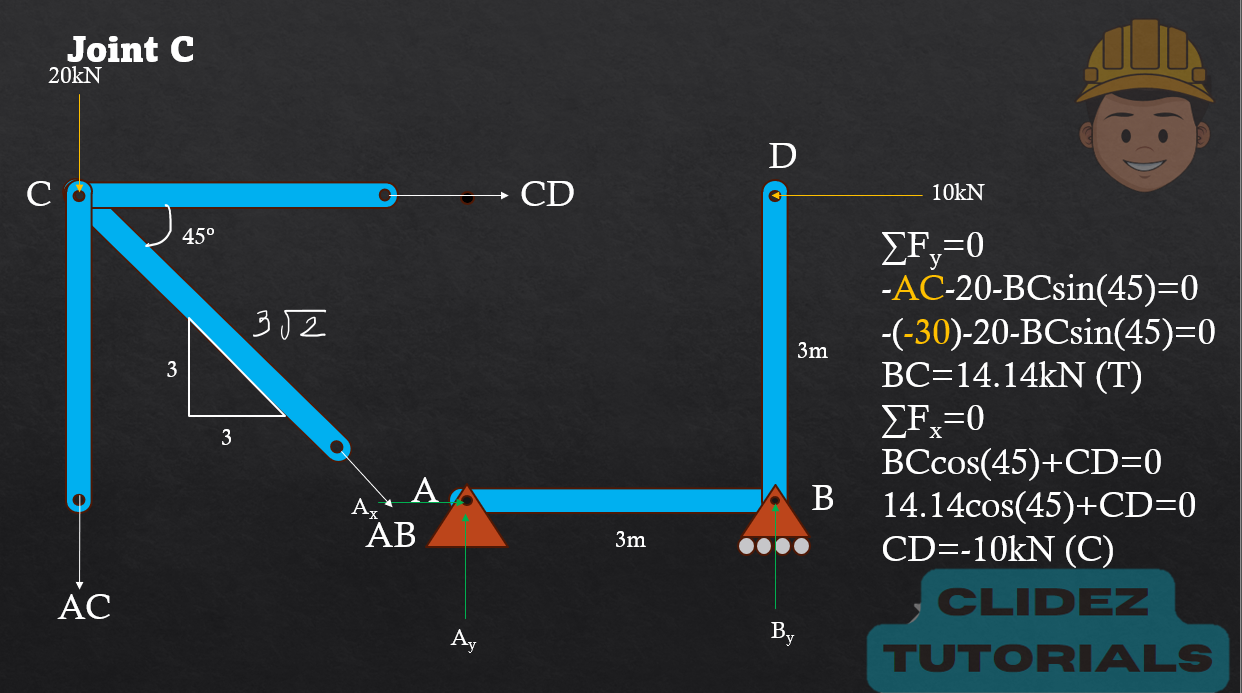

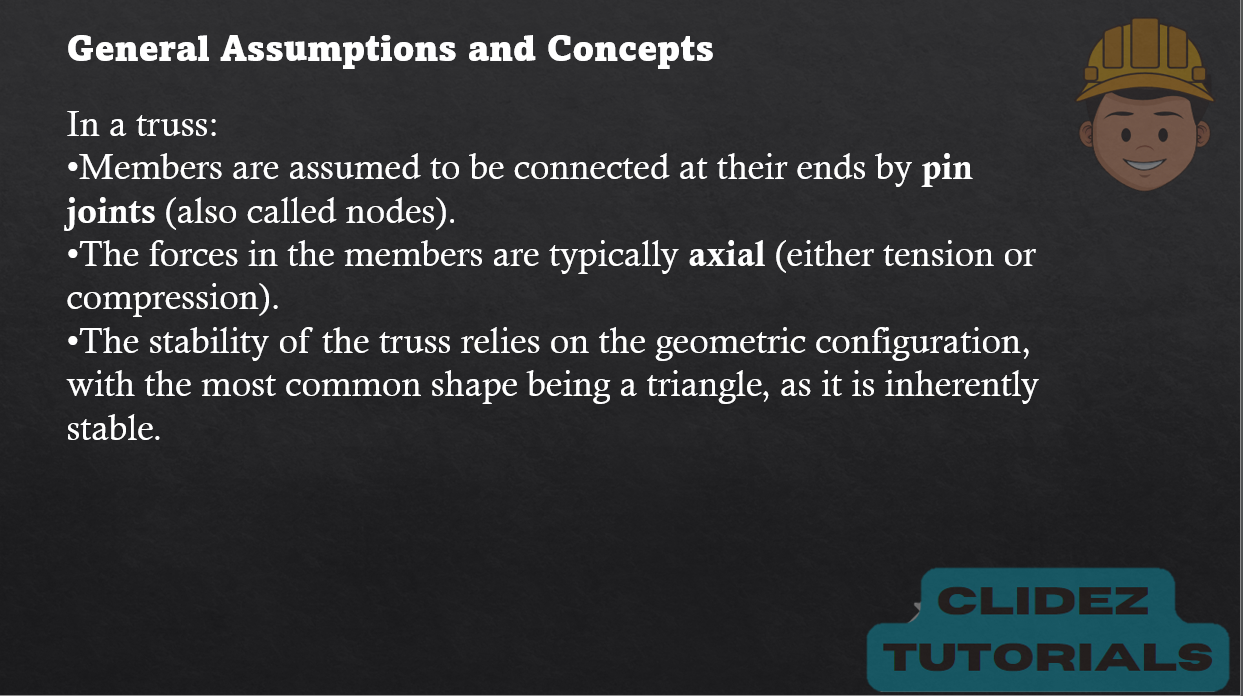

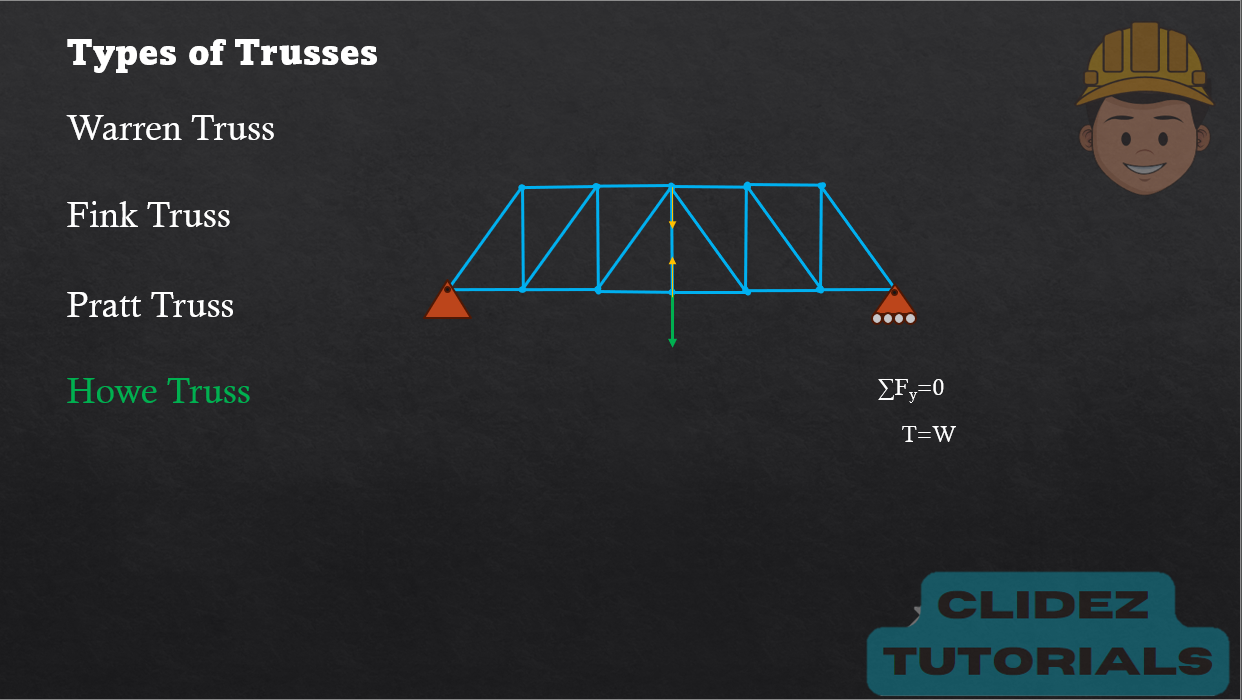

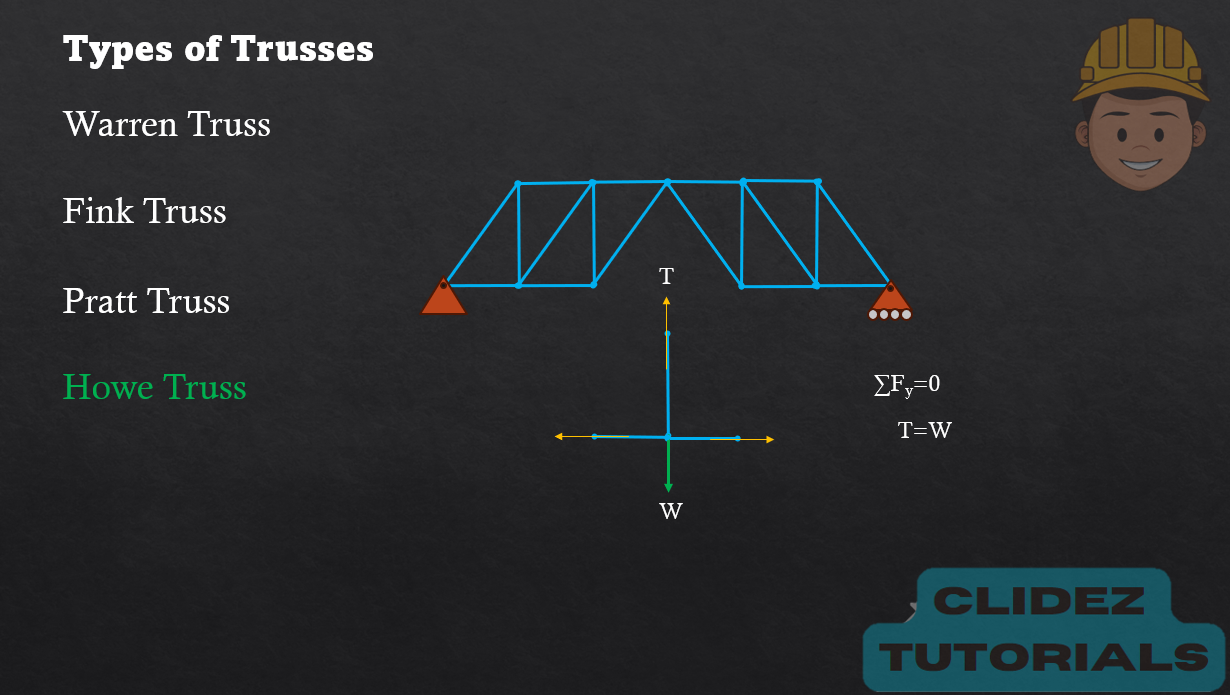

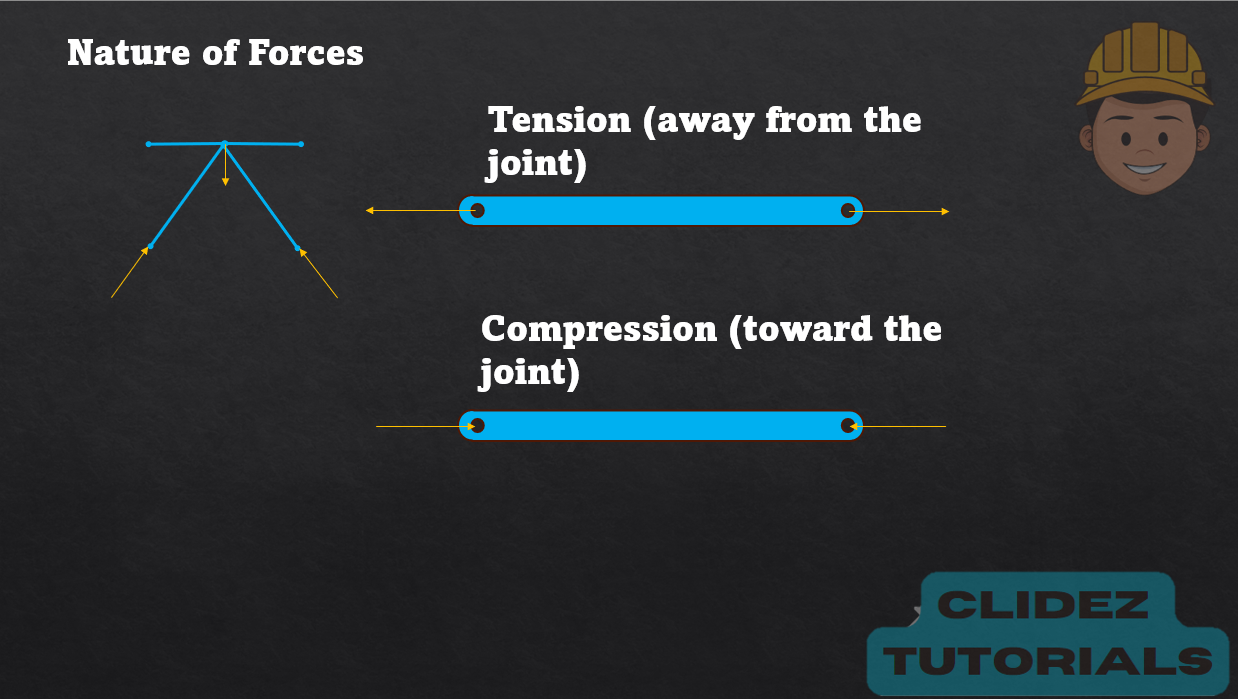

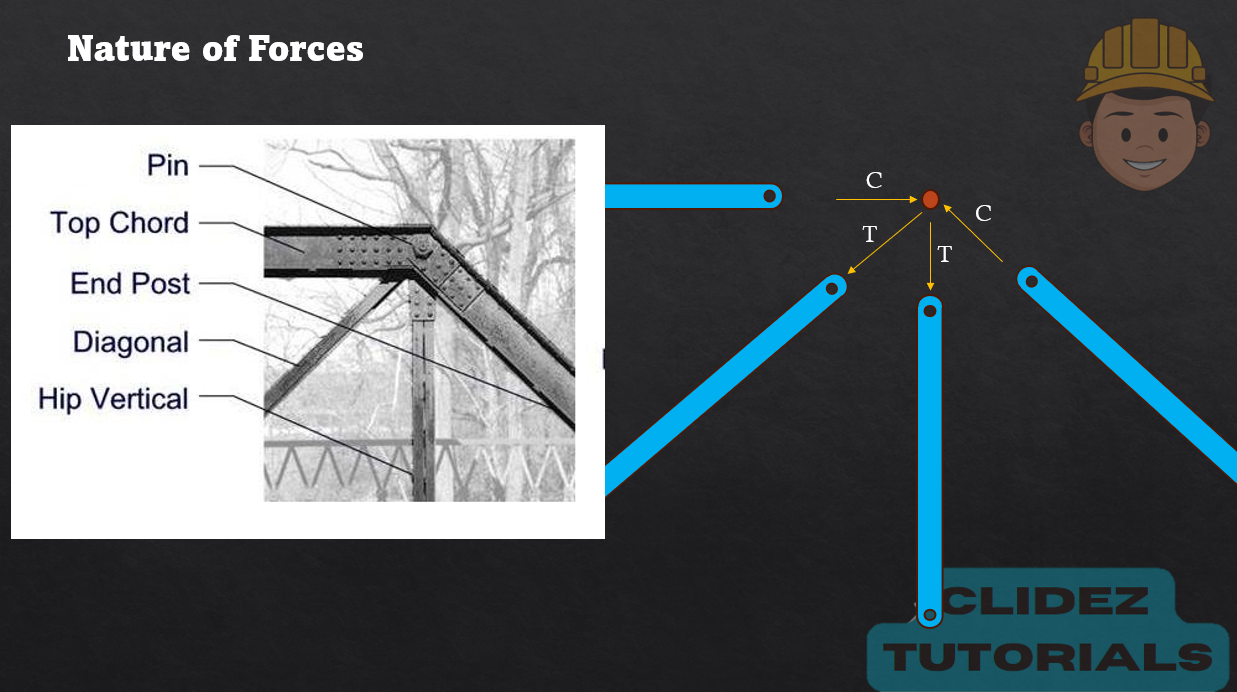

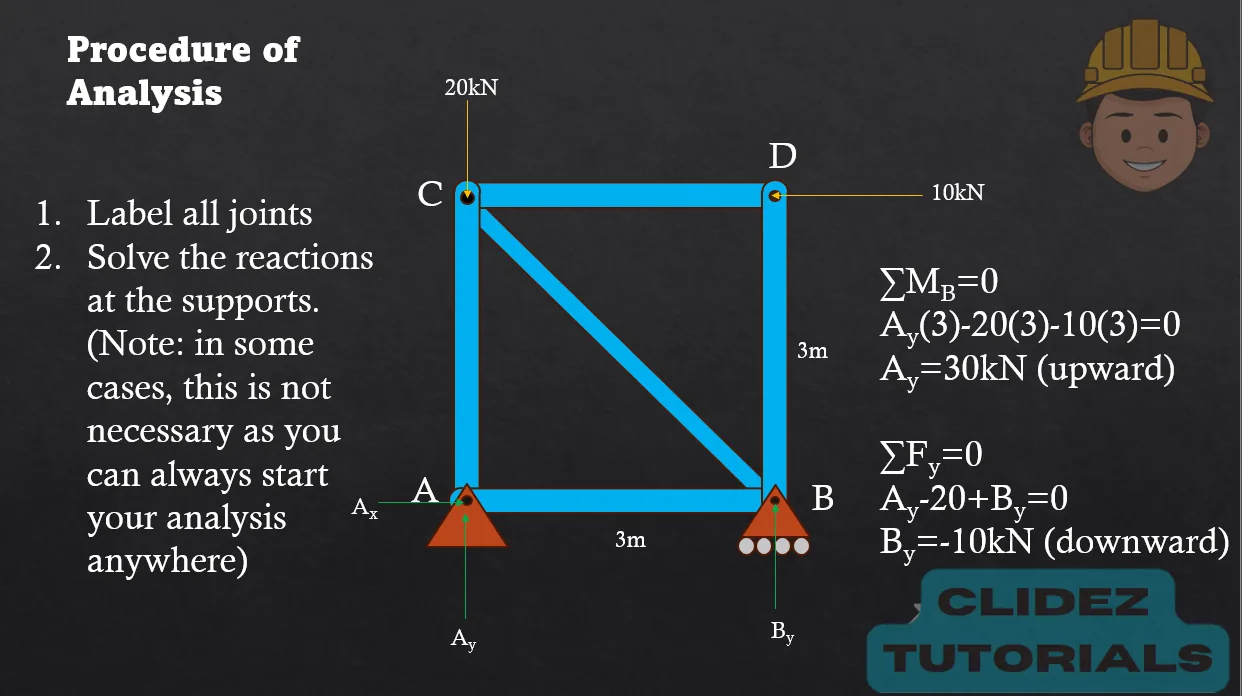

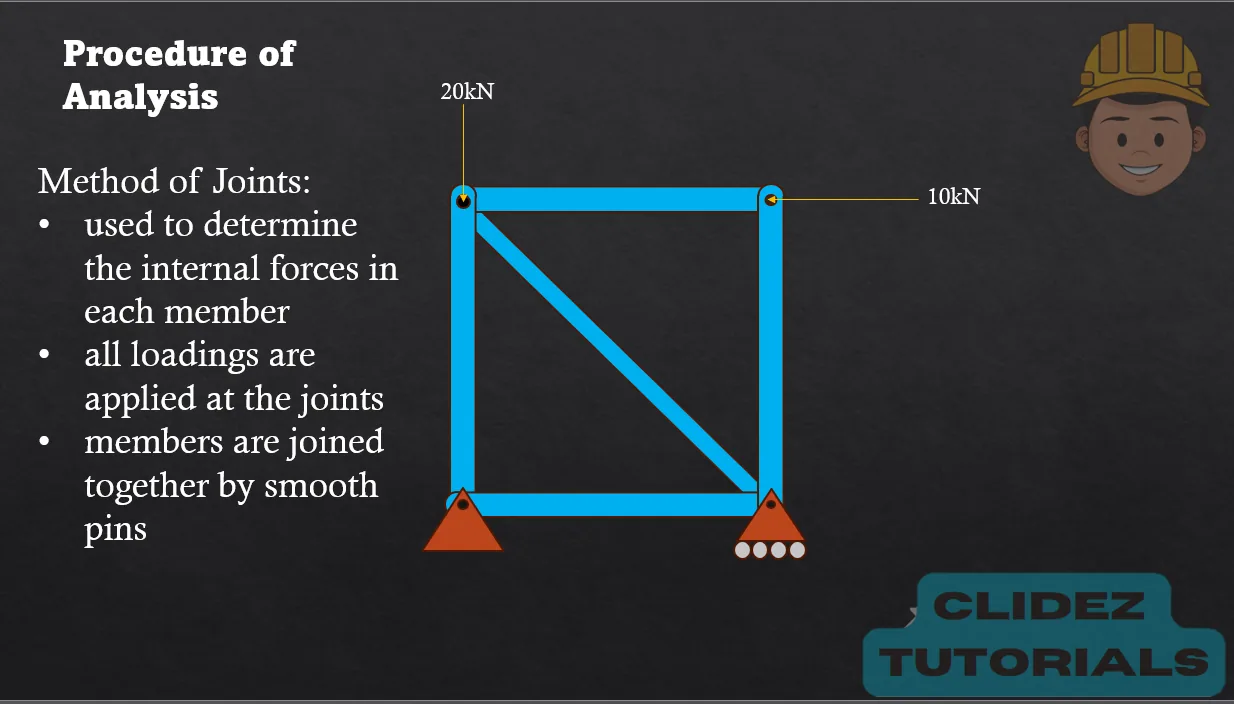

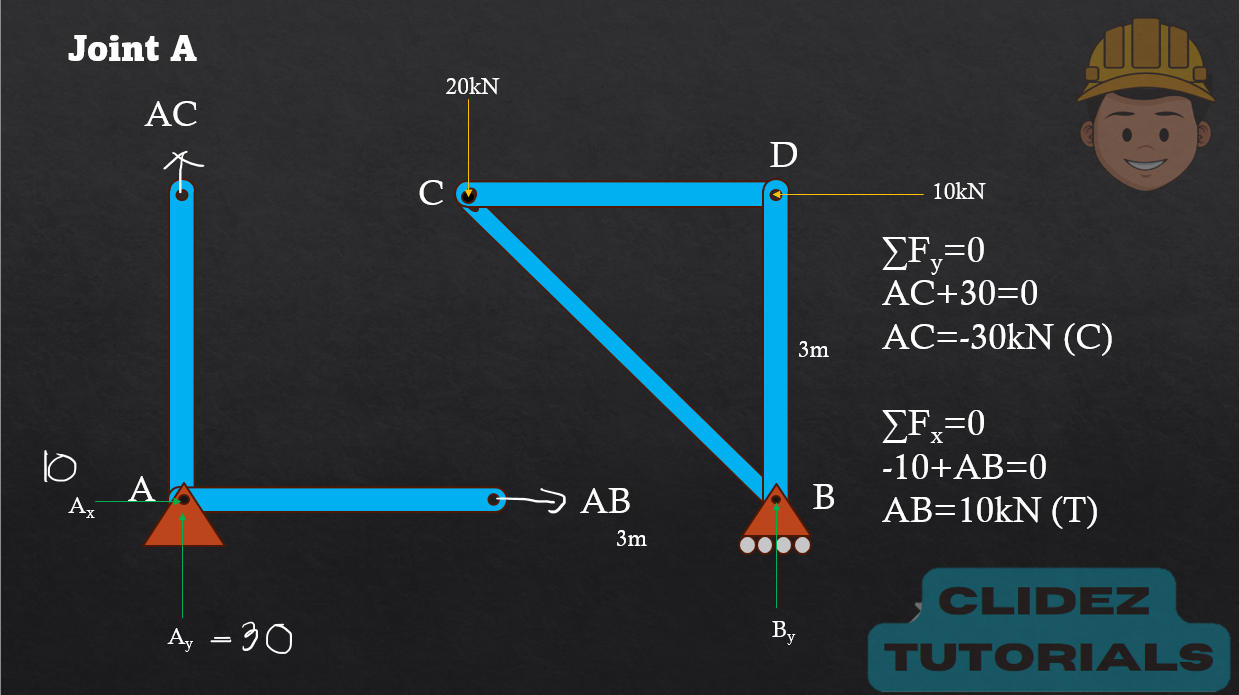

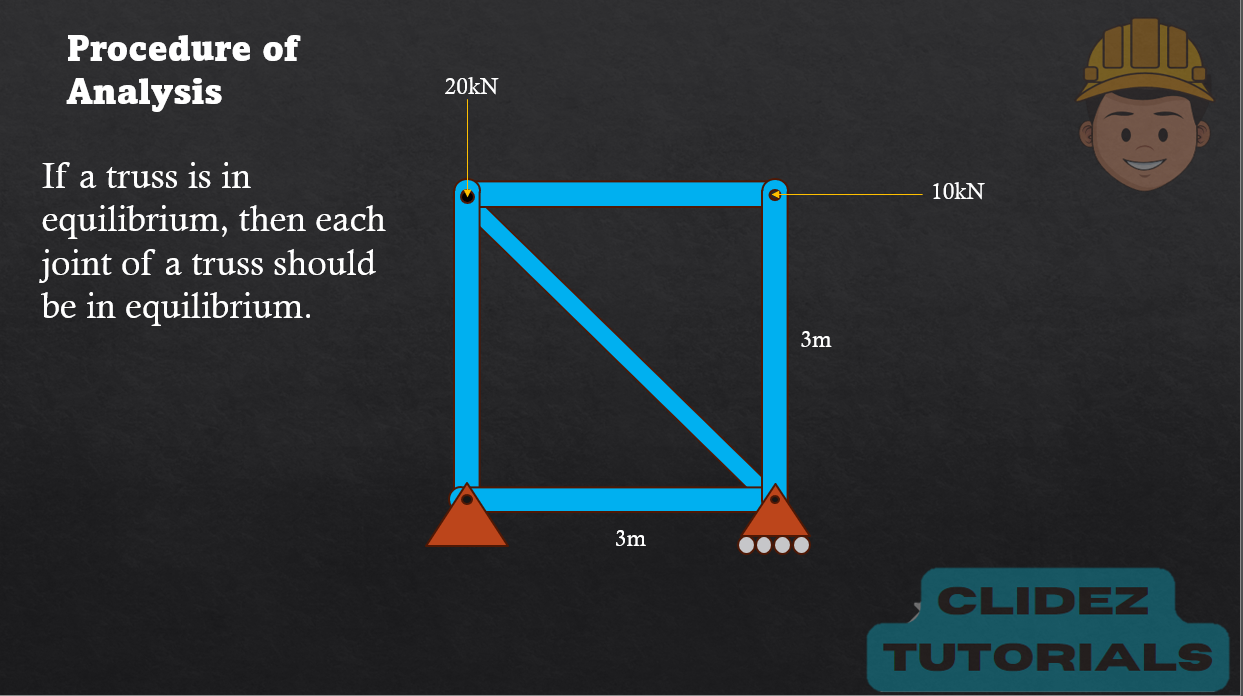

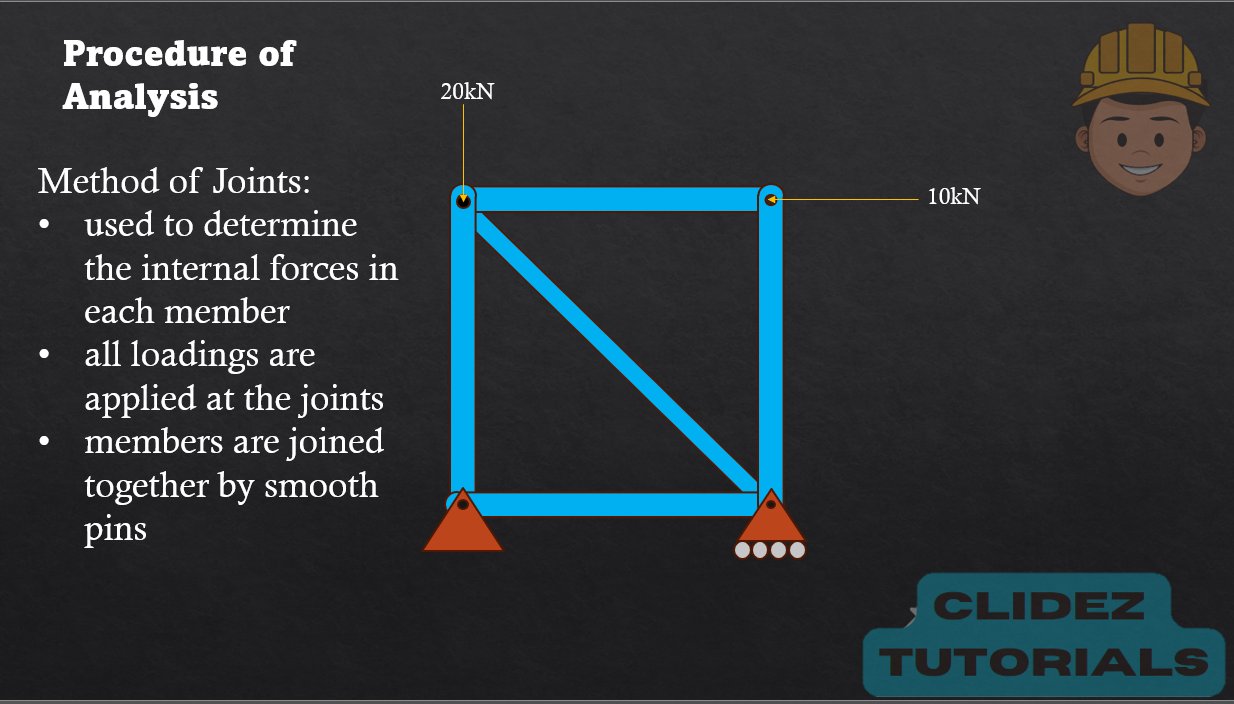

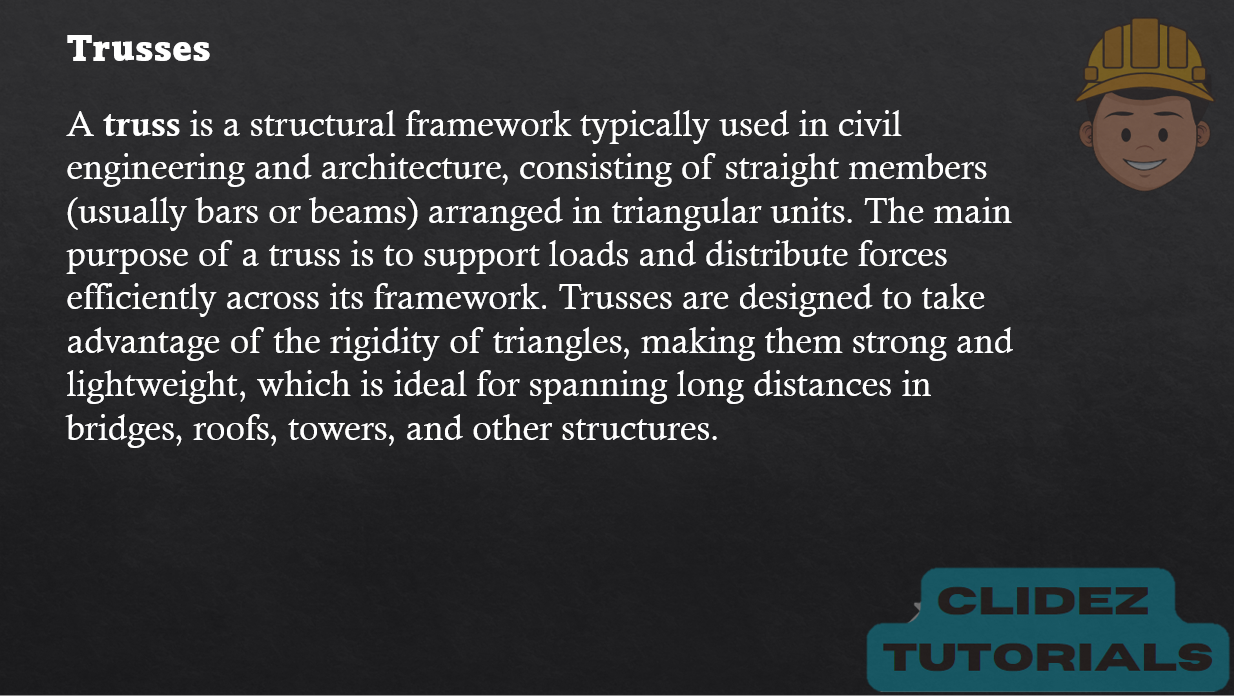

Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept

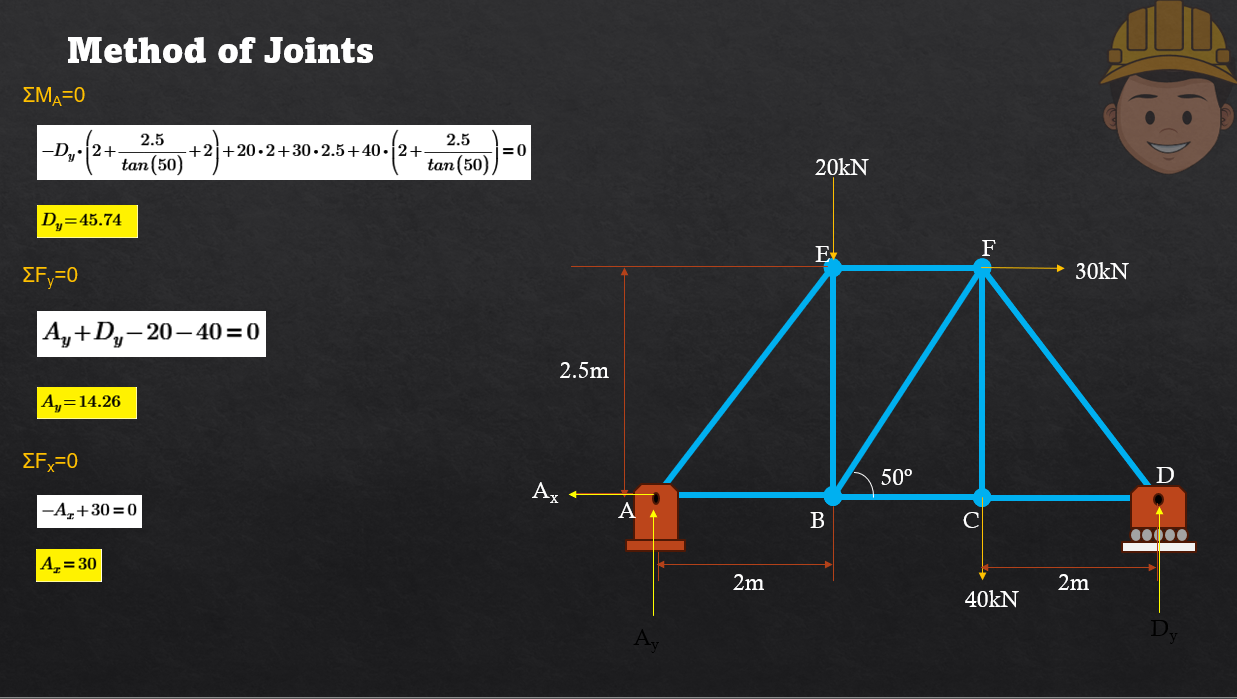

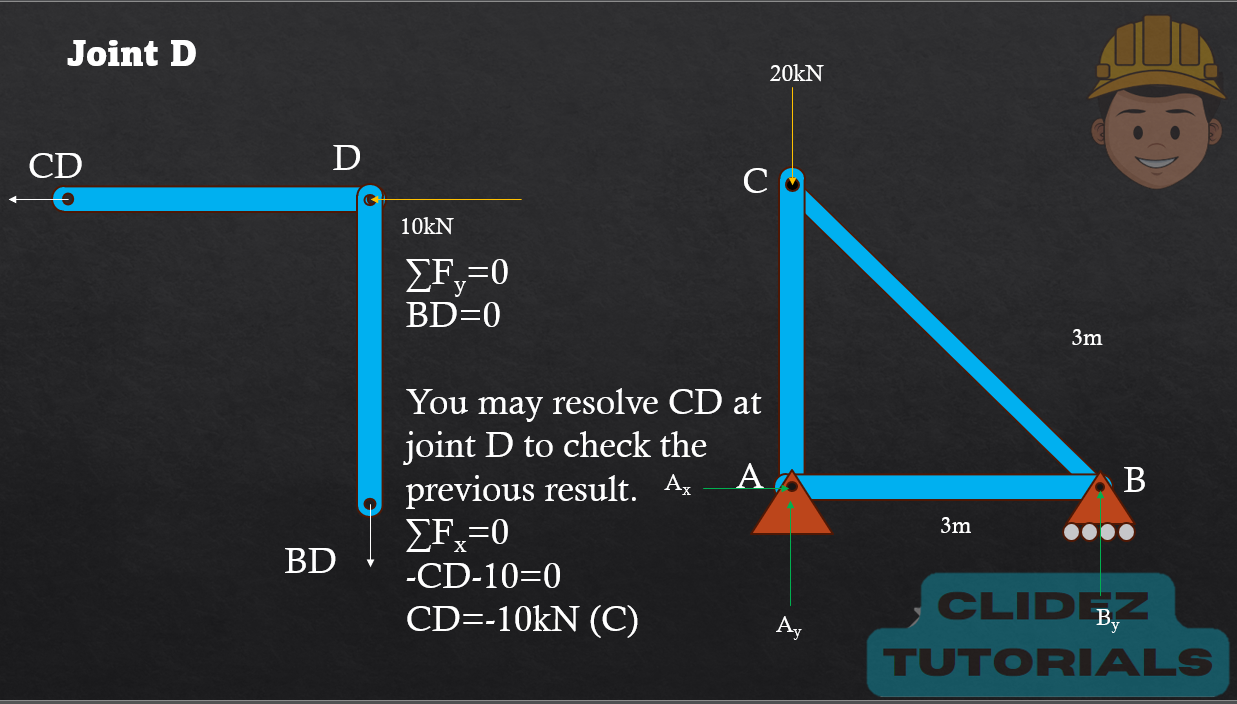

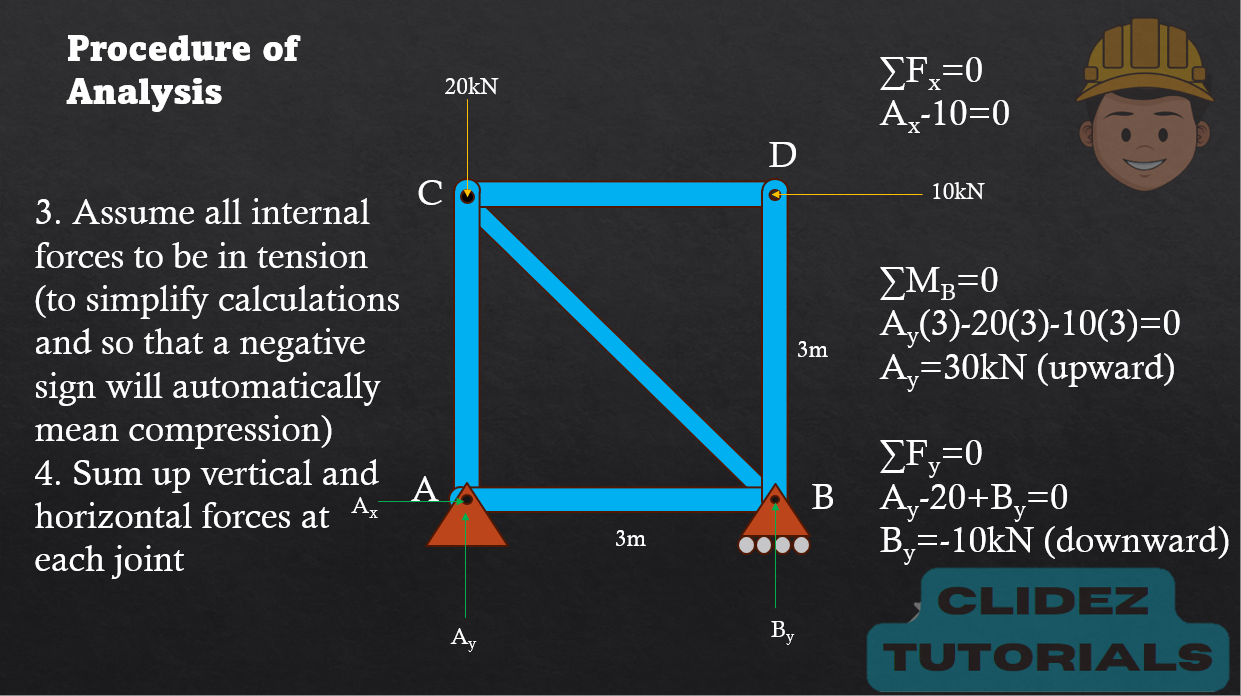

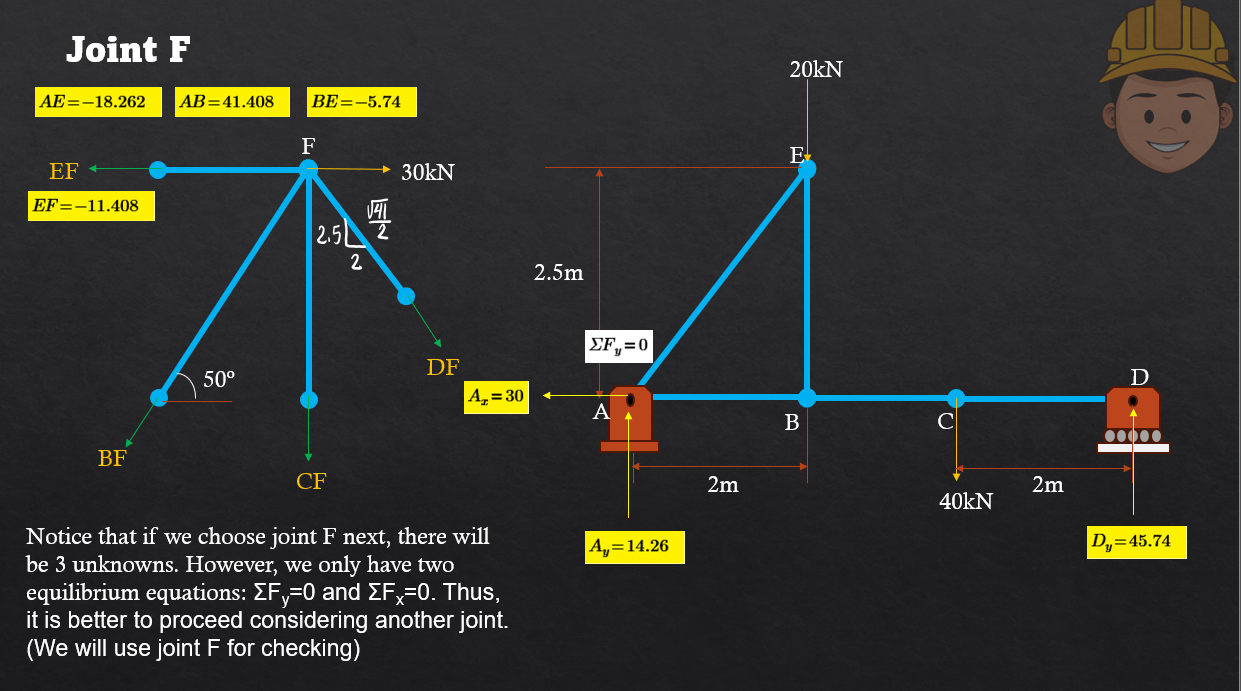

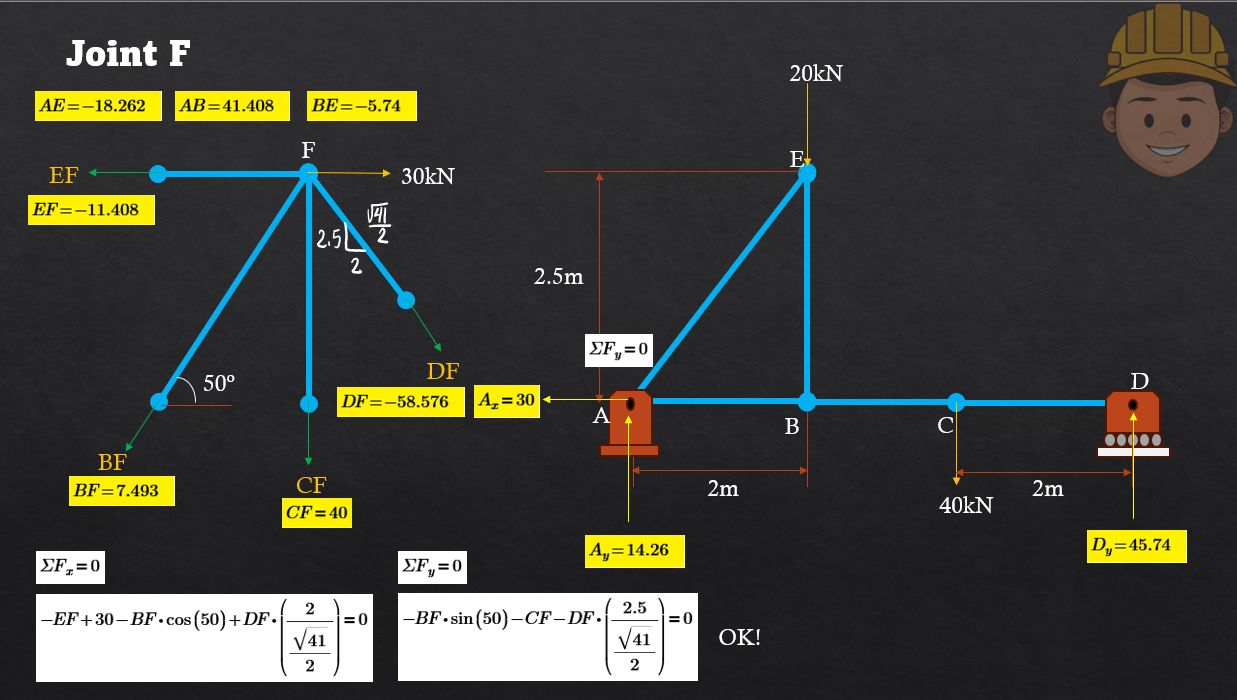

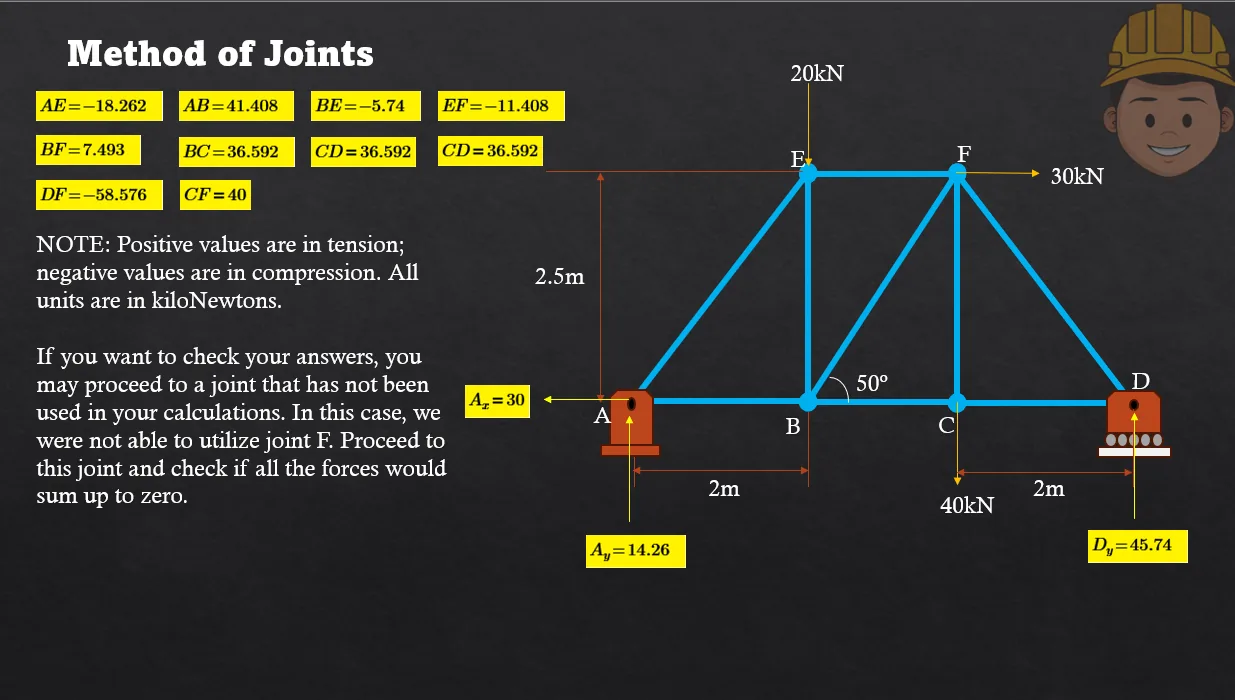

Problem 1:

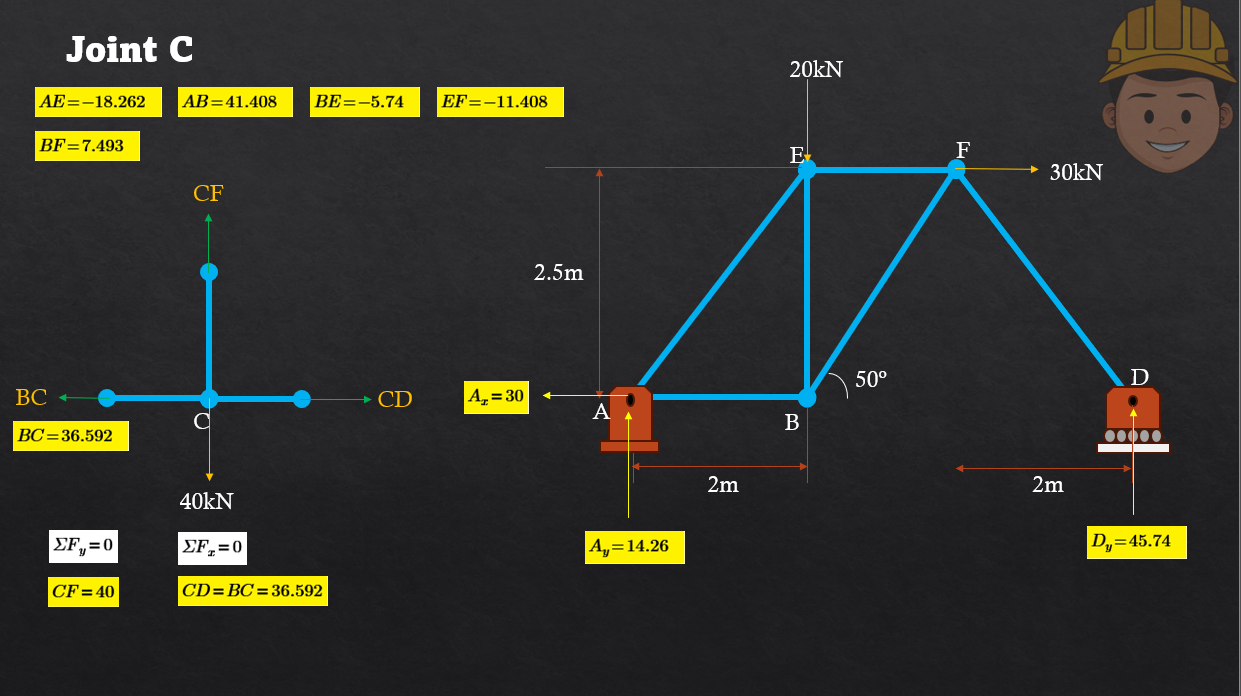

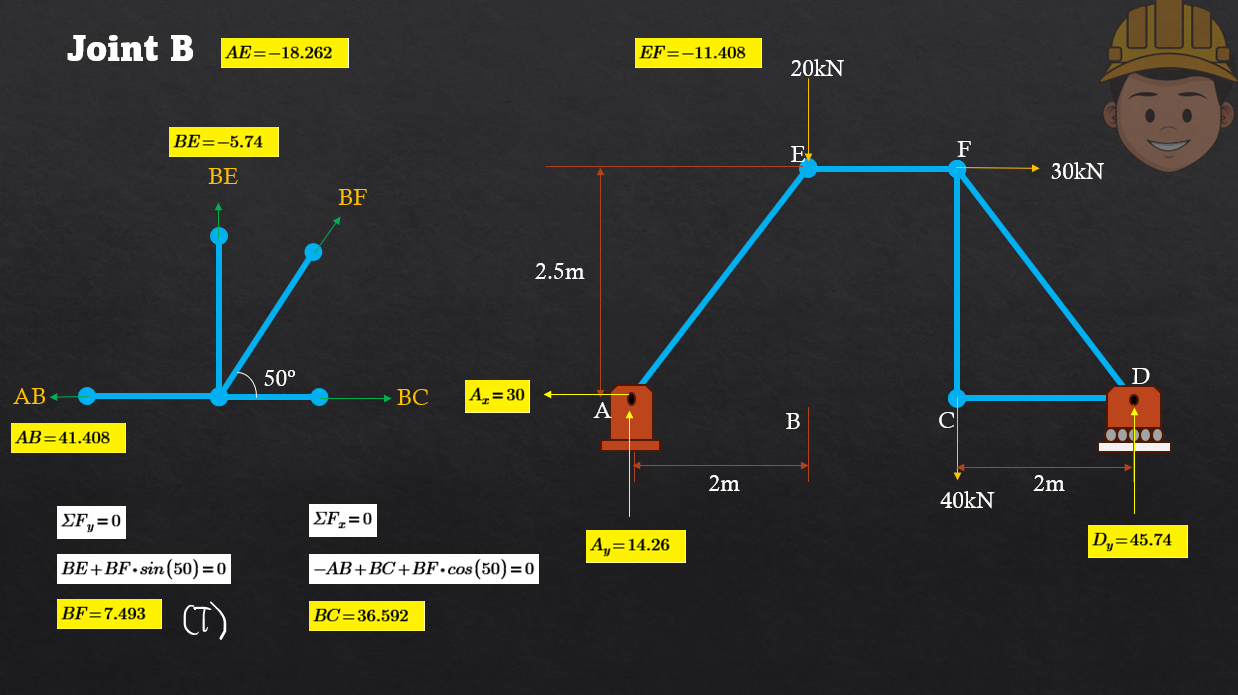

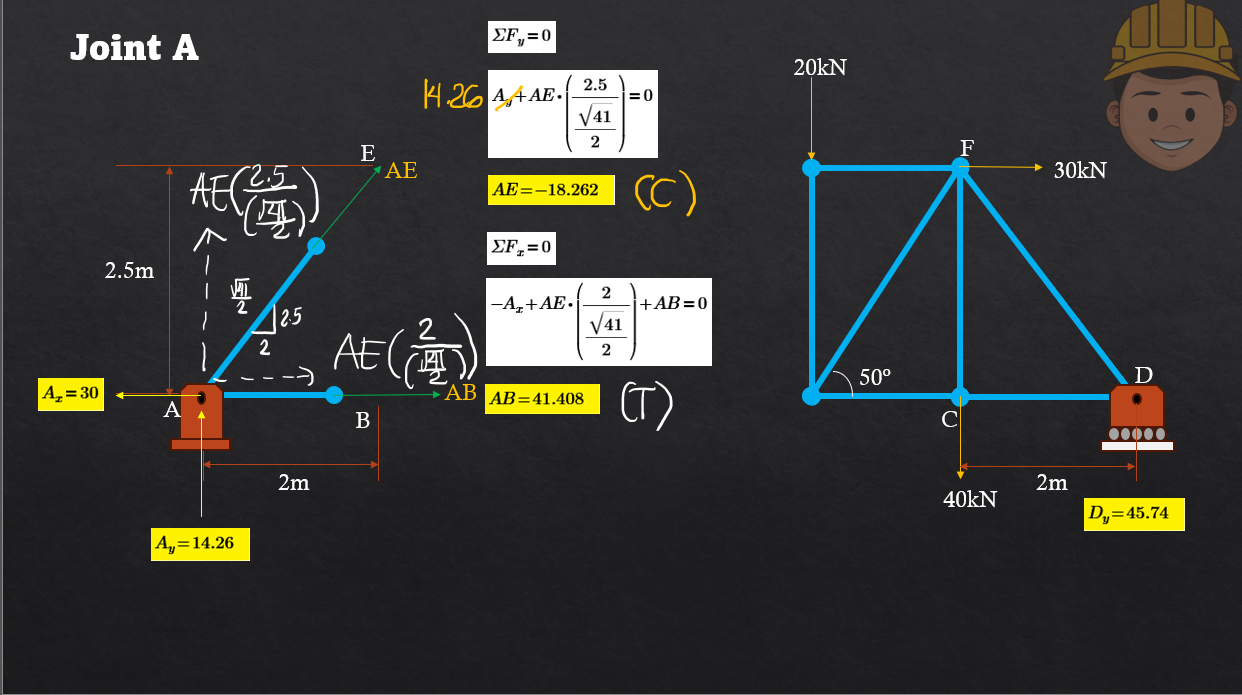

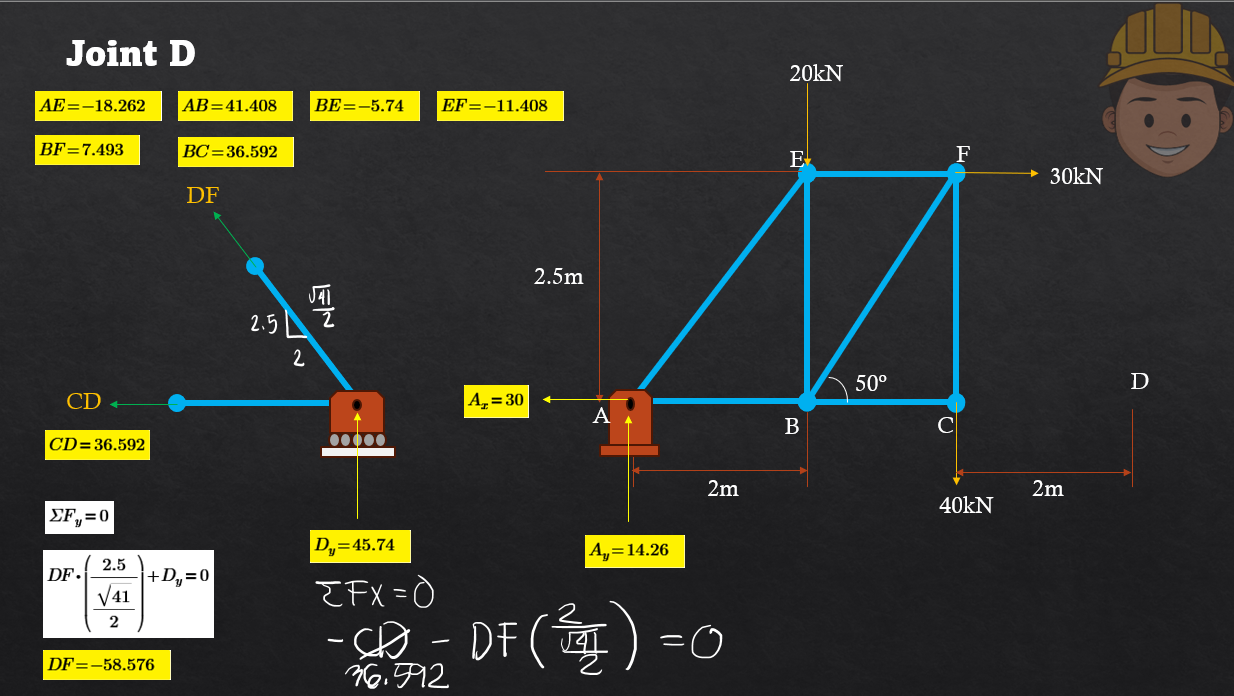

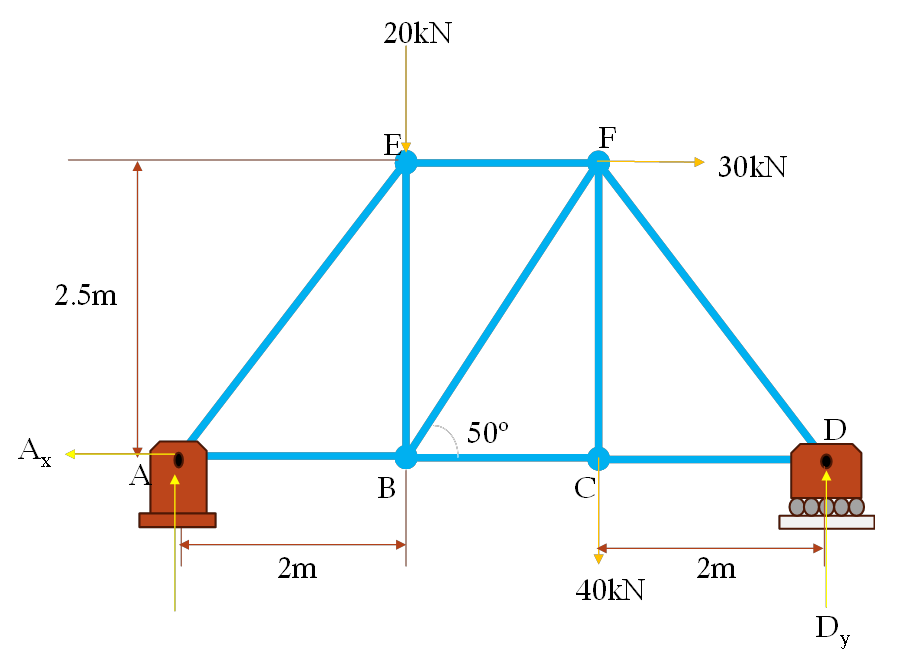

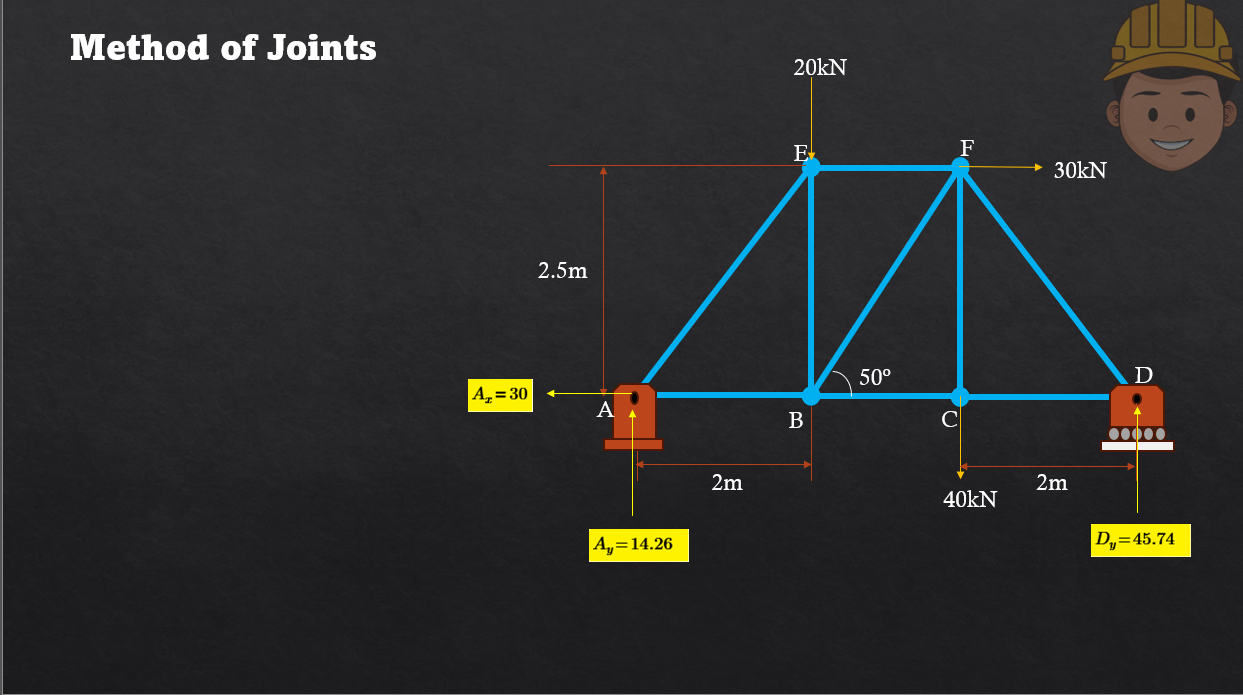

For the given truss, determine the forces in all members.

Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram

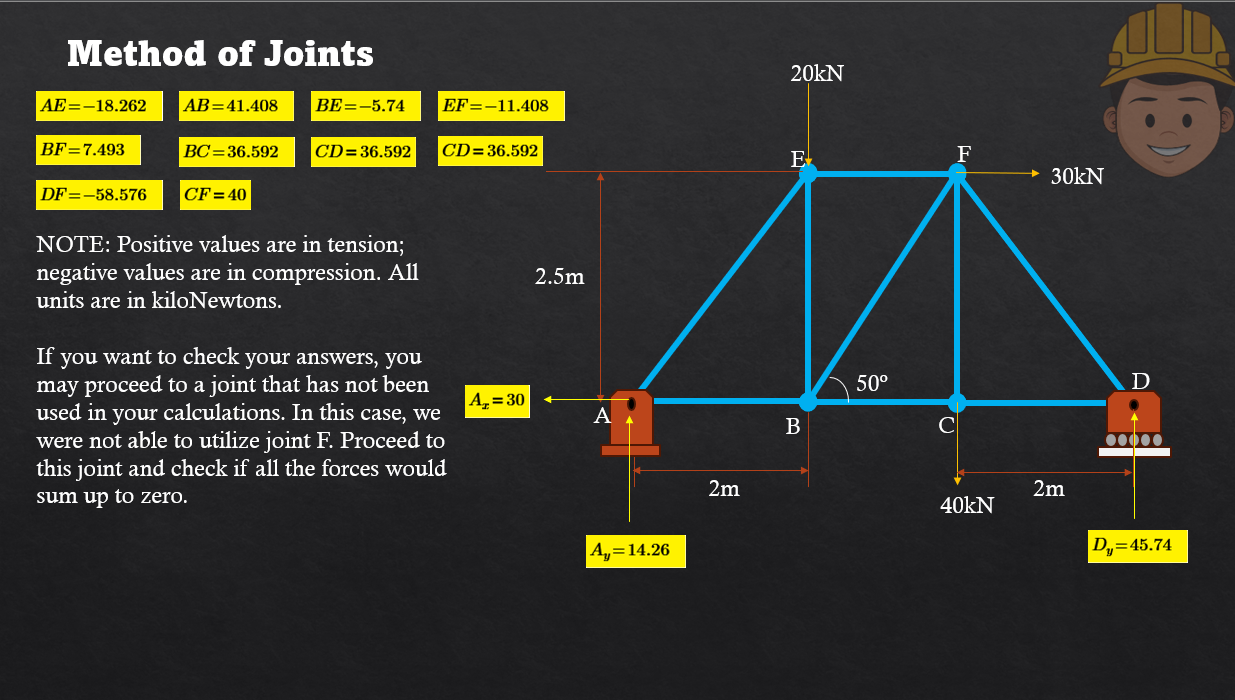

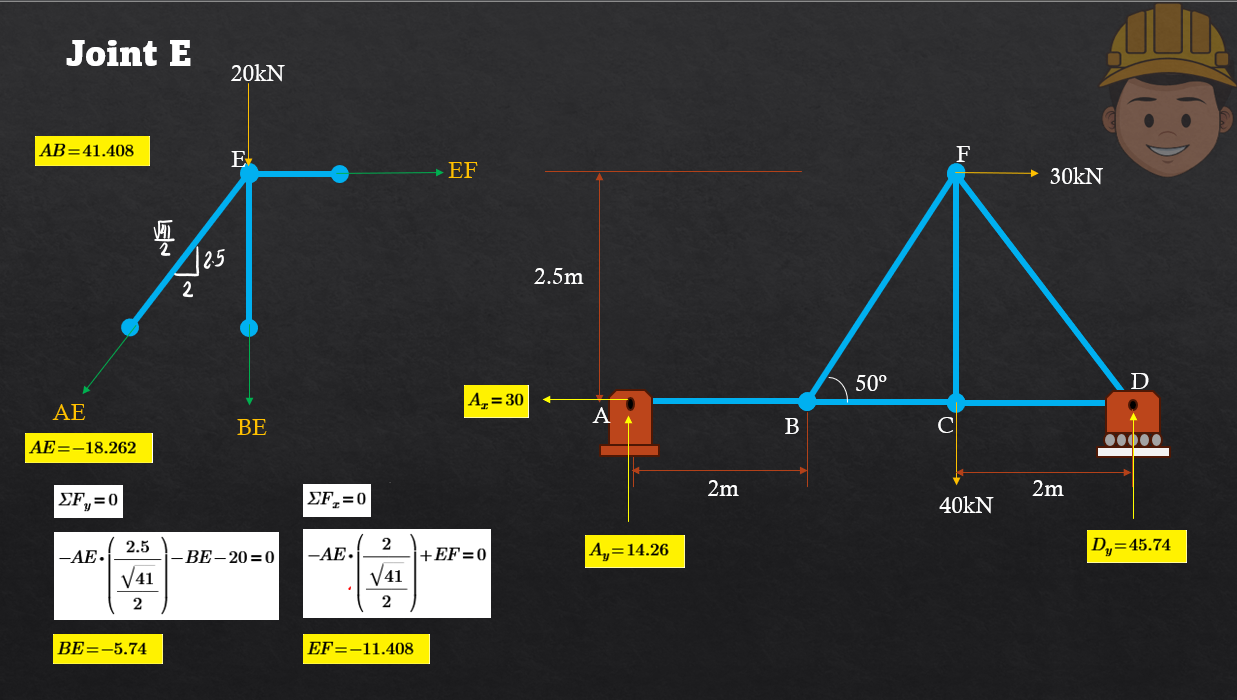

See images:

Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 1: – Diagram

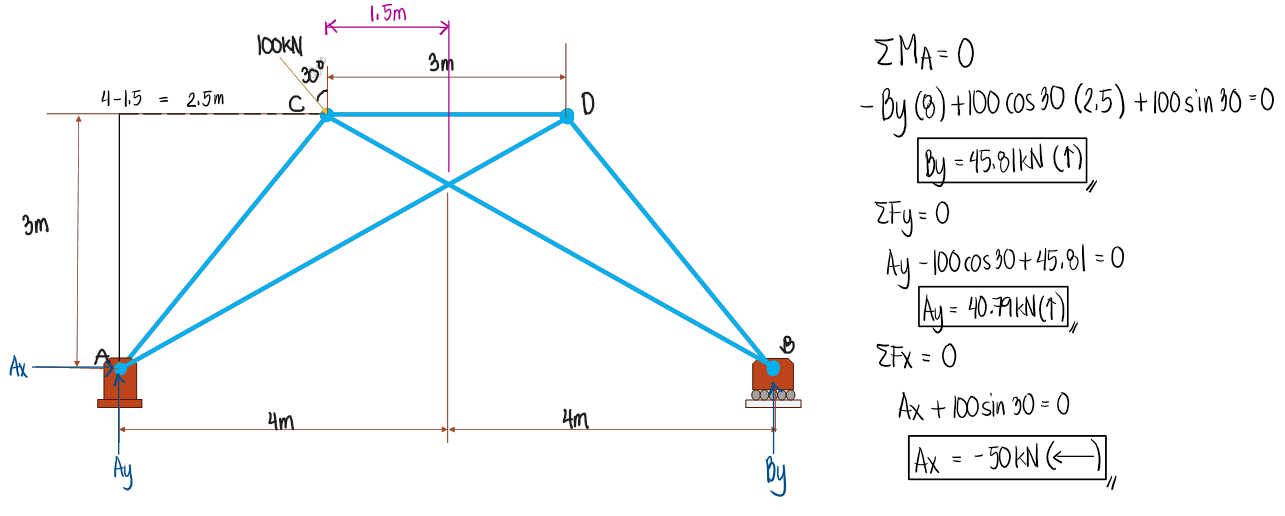

Problem 2:

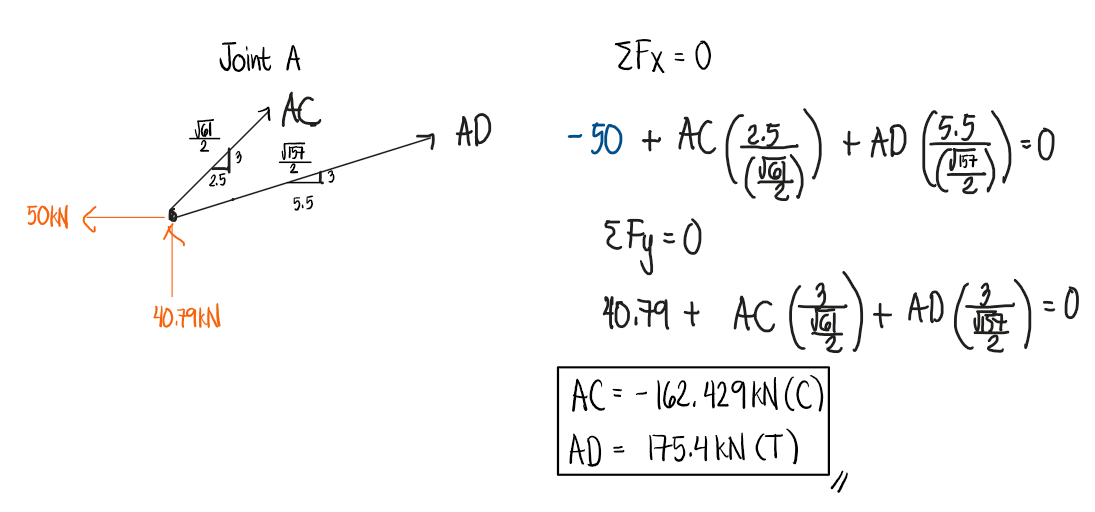

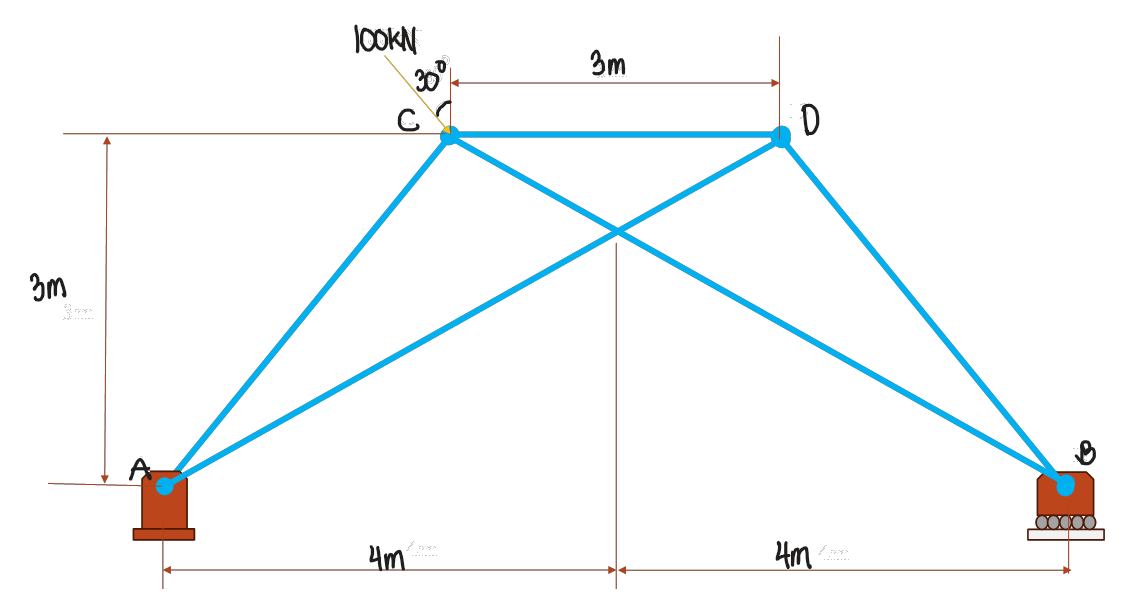

Refer to the image shown:

Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 2: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 2: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 2: – Diagram

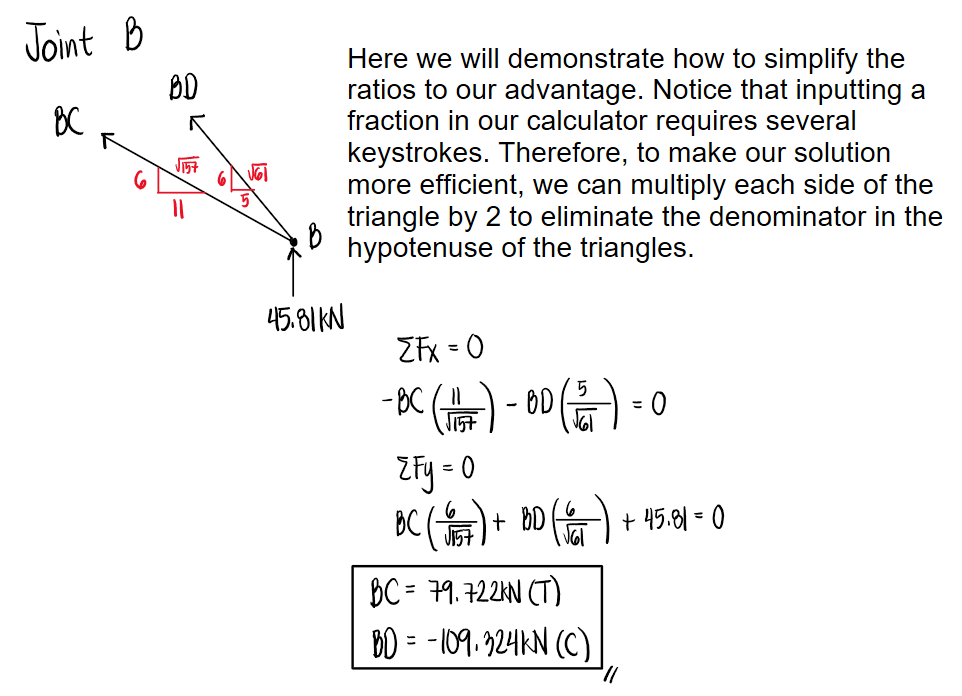

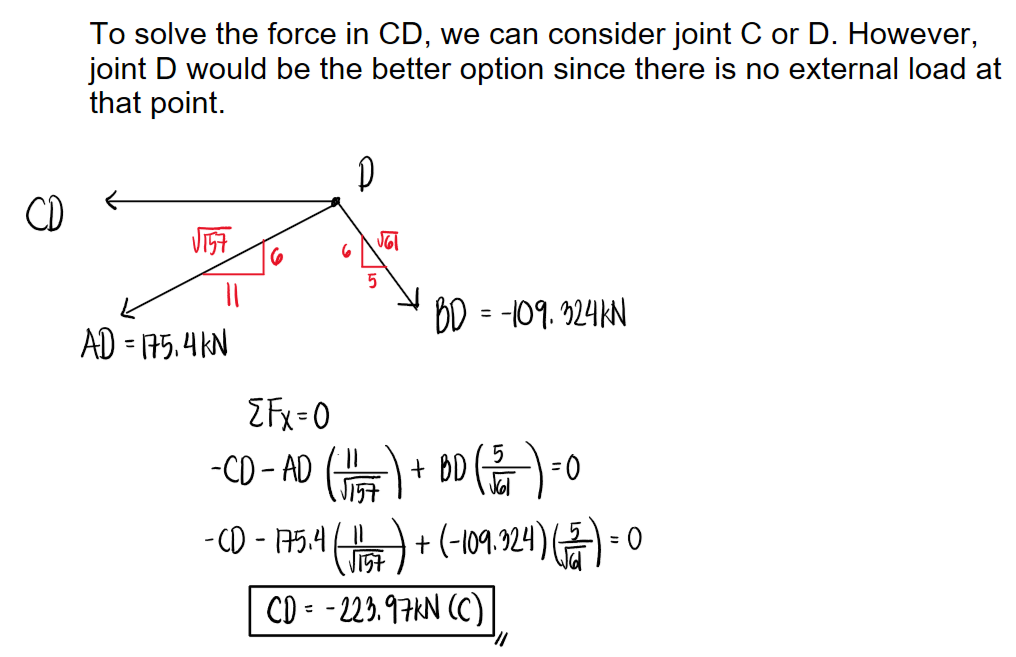

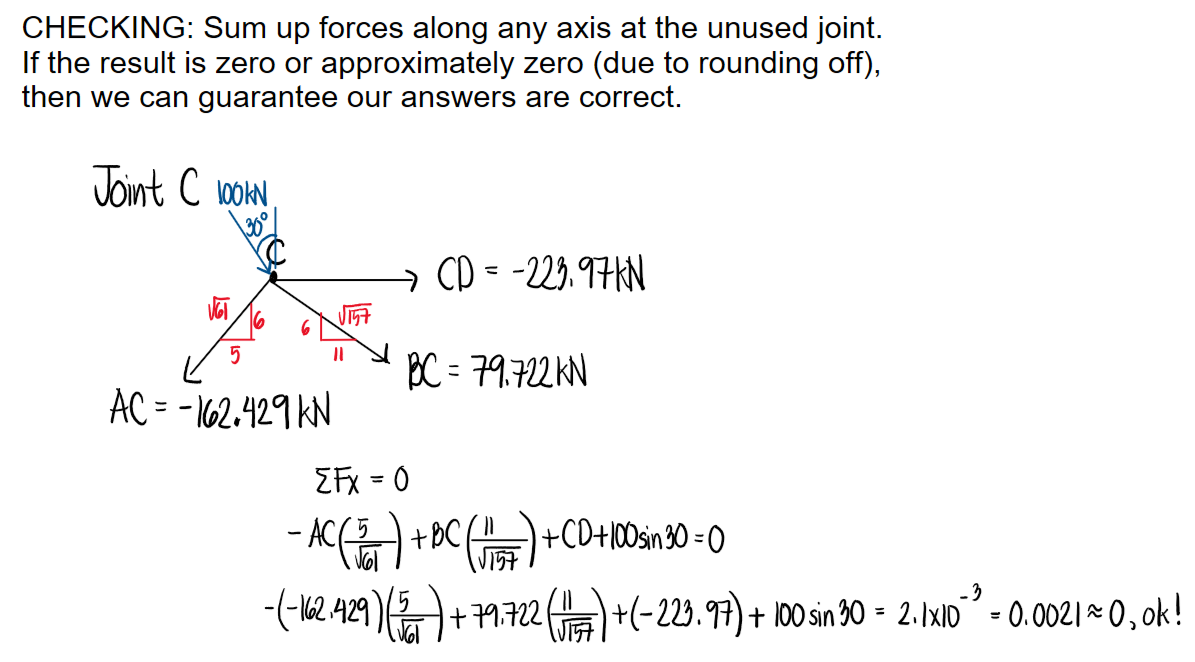

See images:

Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 2: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 2: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 2: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 2: – Diagram Analysis of Trusses: Method of Joints | Statics of Rigid Bodies – Problem 2: – Diagram
