Resultant of Parallel Force Systems

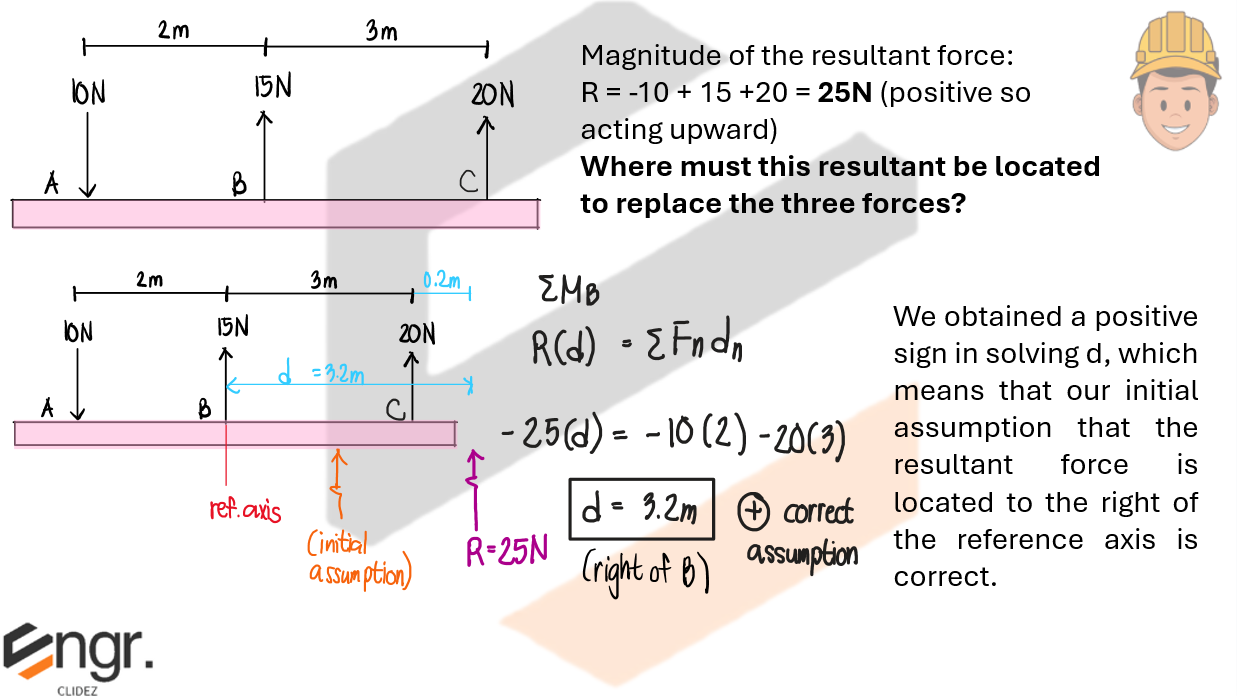

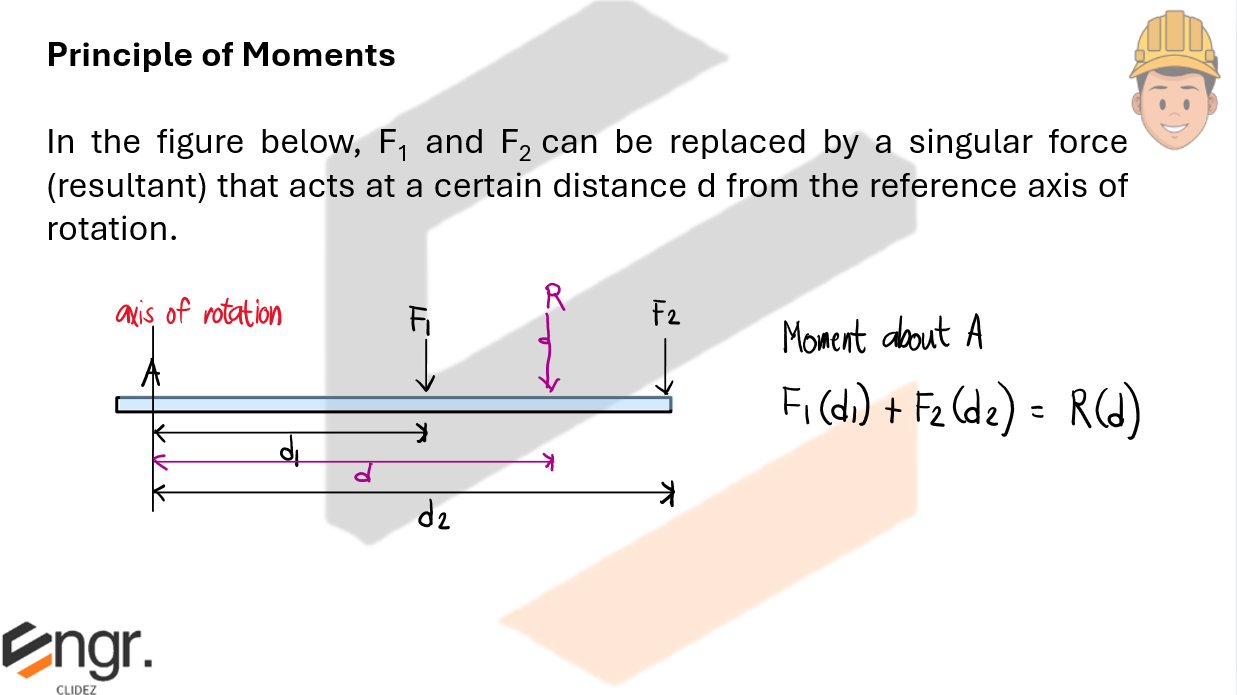

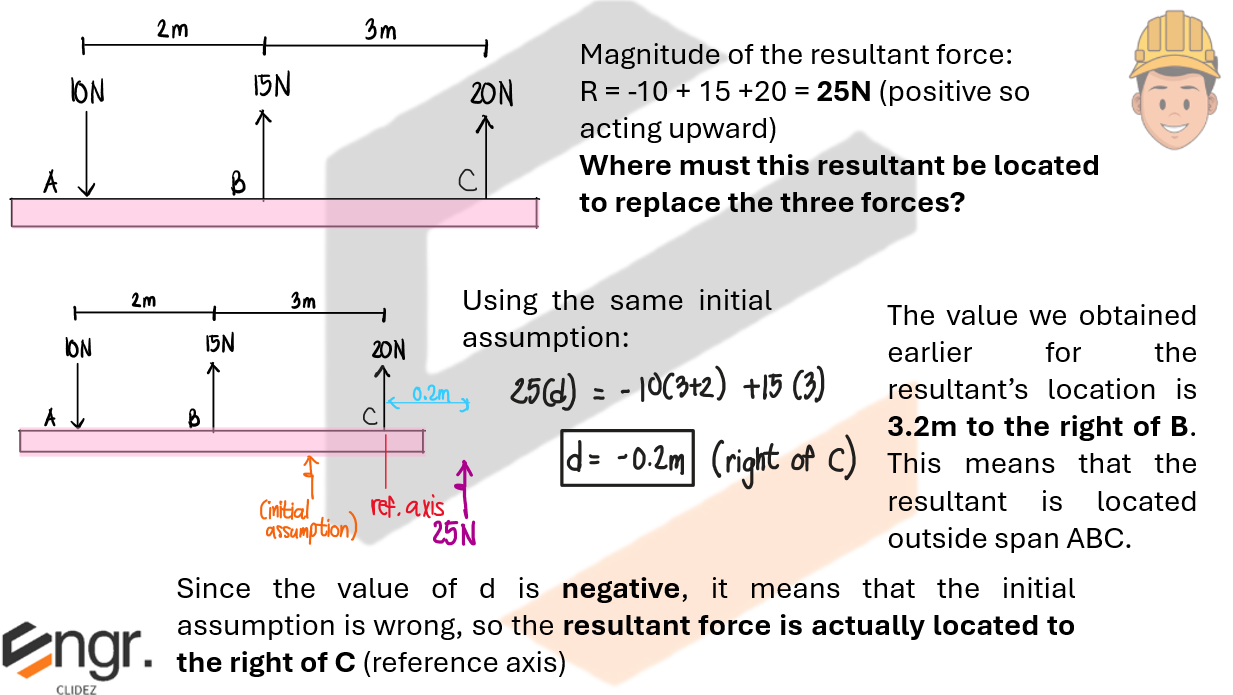

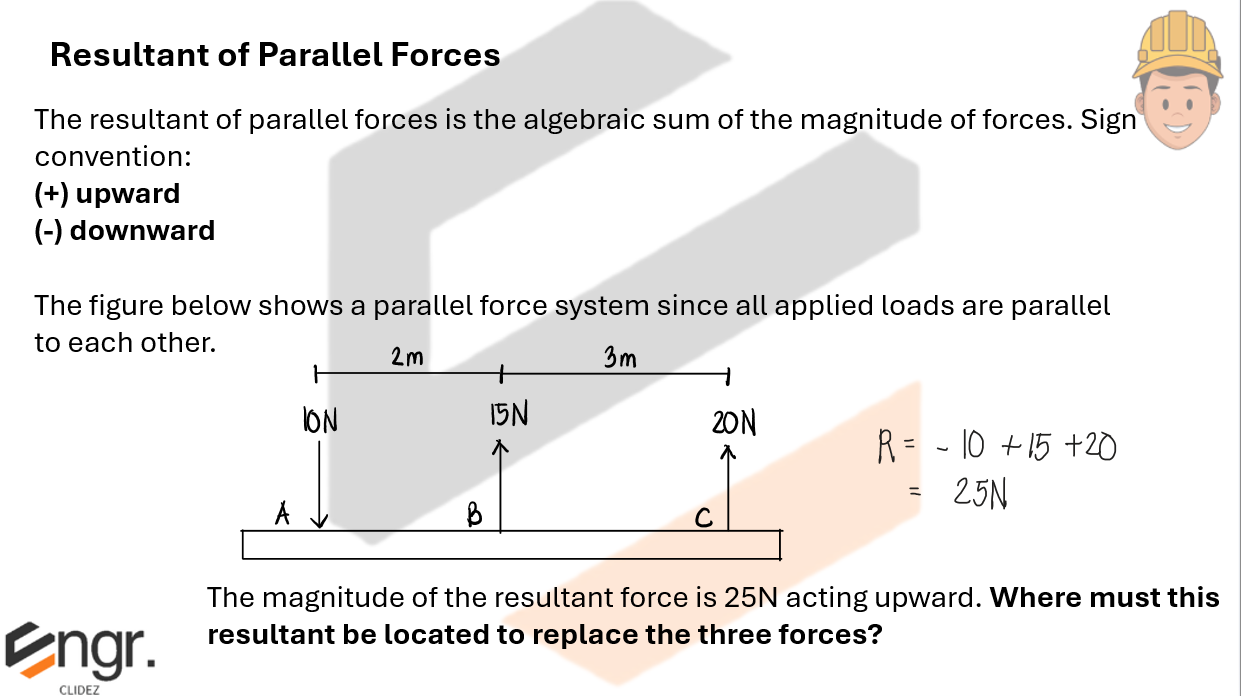

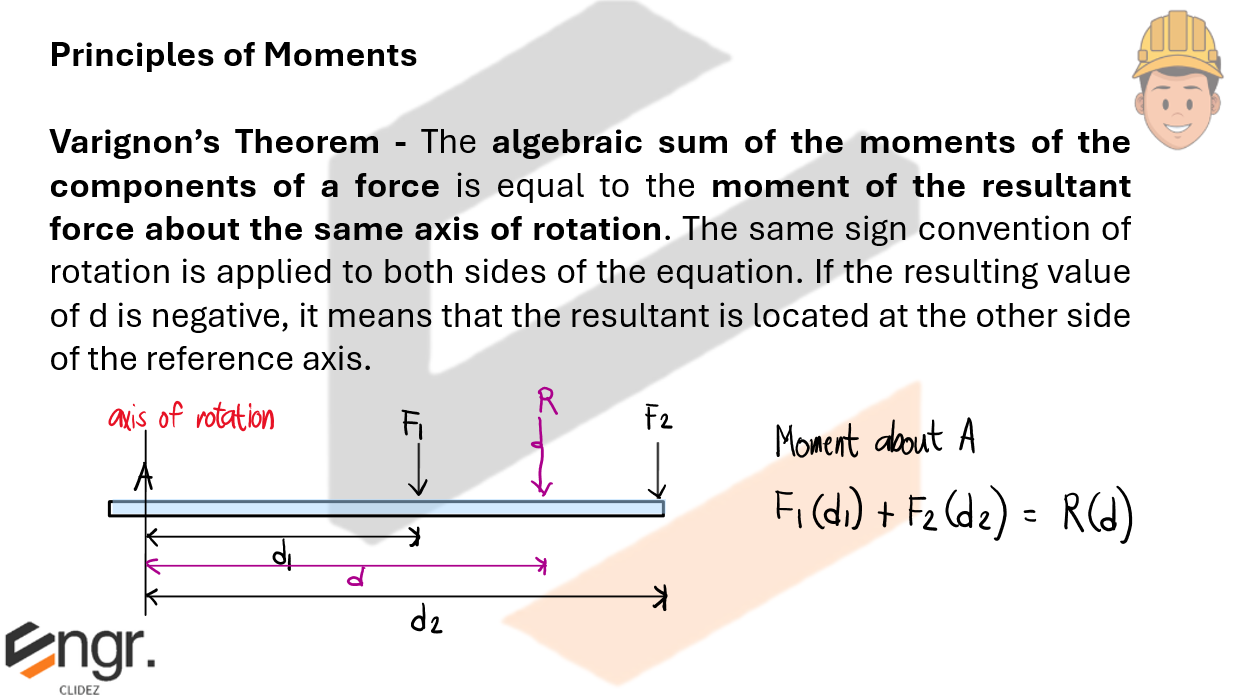

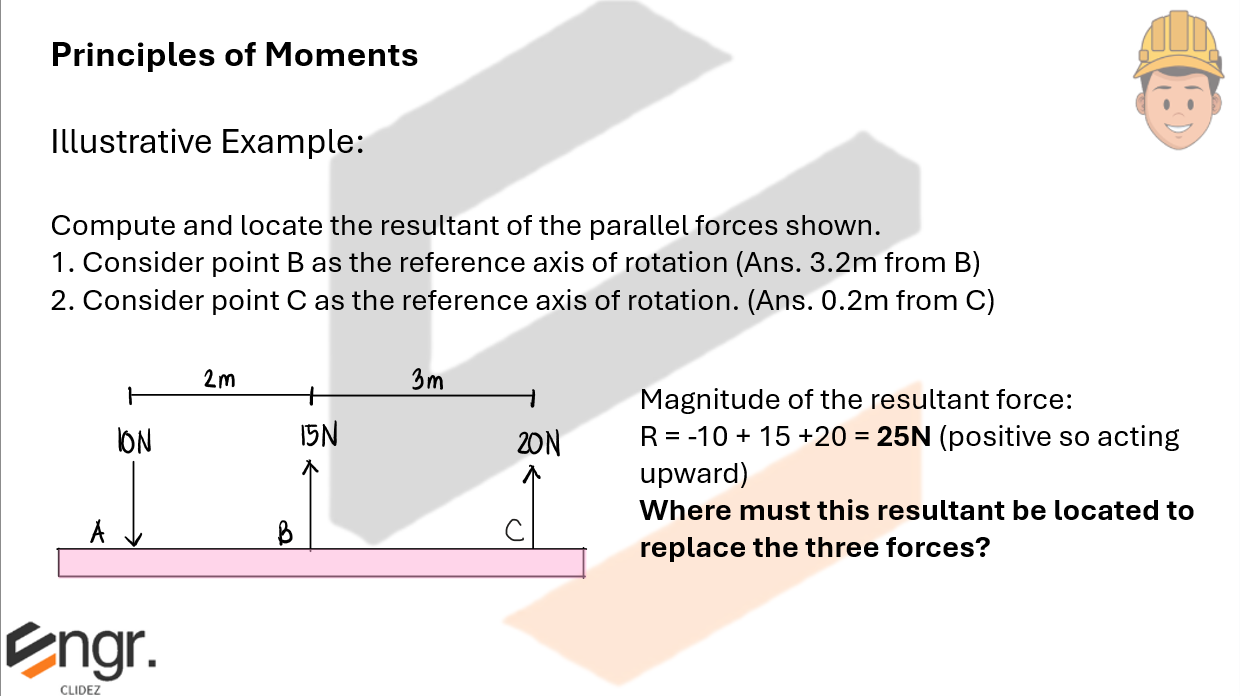

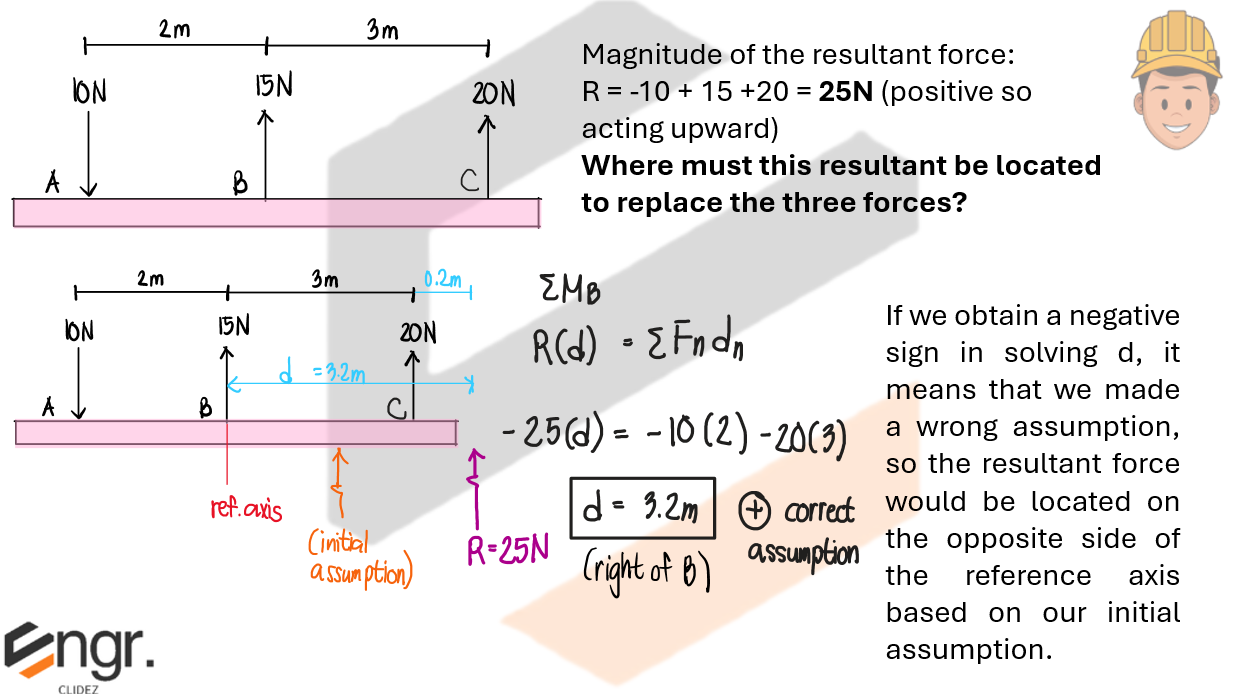

Concept Diagram 1 Concept Diagram 2 Concept Diagram 3 Concept Diagram 4 Concept Diagram 5 Concept Diagram 6 Concept Diagram 7 Concept Diagram 8 Concept Diagram 9

Problem 1: Parallel Forces along the x-axis

For the system shown:
a. Determine the resultant of the force system.
b. Determine the z-coordinate of the resultant force.
c. Determine the y-coordinate of the resultant force.

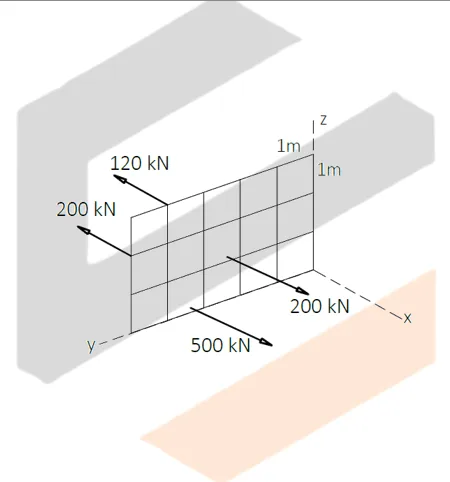

Resultant of Parallel Force Systems | Statics of Rigid Bodies – Problem 1: Parallel Forces along the x-axis – Diagram Resultant of Parallel Force Systems | Statics of Rigid Bodies – Problem 1: Parallel Forces along the x-axis – Diagram Resultant of Parallel Force Systems | Statics of Rigid Bodies – Problem 1: Parallel Forces along the x-axis – Diagram
