Frames

Concept Concept

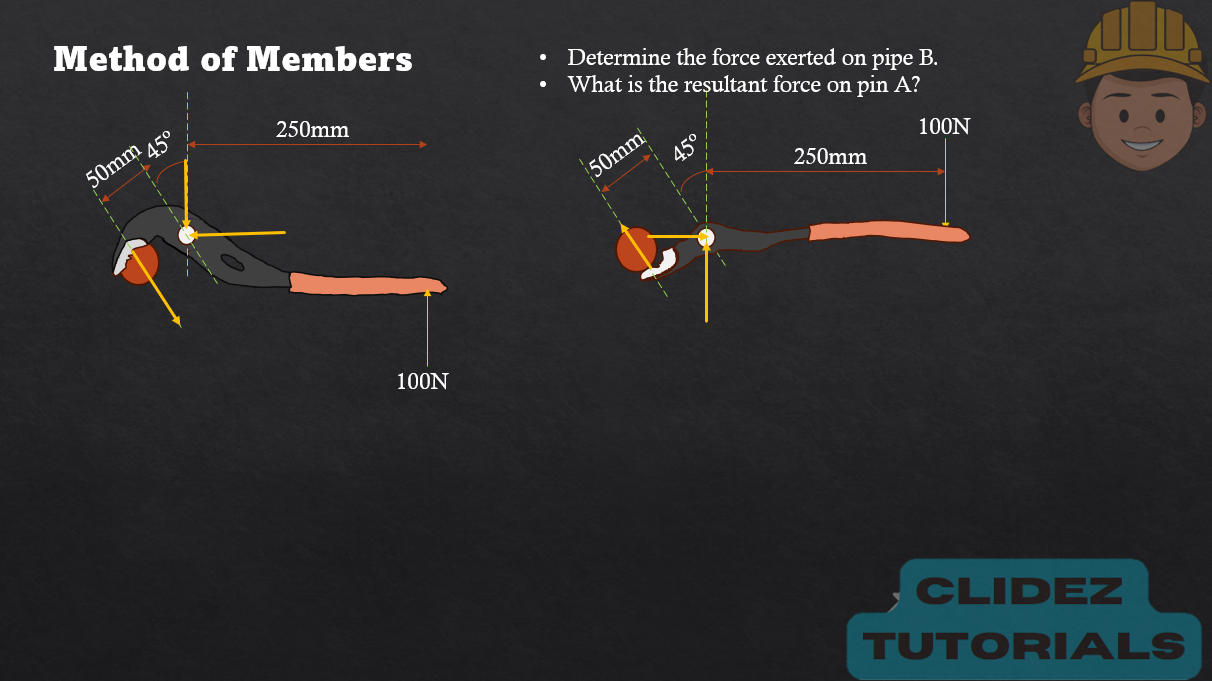

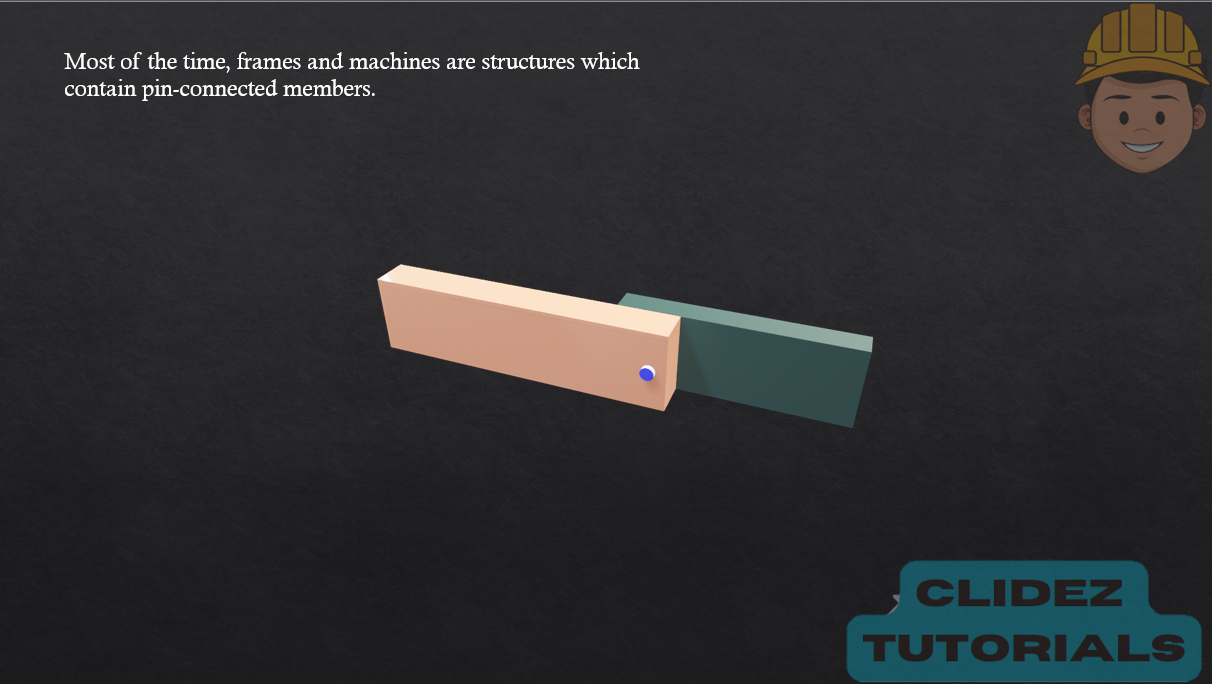

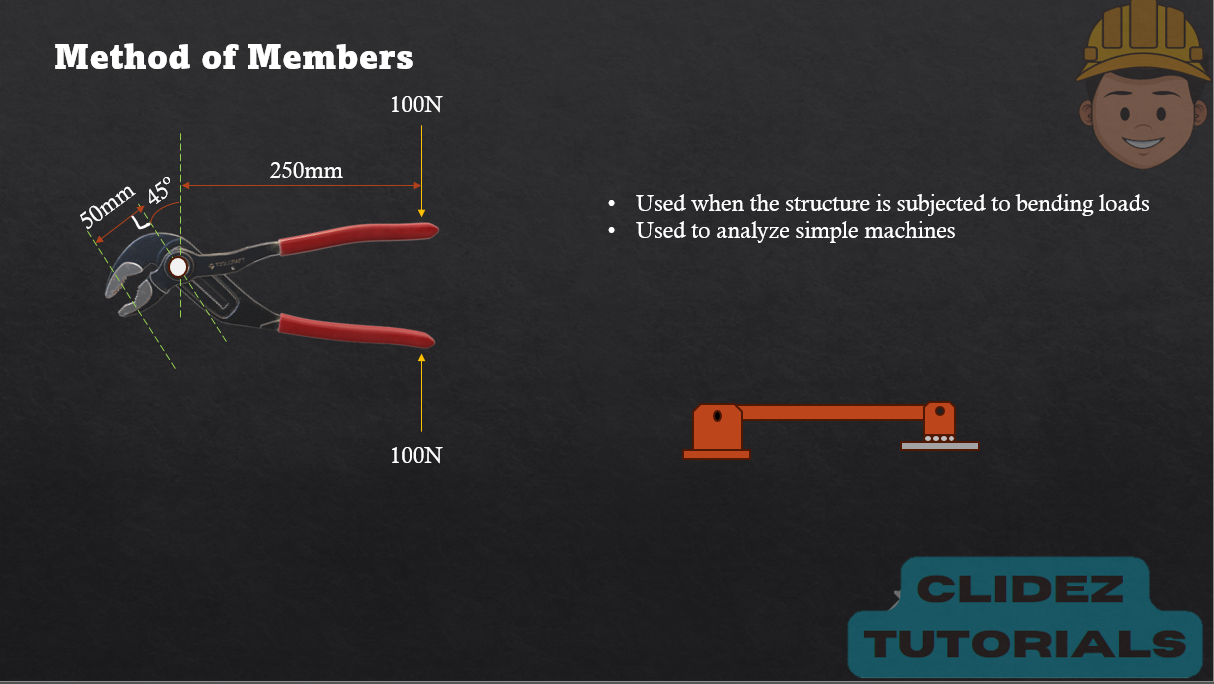

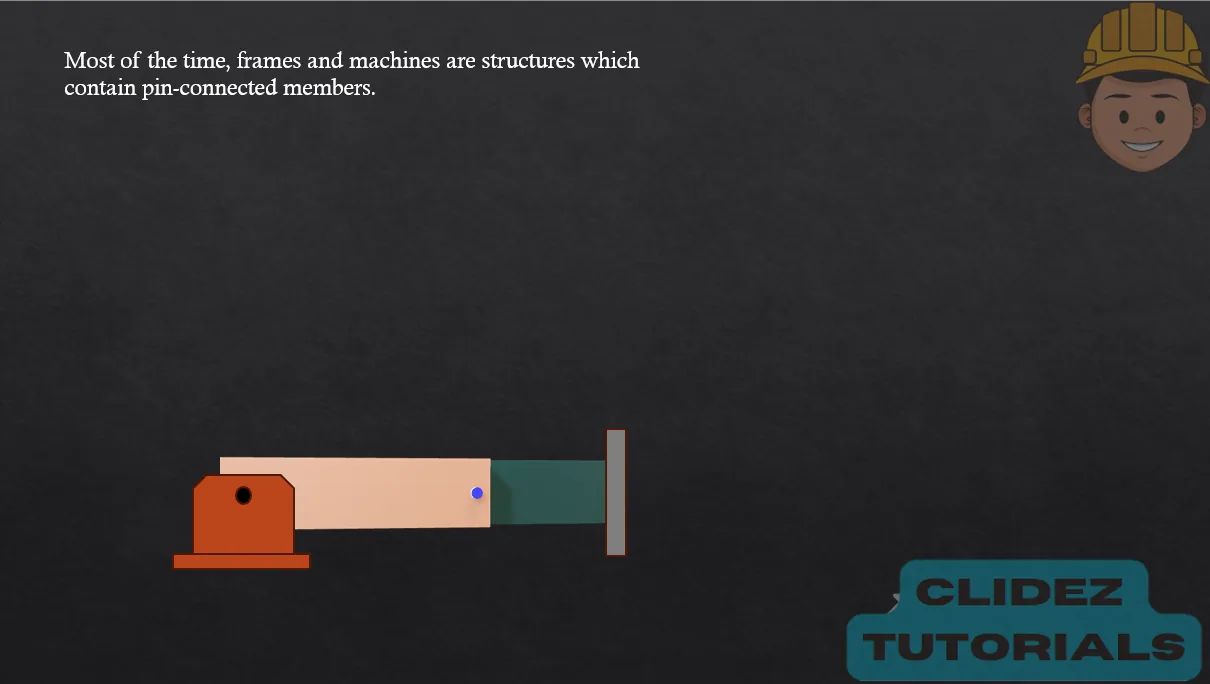

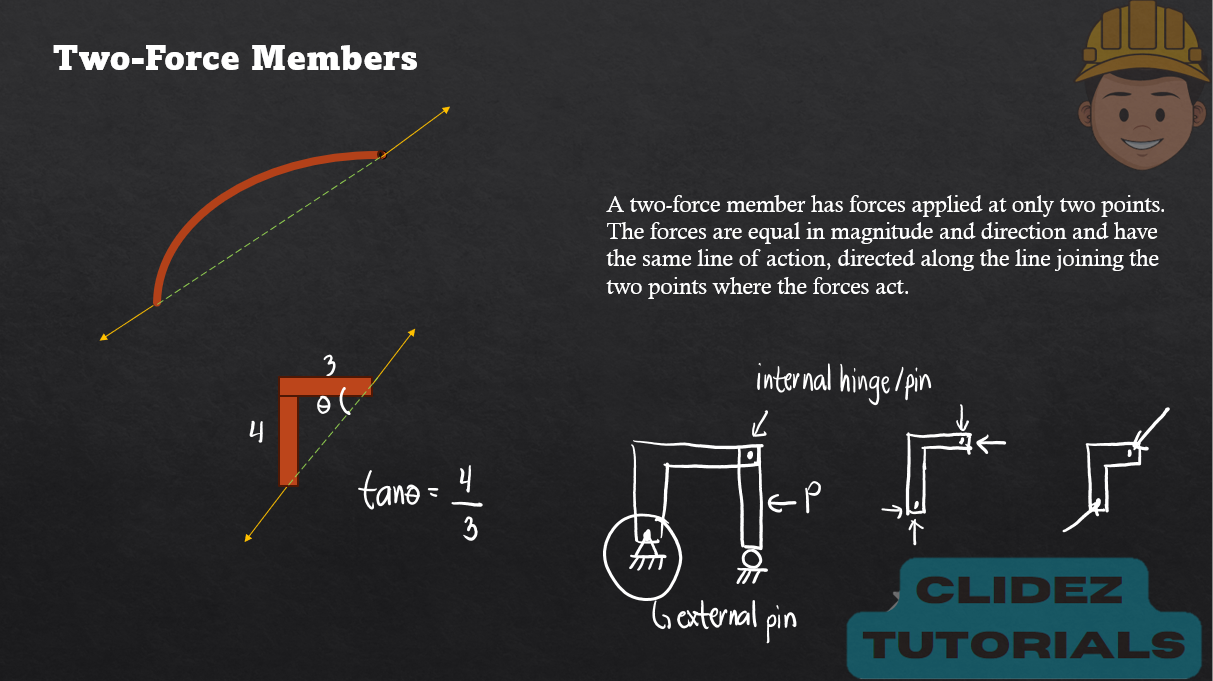

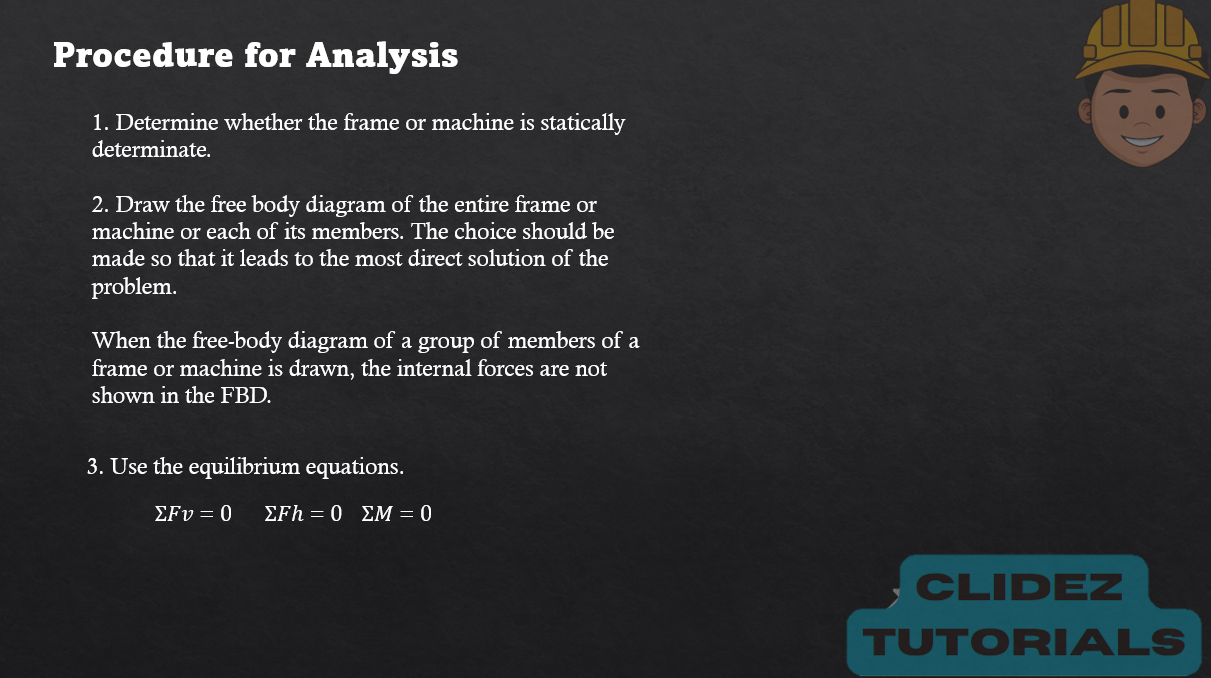

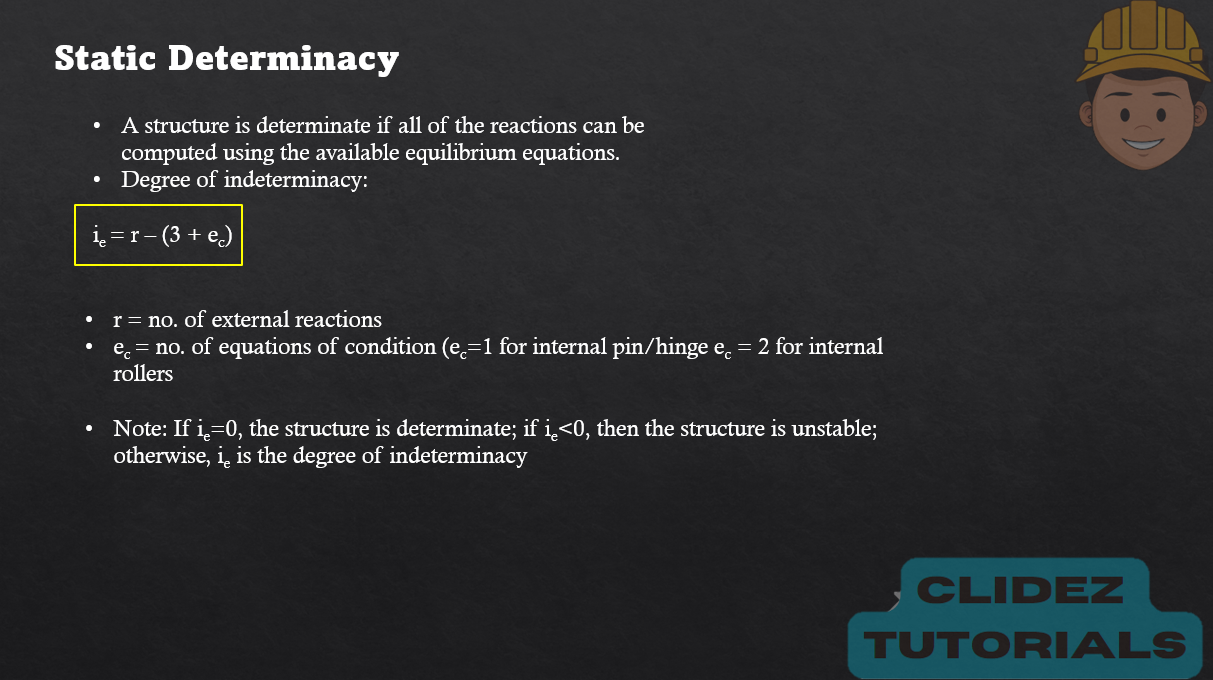

Frames and machines like pliers and wrenches use pin connections to create mechanical advantage—they allow a small applied force at one point to produce a much larger force at another. This is especially helpful when we need to exert forces that would be difficult or impossible with our bare hands, such as tightening bolts or gripping pipes. The pin joints act as pivots, allowing different members of the frame to rotate and transfer forces efficiently.

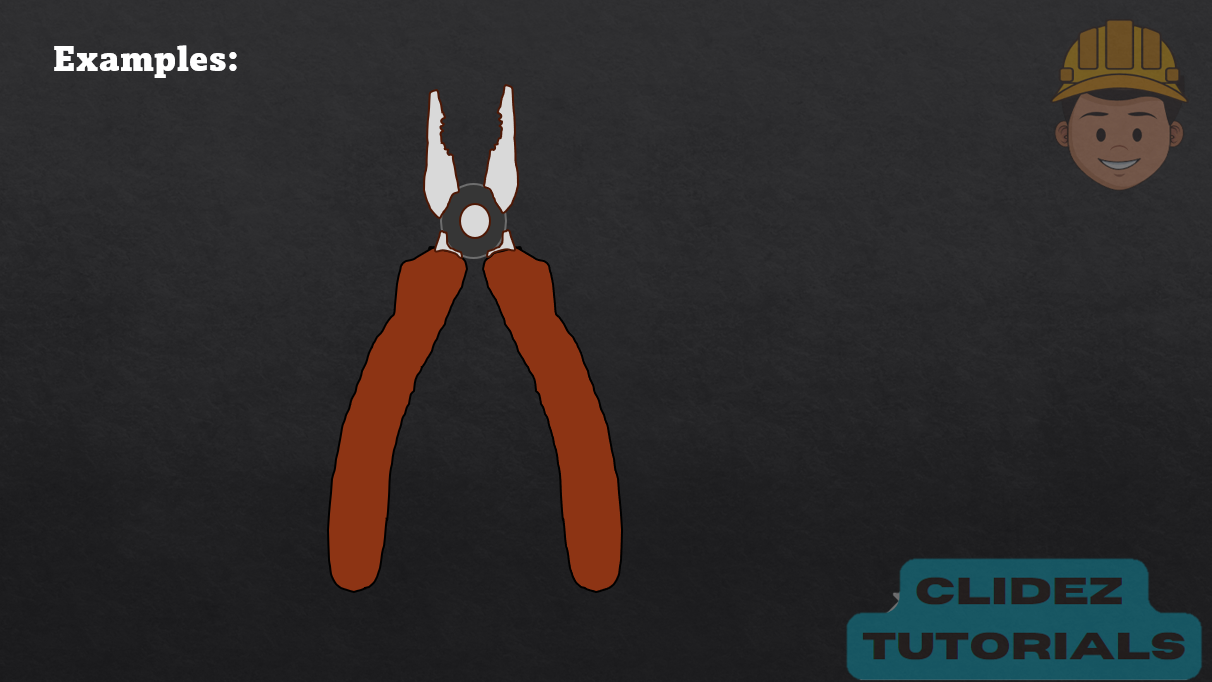

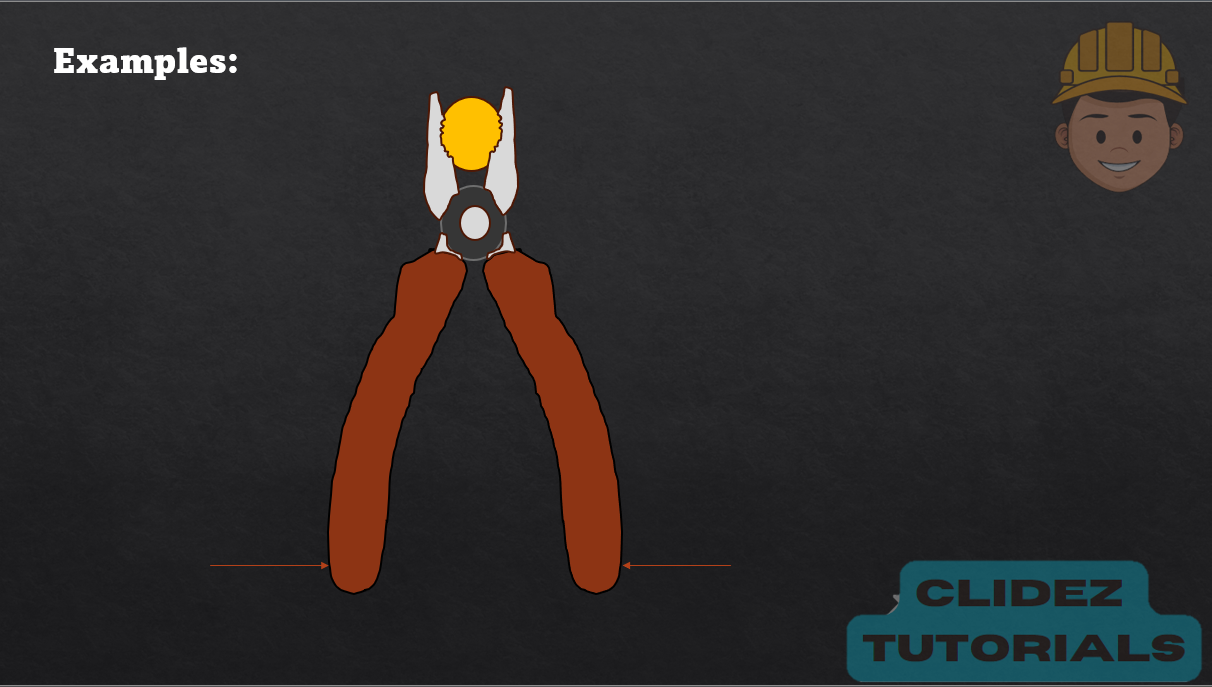

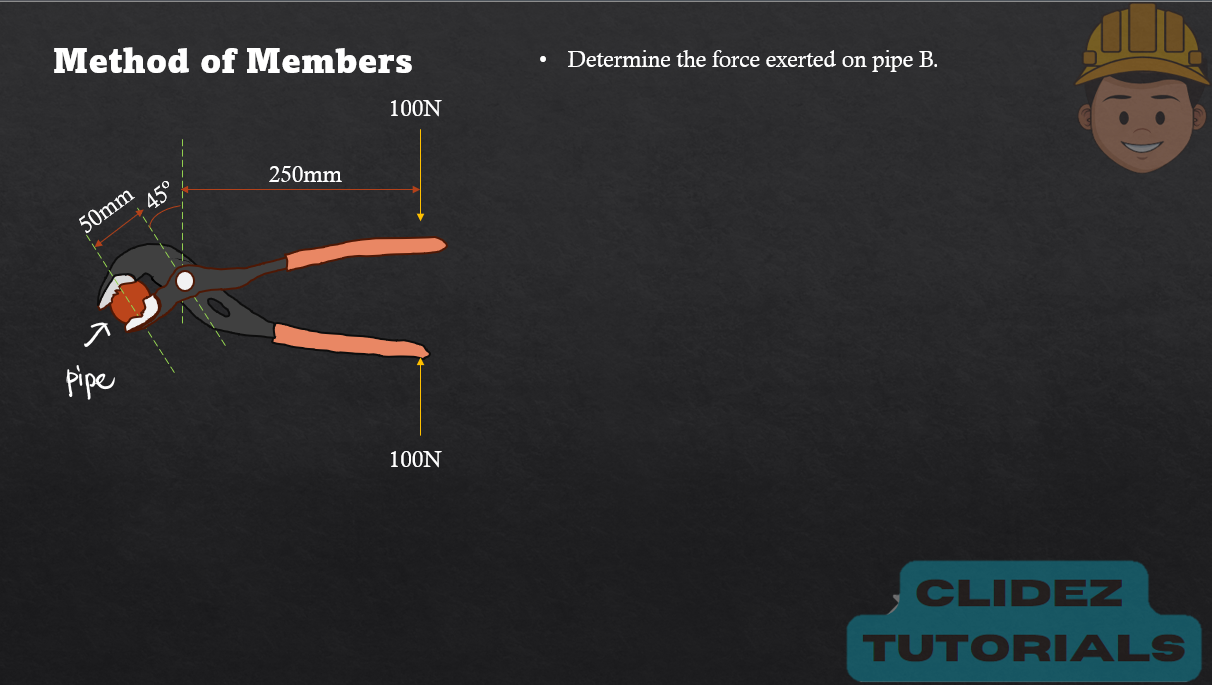

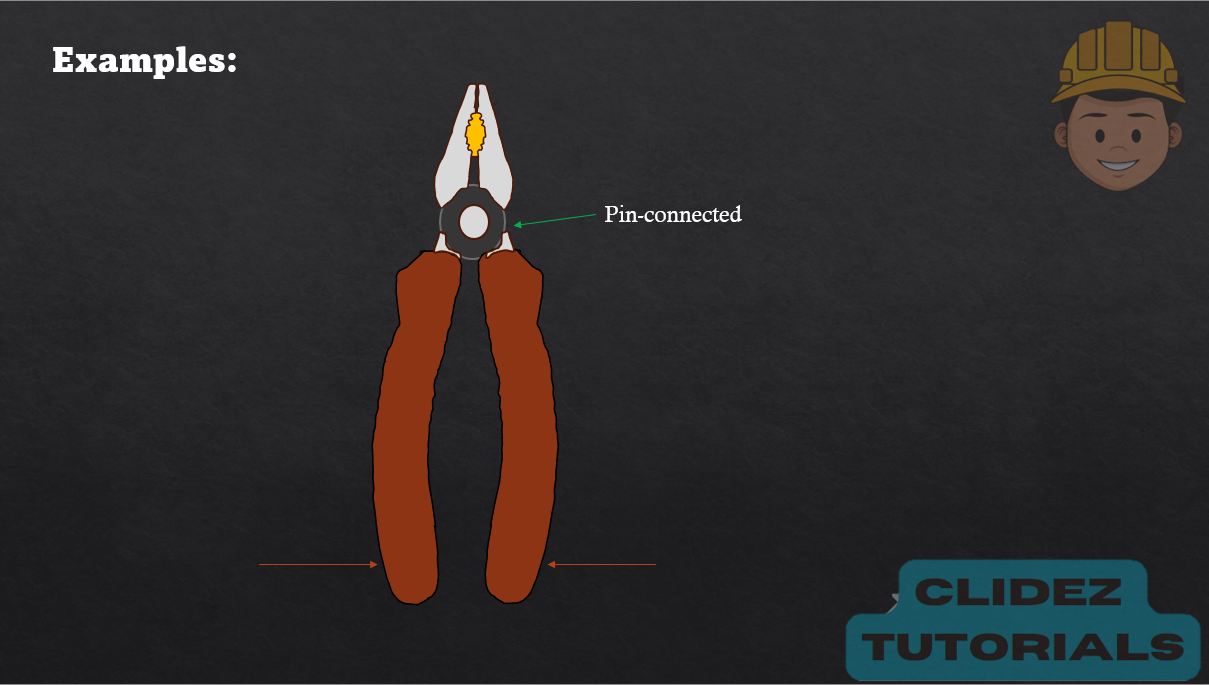

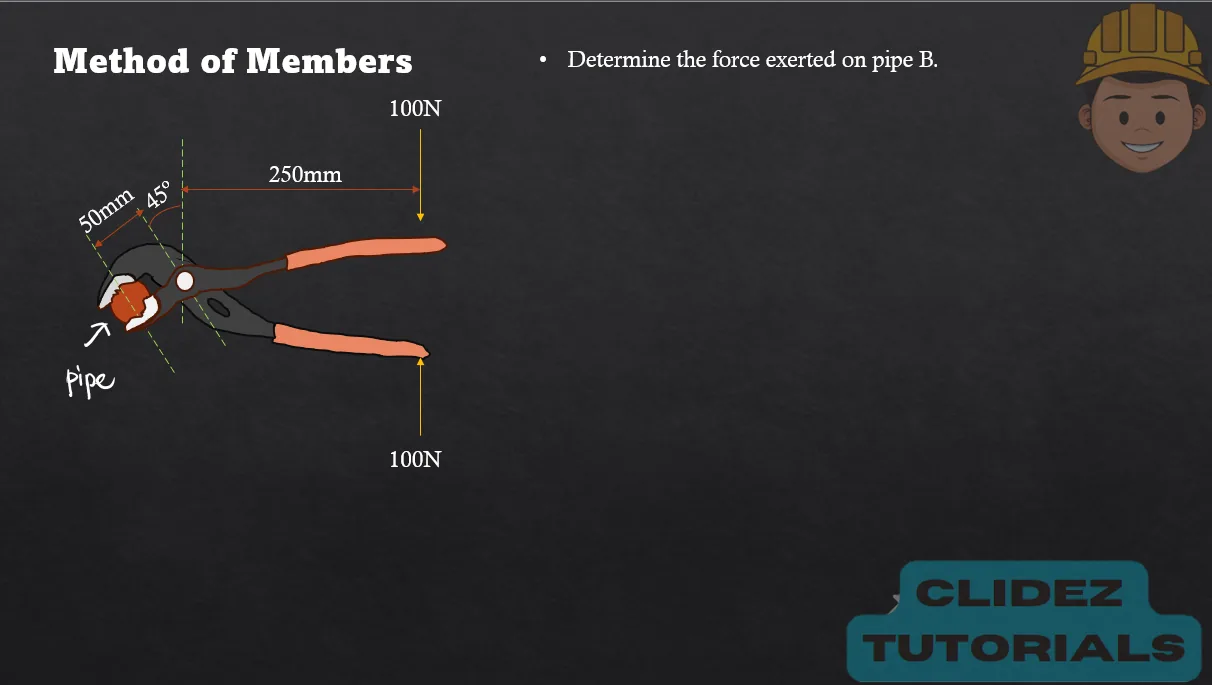

As in the case of the pliers, the input force (from our hand) travels through rigid links and pivots, generating a greater output force at the jaws due to the geometry and relative lengths of the members—shorter output arms and longer input arms multiply the applied force.

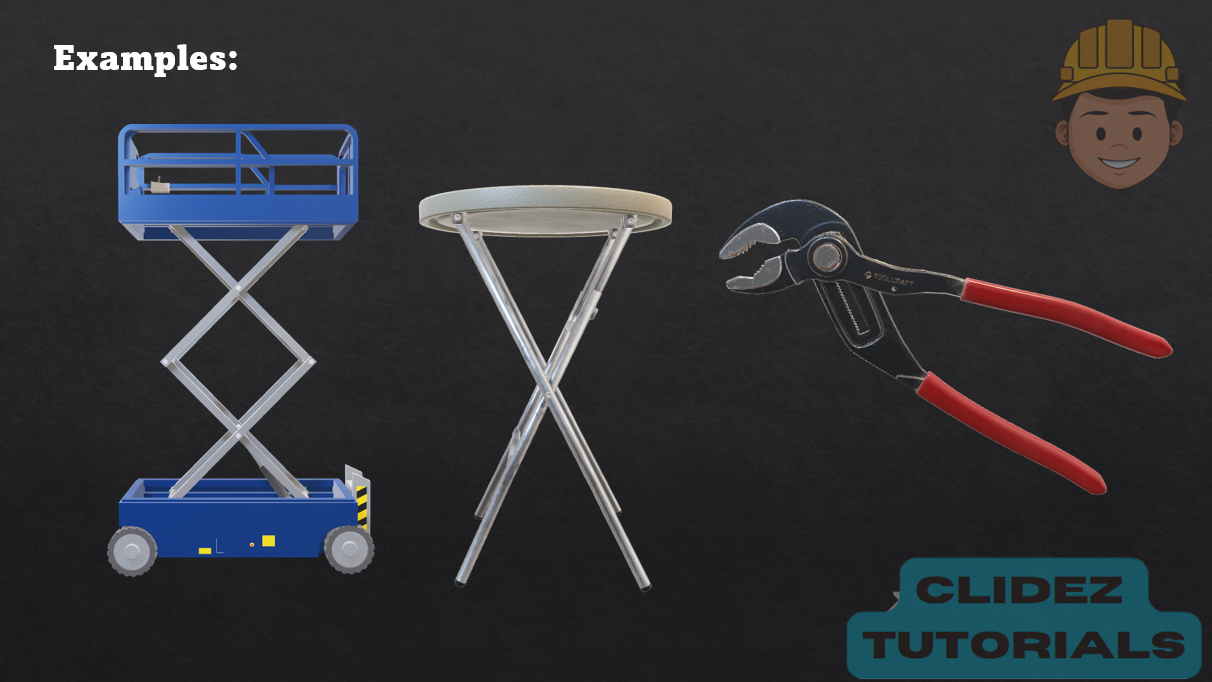

This principle is the same behind levers and is fundamental to machines like wrenches, clamps, scissors, and even robotic arms.

Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept Concept

Problem 1:

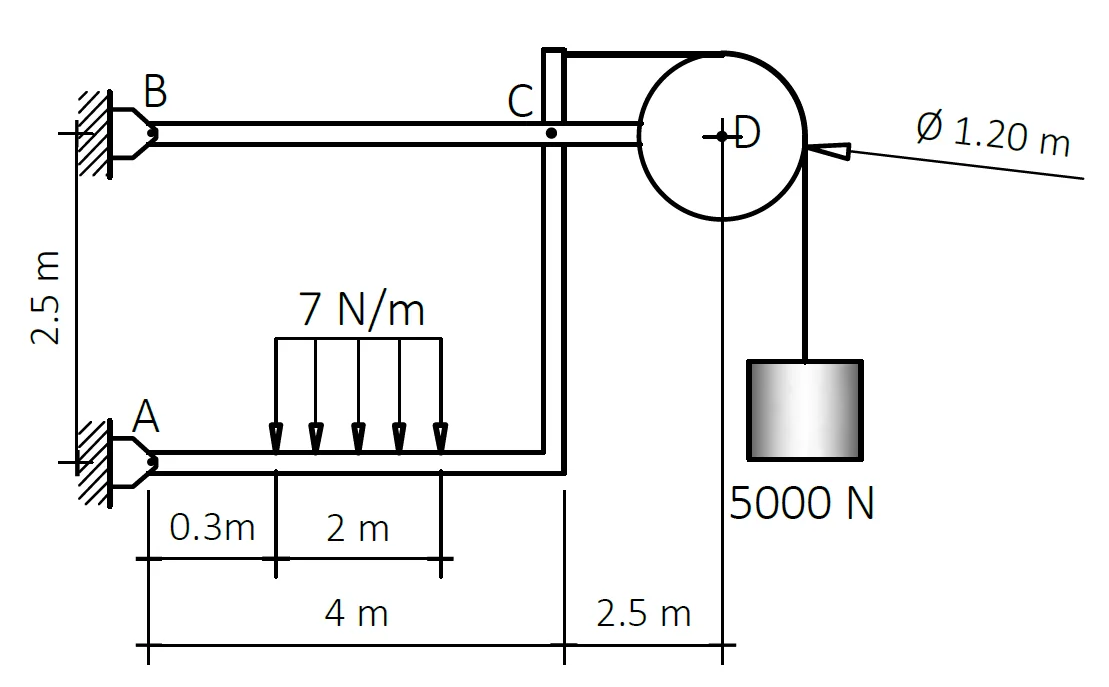

For the frame shown, the pulley has a mass of 200kg and is frictionless. Neglect the weight of the bars and determine the following:
a. Determine the resultant reaction at D. (8571.432N)
b. Determine the resultant reaction at C. (26812.158N)
c. Determine the resultant reaction at A. (22385.8N)
d. Determine the resultant reaction at B. (19792.695N)

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 2:

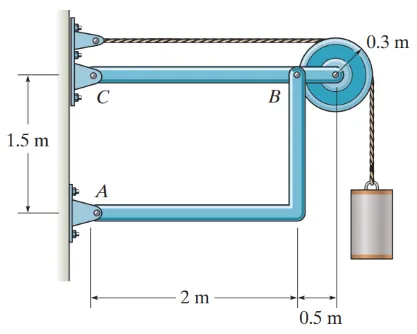

Determine the resultant reaction at A if the mass of the block is 75kg. (1532.8N)

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 3:

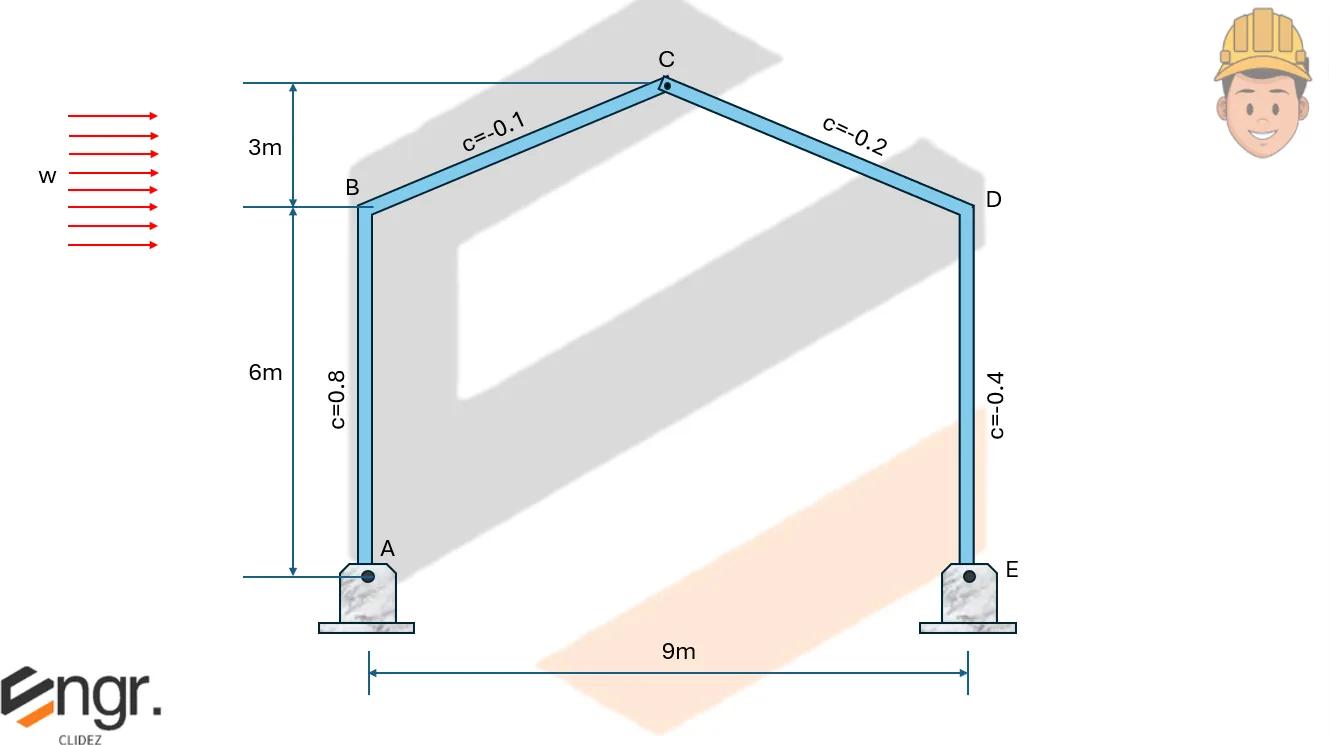

The frame shown in the figure is acted on by wind load pressure of p=1.44kPa. These frames are spaced 6m apart.
a. Determine the vertical component of the reaction at A. (27.756kN)
b. Determine the vertical component of the reaction at B. (16.092kN)
c. Determine the total horizontal force acting on the frame. (64.8kN)

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 4:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 5:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 6:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 7:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 8:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution
-->
