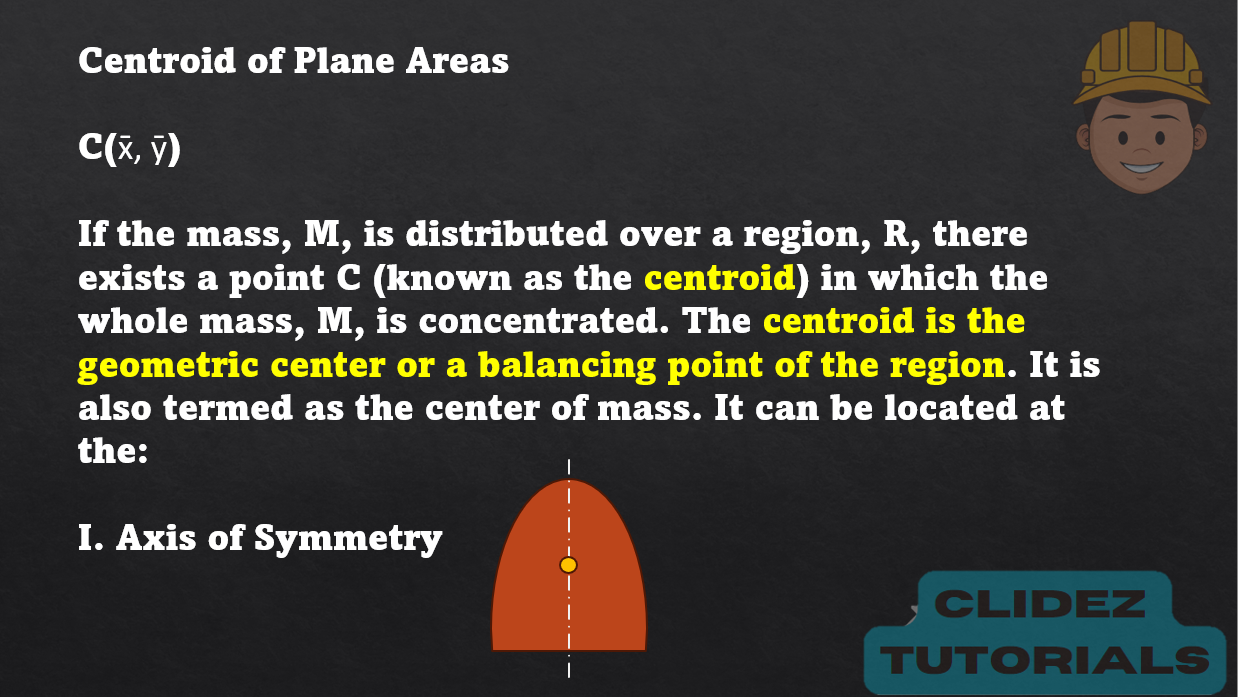

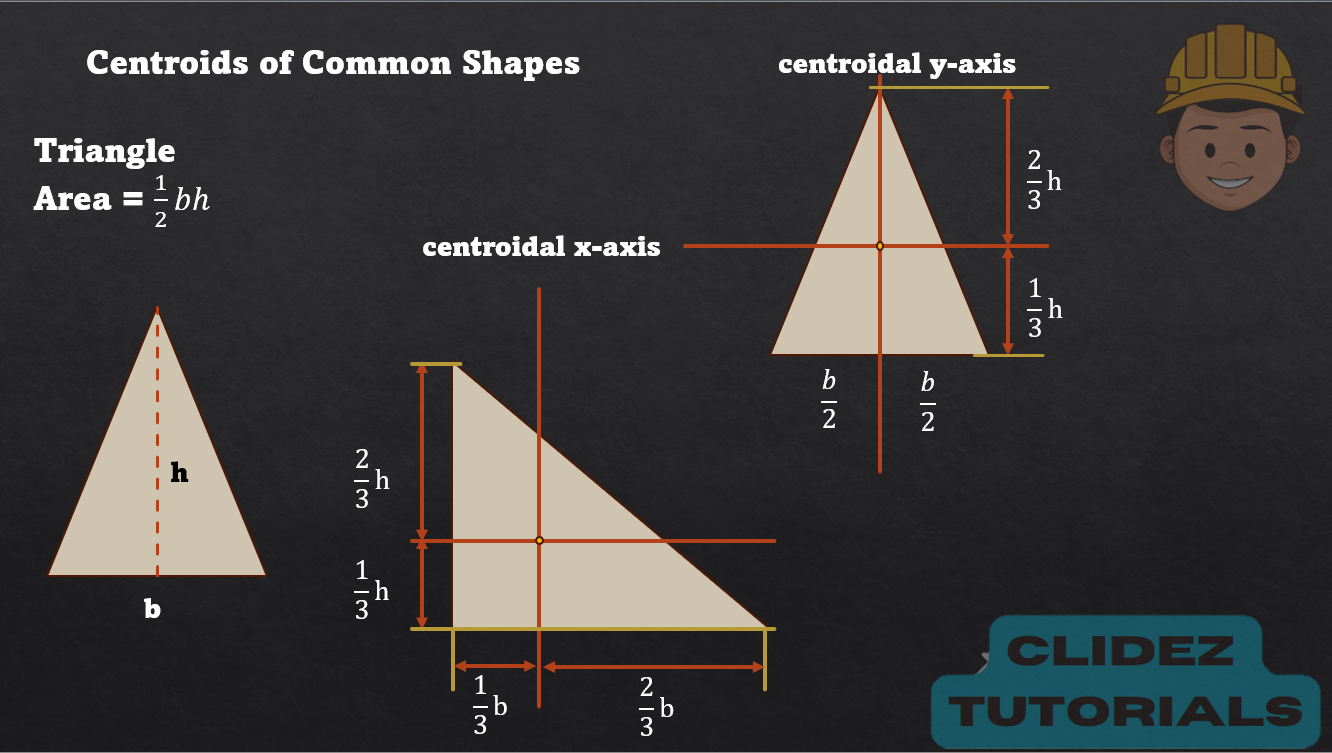

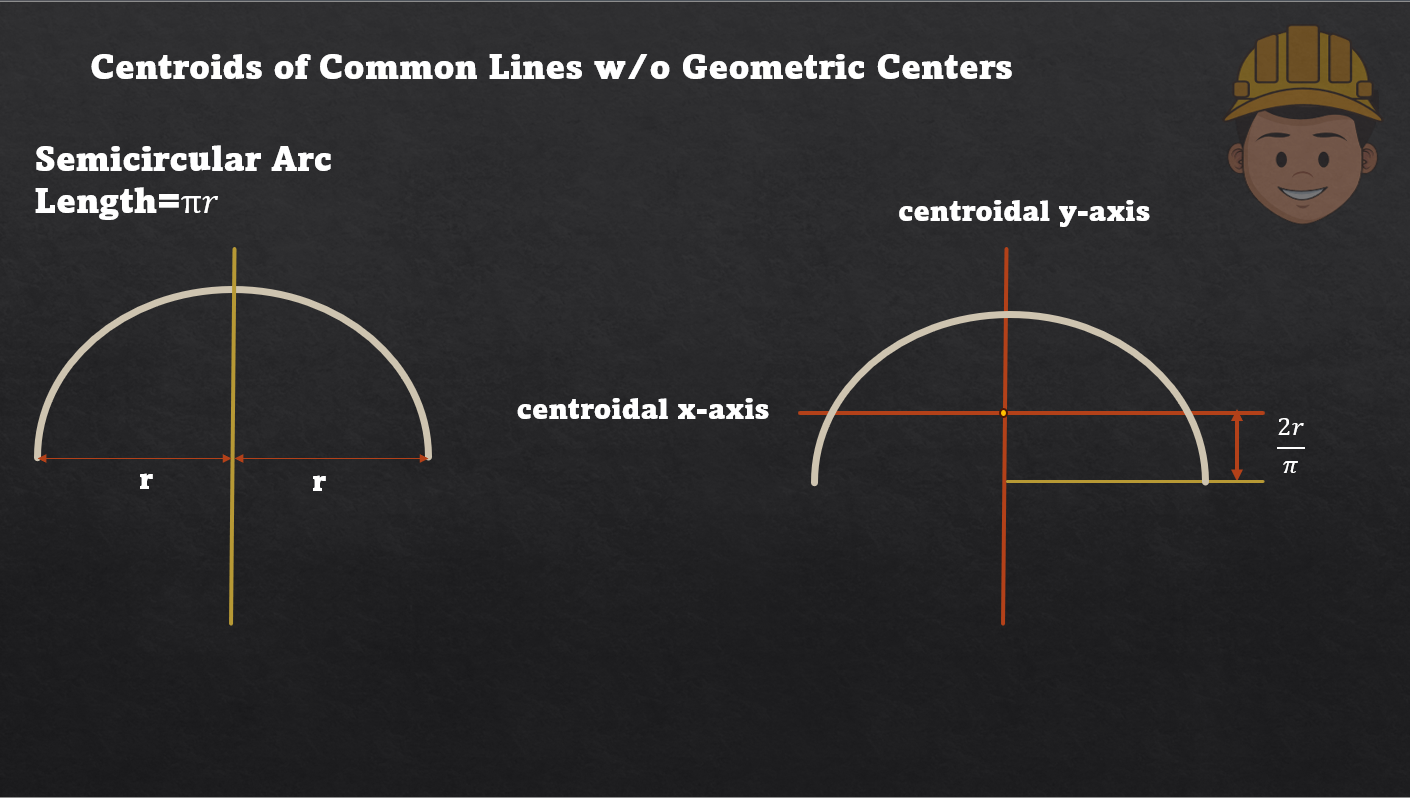

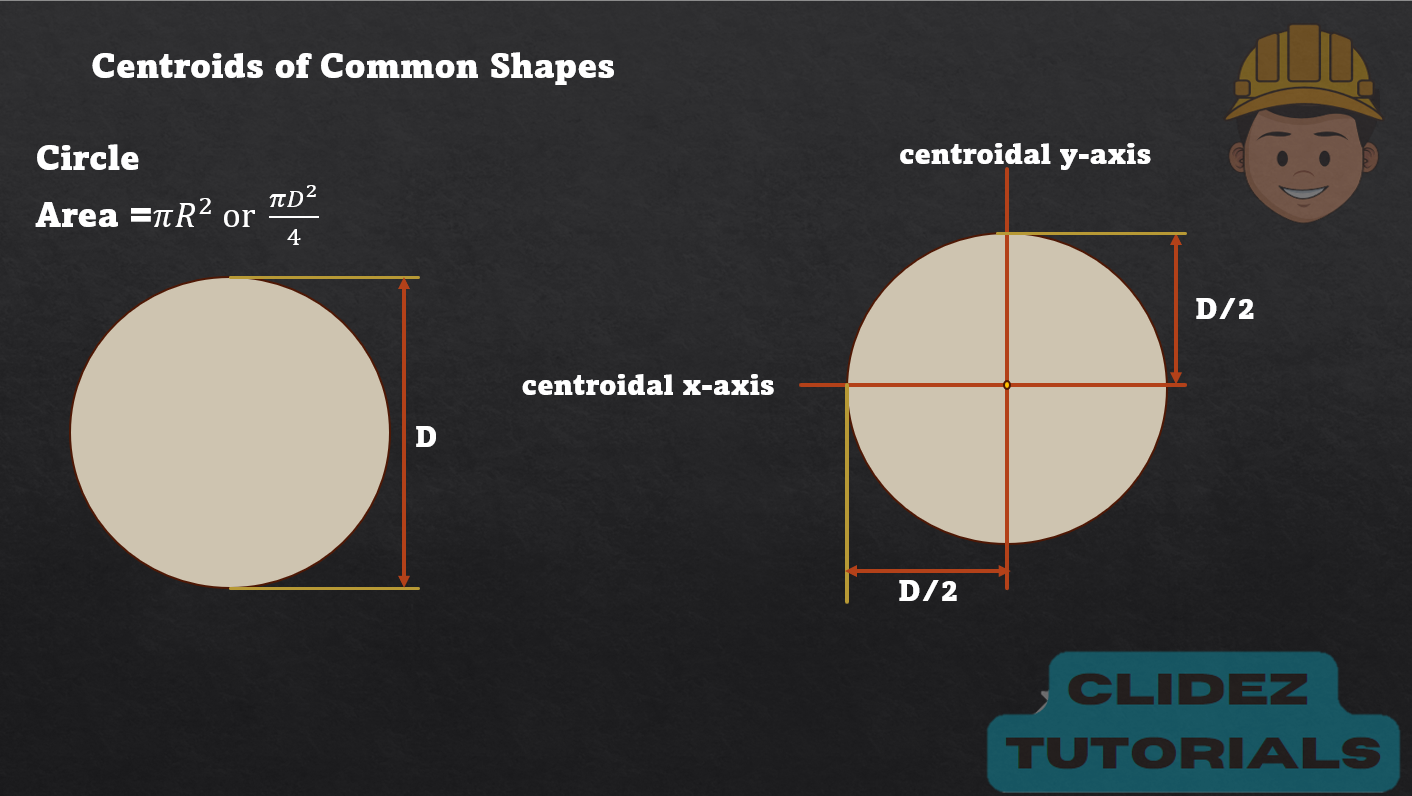

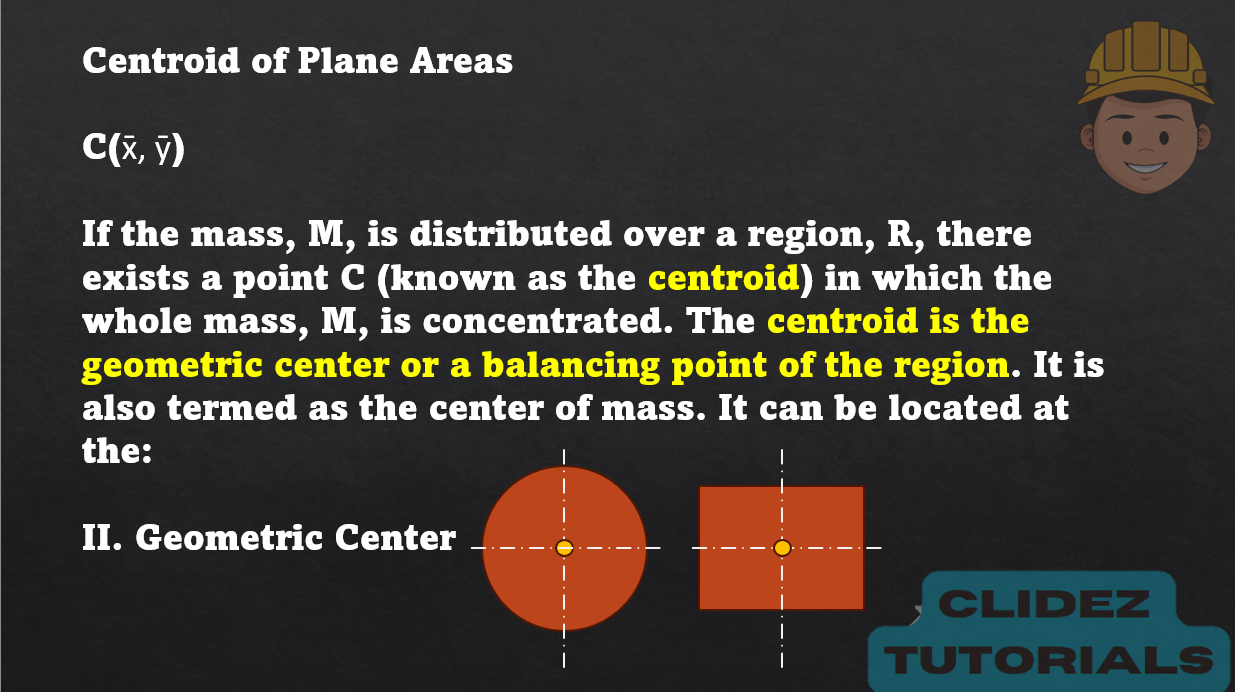

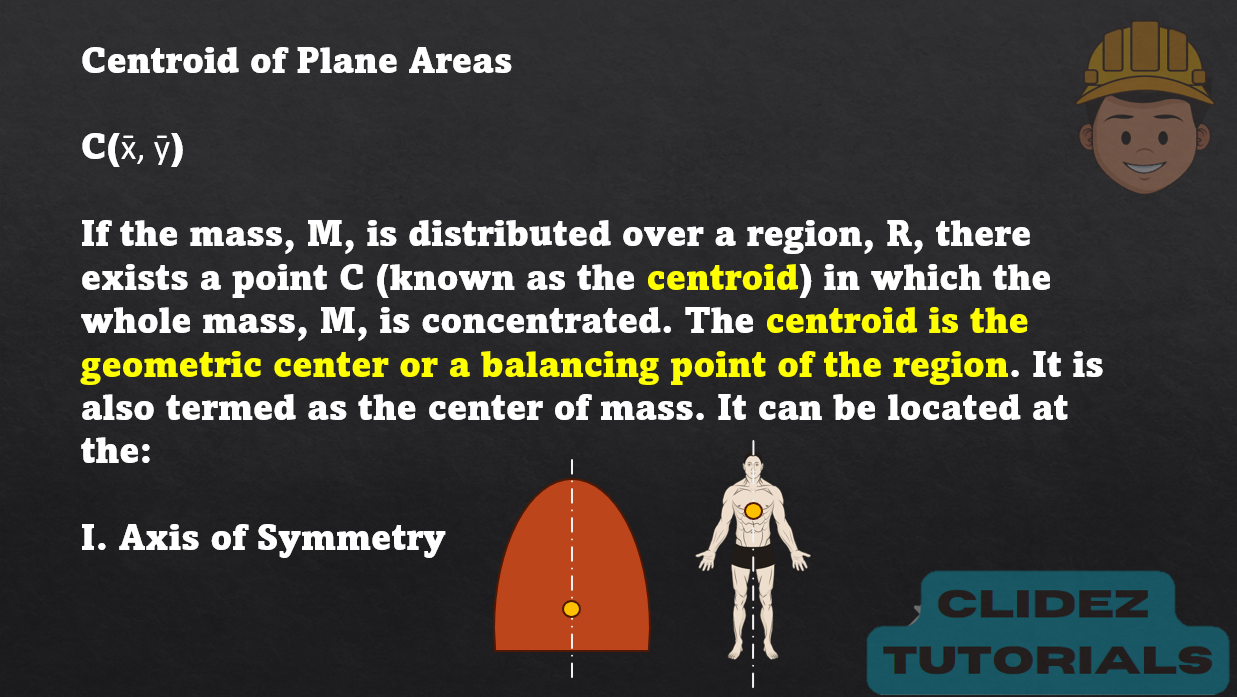

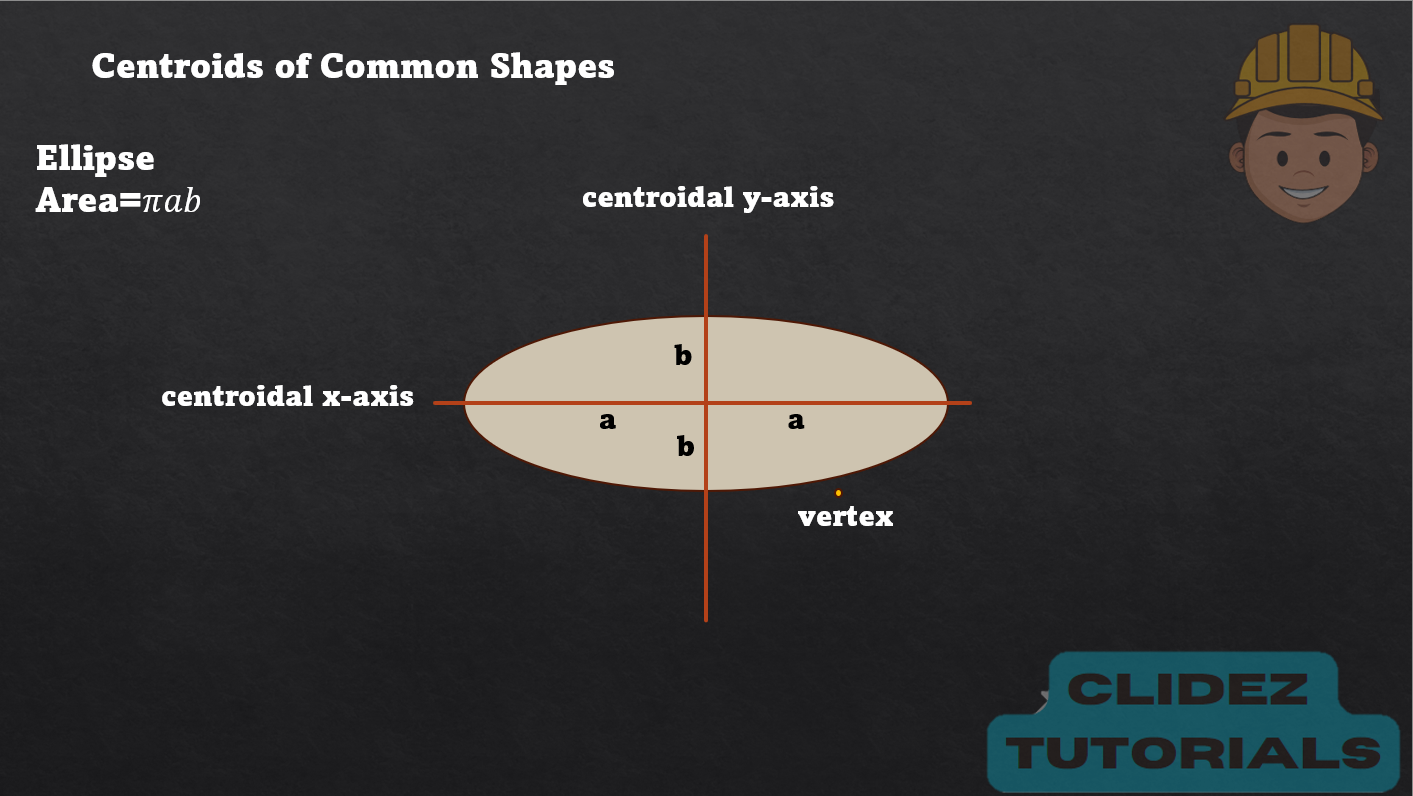

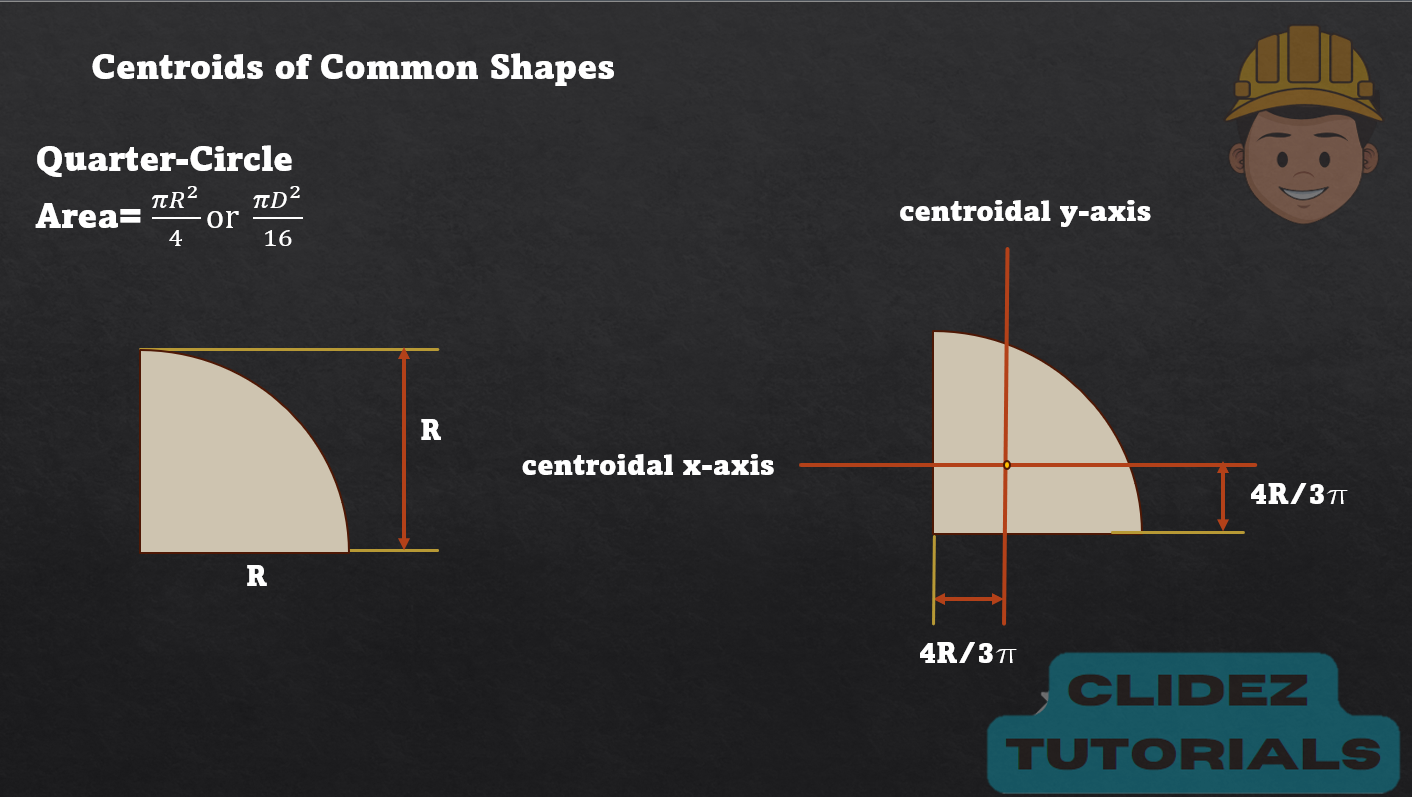

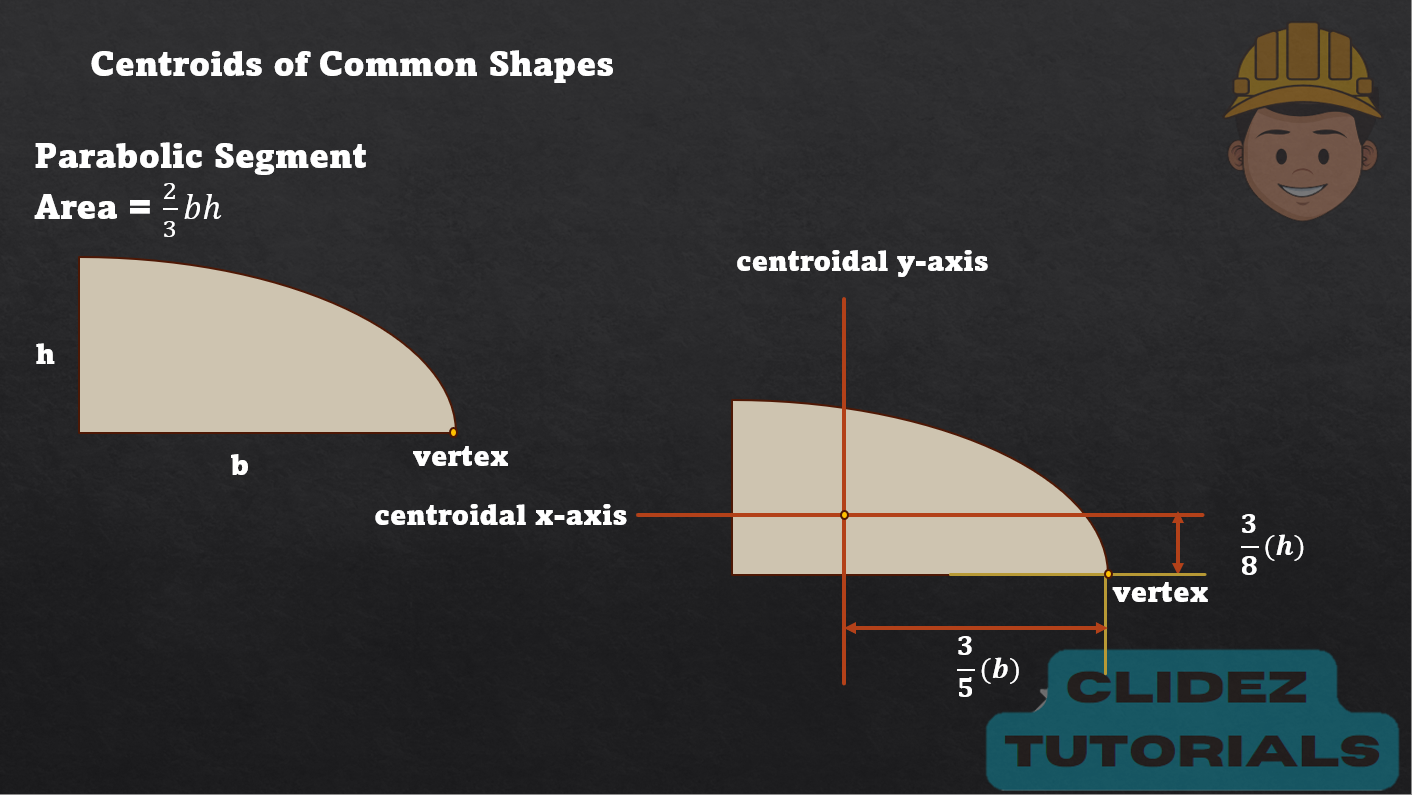

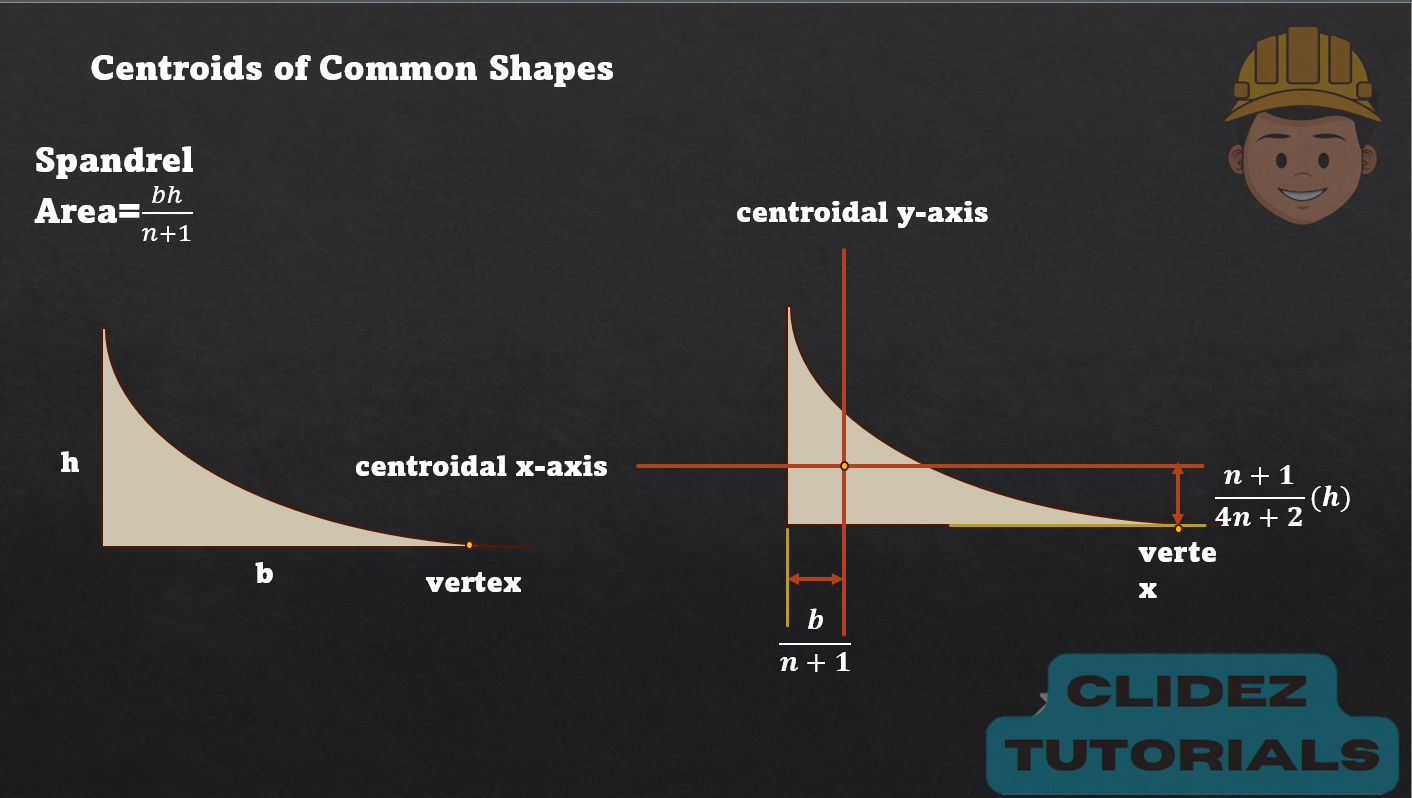

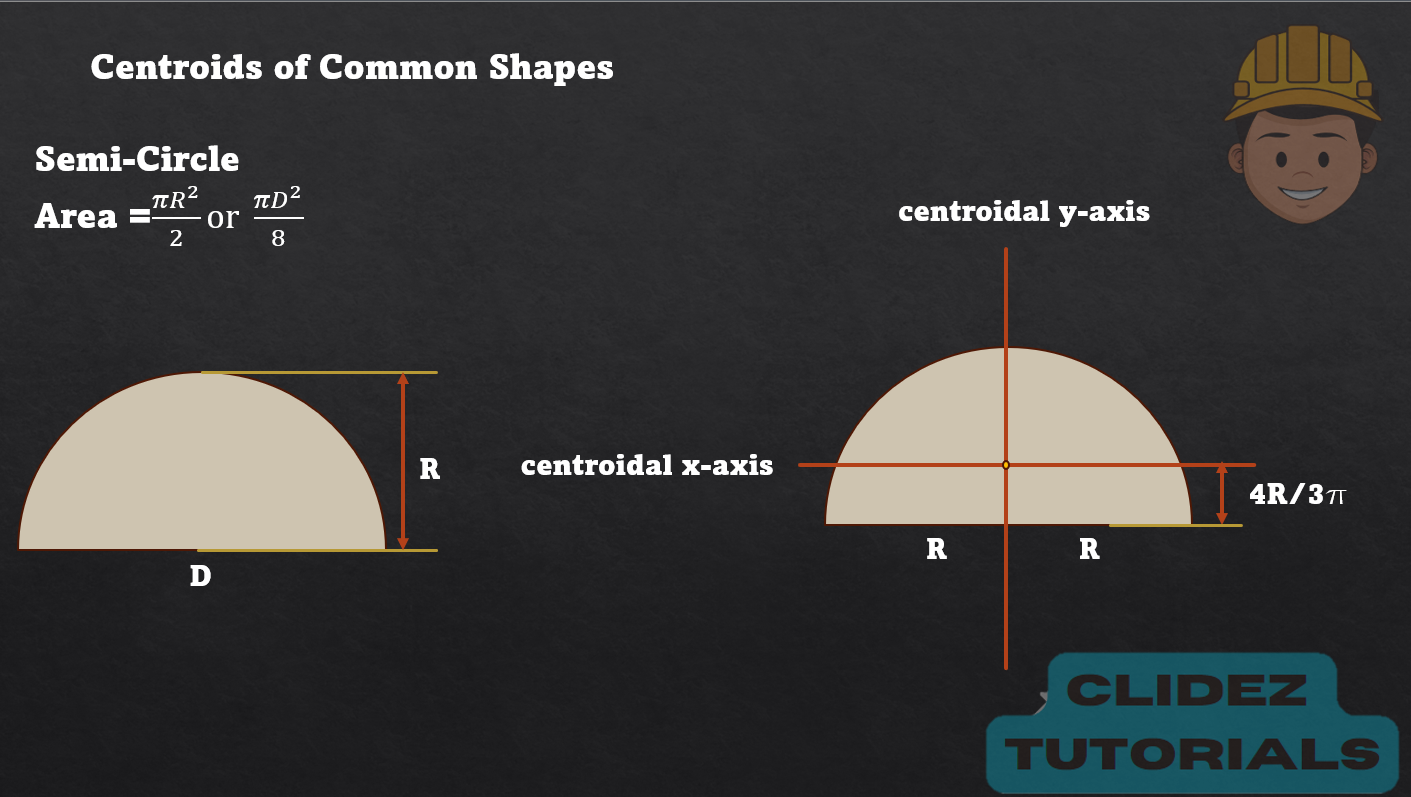

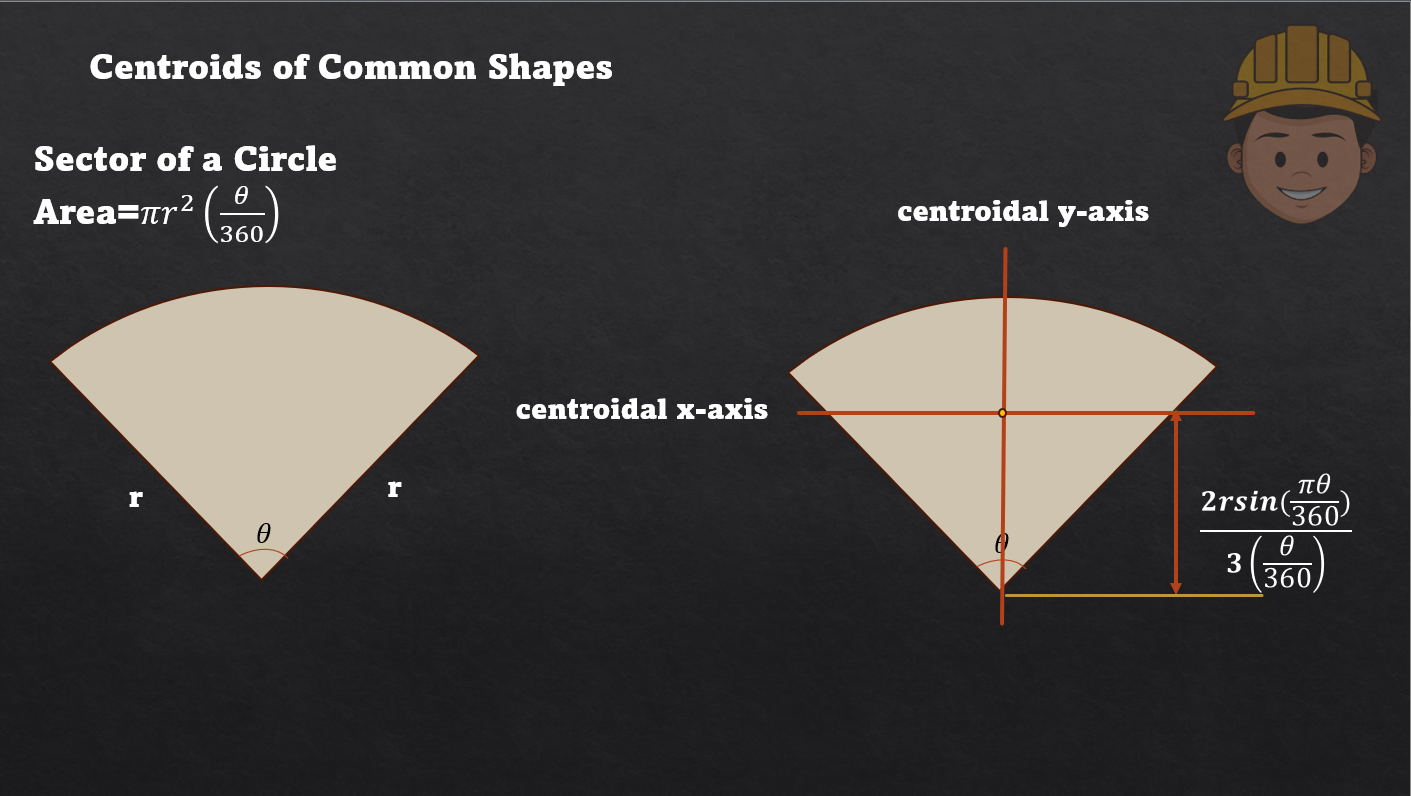

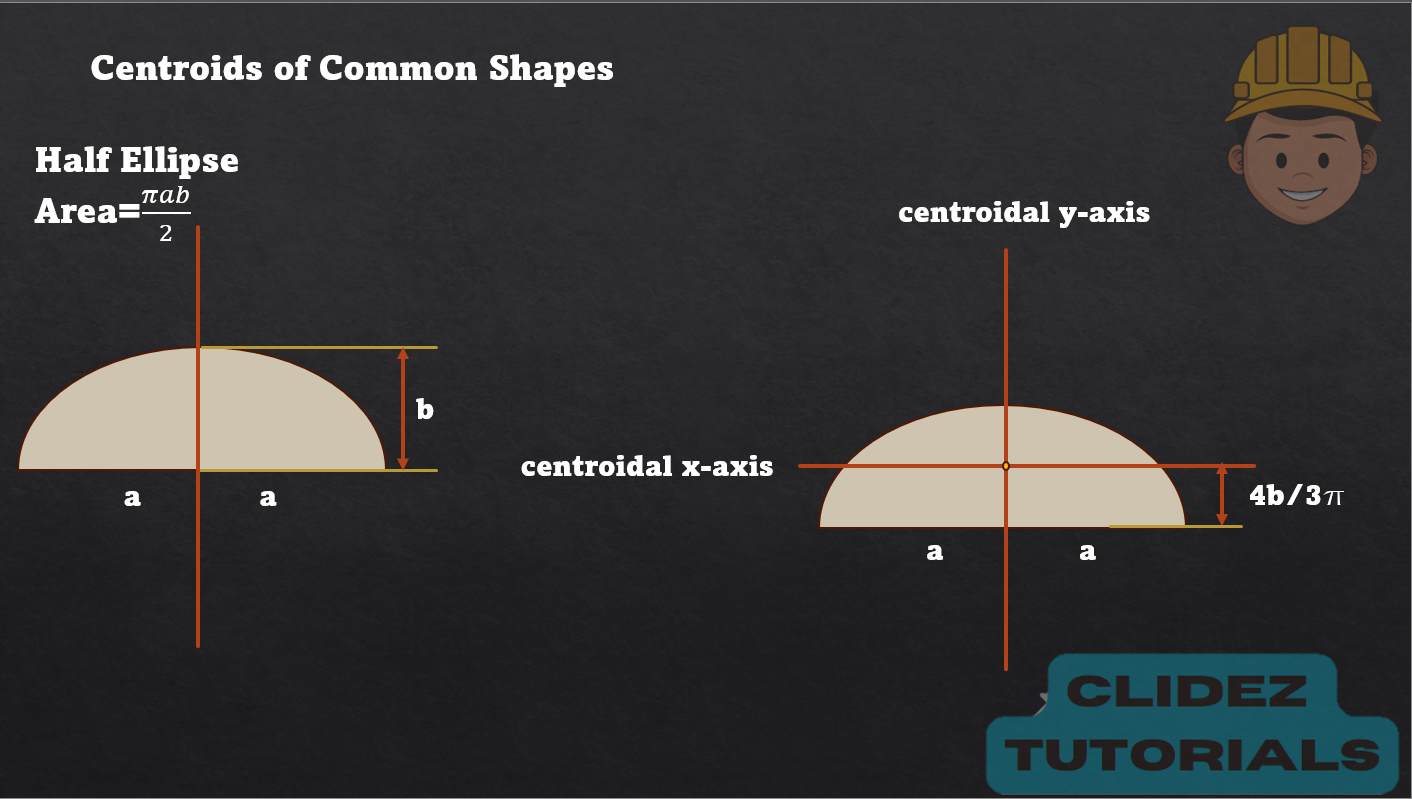

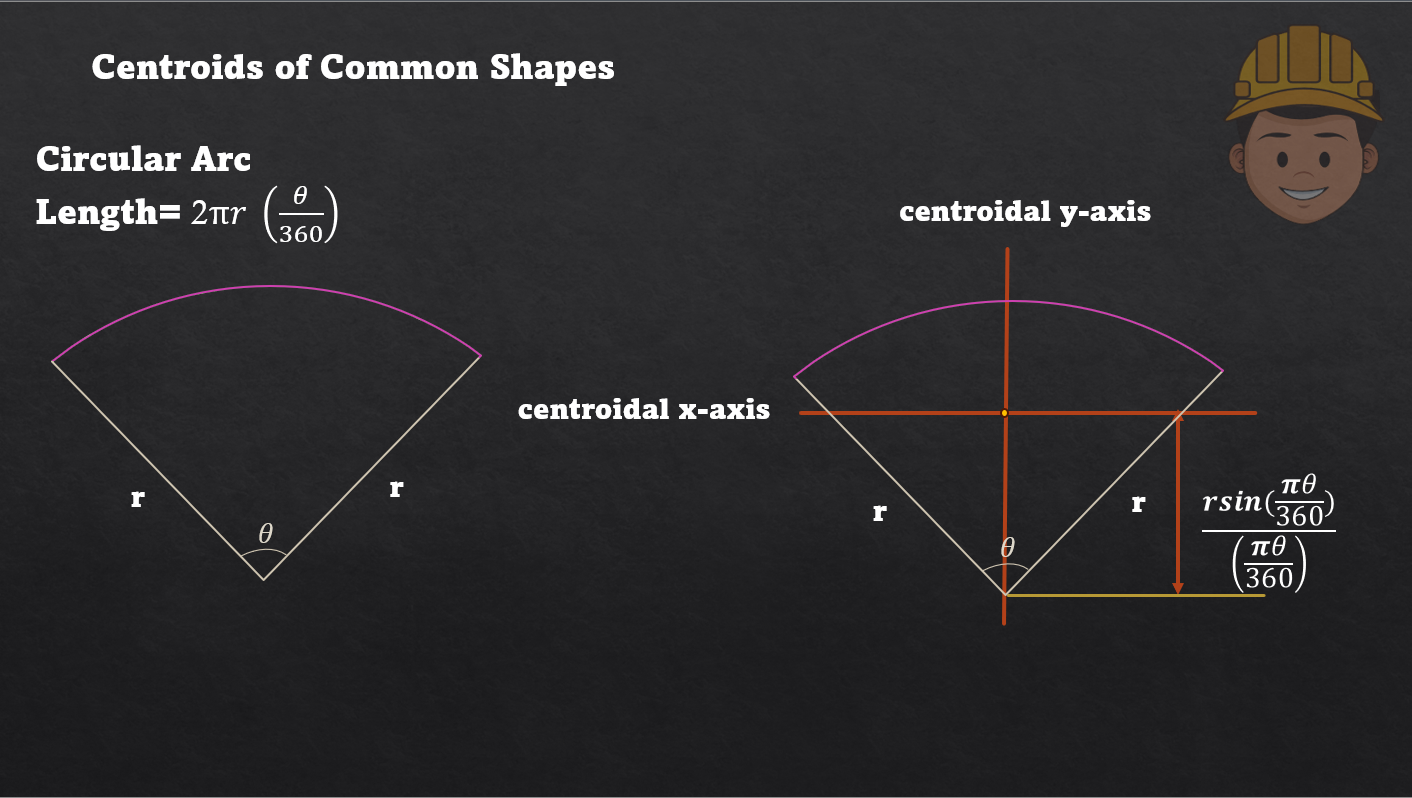

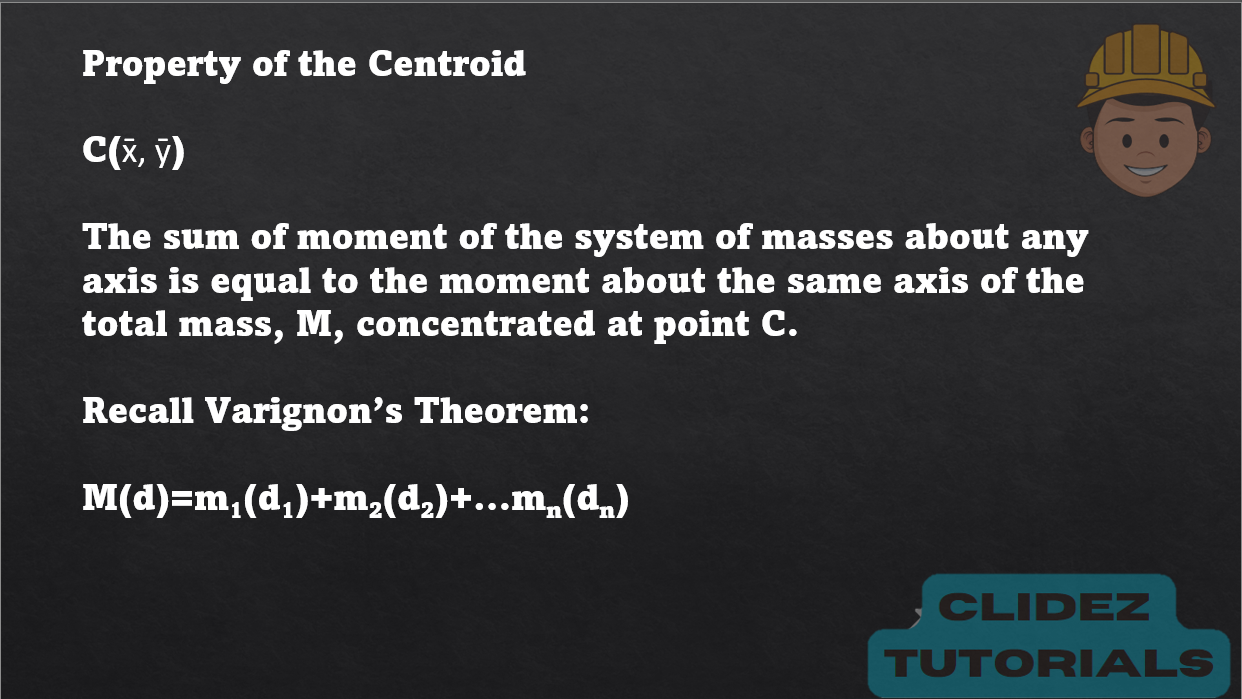

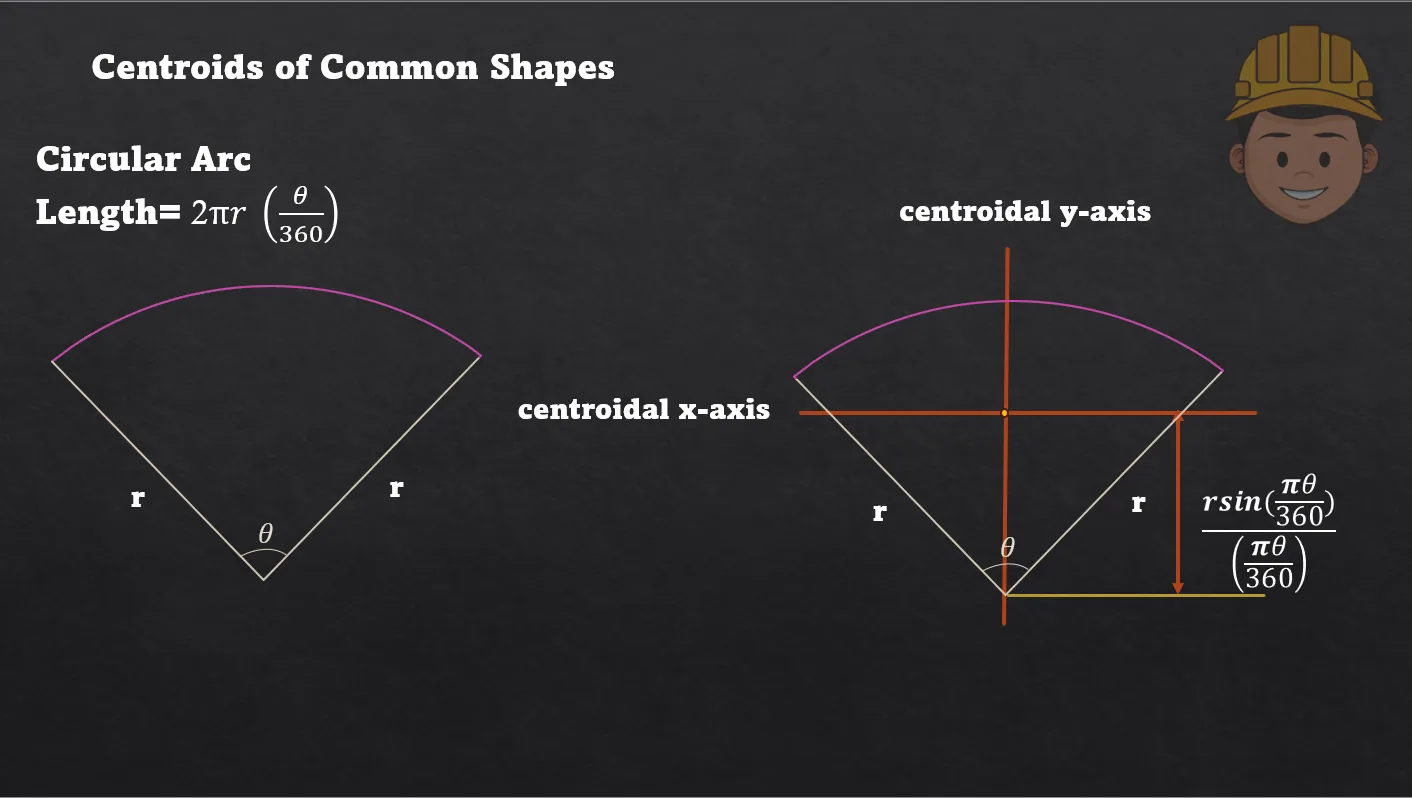

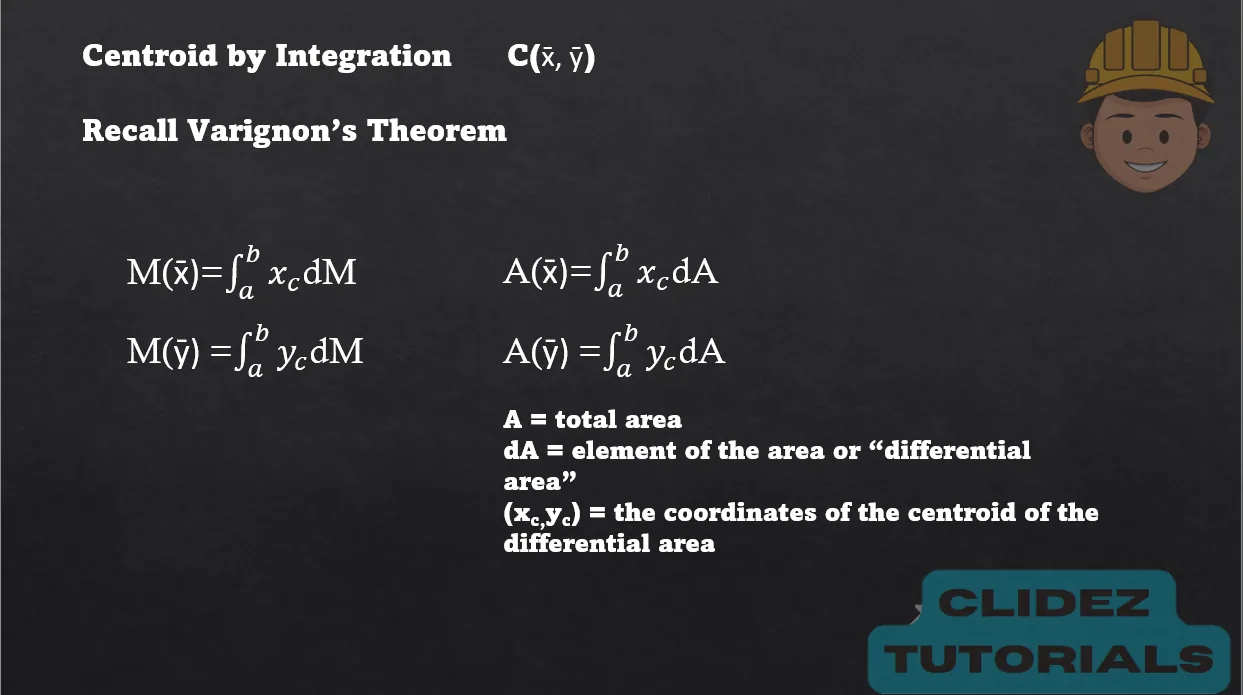

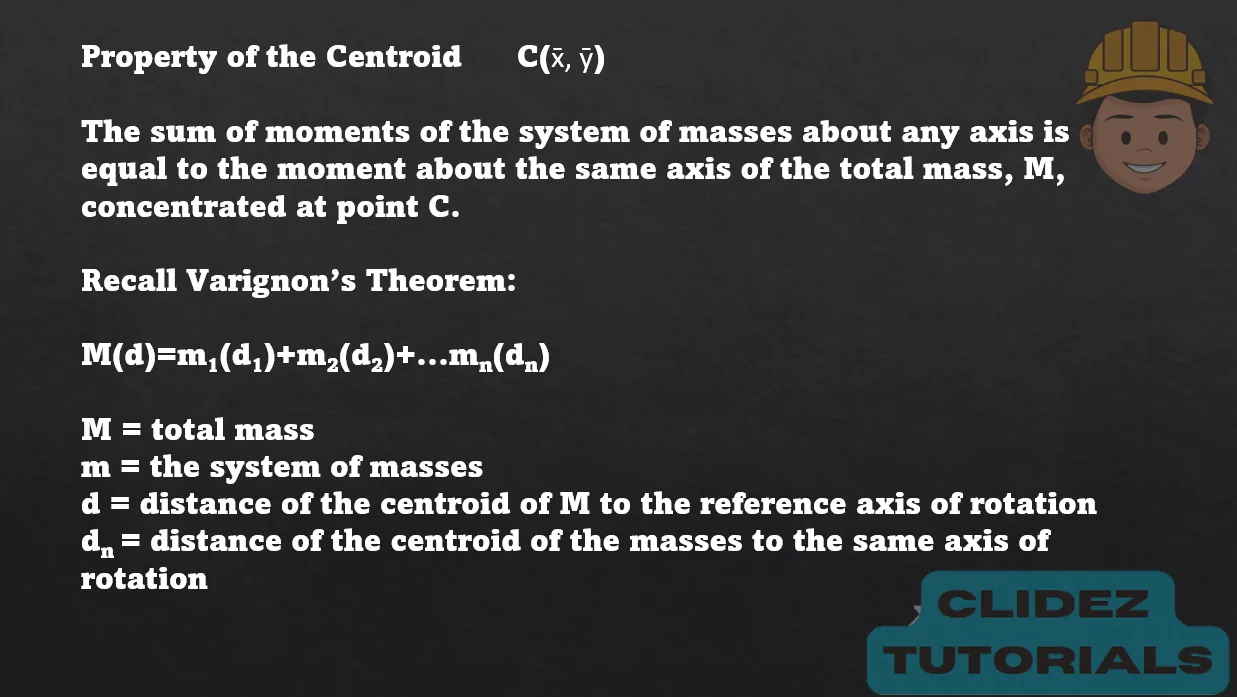

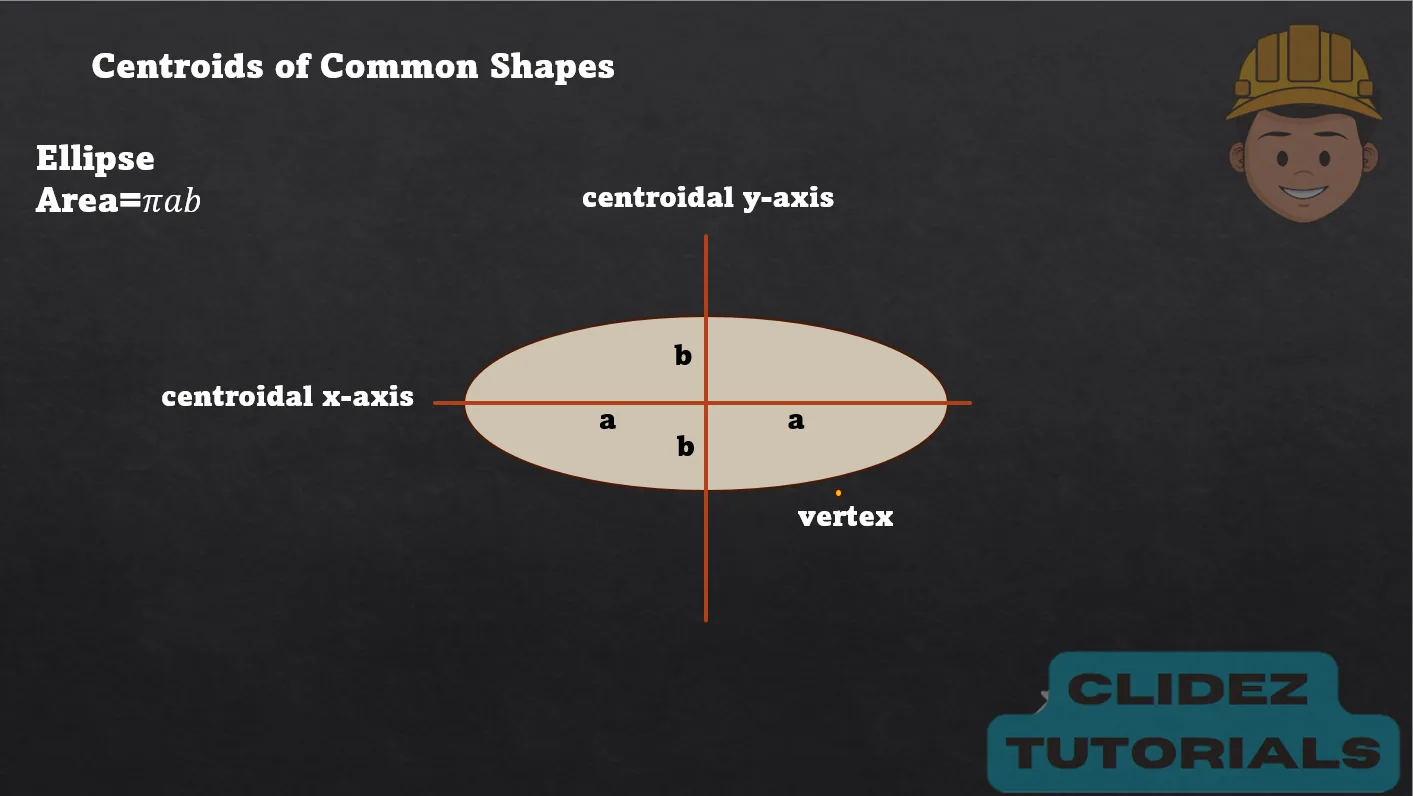

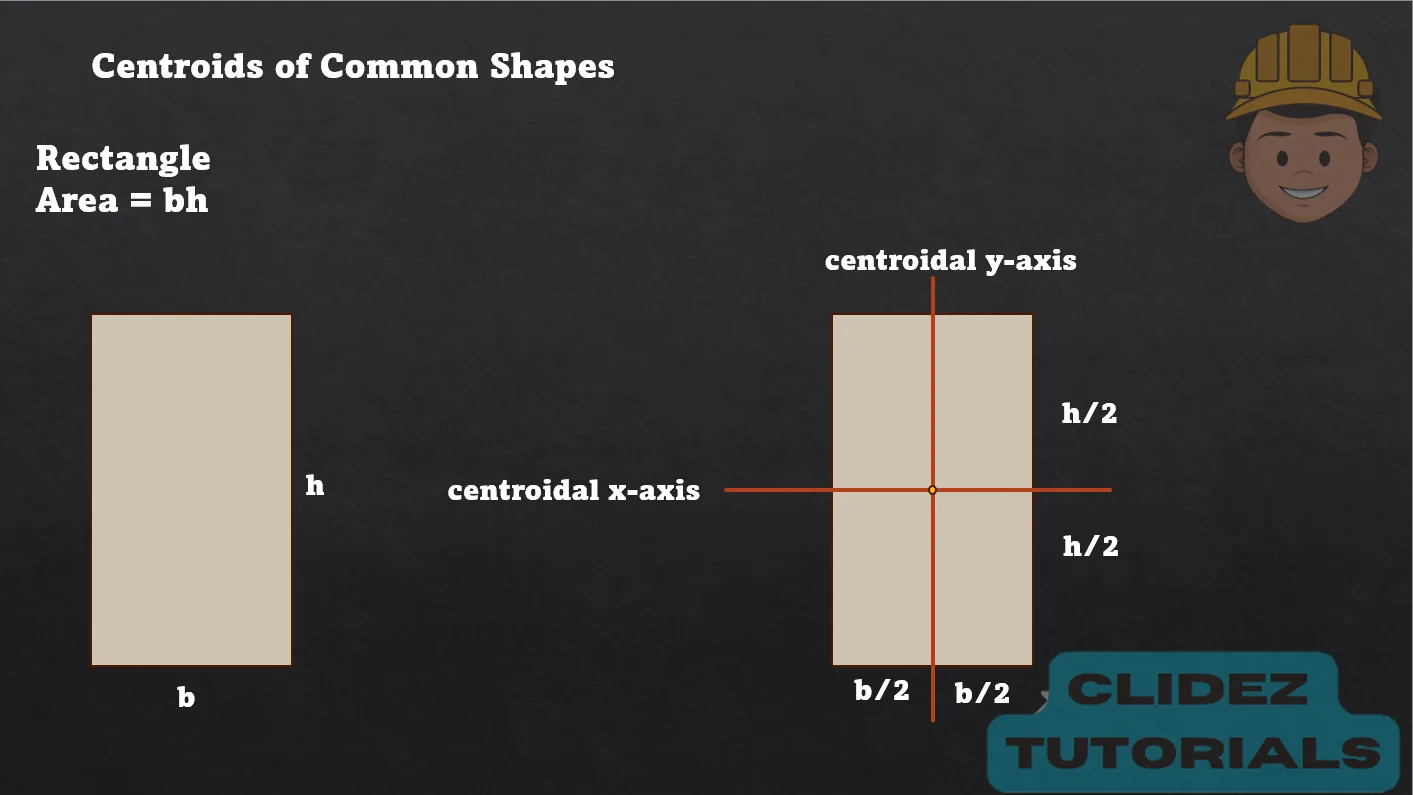

Centroids

Problem 1:

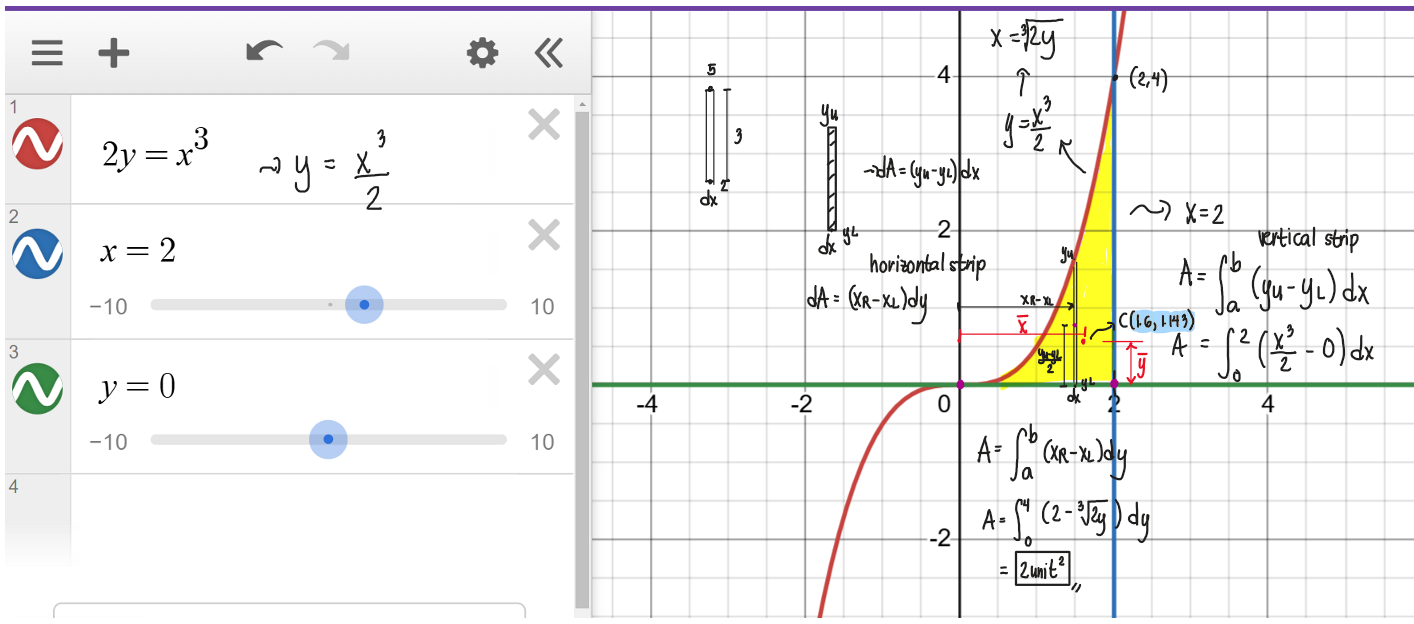

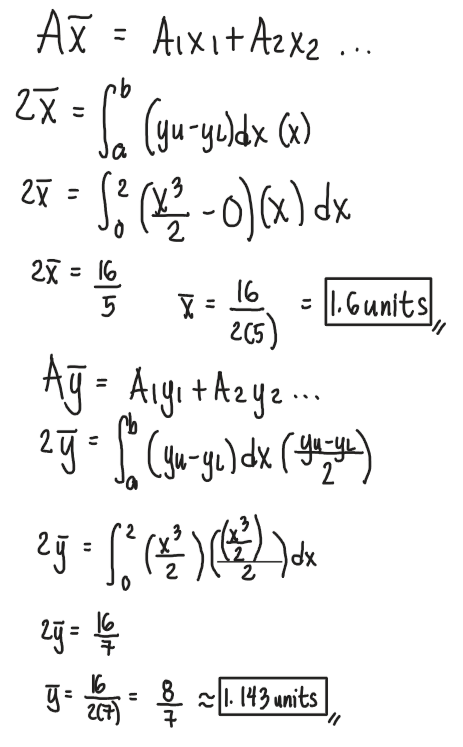

Find the centroid of the area bounded by the curves: 2y=x³, x=2, and y=0

See images:

Problem 2:

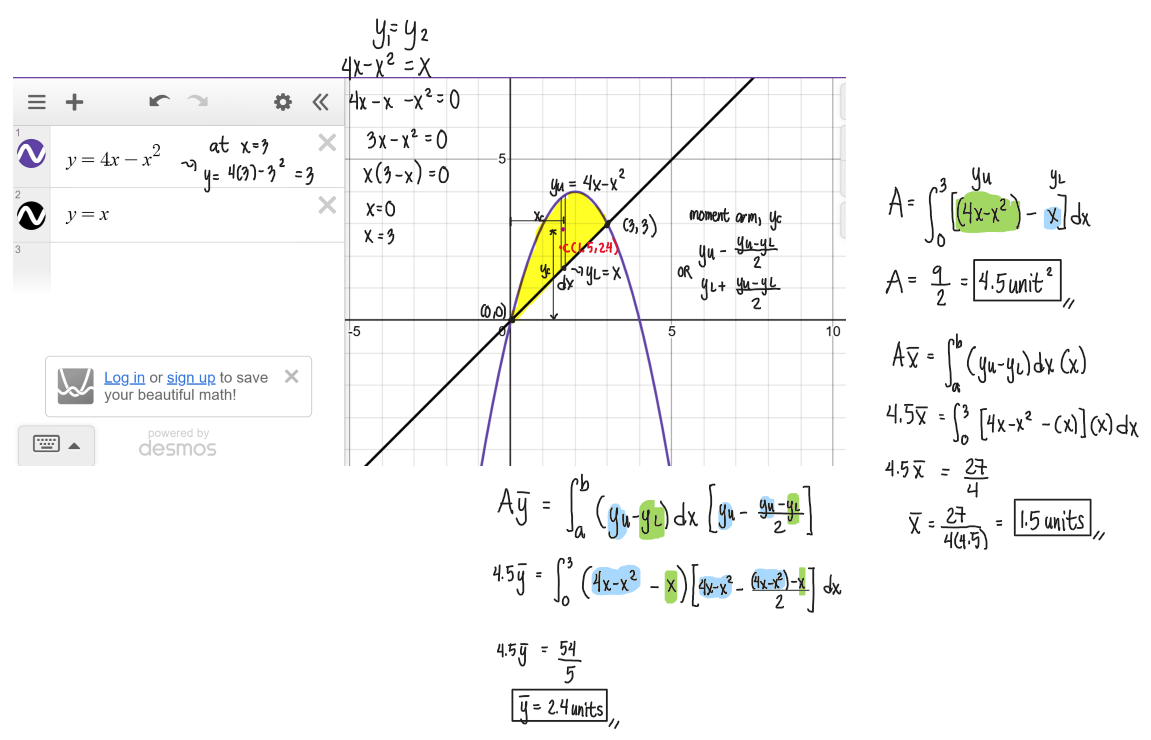

Find the centroid of the area bounded by the curves: y=4x-x² and y=x.

See images:

Problem 3:

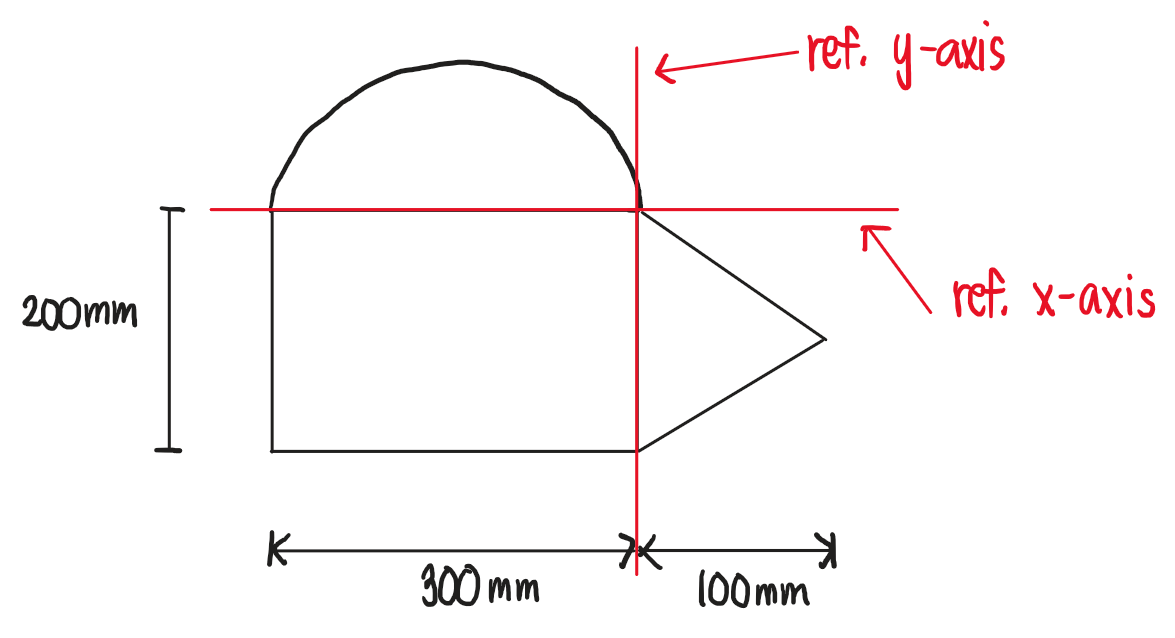

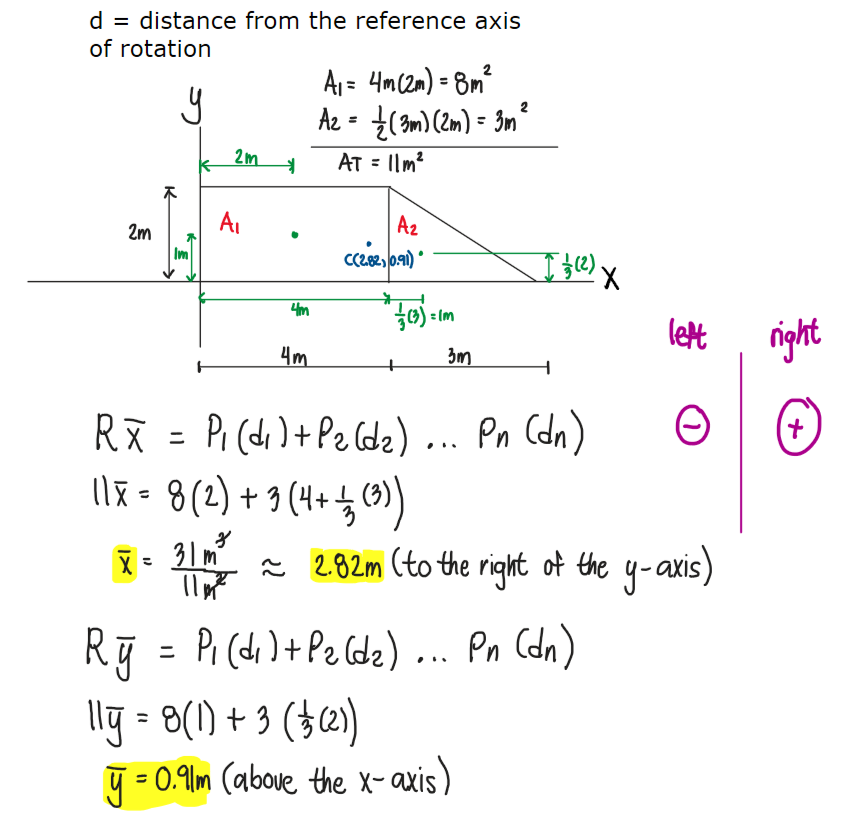

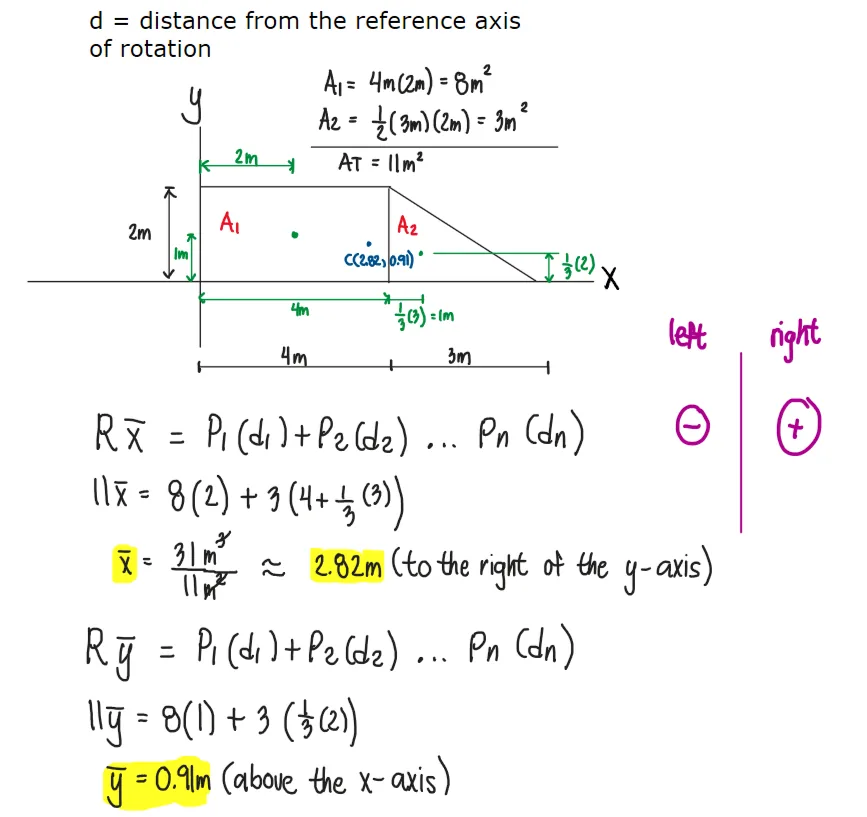

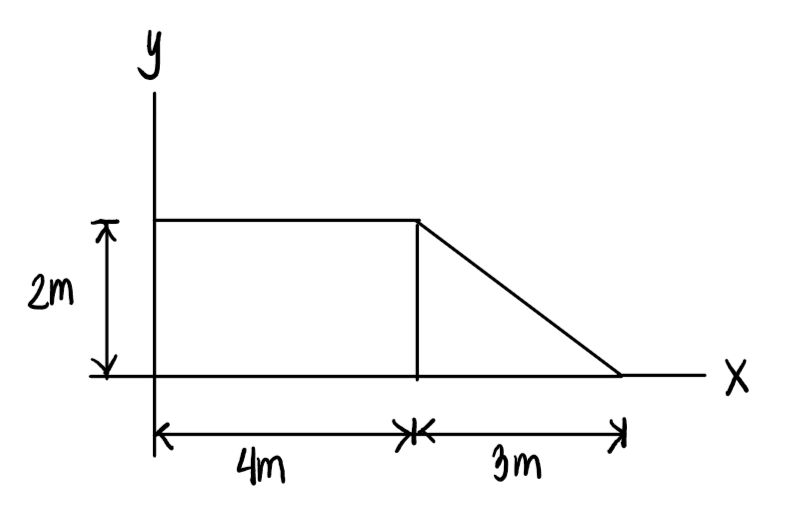

Locate the centroid from the given reference x and y axes.

See images:

Problem 4:

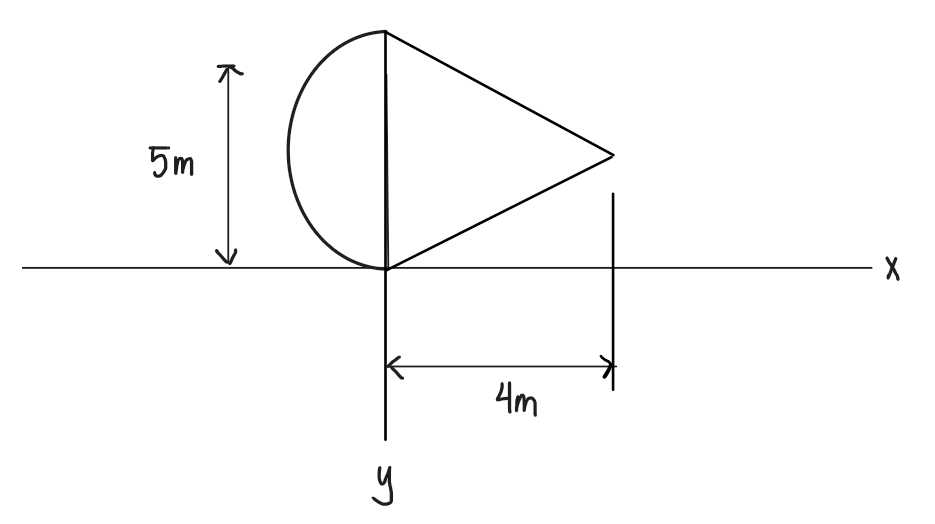

Locate the centroid from the given reference x and y axes.

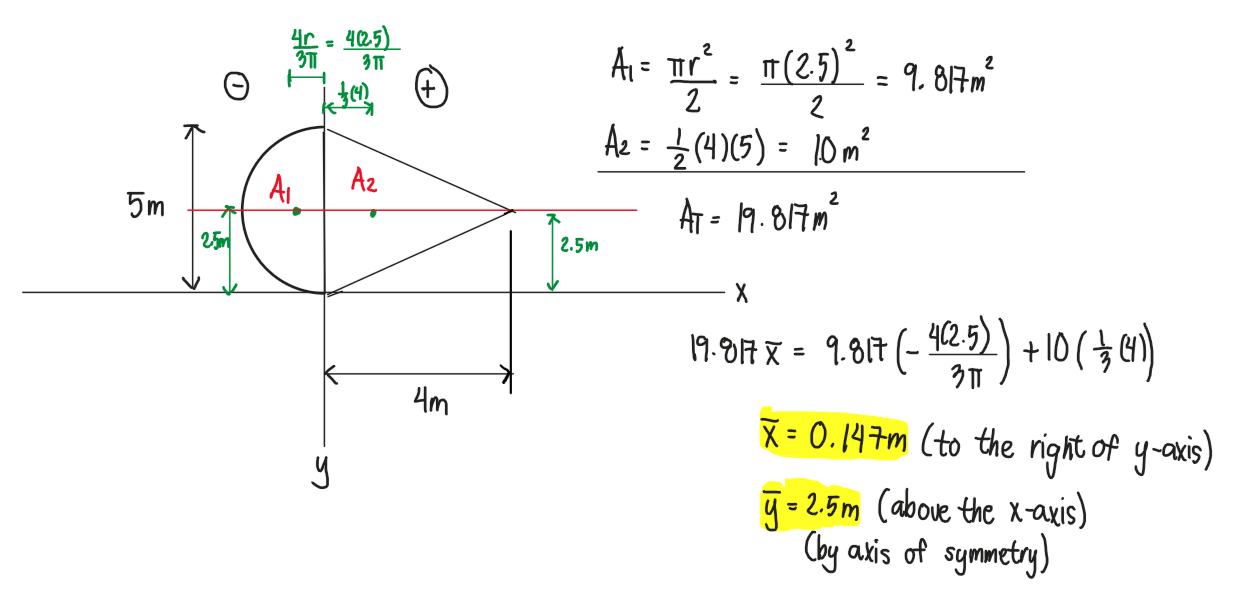

See images:

Problem 5:

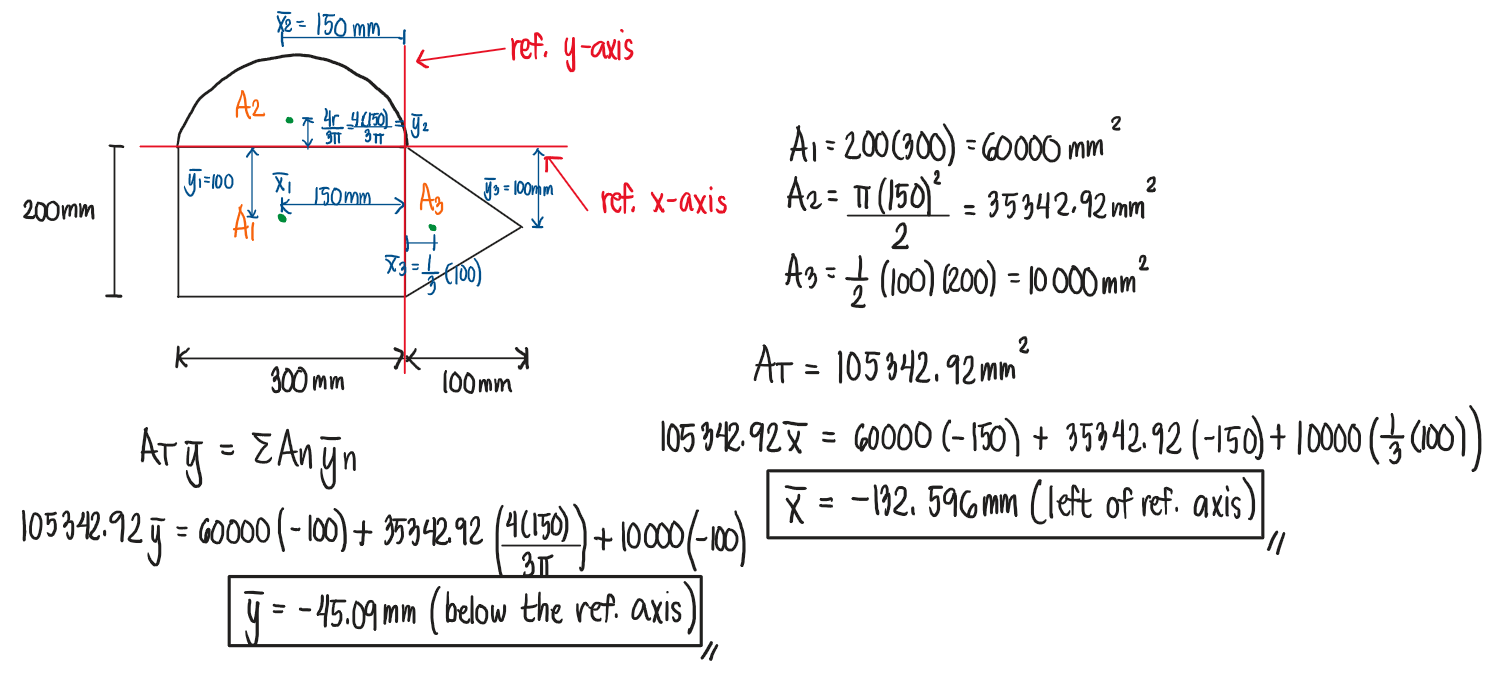

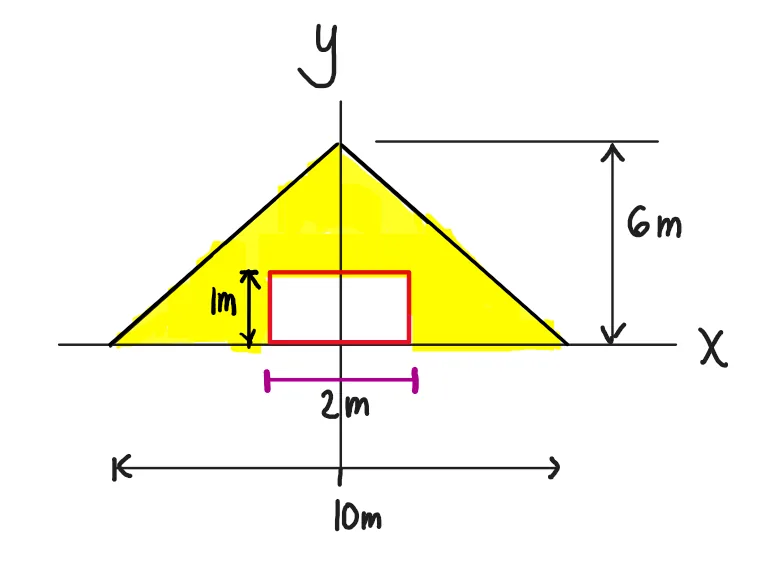

Locate the centroid from the given reference x and y axes.

See images:

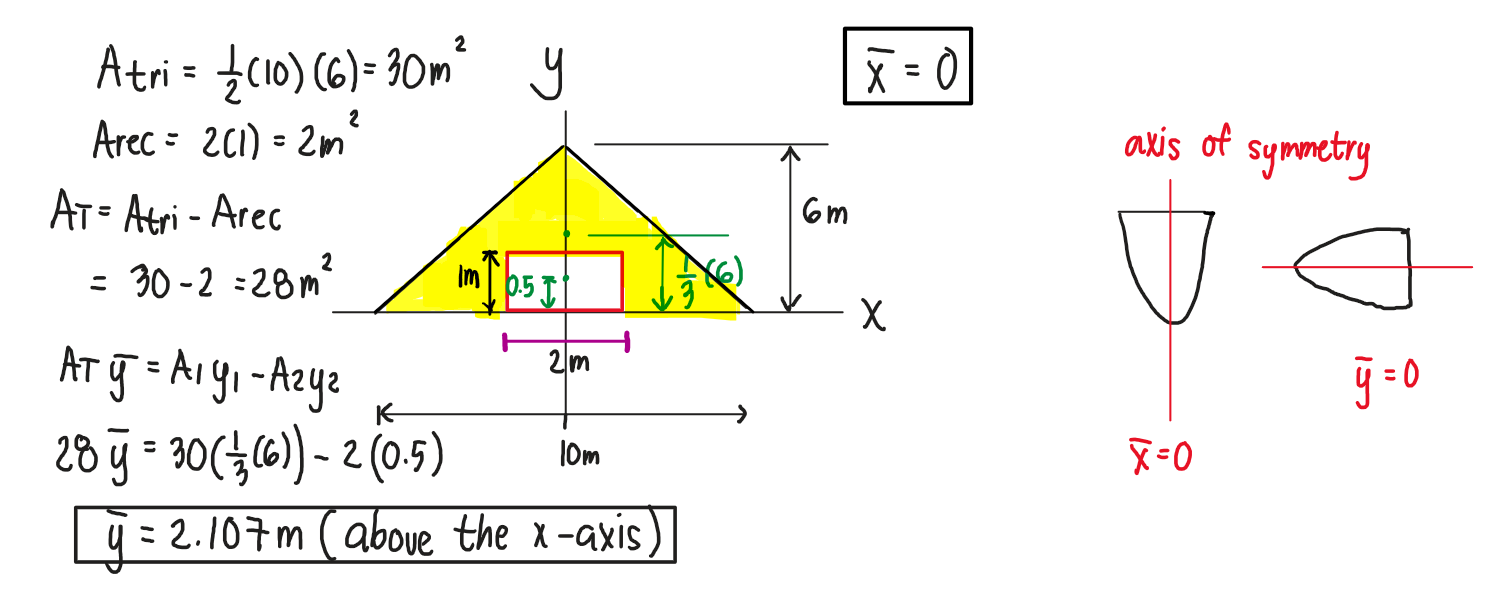

Problem 6:

Locate the centroid from the given reference x and y axes.

See images:

Problem 7:

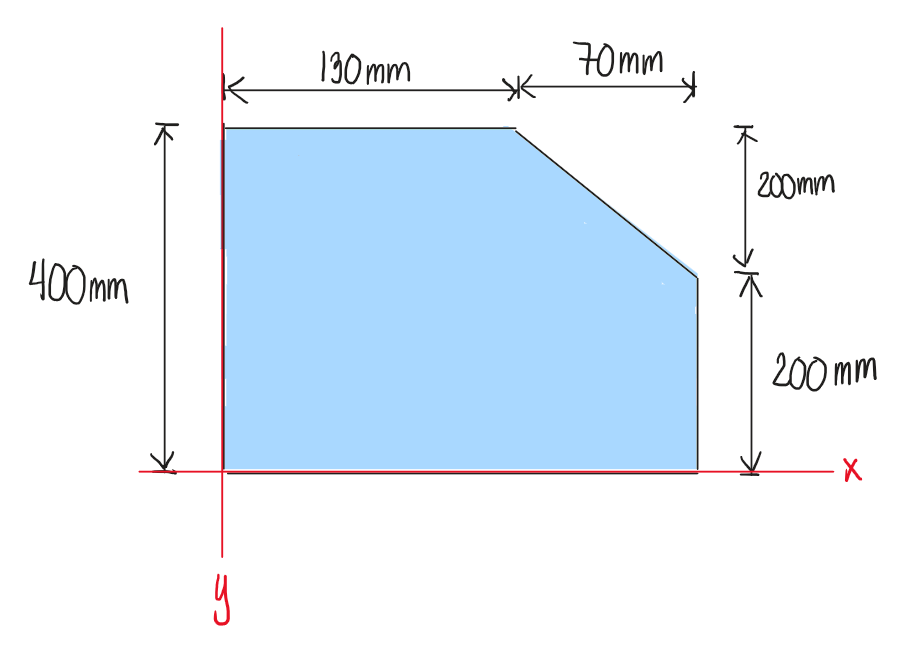

Locate the centroid from the given reference x and y axes.

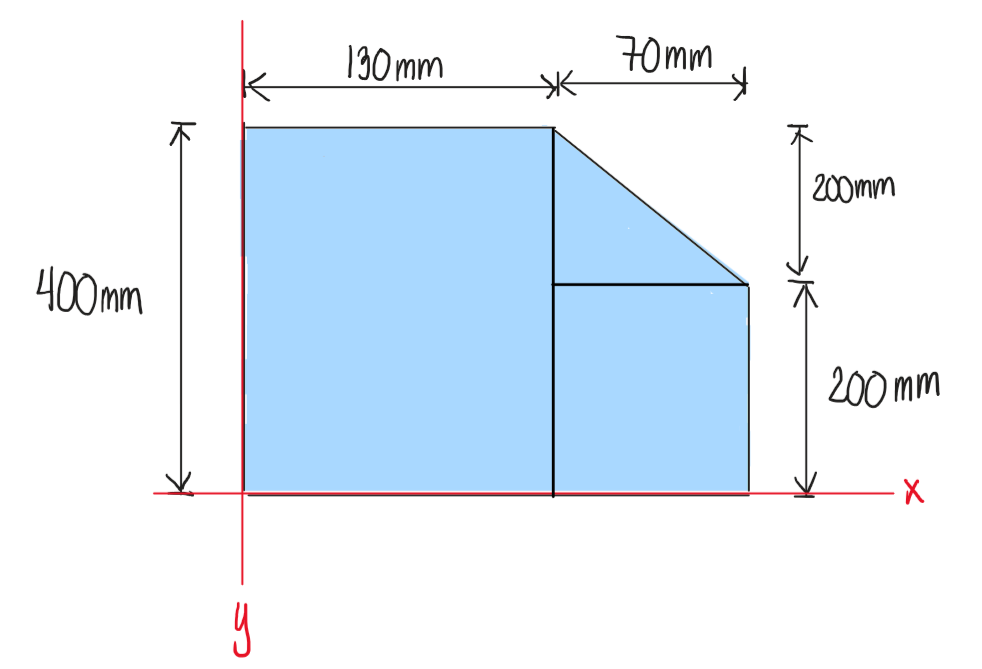

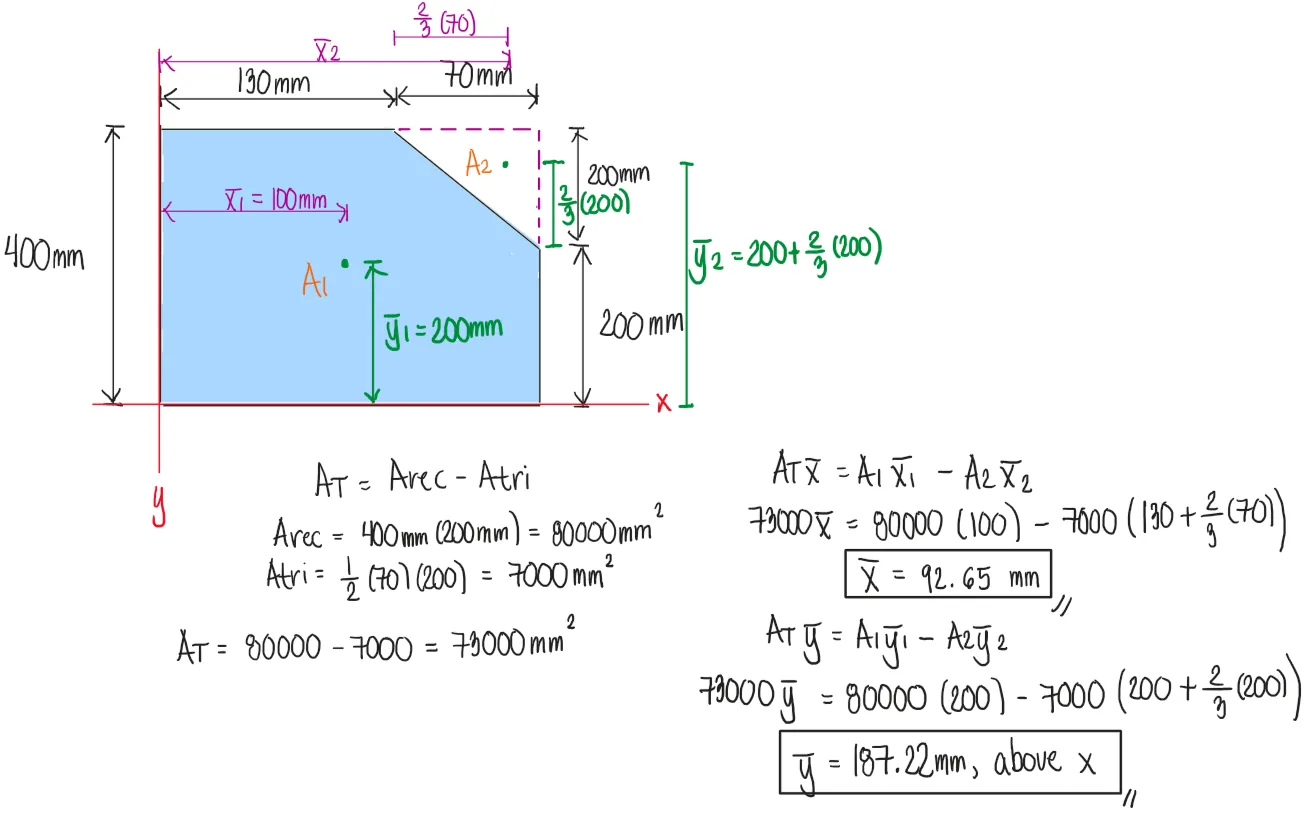

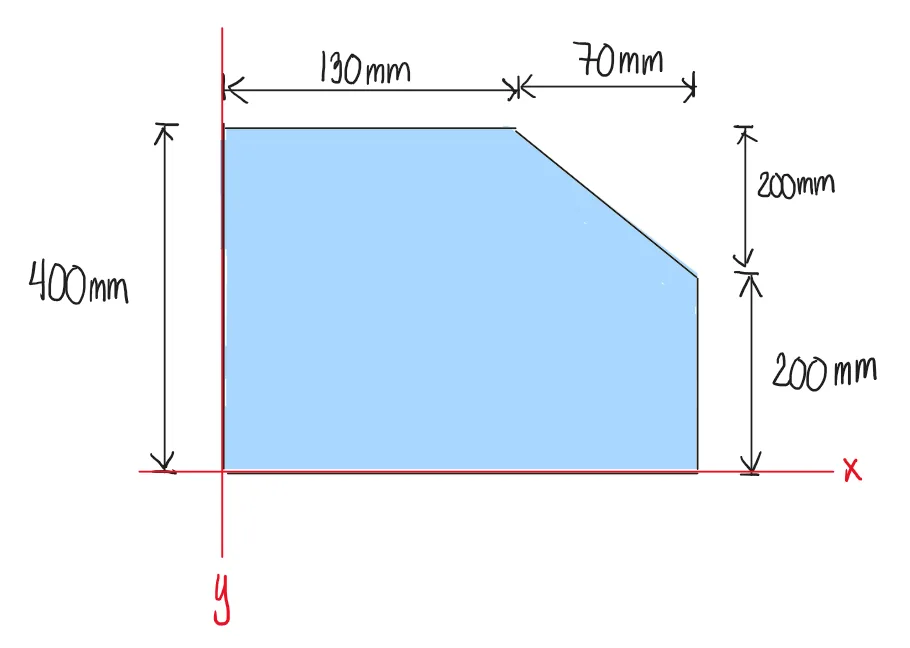

At first glance, we could identify three shapes in this problem. Two rectangles and one triangle. However, a technique we can use here is the subtraction of hollow areas. Notice that this shape could be interpreted as one large rectangle minus a hollow triangle at the top right portion.

In our solution, we consider the total area, A_T, as the area of the whole rectangle less the hollow triangle.

Problem 8:

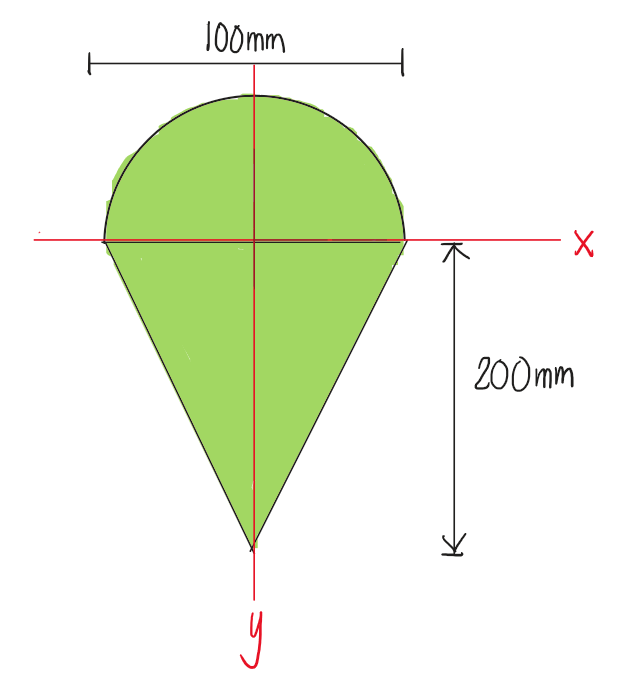

Locate the centroid from the given reference x and y axes.

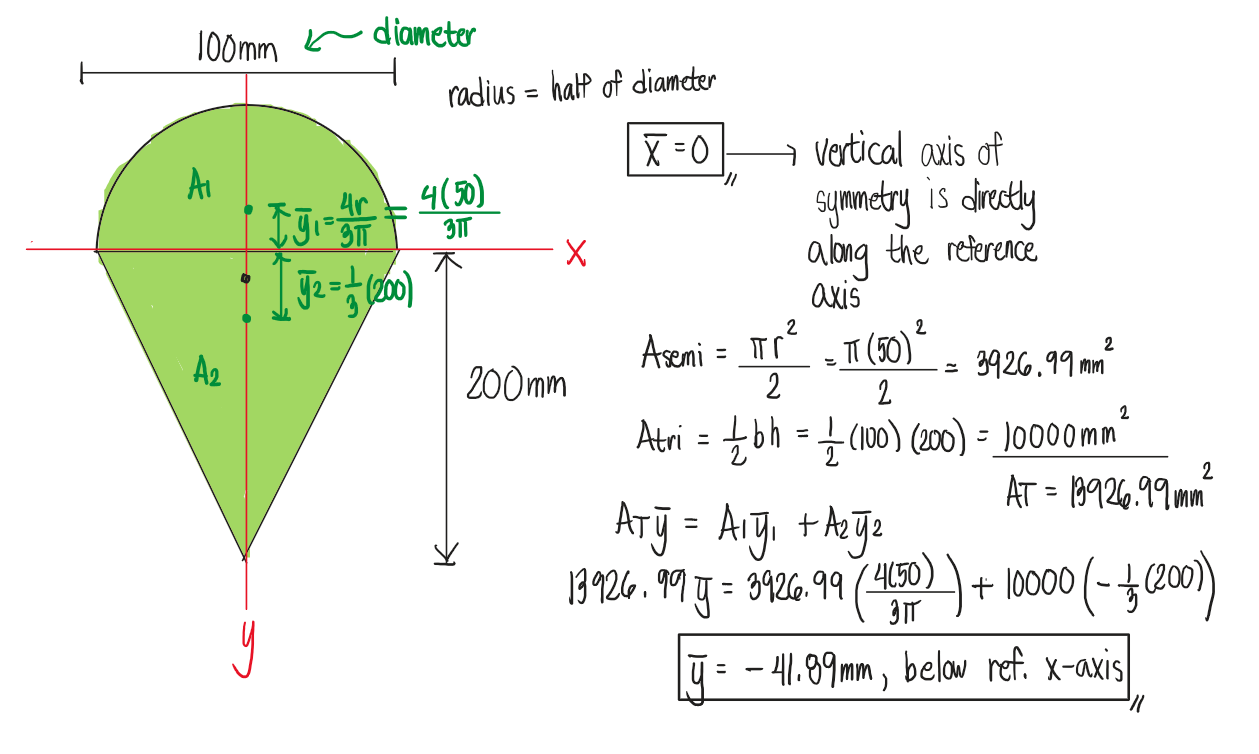

See images:

Problem 9:

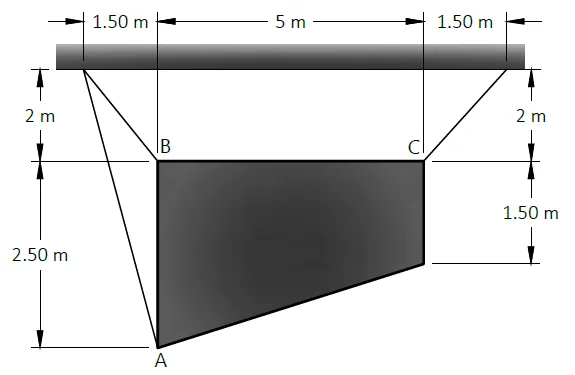

The homogeneous 1200-N plate is suspended from three cables as shown.
a. Compute the tension of the cable at A. (119.60N)
b. Compute the tension of the cable at B. (648N)
