Design of Web Reinforcement

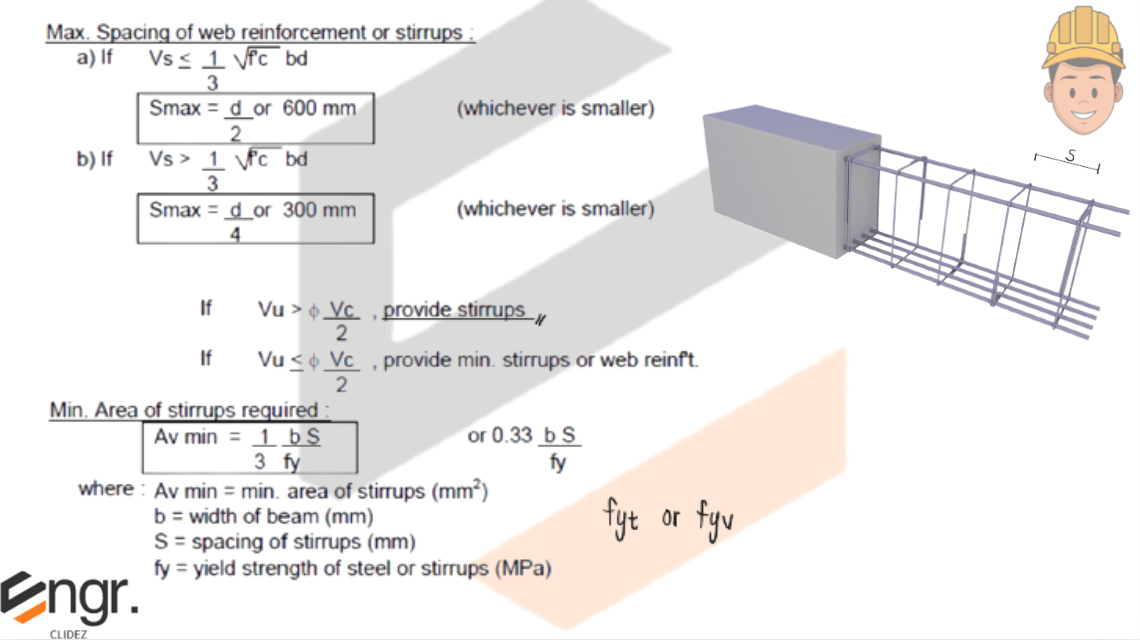

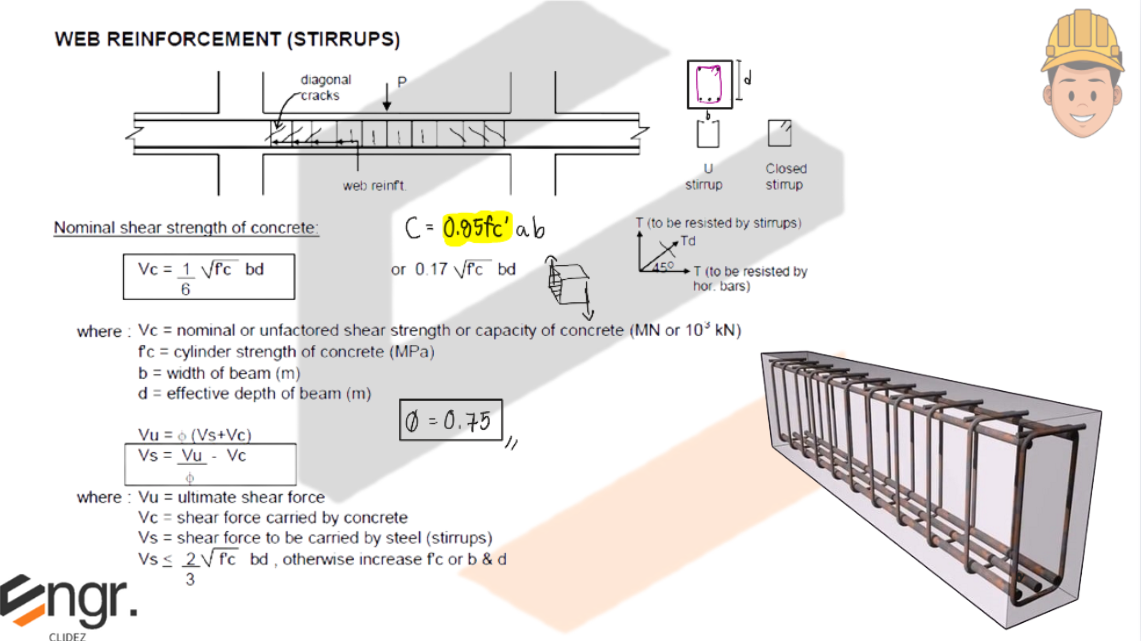

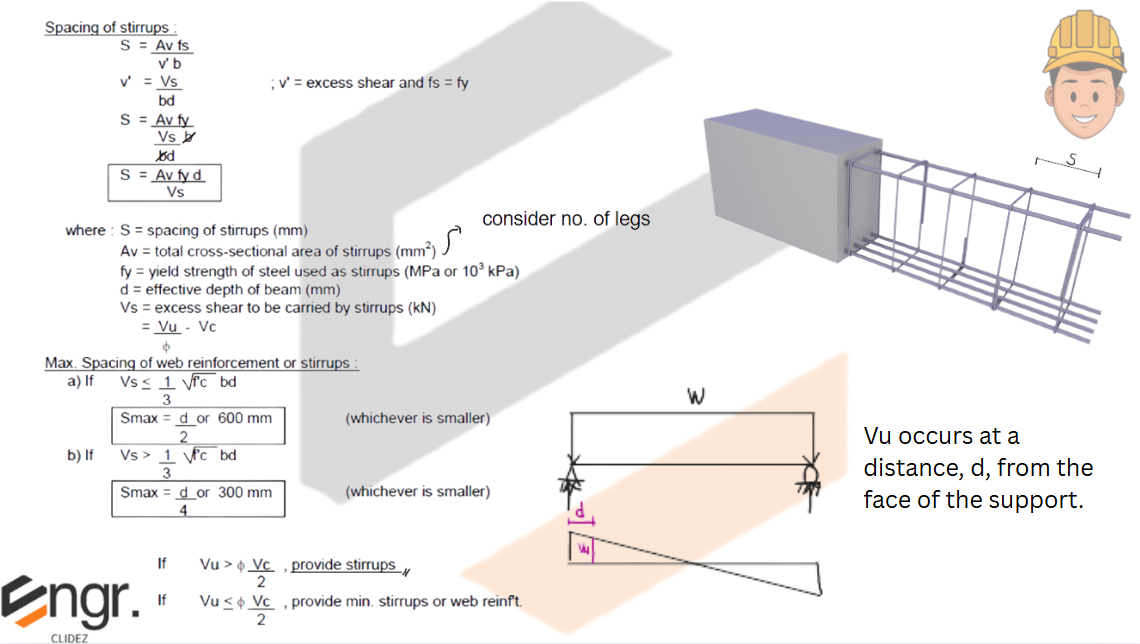

Concept Diagram 1

Concept Diagram 2

Concept Diagram 3

Problem 1 (Design Problem):

A 6m simply supported beam carries a uniform live load of 20kN/m and a dead load of 12kN/m (including its own weight).Use f'c=28MPa, fy=345MPa, b=d/2. Choose appropriate bar diameters and check for shear.

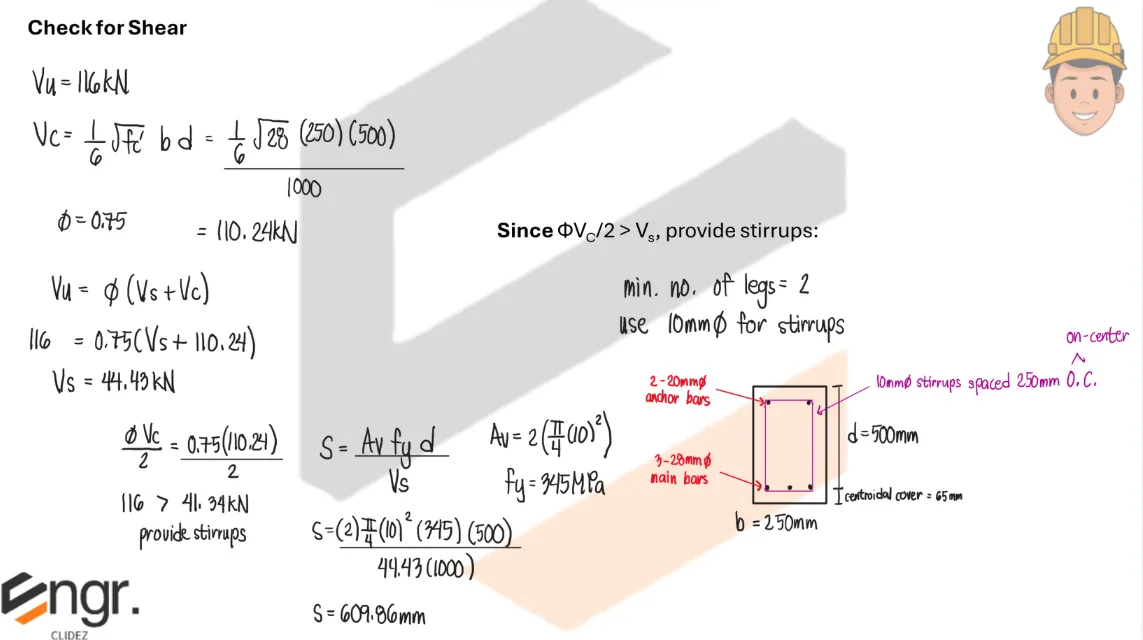

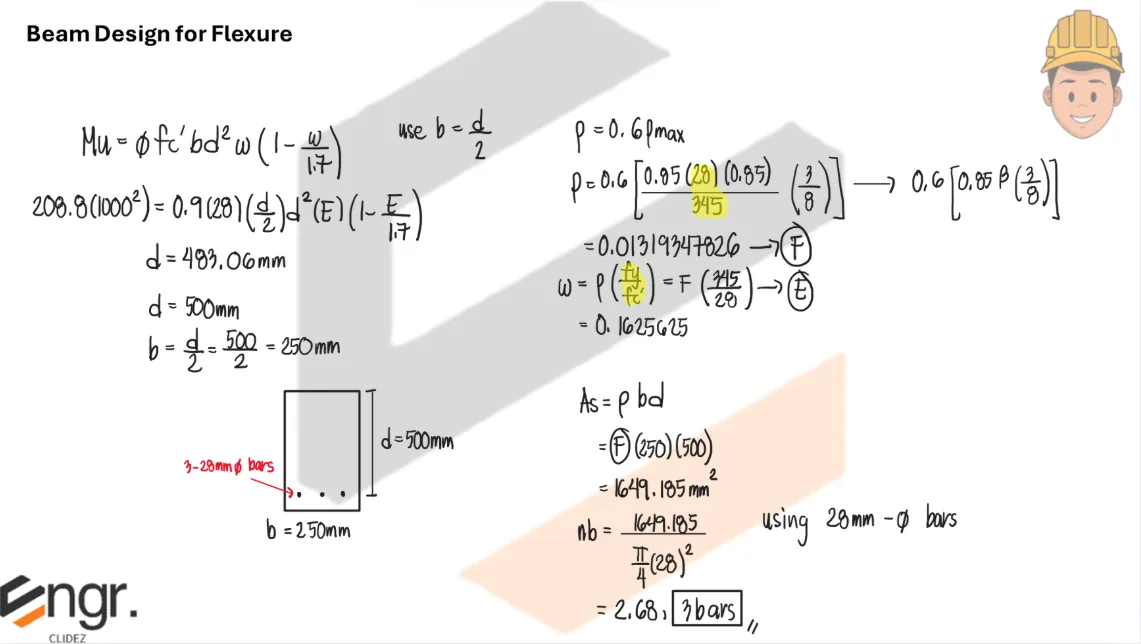

Diagram

Diagram

Diagram

See images:

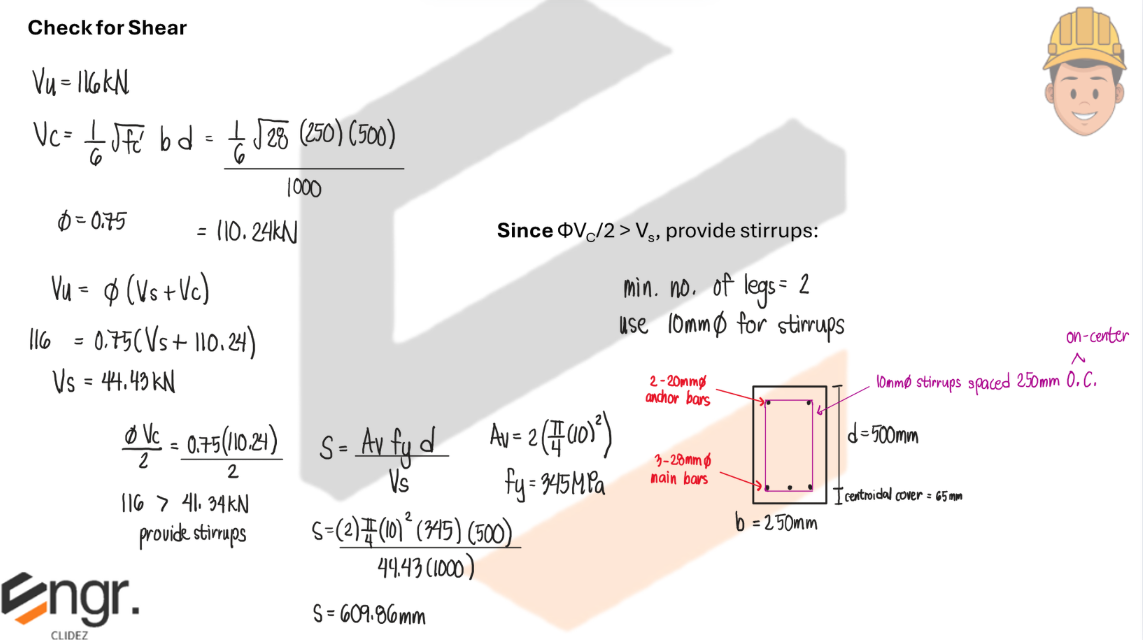

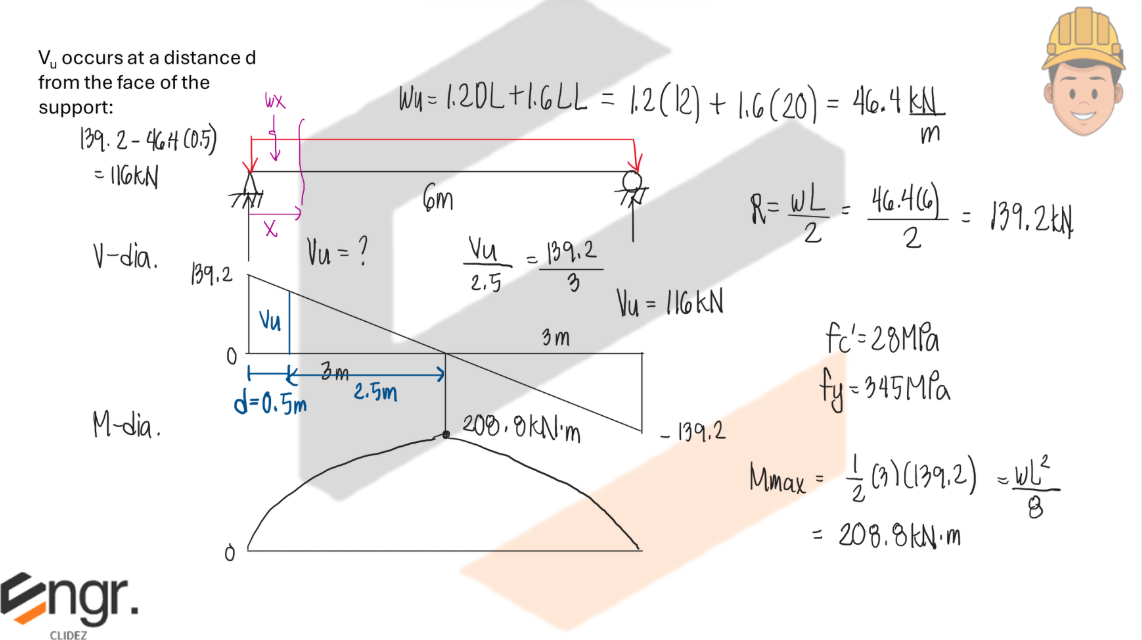

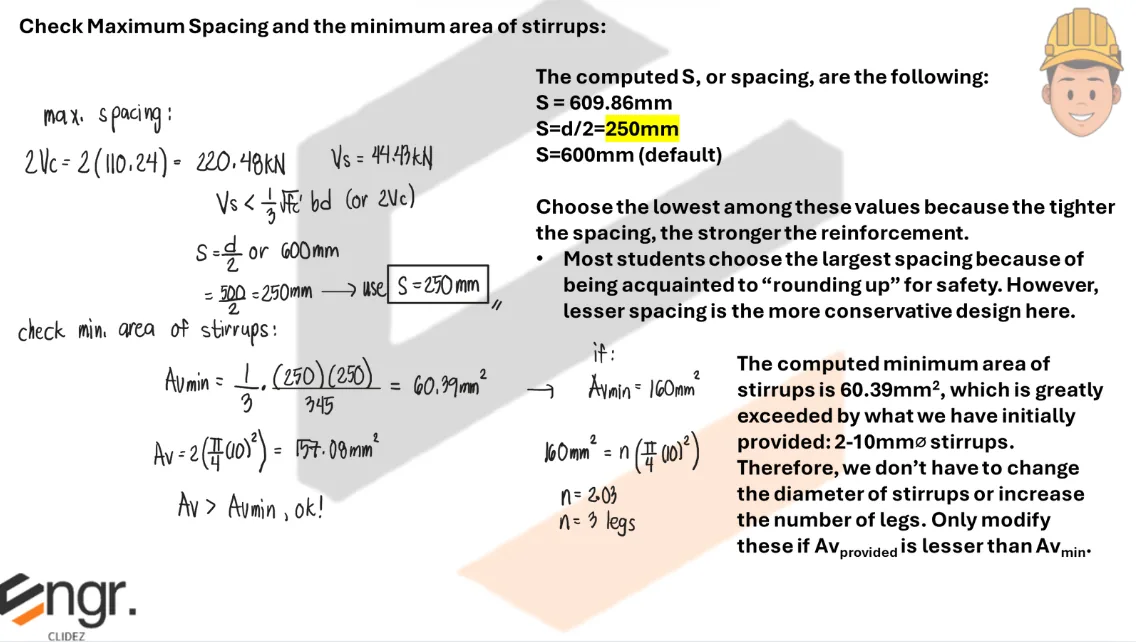

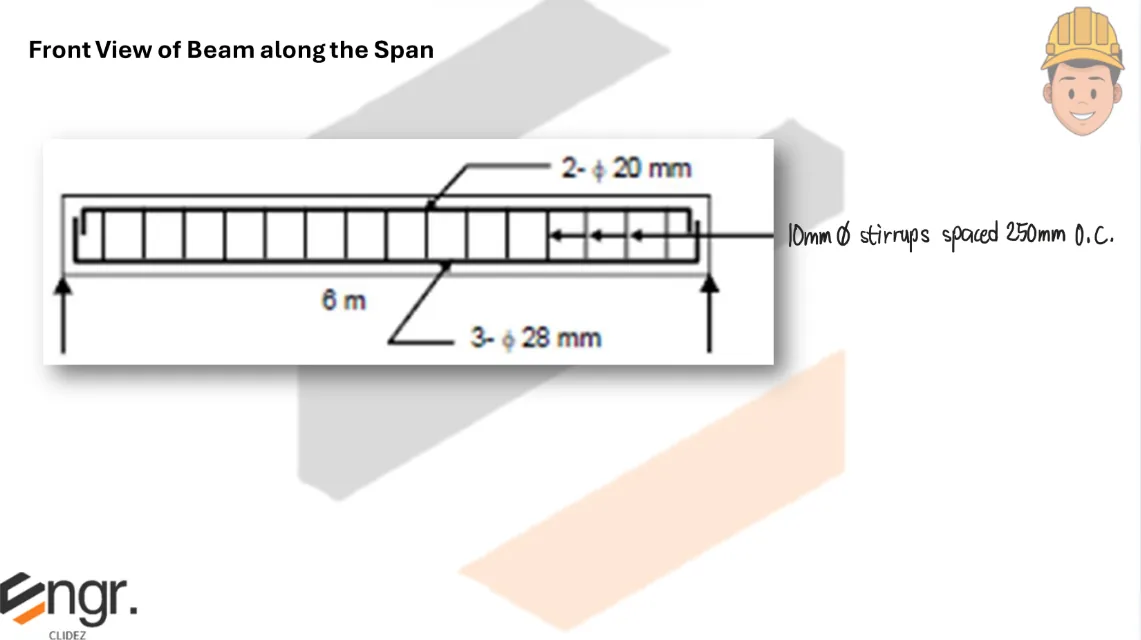

Solution

Solution

Solution

Solution

Solution

Problem 2 (Design Problem):

Design the beam shown to carry a service live load of 20kN/m and a dead load of 15kN/m (including its own weight). Use f'c=21MPa, fy=276MPa, b=d/2. The beam is to be reinforced for tension only. Check also for shear.

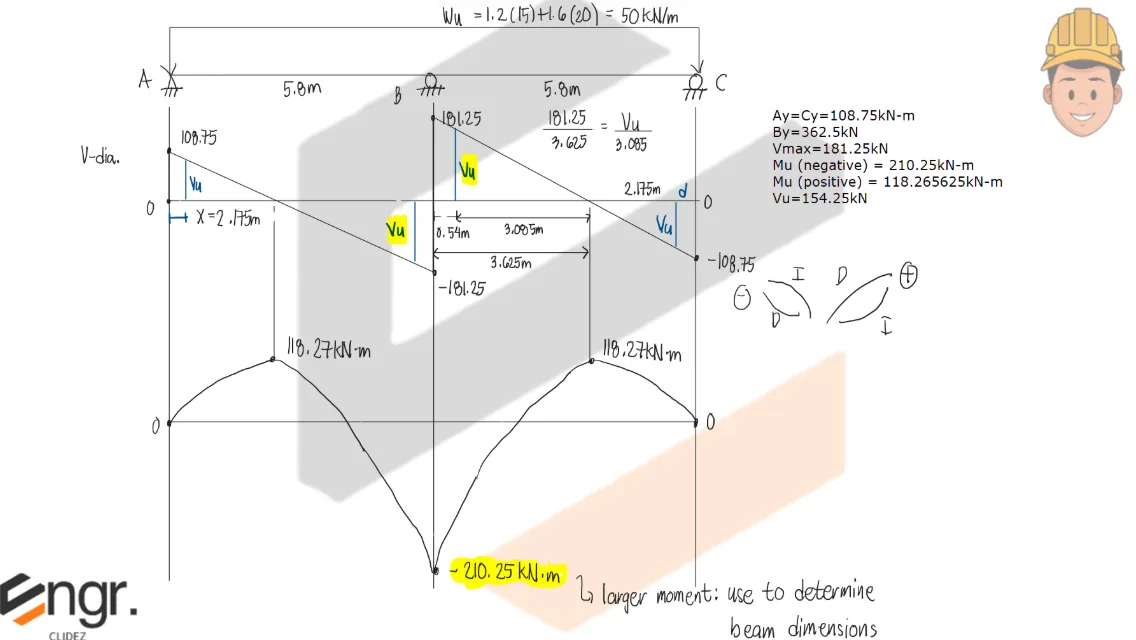

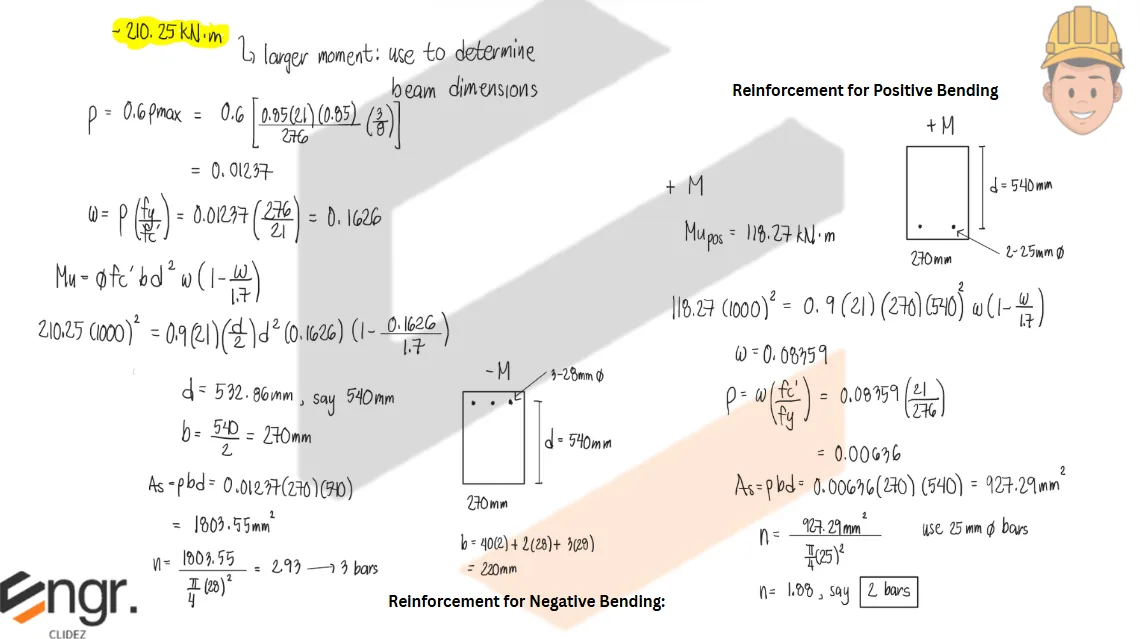

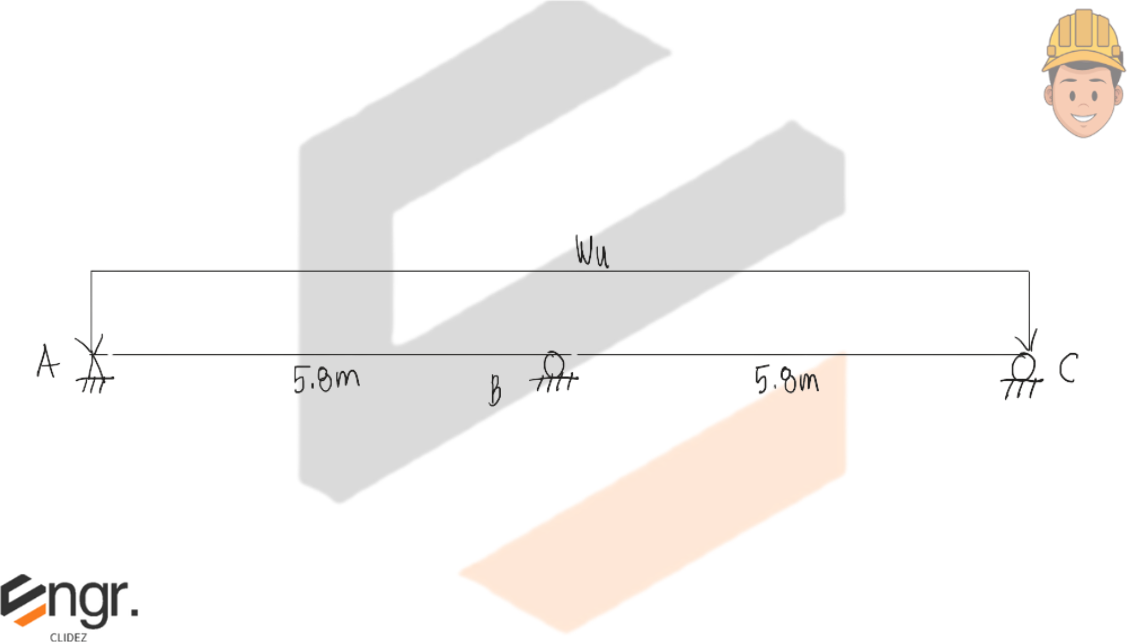

Diagram

Diagram

Diagram

See images:

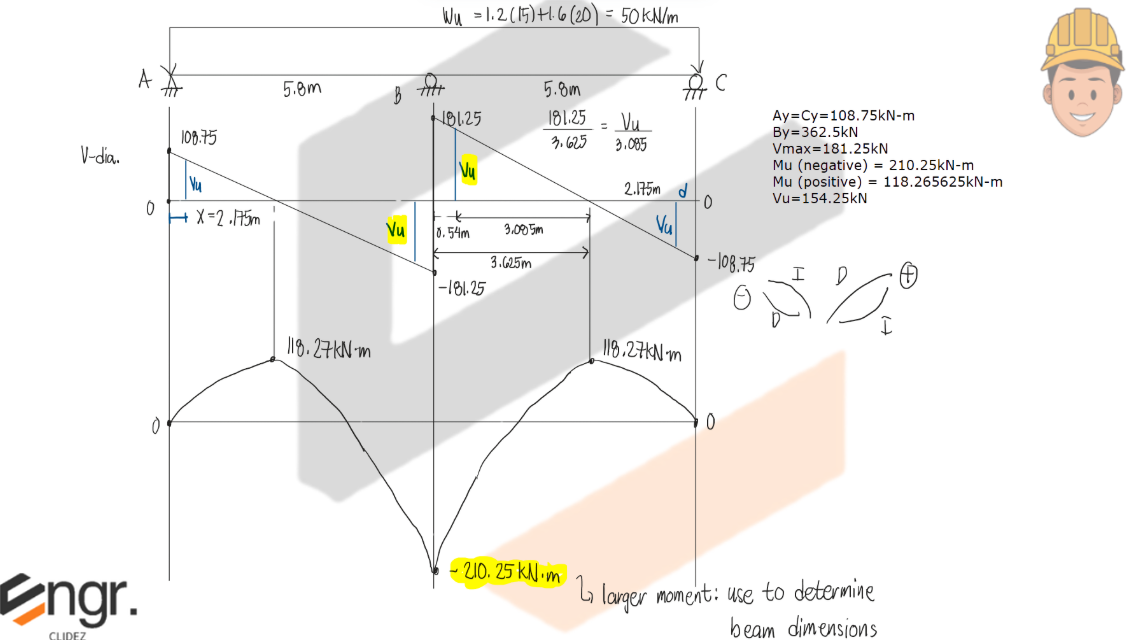

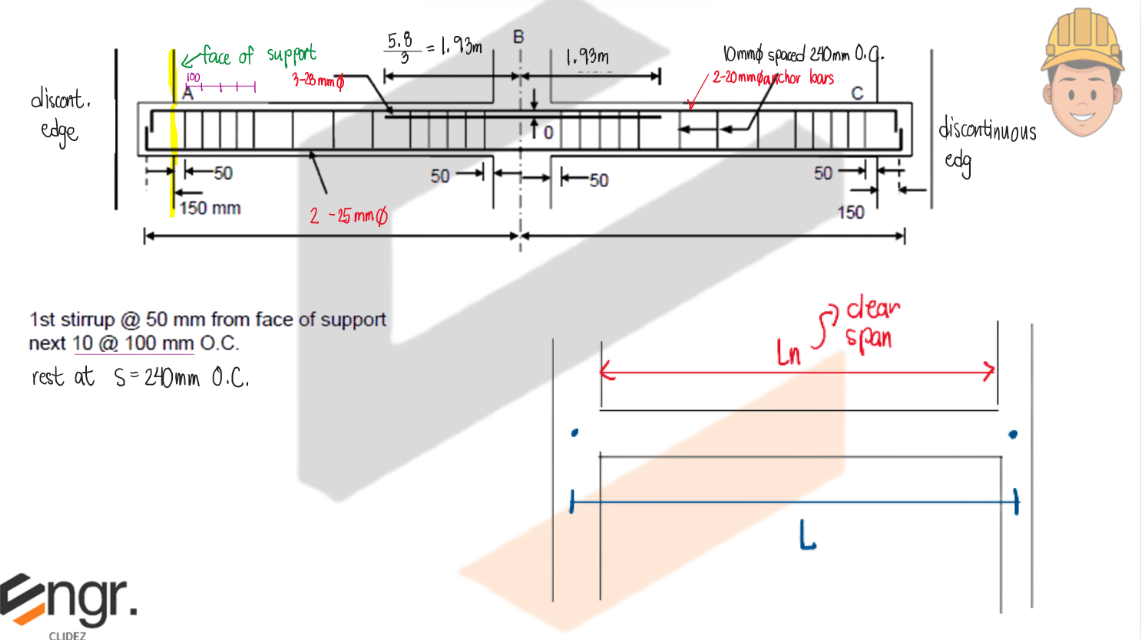

Solution

Solution

Solution

Solution

Problem 3 (Design Problem):

Refer to the image shown:

Diagram

Diagram

Diagram

See images:

Solution

Solution

Solution

Solution

Solution

Problem 4 (Design Problem):

Refer to the image shown:

Diagram

Diagram

Diagram

See images:

Solution

Solution

Solution

Solution

Problem 5 (Design Problem):

Refer to the image shown:

Diagram

Diagram

Diagram

See images:

Solution

Solution

Solution

Solution

Problem 6 (Design Problem):

Refer to the image shown:

Diagram

Diagram

Diagram

See images:

Solution

Solution

Solution

Solution

Problem 7 (Design Problem):

Refer to the image shown:

Diagram

Diagram

Diagram

See images:

Solution

Solution

Solution

Solution

Problem 8 (Design Problem):

Refer to the image shown:

Diagram

Diagram

Diagram

See images:

Solution

Solution

Solution

Solution
