Shear and Moment Equation

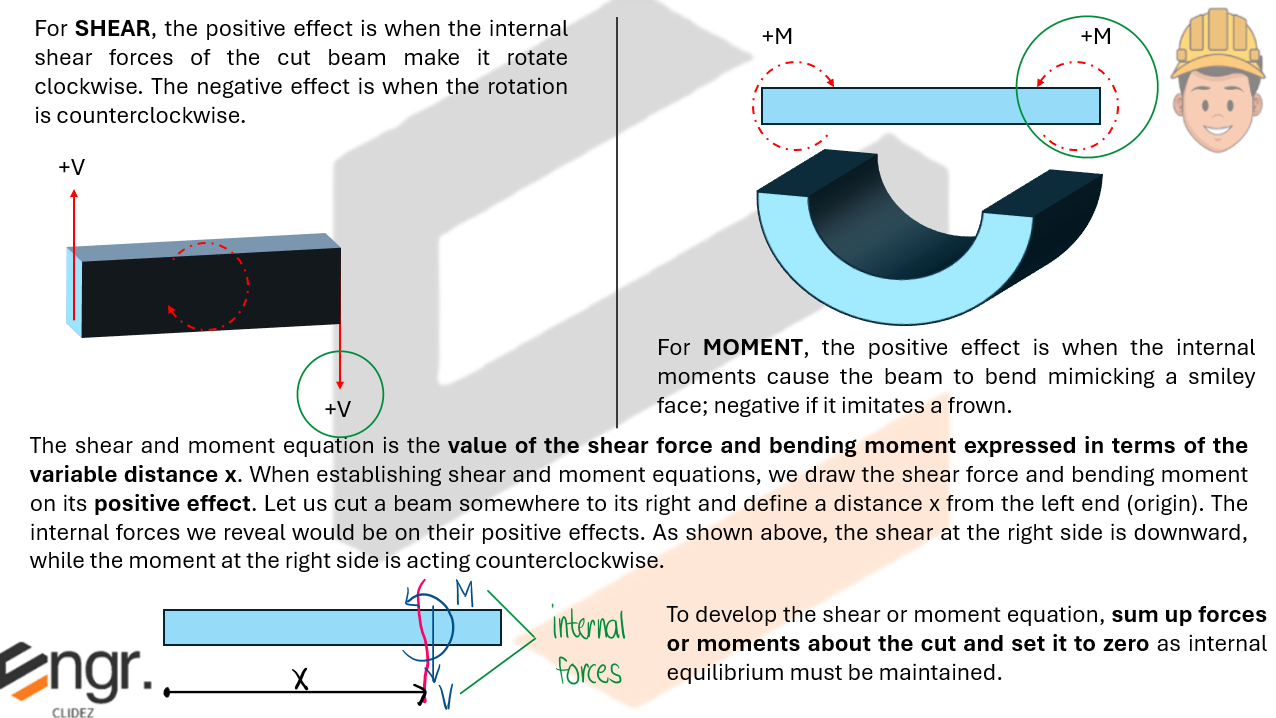

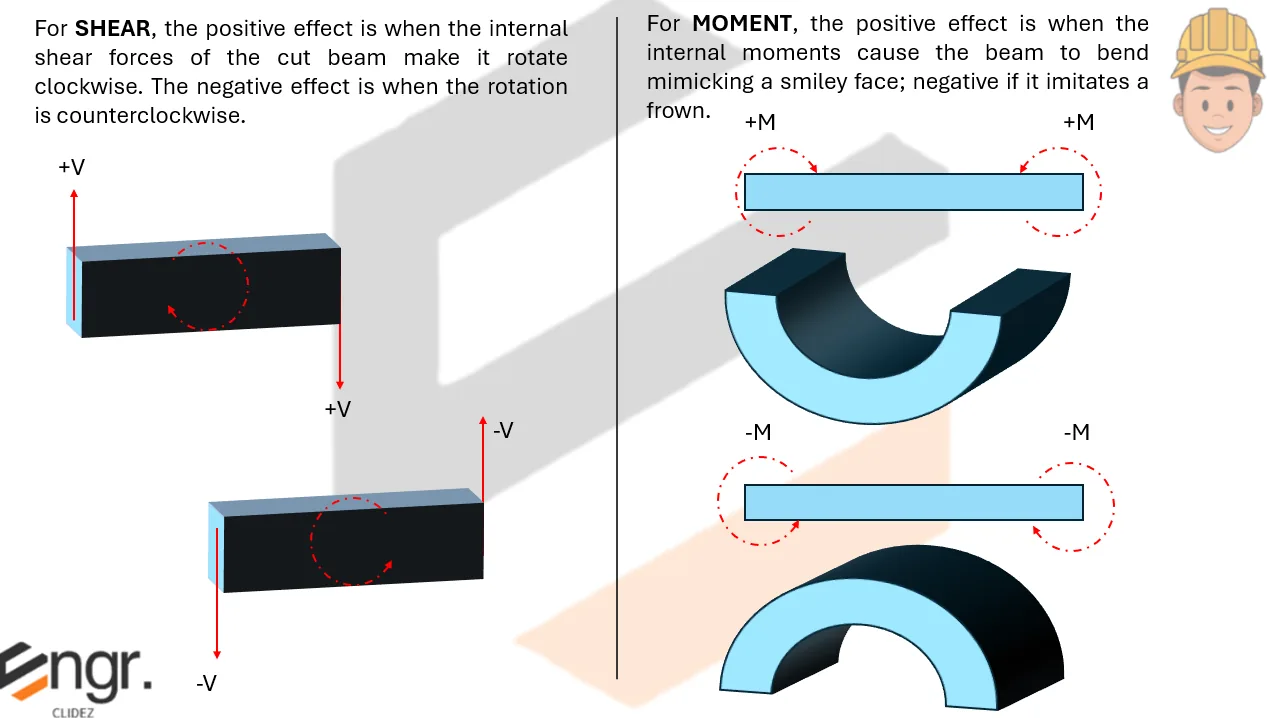

Concept Concept Concept Concept Concept Concept Concept Concept Concept

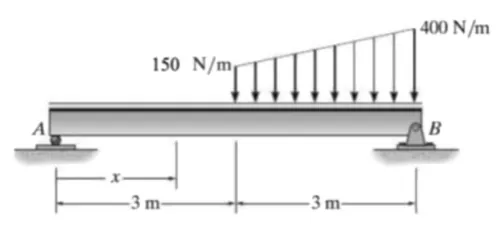

Problem 1: Shear and Moment Equation of Trapezoidal Load

Develop the shear and moment equation of segment AB and BC of the beam shown. Calculate also the location and value of the maximum moment.

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 1: Shear and Moment Equation of Trapezoidal Load – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 1: Shear and Moment Equation of Trapezoidal Load – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 1: Shear and Moment Equation of Trapezoidal Load – Diagram

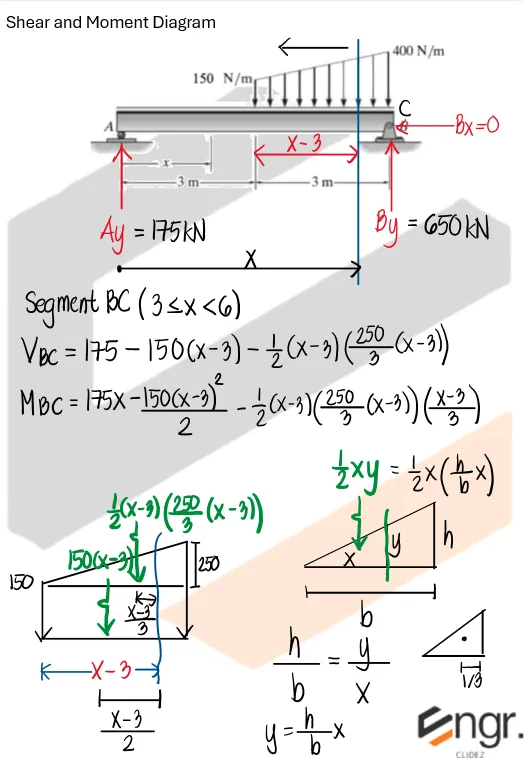

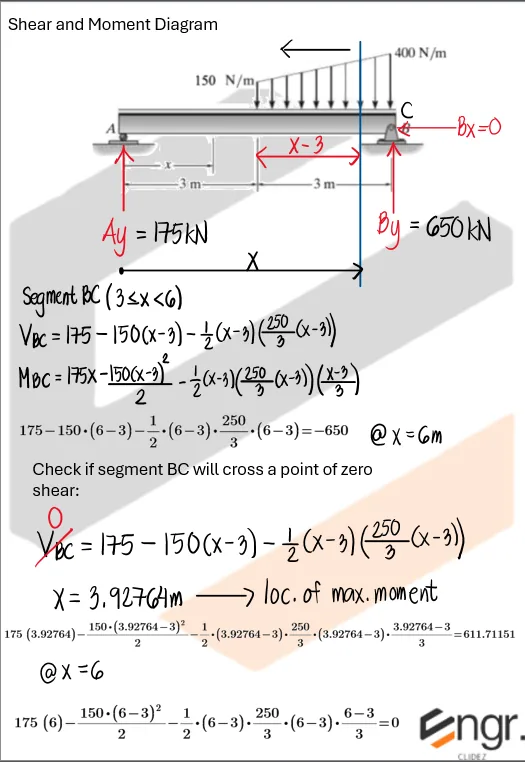

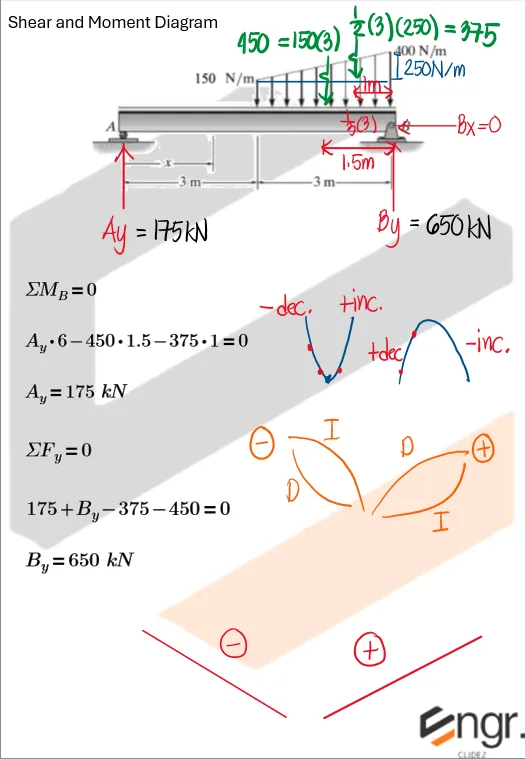

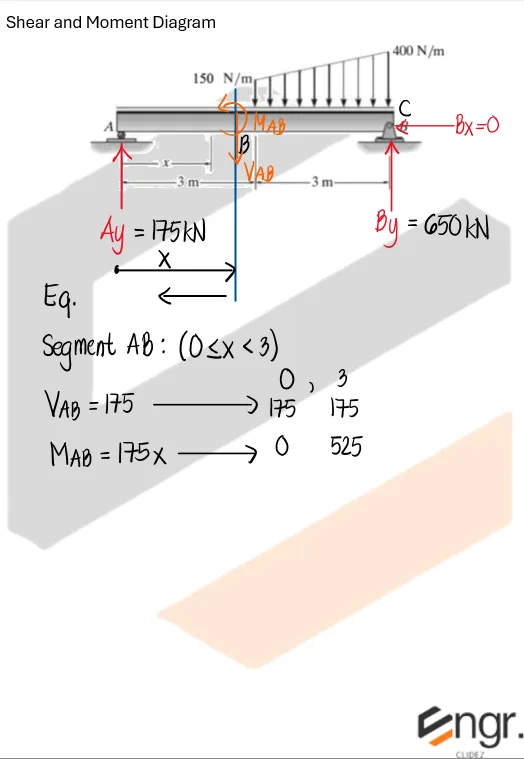

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 1: Shear and Moment Equation of Trapezoidal Load – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 1: Shear and Moment Equation of Trapezoidal Load – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 1: Shear and Moment Equation of Trapezoidal Load – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 1: Shear and Moment Equation of Trapezoidal Load – Diagram

Problem 2:

Refer to the image shown:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 2: – Diagram

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 2: – Diagram

Problem 3:

Refer to the image shown:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 3: – Diagram

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 3: – Diagram

Problem 4:

Refer to the image shown:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 4: – Diagram

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 4: – Diagram

Problem 5:

Refer to the image shown:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 5: – Diagram

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 5: – Diagram

Problem 6:

Refer to the image shown:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 6: – Diagram

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 6: – Diagram

Problem 7:

Refer to the image shown:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 7: – Diagram

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 7: – Diagram

Problem 8:

Refer to the image shown:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 8: – Diagram

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 8: – Diagram
