Shear and Moment Diagram

Problem: Shear and Moment Diagram where Vertex must be Located

Draw the shear and moment diagram and solve the moment values using the area method.

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem: Shear and Moment Diagram where Vertex must be Located – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem: Shear and Moment Diagram where Vertex must be Located – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem: Shear and Moment Diagram where Vertex must be Located – Diagram

See images:

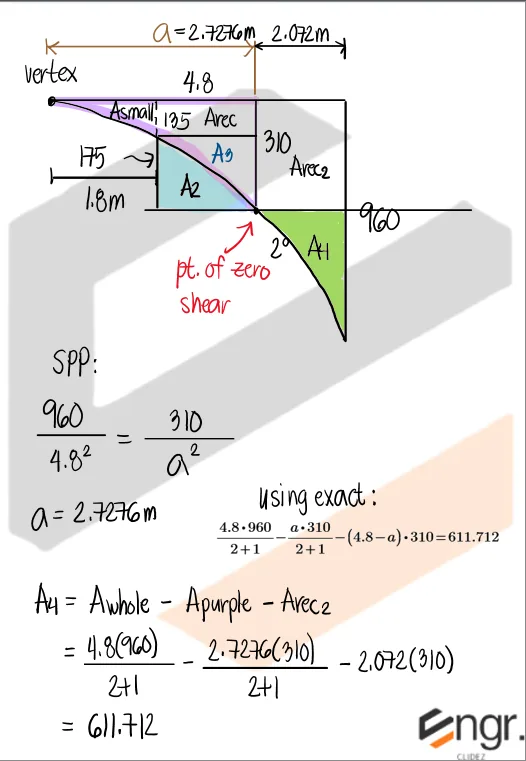

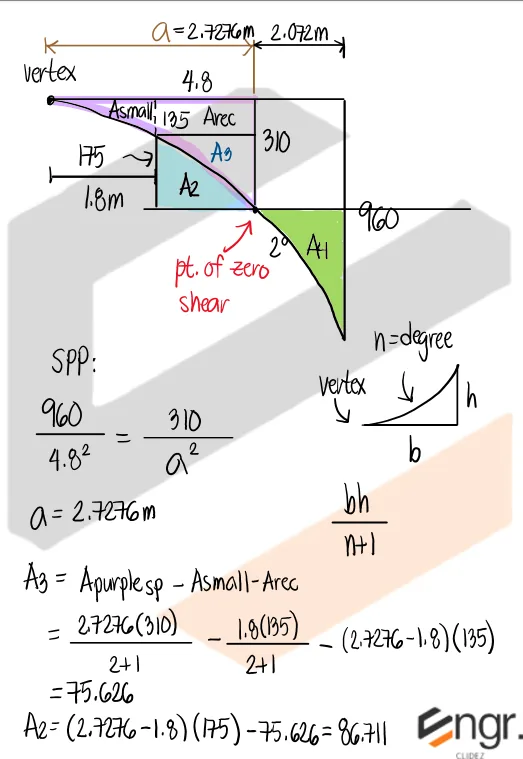

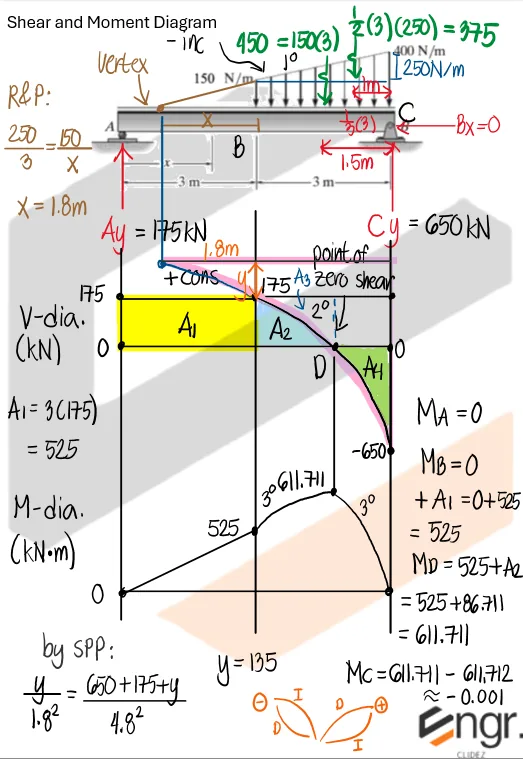

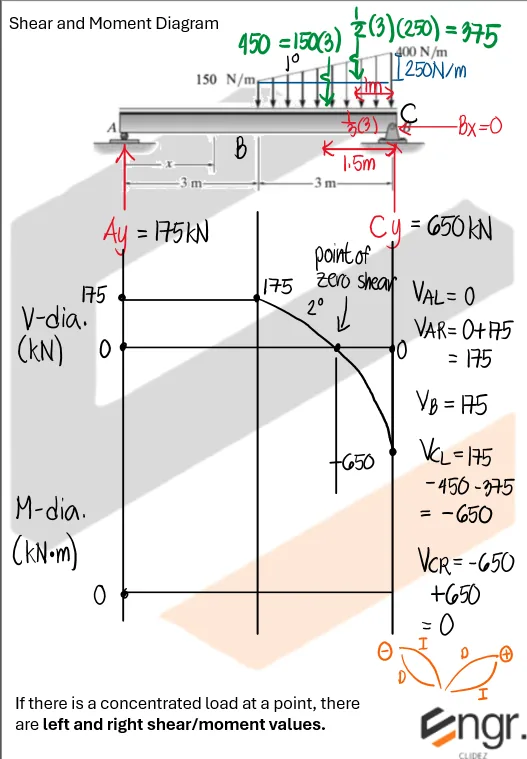

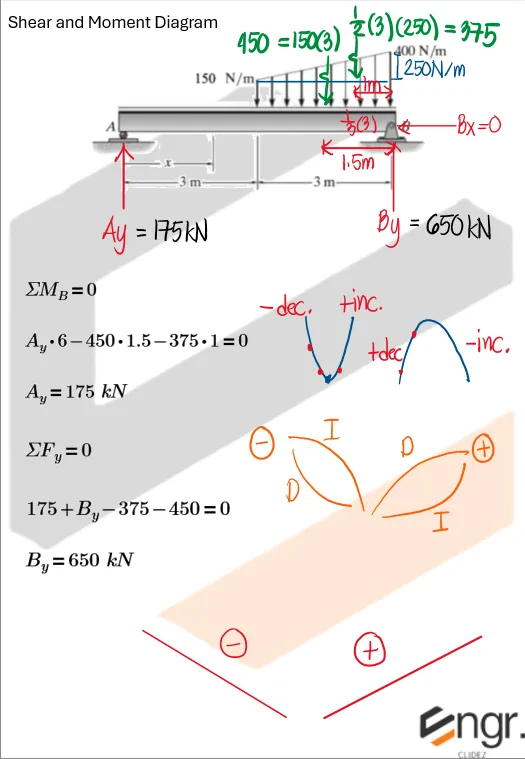

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem: Shear and Moment Diagram where Vertex must be Located – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem: Shear and Moment Diagram where Vertex must be Located – Diagram The applied load is trapezoidal, meaning it consists of a rectangular load and a triangular load whose degrees are not the same. As such, we need to convert the trapezoidal load into a triangular load to locate the vertex of the parabola. We can solve it by using ratio and proportion. Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem: Shear and Moment Diagram where Vertex must be Located – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem: Shear and Moment Diagram where Vertex must be Located – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem: Shear and Moment Diagram where Vertex must be Located – Diagram

Problem 2:

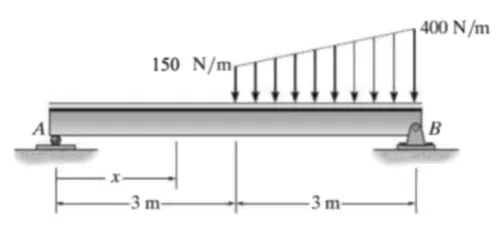

Refer to the image shown:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 2: – Diagram

See images:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 2: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 2: – Diagram

Problem 3:

Refer to the image shown:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 3: – Diagram

See images:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 3: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 3: – Diagram

Problem 4:

Refer to the image shown:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 4: – Diagram

See images:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 4: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 4: – Diagram

Problem 5:

Refer to the image shown:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 5: – Diagram

See images:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 5: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 5: – Diagram

Problem 6:

Refer to the image shown:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 6: – Diagram

See images:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 6: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 6: – Diagram

Problem 7:

Refer to the image shown:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 7: – Diagram

See images:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 7: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 7: – Diagram

Problem 8:

Refer to the image shown:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 8: – Diagram

See images:

Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 8: – Diagram Shear and Moment Diagram | Mechanics of Deformable Bodies – Problem 8: – Diagram
