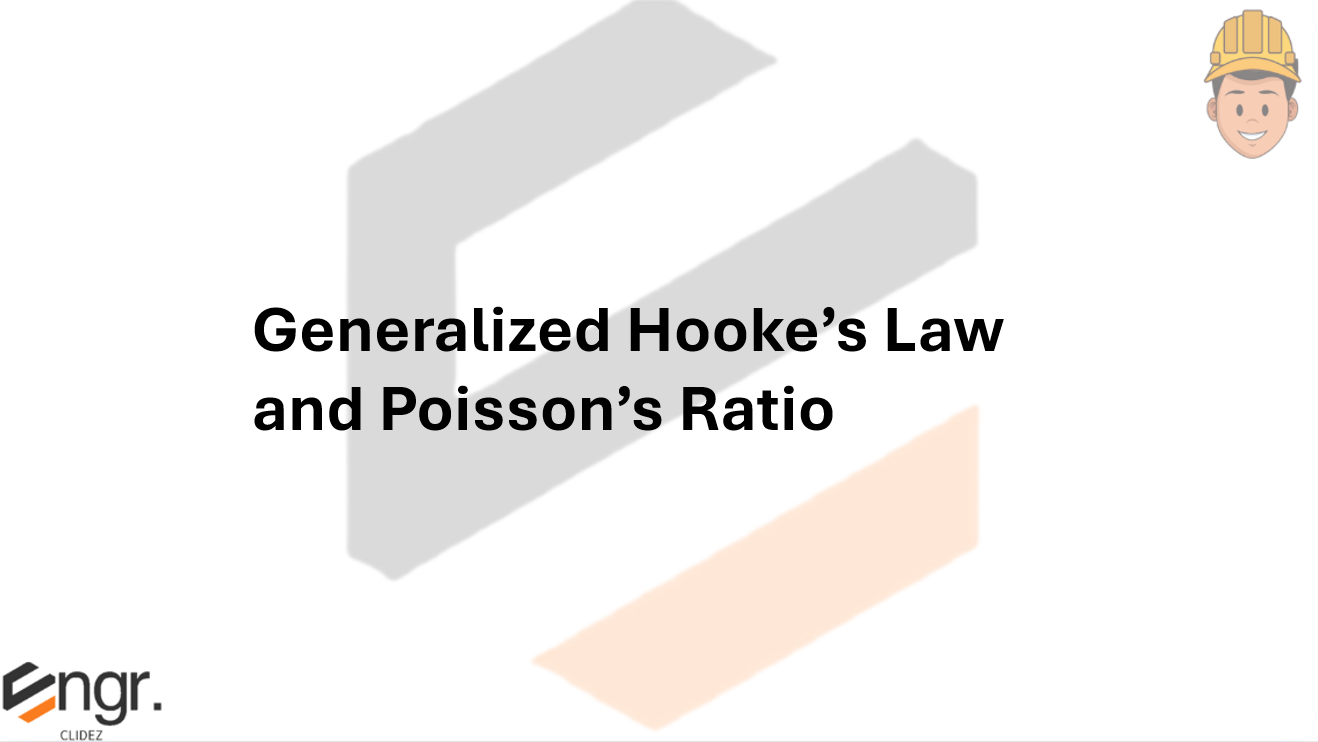

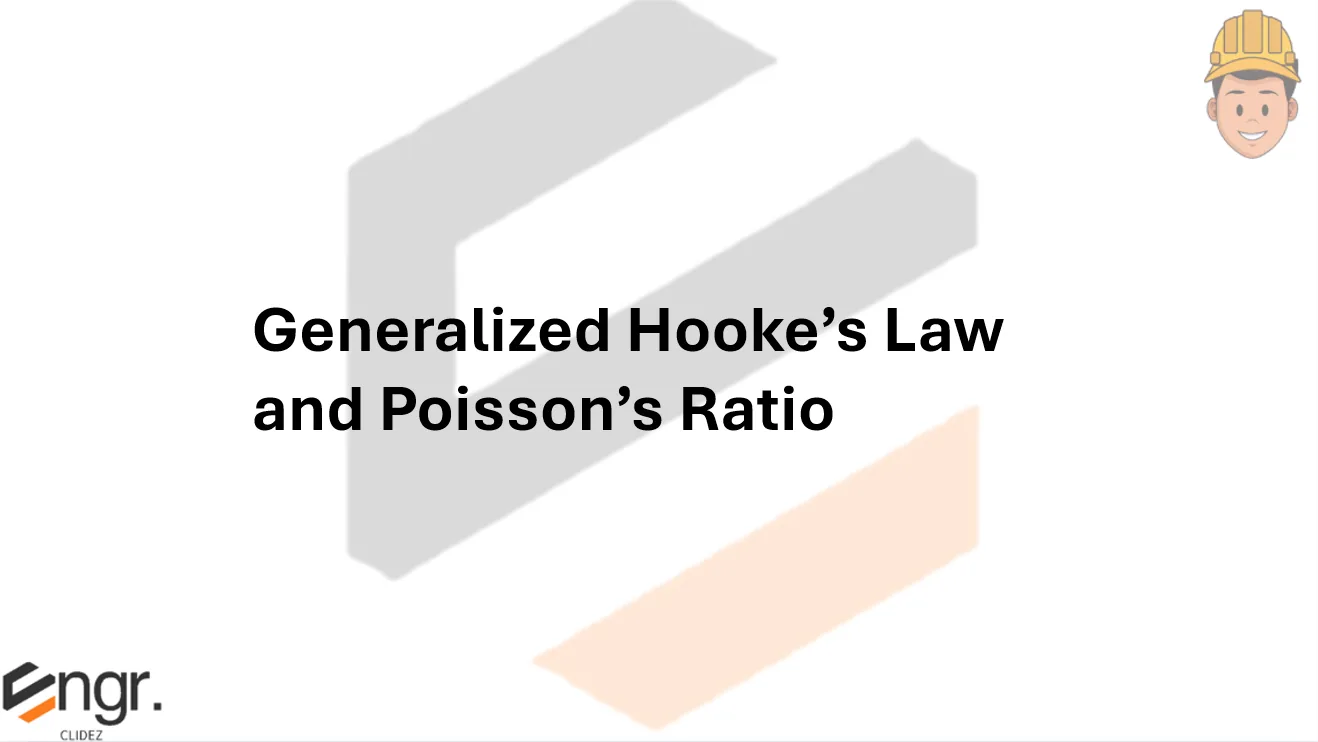

Generalized Hooke's Law

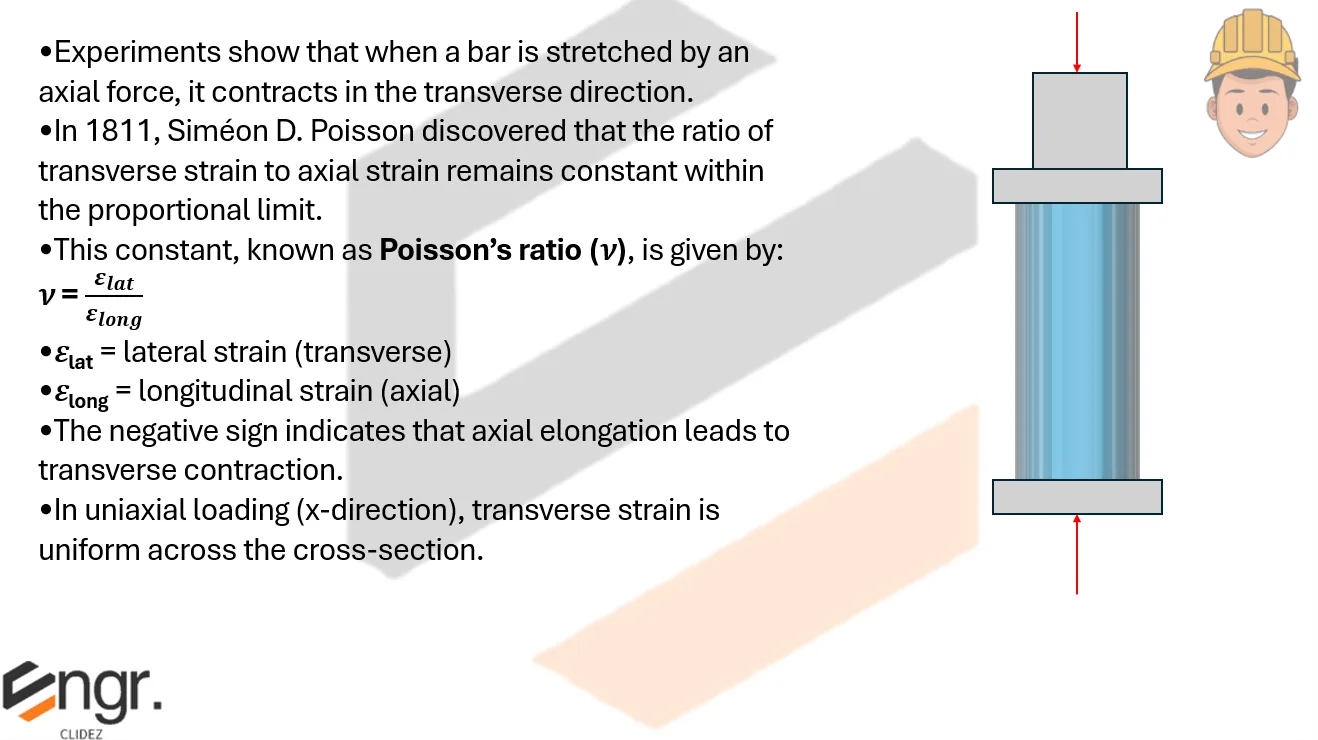

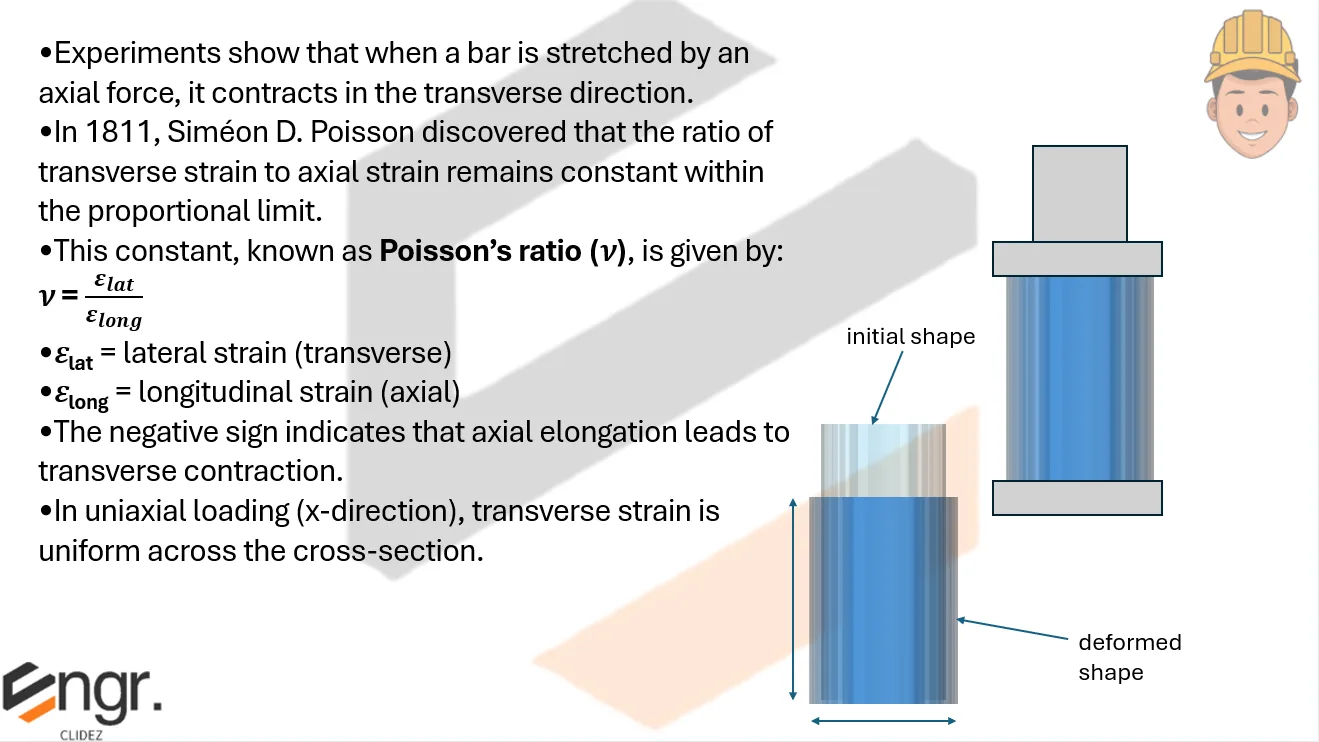

Concept Concept Concept Concept Concept Concept Concept

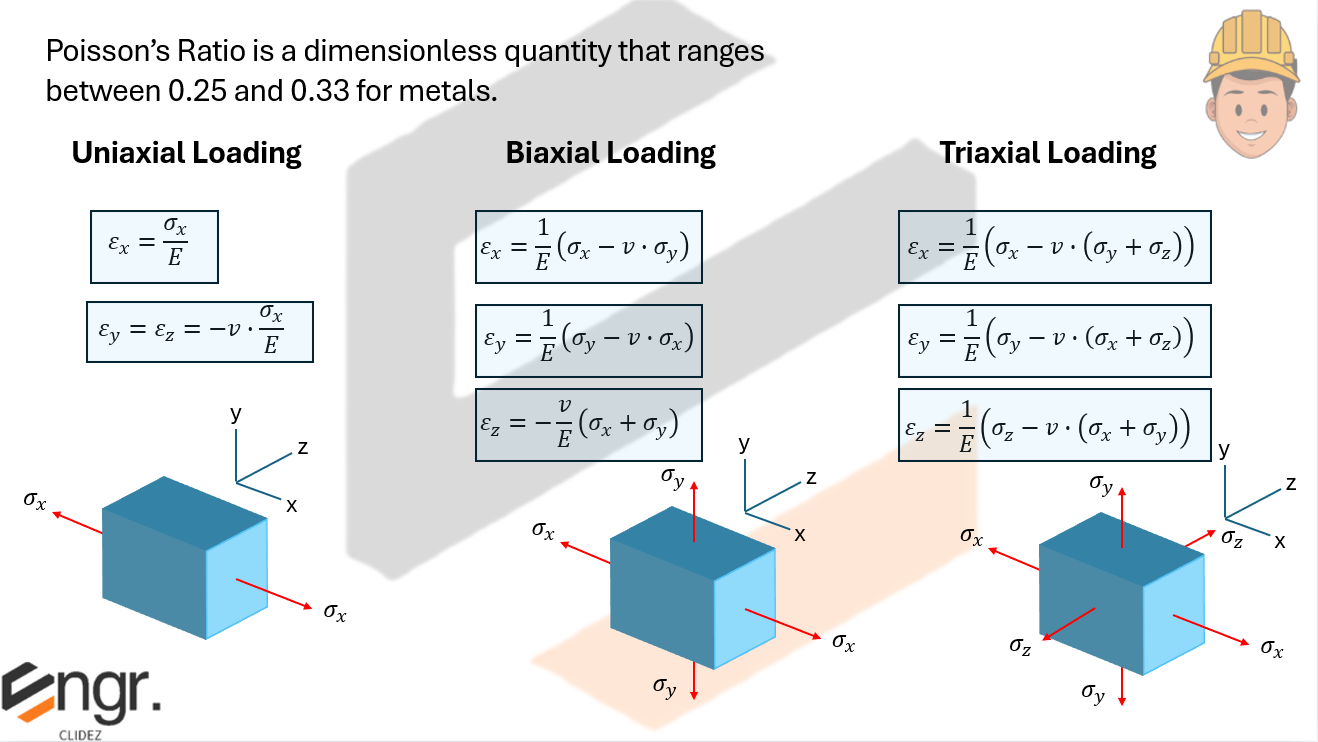

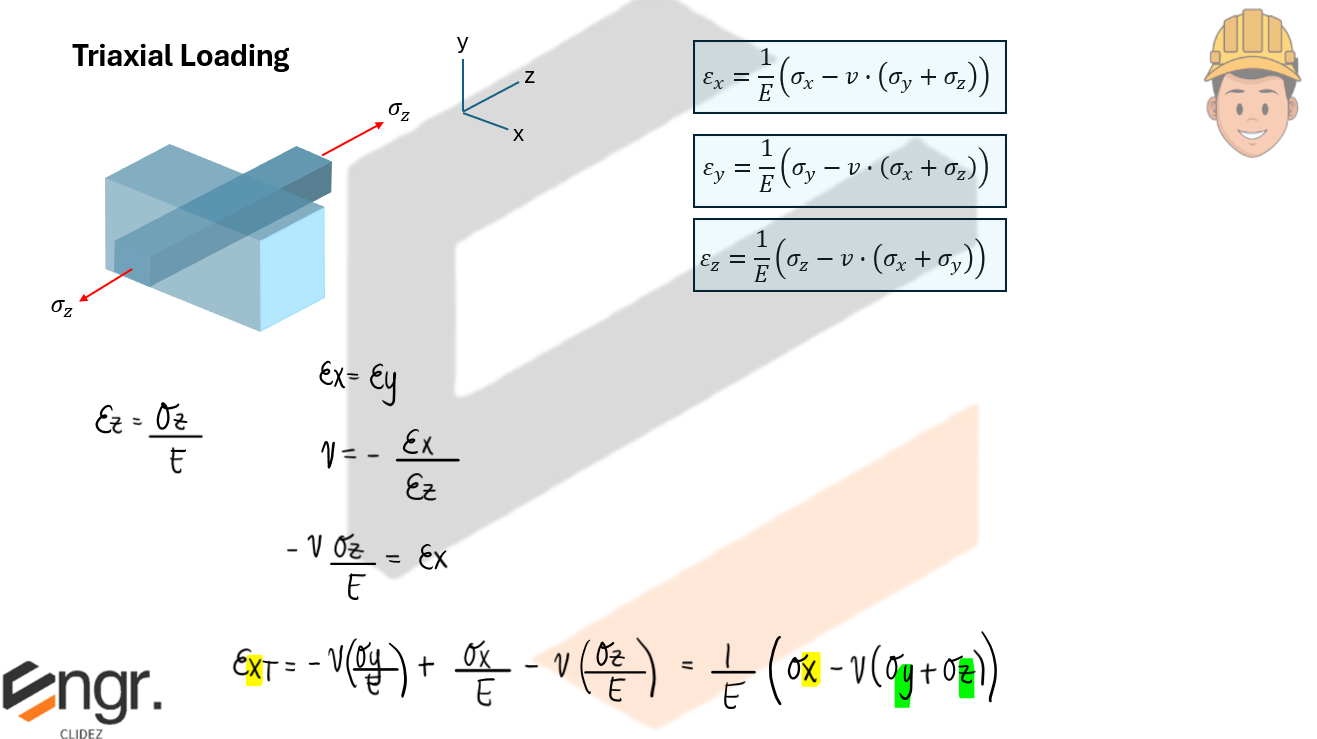

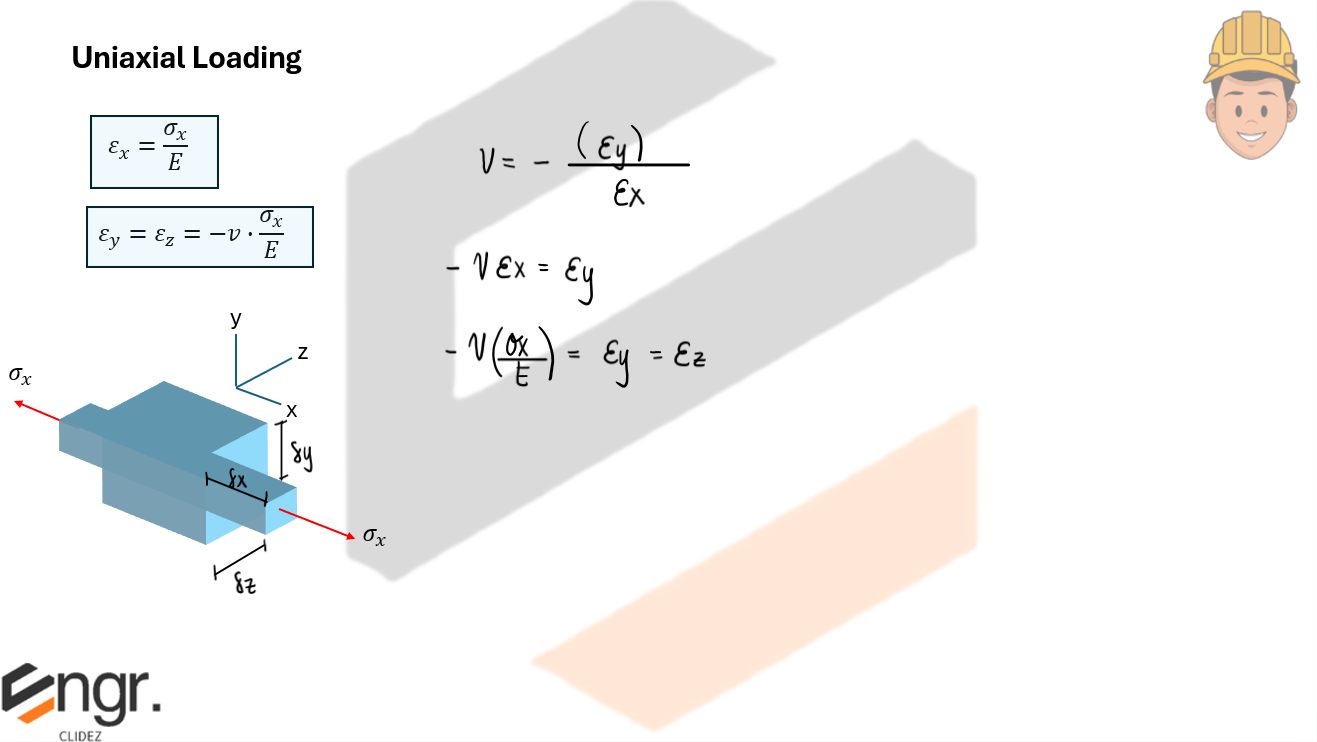

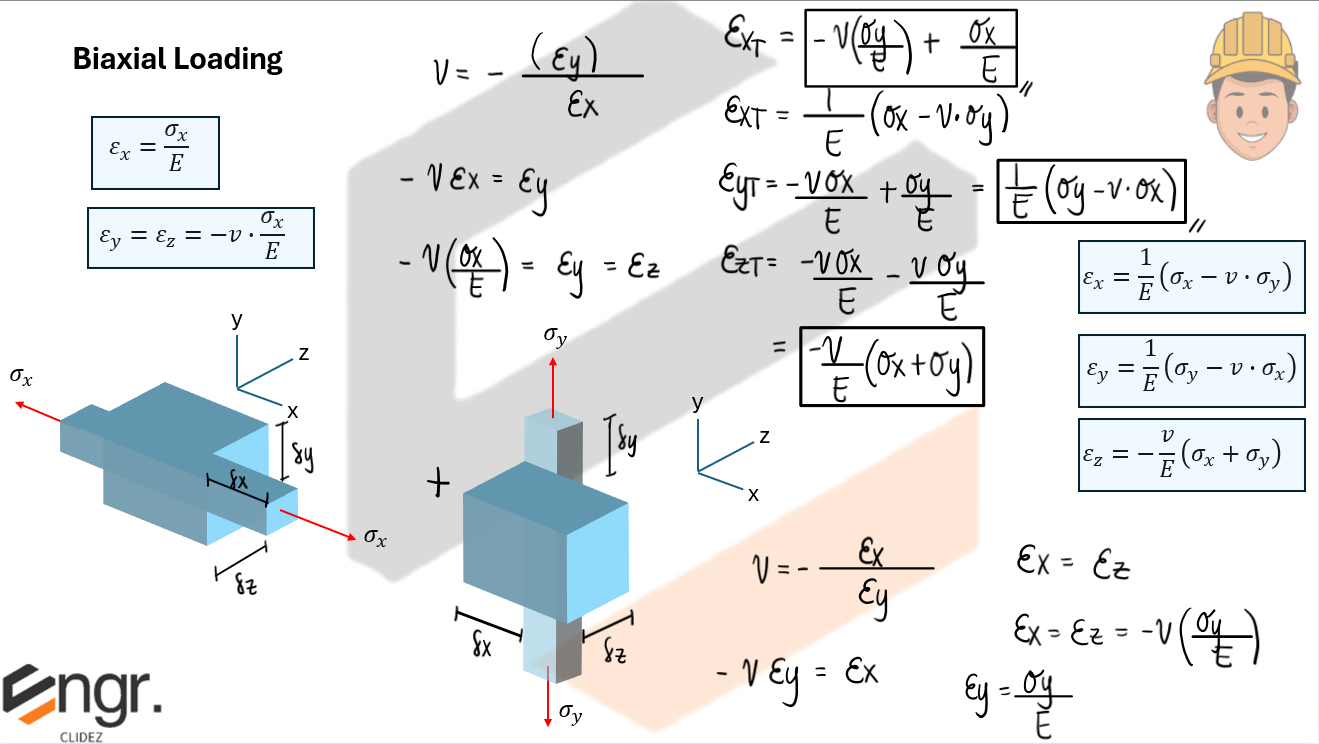

Derivation of Multi-axial Loading Formulas

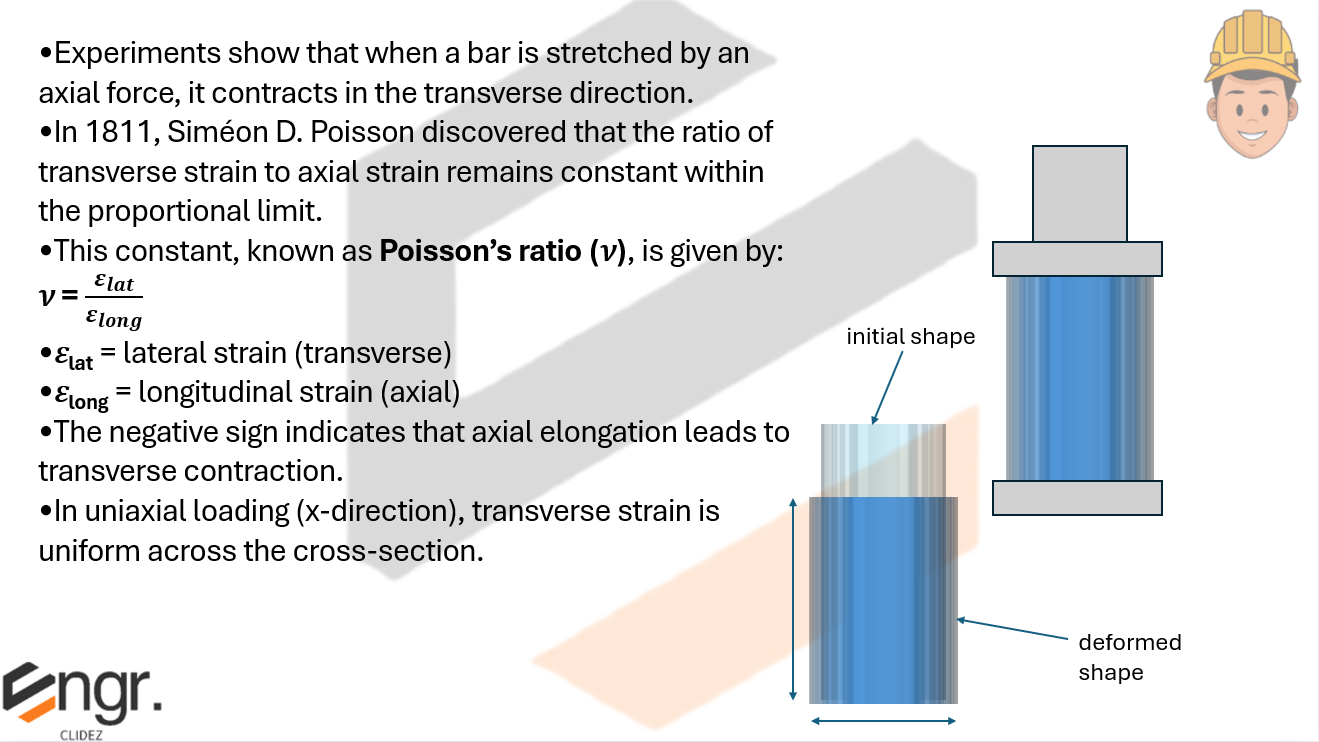

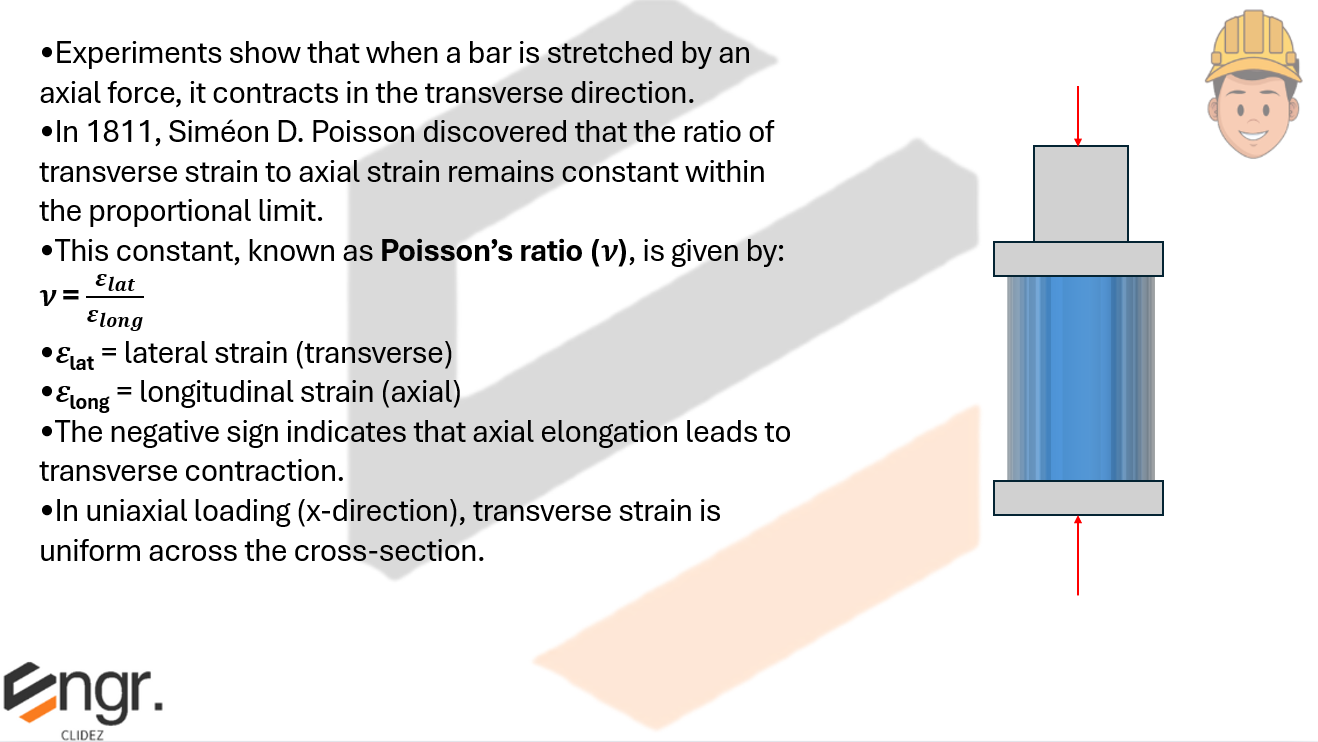

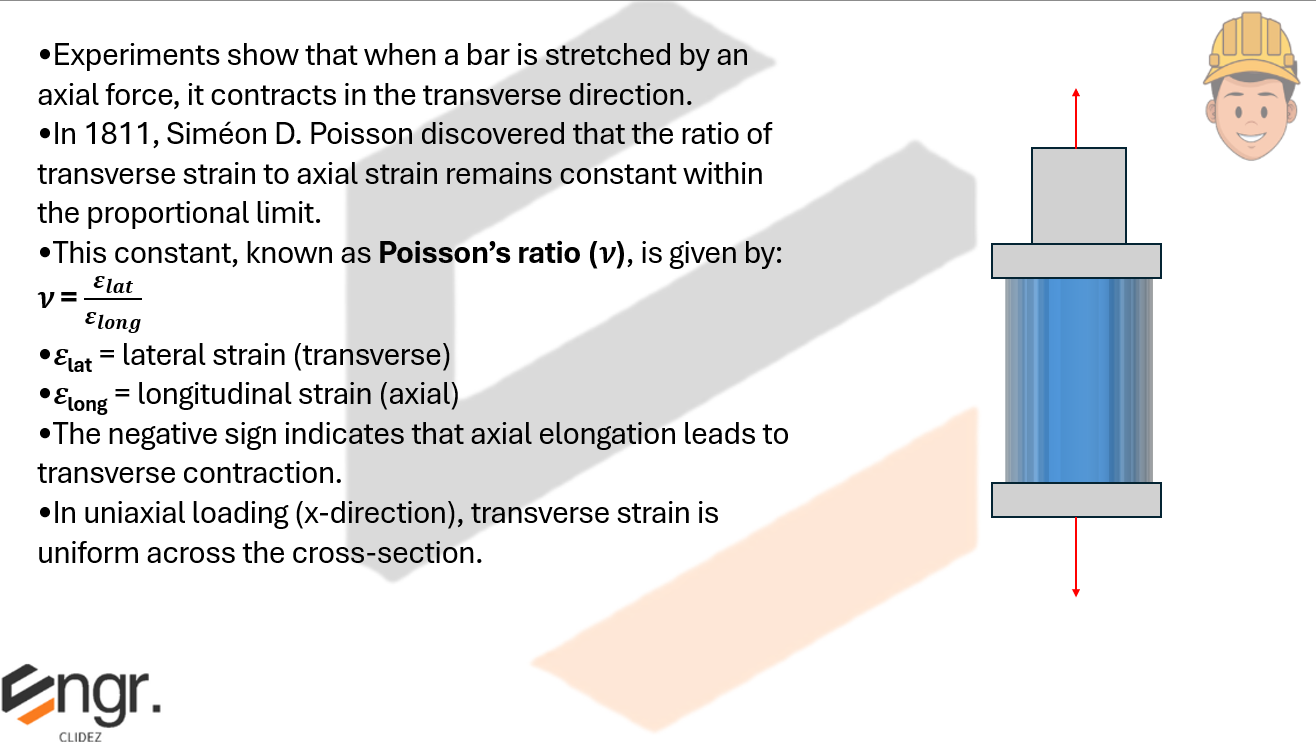

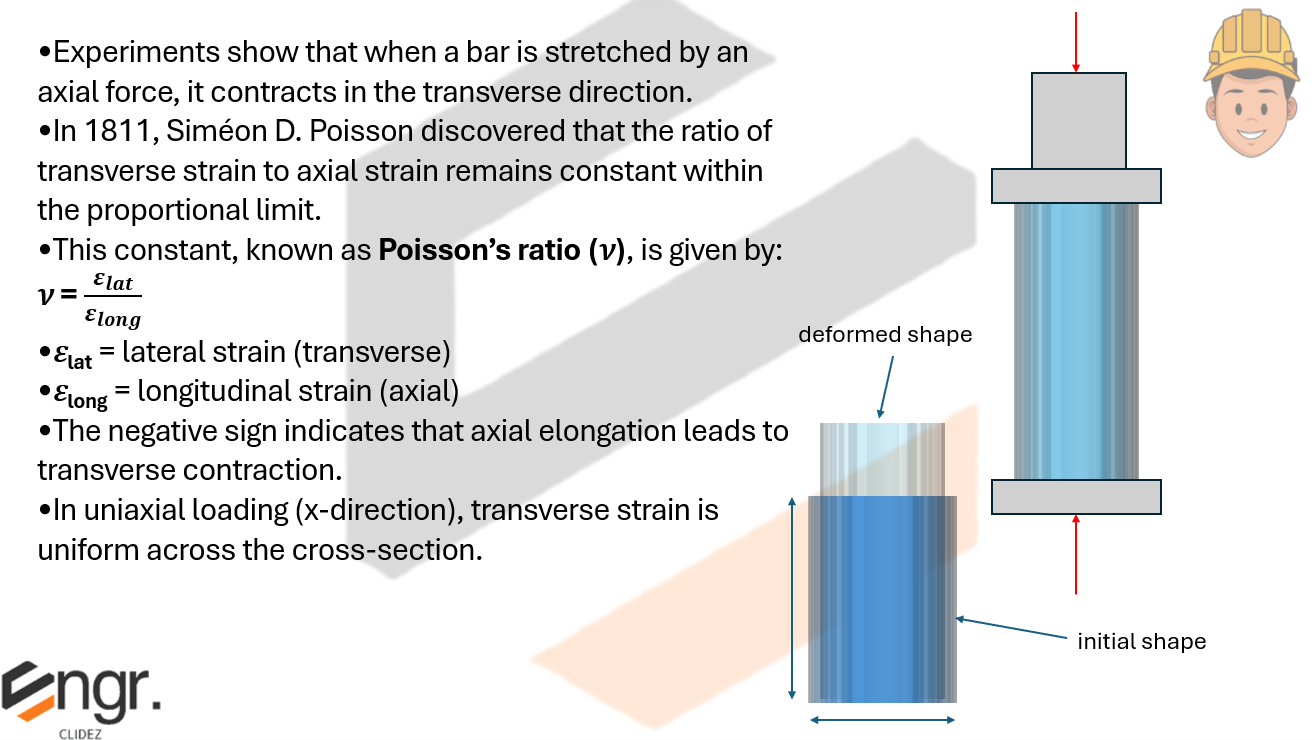

In the derivation of the following formulas, we apply the concept of superposition, that is, adding the individual effects of deformations caused by loads acting on specific directions. We utilize here Poisson's Ratio $ \nu =-\dfrac{\varepsilon_{\text{lateral}}}{\varepsilon_{\text{longitudinal}}}$ where longitudinal strain is developed along the direction of the applied stress.

Concept Concept Concept

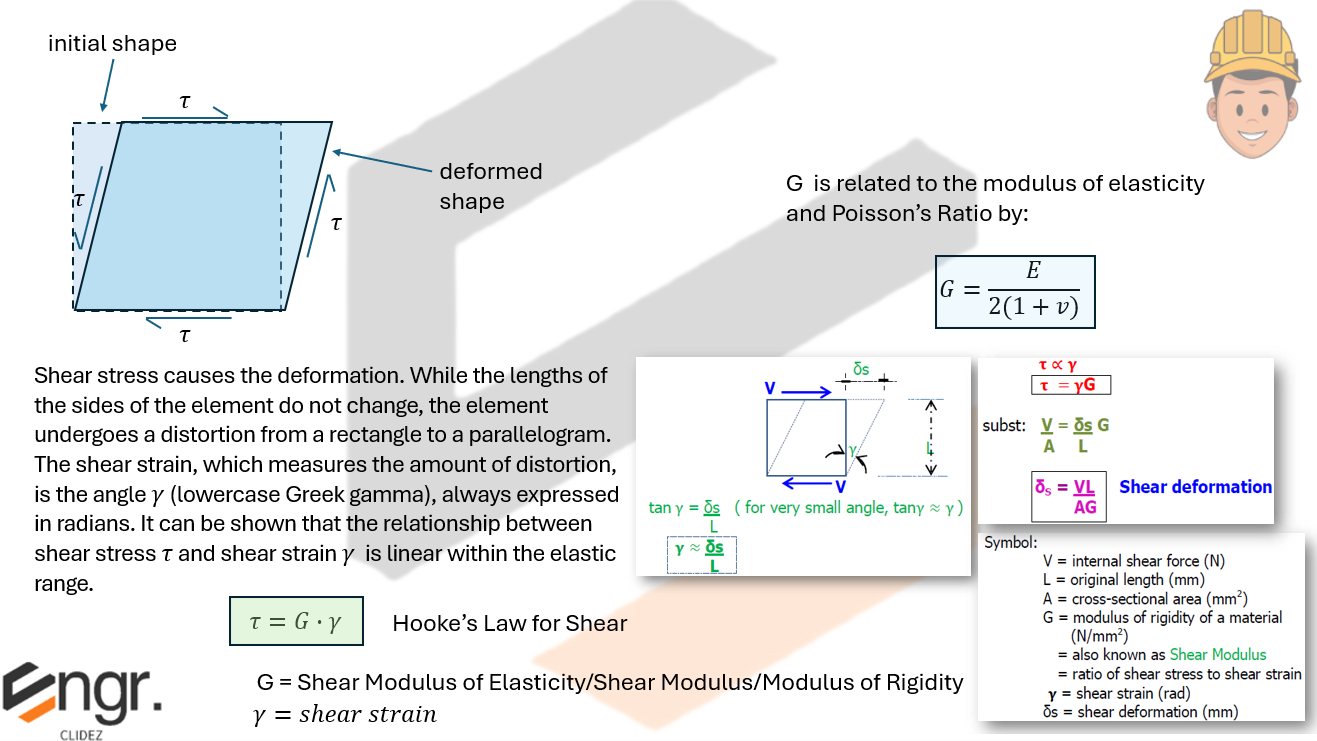

Shear Strain and Deformation

Concept

Problem 1:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 2:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 3:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 4:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 5:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 6:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 7:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 8:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution
