Bending or Flexural Stress in Beams

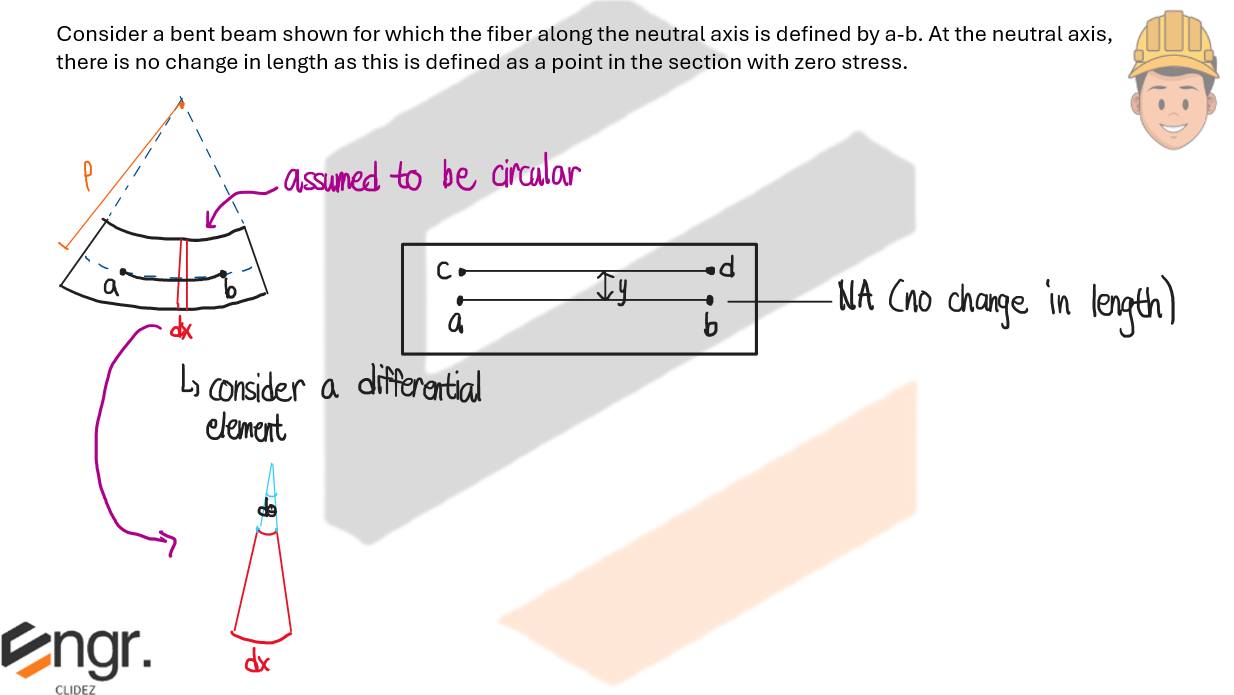

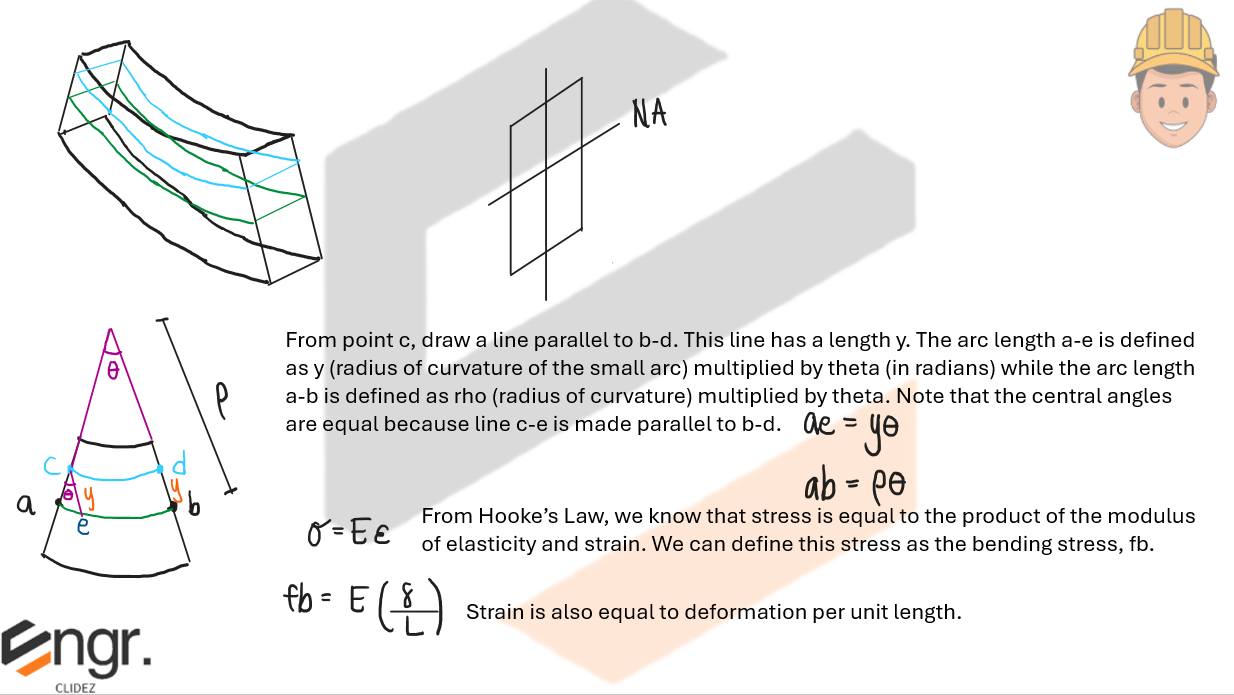

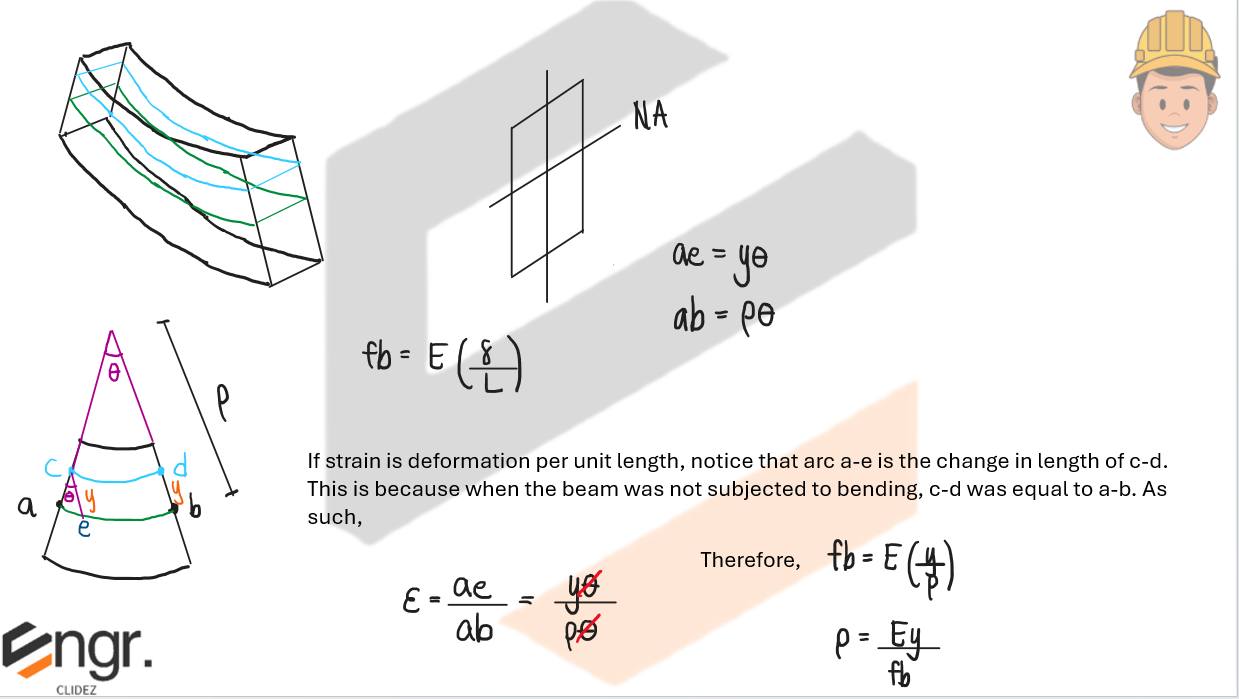

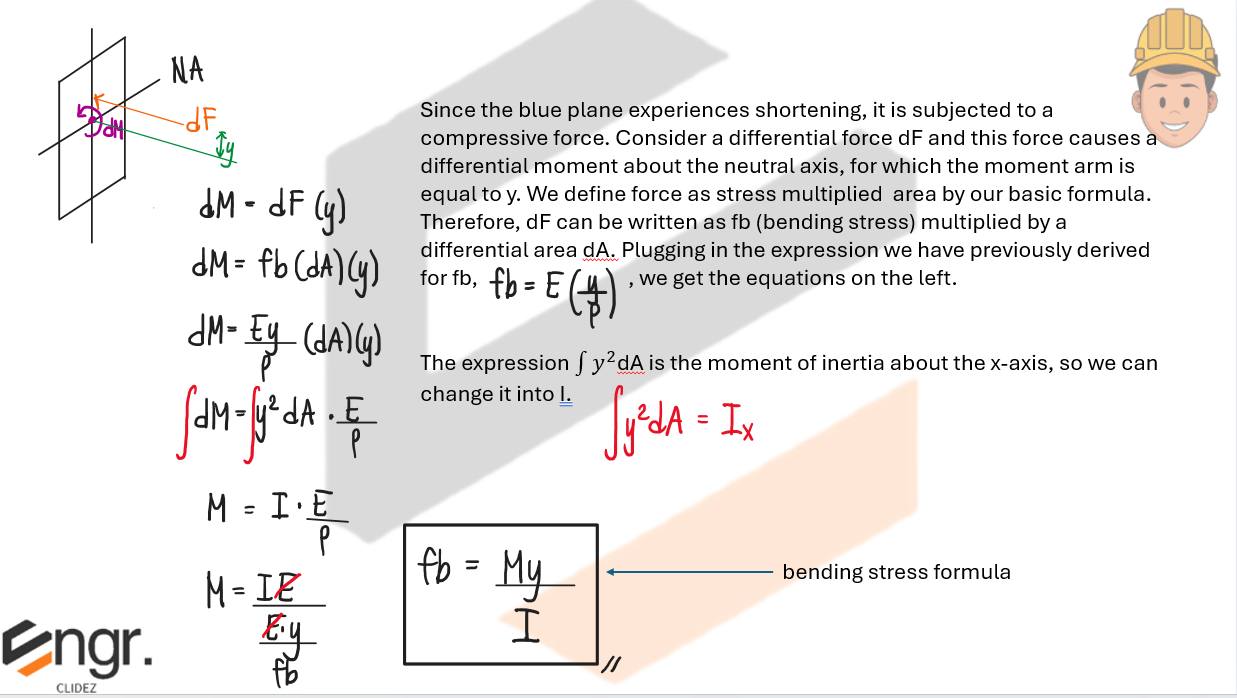

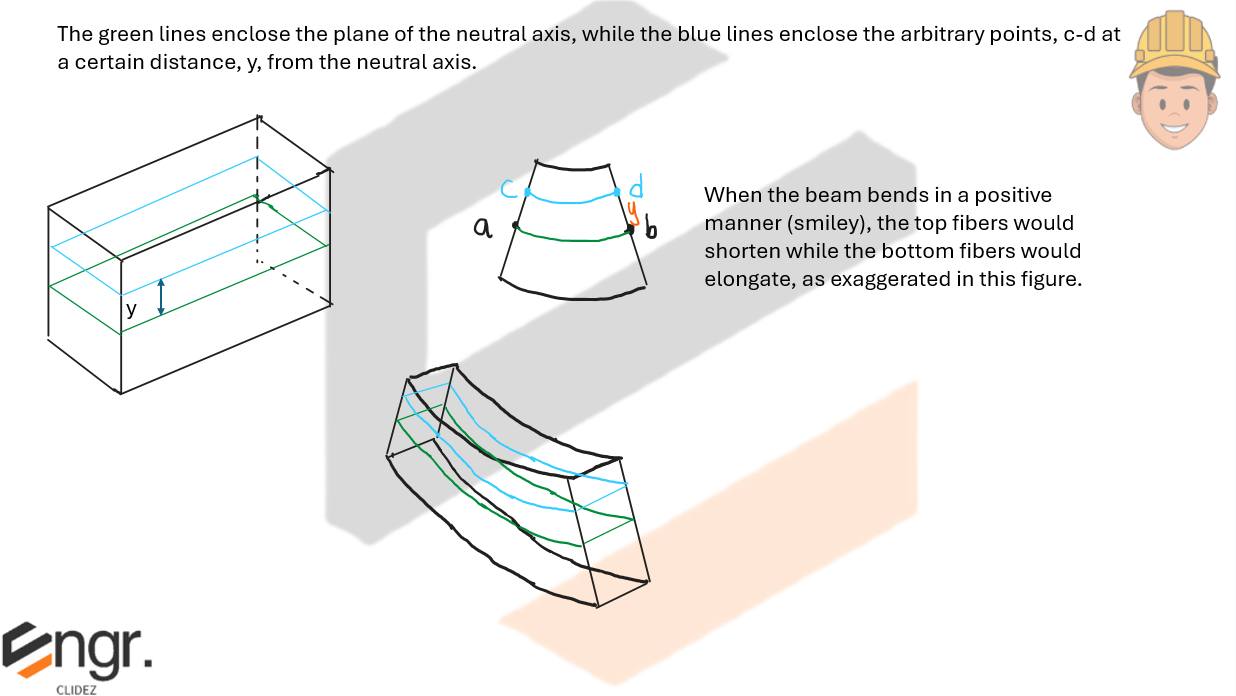

Concept Concept Concept Concept Concept Concept Concept Concept Concept

Problem: Maximum Tensile Stress & Compressive Stress Given the Maximum Moments | Max Compressive Force by Integration

The cross-section of a continuous beam is shown below. Upon analysis of a continuous beam ABCD, the following moments were obtained:
Max positive moments:
MAB=36kN-m
MBC=10.6kN-m
MCD=28kN-m
Max negative moments:
MAB=-78kN-m
MAB=-64kN-m

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 1: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 1: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 1: – Diagram

See images:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 1: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 1: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 1: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 1: – Diagram

Problem 2:

Refer to the image shown:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 2: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 2: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 2: – Diagram

See images:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 2: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 2: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 2: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 2: – Diagram

Problem 3:

Refer to the image shown:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 3: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 3: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 3: – Diagram

See images:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 3: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 3: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 3: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 3: – Diagram

Problem 4:

Refer to the image shown:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 4: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 4: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 4: – Diagram

See images:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 4: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 4: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 4: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 4: – Diagram

Problem 5:

Refer to the image shown:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 5: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 5: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 5: – Diagram

See images:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 5: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 5: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 5: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 5: – Diagram

Problem 6:

Refer to the image shown:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 6: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 6: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 6: – Diagram

See images:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 6: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 6: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 6: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 6: – Diagram

Problem 7:

Refer to the image shown:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 7: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 7: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 7: – Diagram

See images:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 7: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 7: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 7: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 7: – Diagram

Problem 8:

Refer to the image shown:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 8: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 8: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 8: – Diagram

See images:

Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 8: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 8: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 8: – Diagram Flexural or Bending Stress | Mechanics of Deformable Bodies – Problem 8: – Diagram
-->
