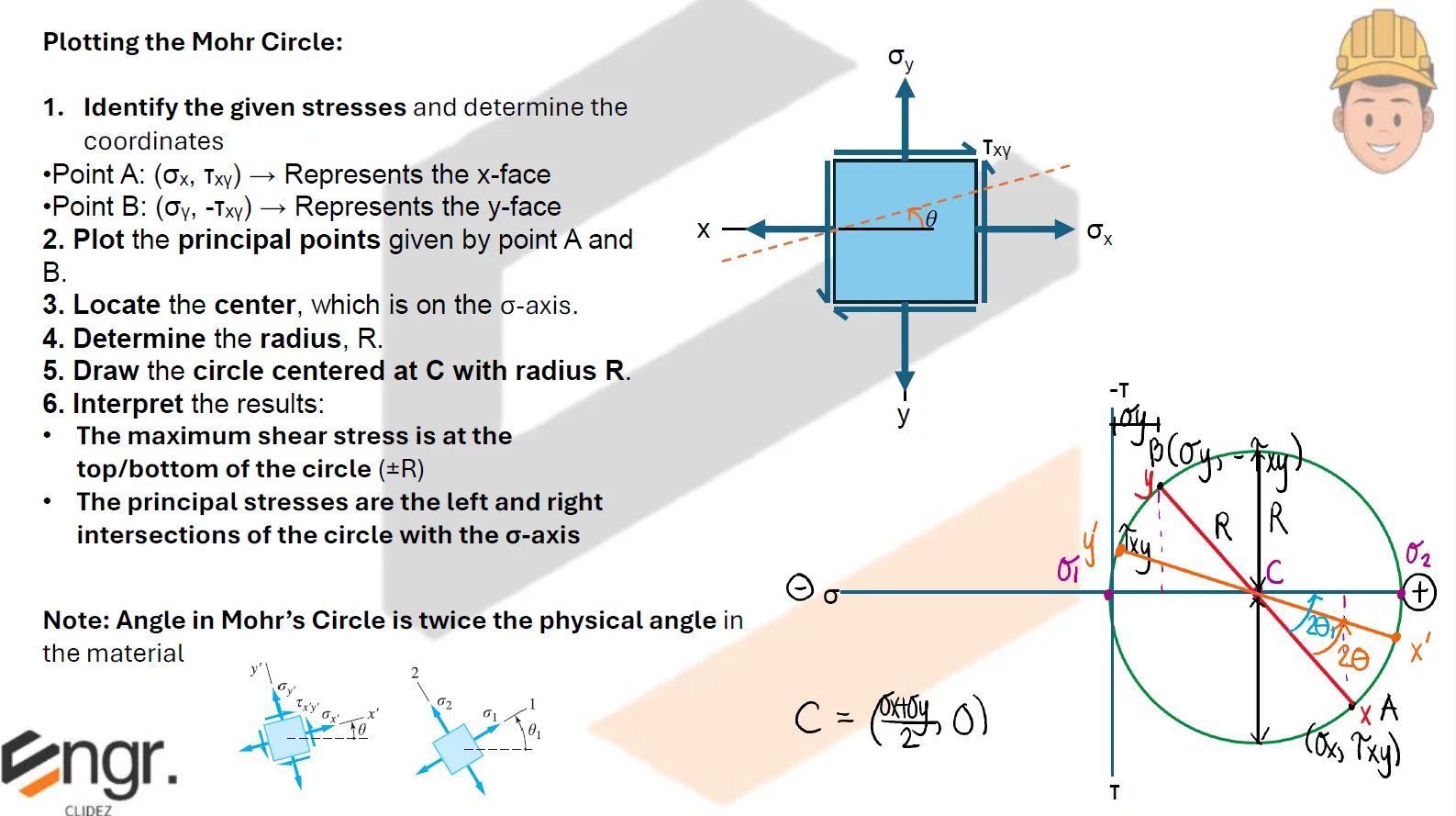

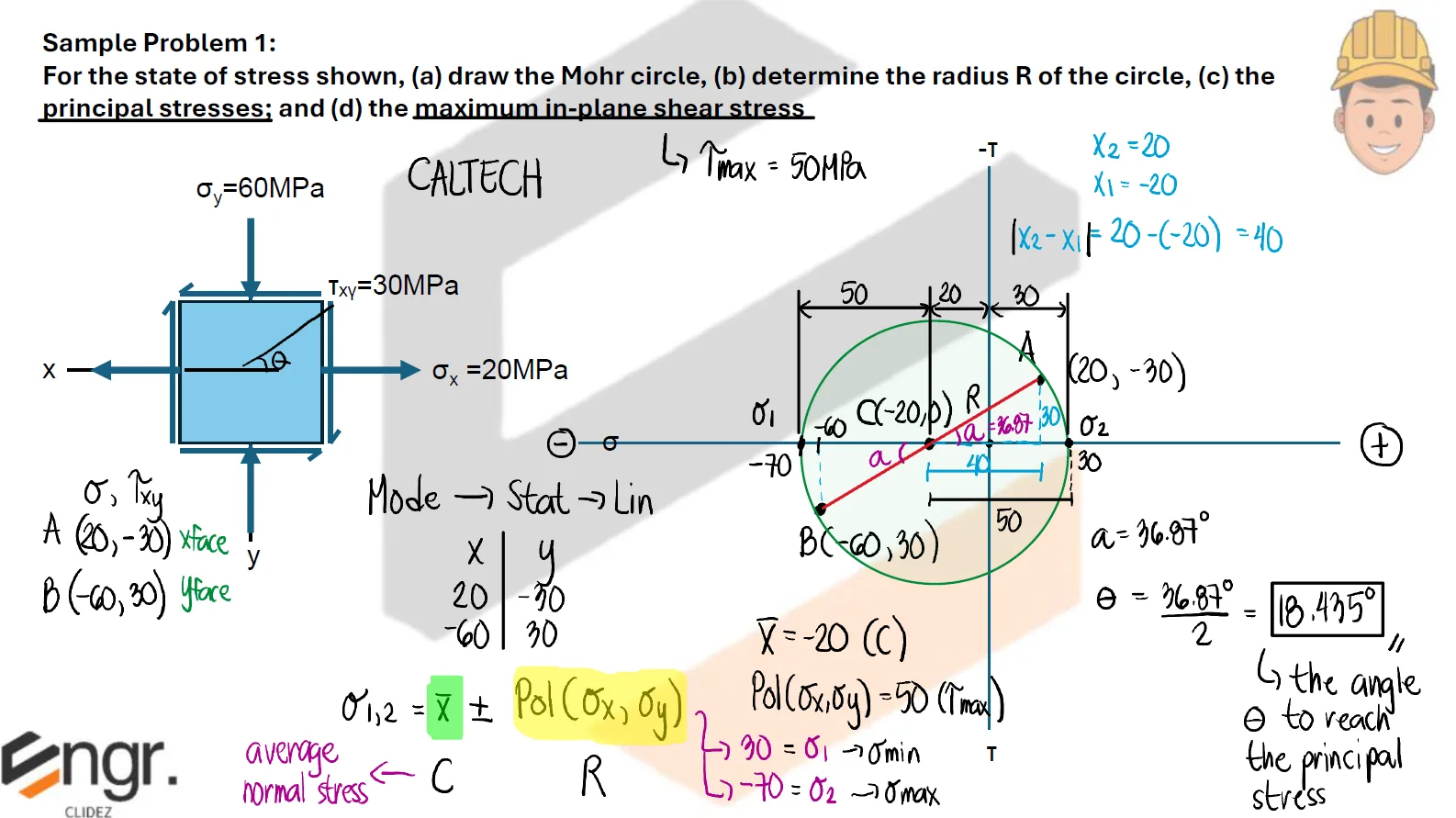

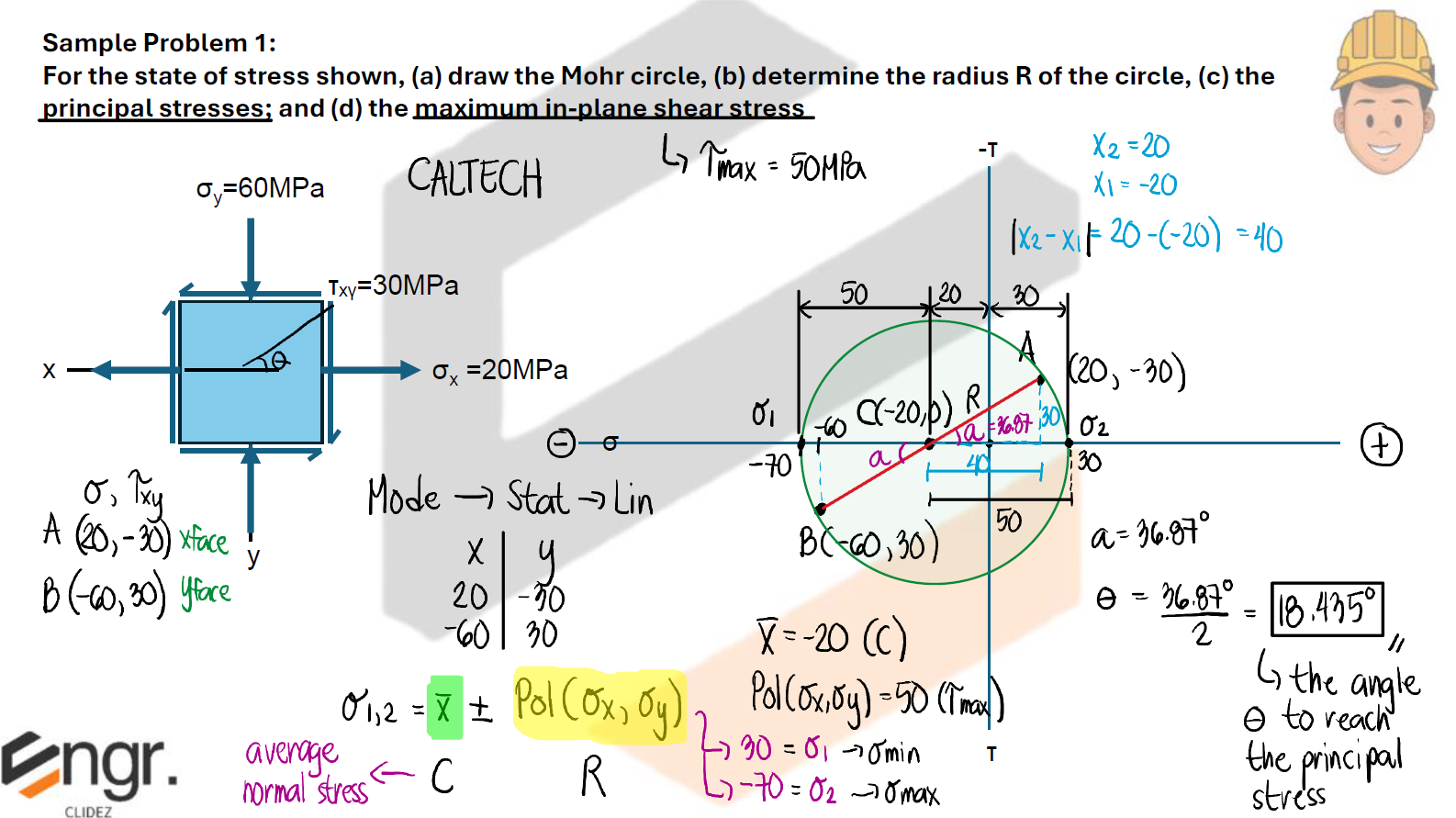

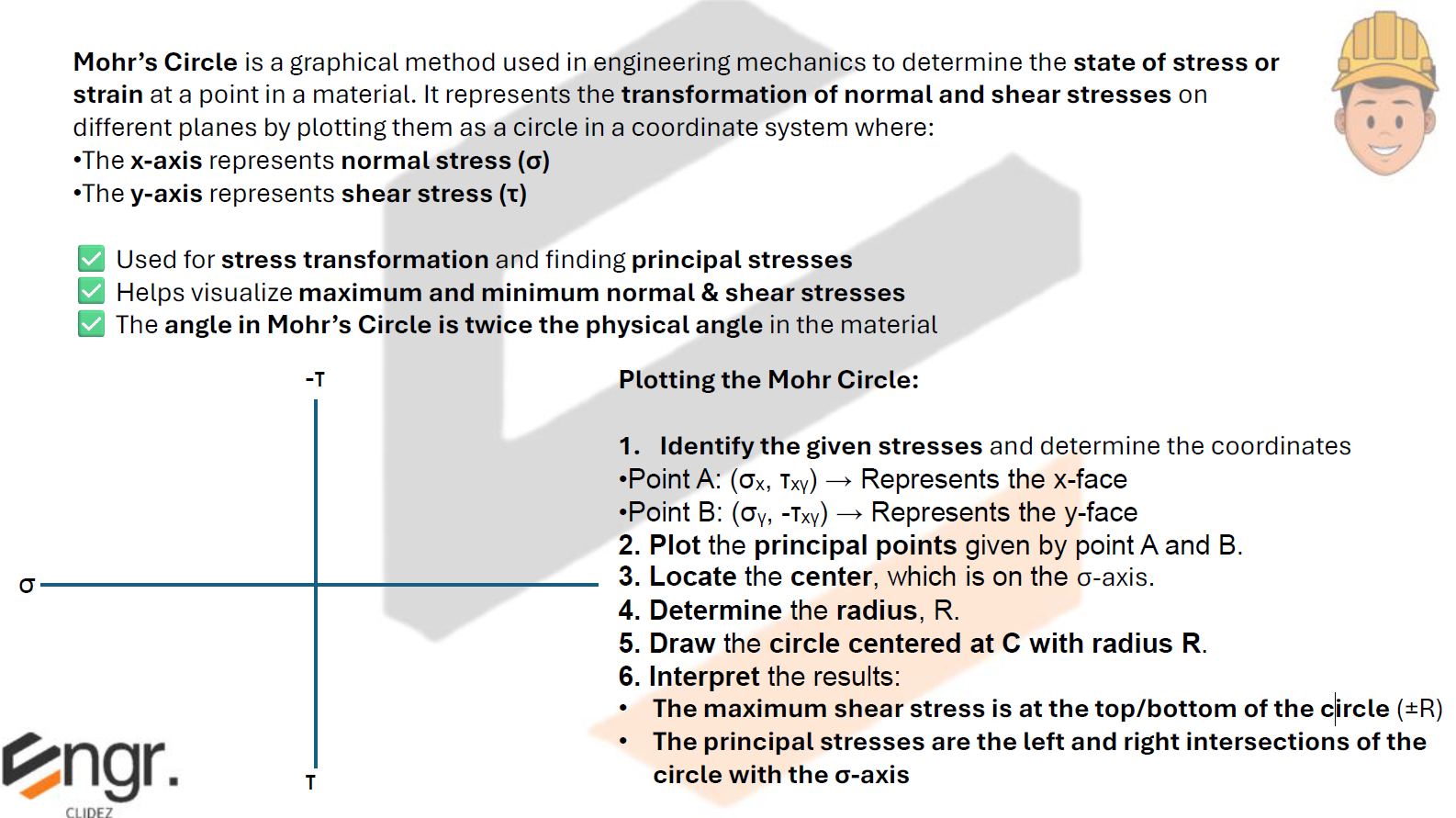

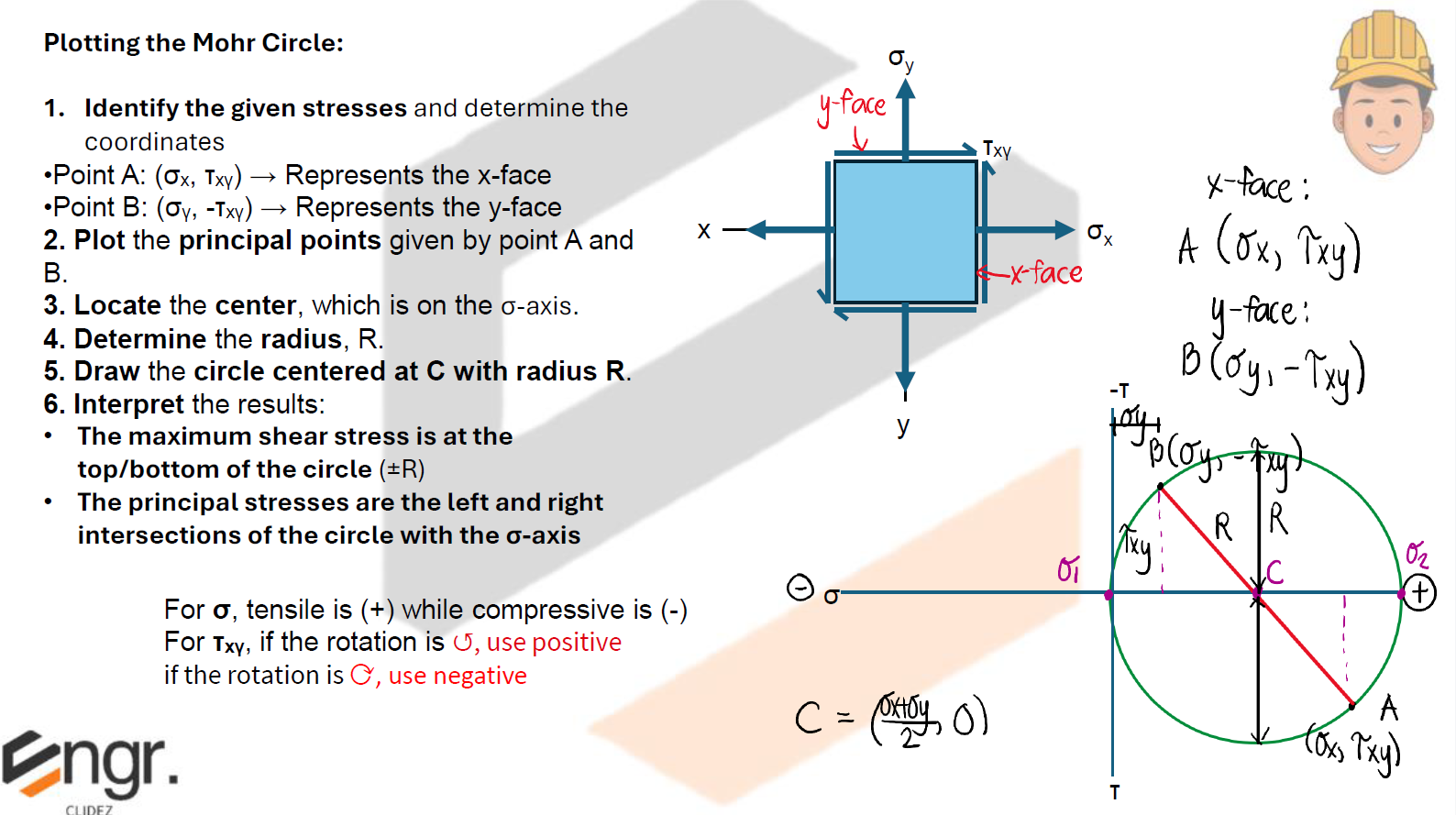

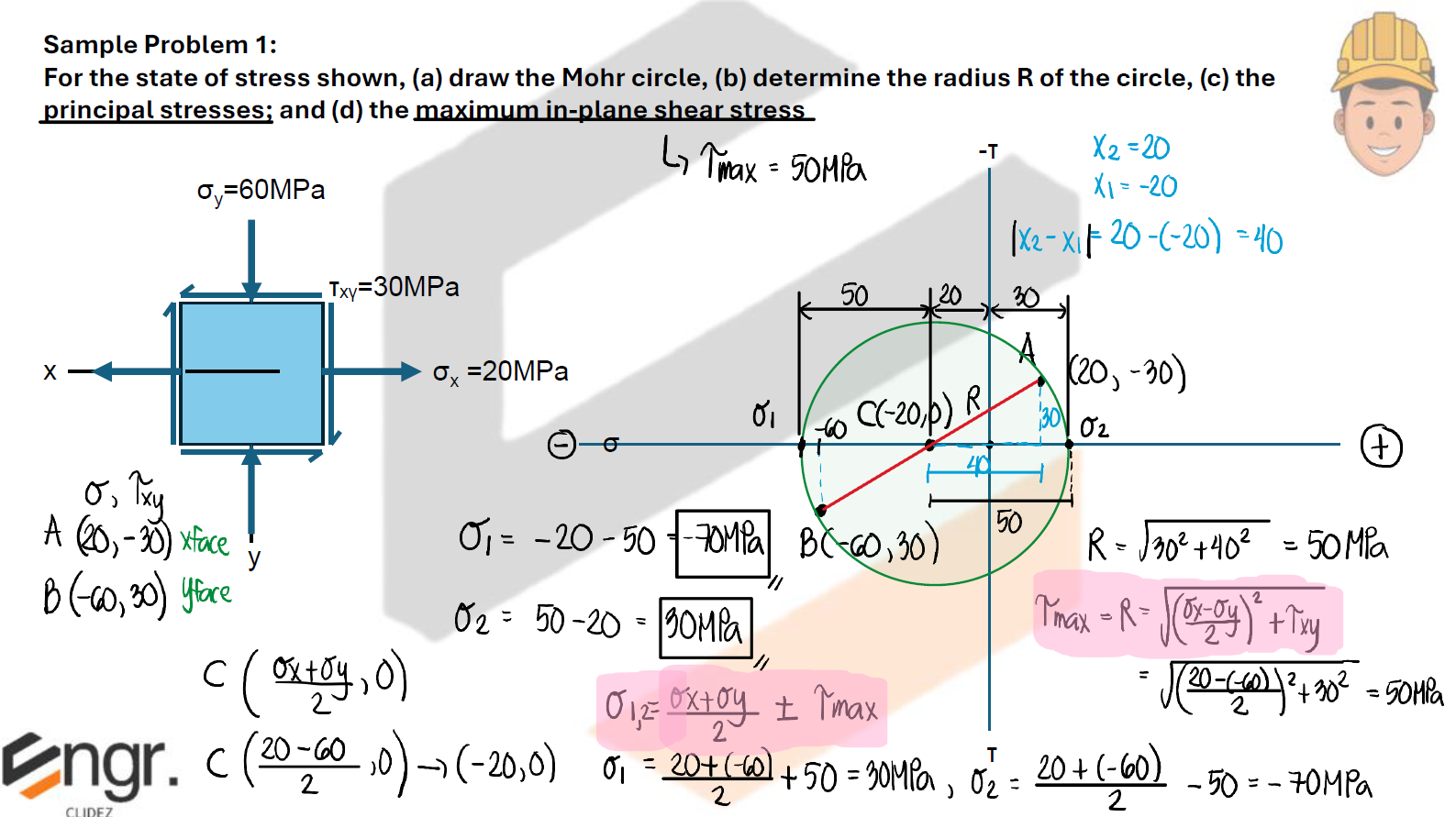

Combined Stresses and Mohr Circle

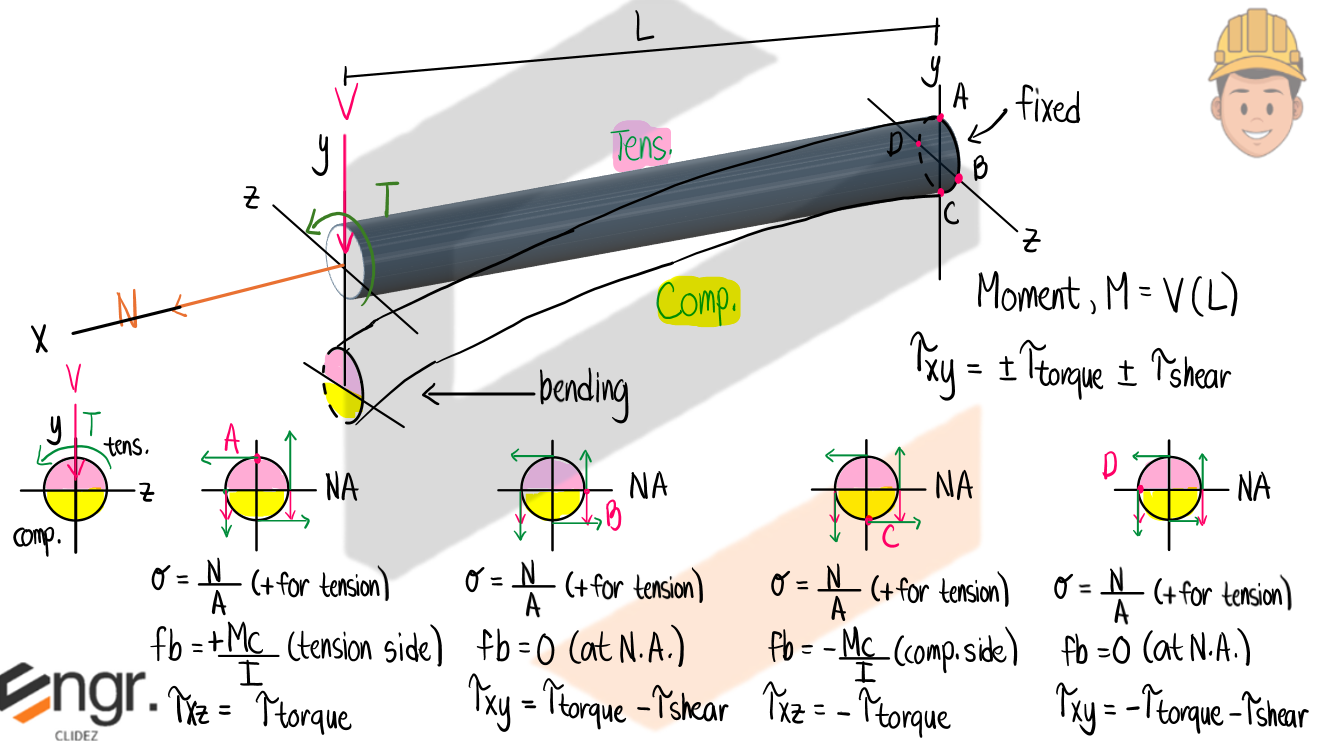

Combined Stresses Visualized

$$ \sigma = \frac{P}{A} $$

$$ f_b = \frac{M c}{I} $$

$$ \tau_{\text{torque}} = \frac{T r}{J} $$

$$ \tau_{\text{shear}} = \frac{V Q}{I b} $$

Problem: Cast-Iron with Axial and Bending Stresses

A cast iron is shown below. The allowable stresses are 30MPa in tension and 70MPa in compression.
a. Determine the safe value of P (in kN) based on the allowable tensile stress.
b. Determine the safe value of P (in kN) based on the allowable compressive stress.

See images:

Problem 2:

Refer to the image shown:

See images:

Problem 3:

Refer to the image shown:

See images:

Problem 4:

Refer to the image shown:

See images:

Problem 5:

Refer to the image shown:

See images:

Problem 6:

Refer to the image shown:

See images:

Problem 7:

Refer to the image shown:

See images:

Problem 8:

Refer to the image shown:

See images:
