Angles and Directions

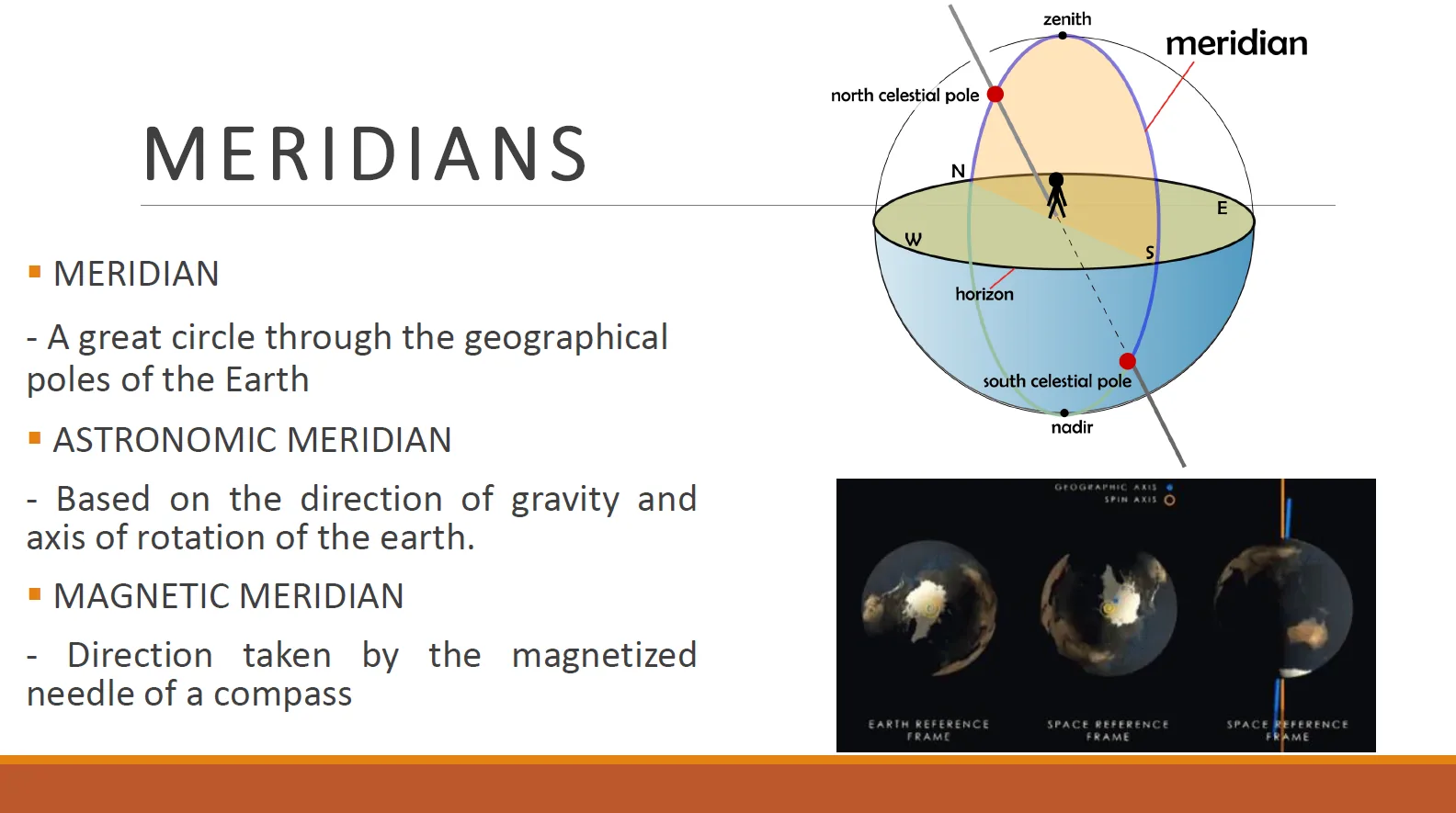

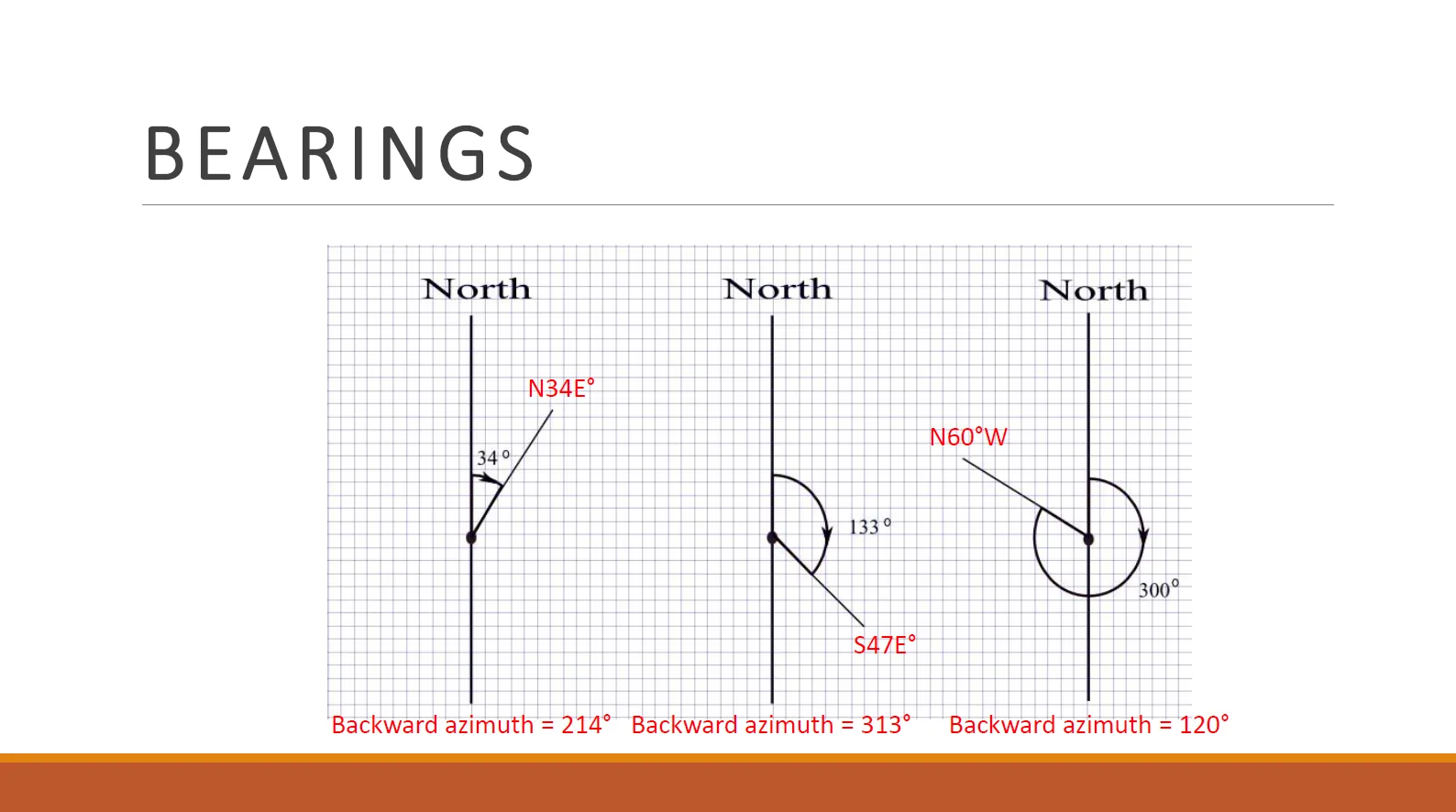

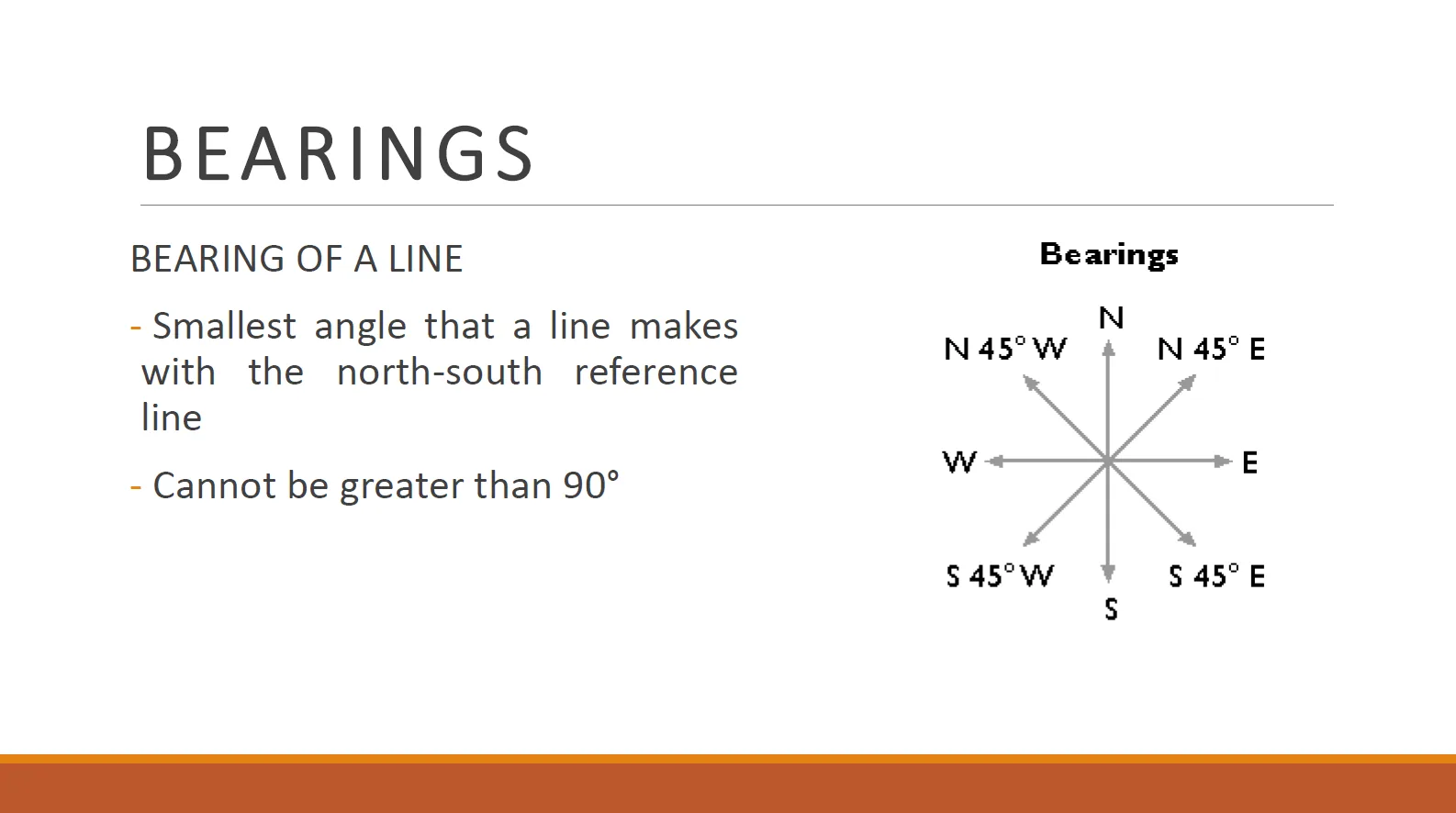

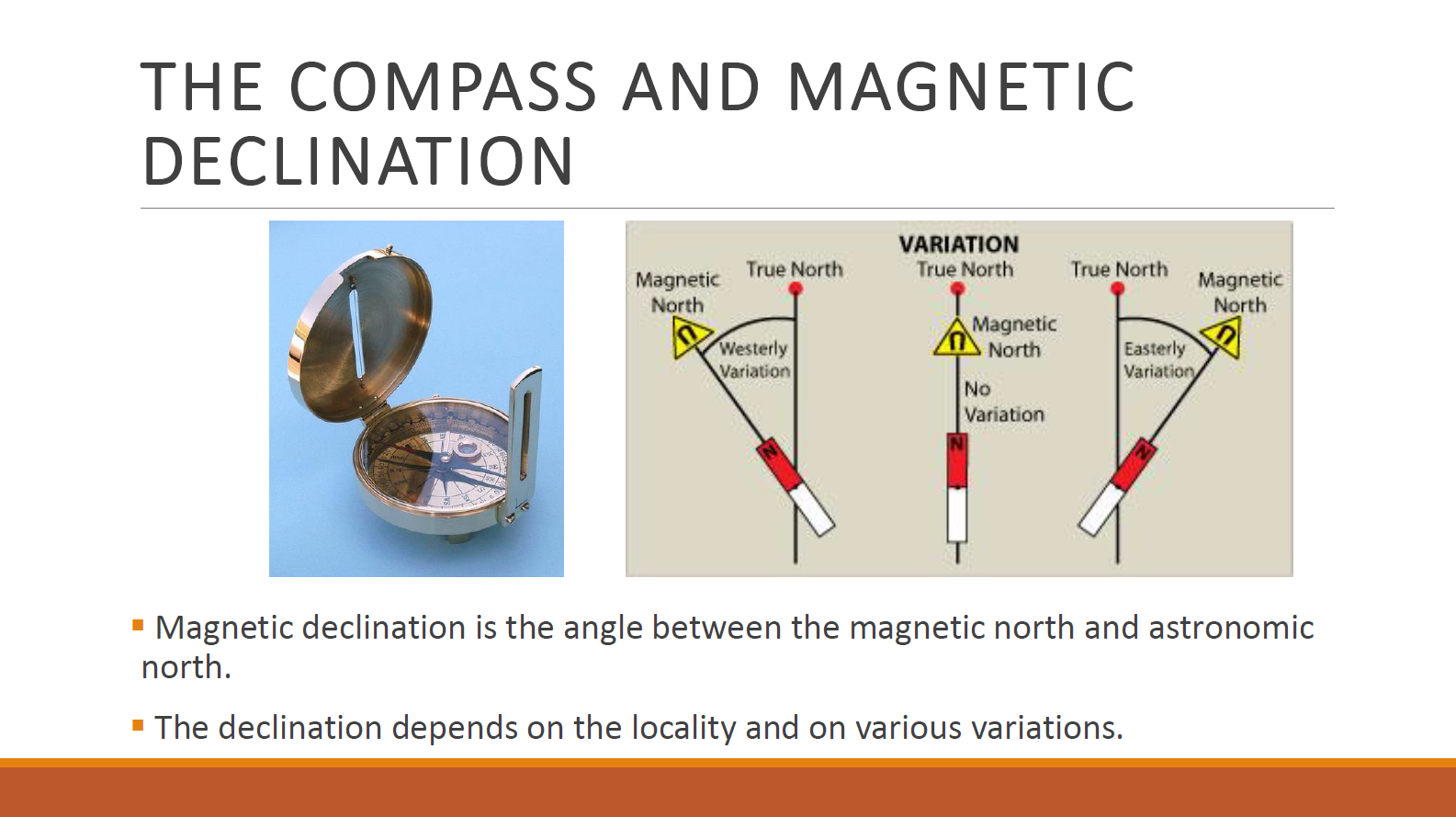

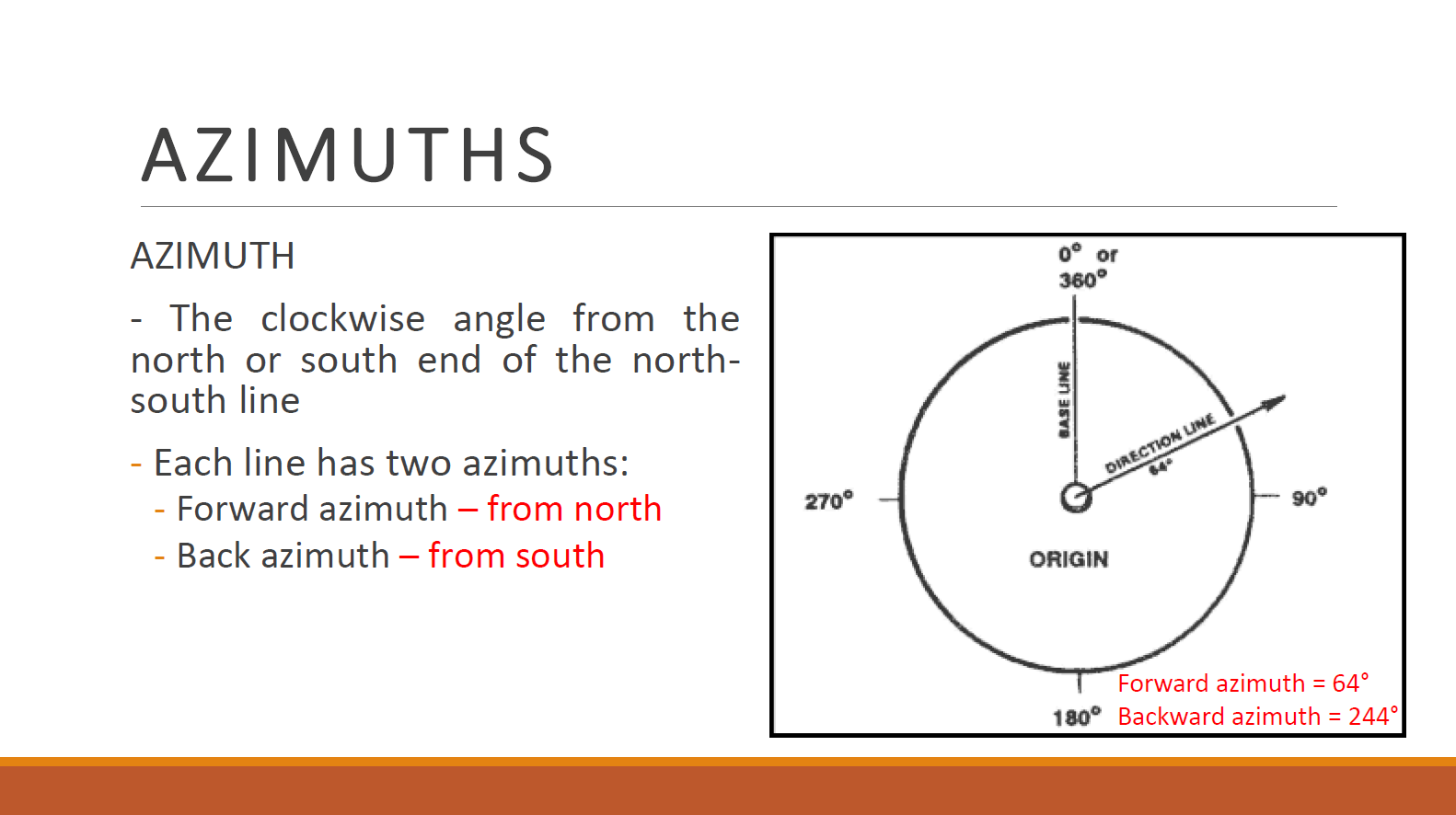

Concept Concept Concept Concept Concept Concept Concept Concept Concept

Problem 1:

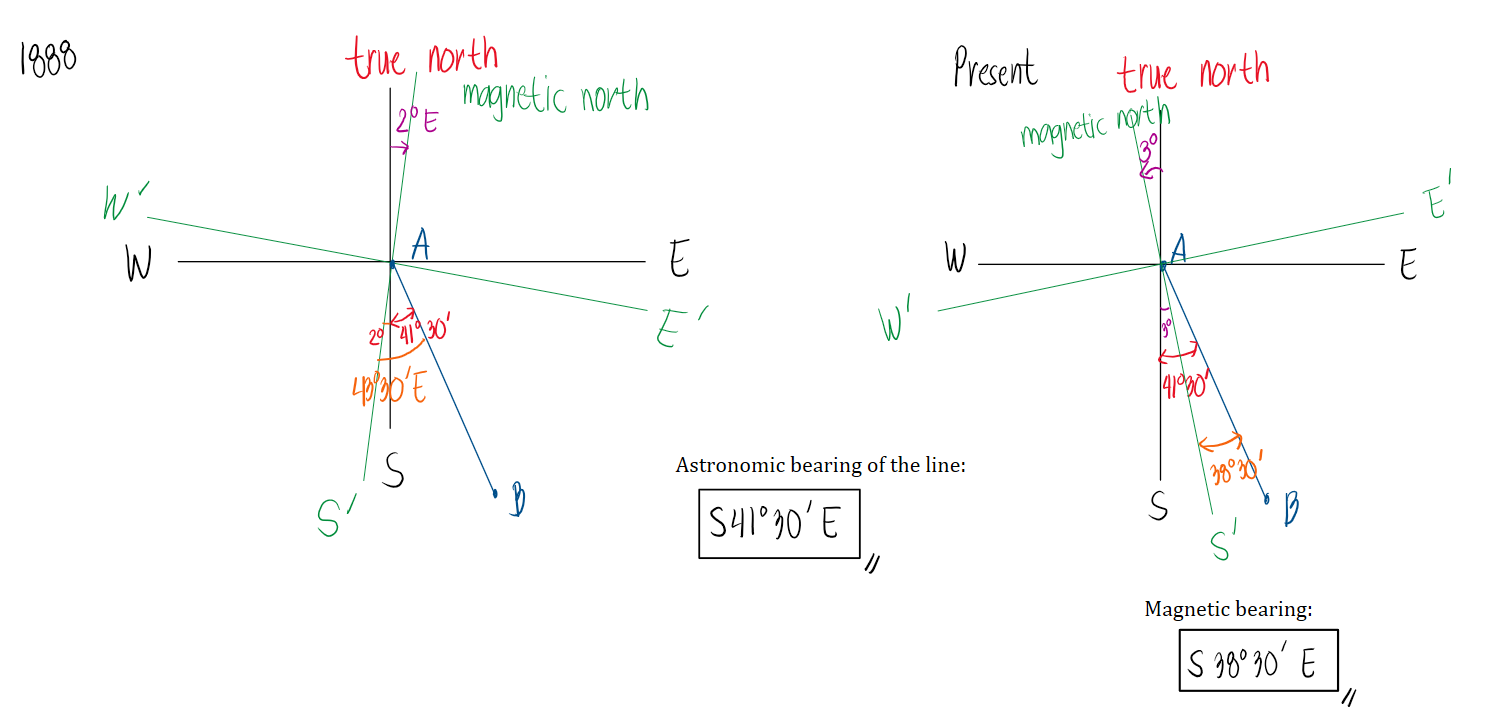

The magnetic bearing of line AB was recorded as S43º30'E in 1888. If the magnetic declination was 2º00'E, what is the astronomic bearing of the line? If the declination is now 3º00'W, what is the magnetic bearing of the line today?

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 2:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 3:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 4:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 5:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 6:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 7:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution

Problem 8:

Refer to the image shown:

Diagram Diagram Diagram

See images:

Solution Solution Solution Solution
