Question 1

Classical Physics

Classical Physics refers to the body of physics developed before the rise of quantum mechanics and relativity. It provides the foundational laws that describe the motion of objects, forces, energy, waves, fluids, heat, and electricity at everyday scales — where objects move much slower than the speed of light and are much larger than atoms.

Classical physics assumes that physical quantities such as position, velocity, and time are continuous and can be measured with arbitrary precision. It is extremely accurate for describing the macroscopic world and forms the basis of engineering, mechanics, and traditional scientific analysis.

Major Branches of Classical Physics

Classical Mechanics — describes motion and forces, based on Newton’s laws.
Classical Electromagnetism — describes electric and magnetic fields using Maxwell’s equations.
Thermodynamics — governs heat, temperature, energy, and the behavior of gases.
Waves and Optics — explains wave motion, sound, and the behavior of light.
Fluid Mechanics — studies liquids and gases in motion and at rest.

Key Classical Physics Assumptions

Objects follow deterministic laws: same conditions produce the same results.
Space and time are absolute and independent.
Energy and momentum are conserved.
Light behaves as a wave (in classical theory).

Limitations of Classical Physics

While extremely powerful, classical physics fails in two major domains:

Very small scales (atoms and subatomic particles) → requires quantum mechanics.
Very high speeds (close to the speed of light) → requires Einstein’s relativity.

Despite these limitations, classical physics remains the backbone of engineering, mechanics, structural analysis, civil engineering, and most real-world applications where velocities are low and objects are large.

Answer

See images:

Classical Physics – Problem: Velocity and Acceleration Given the Displacement Function – Diagram

Answer

See images:

Classical Physics – Problem: Two Bodies Supported by a Pulley System – Diagram

Answer

1. Velocity Vector (first derivatives)

x-component:

$$ x(t) = 3t^3 - 2t $$ $$ \dot{x}(t) = 9t^2 - 2 $$ $$ \dot{x}(2) = 34 $$

y-component:

$$ y(t) = -4t^{1/2} - t $$ $$ \dot{y}(t) = -2t^{-1/2} - 1 $$ $$ \dot{y}(2) = -2\left(\frac{1}{\sqrt{2}}\right) - 1 \approx -2.41 $$

z-component:

$$ z(t) = 3t^2 - 2 $$ $$ \dot{z}(t) = 6t $$ $$ \dot{z}(2) = 12 $$

Magnitude of velocity:

$$ v = \sqrt{\dot{x}^2 + \dot{y}^2 + \dot{z}^2} $$ $$ v = \sqrt{34^2 + (-2.41)^2 + 12^2} $$ $$ v \approx 36.14\ \text{m/s} $$

2. Acceleration Vector (second derivatives)

x-component:

$$ \ddot{x}(t) = 18t $$ $$ \ddot{x}(2) = 36 $$

y-component:

$$ \ddot{y}(t) = -2\left(-\tfrac{1}{2}\right)t^{-3/2} $$ $$ \ddot{y}(2) = \frac{1}{\sqrt{8}} \approx 0.35 $$

z-component:

$$ \ddot{z}(t) = 6 $$

Magnitude of acceleration:

$$ a = \sqrt{\ddot{x}^2 + \ddot{y}^2 + \ddot{z}^2} $$ $$ a = \sqrt{36^2 + (0.35)^2 + 6^2} $$ $$ a \approx 36.50\ \text{m/s}^2 $$

Final Answers:

Velocity magnitude: $36.14\ \text{m/s}$
Acceleration magnitude: $36.50\ \text{m/s}^2$

Answer

1. Integrate the velocity to obtain position.

$$ \mathbf{v}(t) = \frac{d\mathbf{r}}{dt} $$ $$ d\mathbf{r} = \mathbf{v}(t)\,dt $$ $$ \mathbf{r}(t) = \int_0^t \left[ 3\mathbf{i} + (6 - 2t)\mathbf{j} \right] dt $$

Integrate components:

$$ r_x(t) = 3t $$ $$ r_y(t) = 6t - t^2 $$ $$ \mathbf{r}(t) = (3t)\mathbf{i} + (6t - t^2)\mathbf{j} $$

2. Evaluate position at the limits.

At $t = 1$:

$$ \mathbf{r}(1) = 3\mathbf{i} + 5\mathbf{j} $$

At $t = 3$:

$$ \mathbf{r}(3) = 9\mathbf{i} + 9\mathbf{j} $$

3. Displacement from $t = 1$ to $t = 3$:

$$ \Delta \mathbf{r} = \mathbf{r}(3) - \mathbf{r}(1) = (9\mathbf{i} + 9\mathbf{j}) - (3\mathbf{i} + 5\mathbf{j}) $$ $$ \Delta \mathbf{r} = 6\mathbf{i} + 4\mathbf{j}\;\text{m} $$

Final Answer: The displacement is $6\mathbf{i} + 4\mathbf{j}\;\text{m}$.

Answer

1. Integrate $v_y$ to obtain $y(t)$.

$$ v_y = \frac{dy}{dt} = c t^2 $$ $$ y(t) = \int c t^2 \, dt = \frac{c t^3}{3} $$

2. Use the path relation $ y = b x^2 $ to solve for $ x(t) $.

$$ b x^2 = \frac{c t^3}{3} $$ $$ x(t) = t^{3/2} \sqrt{\frac{c}{3b}} $$

3. Compute the velocity component $v_x = dx/dt$.

$$ v_x = \frac{d}{dt} \left( t^{3/2} \sqrt{\frac{c}{3b}} \right) $$ $$ v_x = \frac{3}{2} t^{1/2} \sqrt{\frac{c}{3b}} $$

4. Compute the x-component of acceleration $a_x = dv_x/dt$.

$$ a_x = \frac{d}{dt} \left( \frac{3}{2} t^{1/2} \sqrt{\frac{c}{3b}} \right) $$ $$ a_x = \frac{3}{4} t^{-1/2} \sqrt{\frac{c}{3b}} $$

5. Compute the y-component of acceleration.

$$ a_y = \frac{dv_y}{dt} $$ $$ a_y = \frac{d}{dt}(c t^2) = 2 c t $$

Final Answers:

$$ a_x = \frac{3}{4\sqrt{t}} \sqrt{\frac{c}{3b}}, \qquad a_y = 2 c t $$

Answer

Step 1: Compute acceleration by differentiating velocity.

$$ \mathbf{a} = \frac{d\mathbf{v}}{dt} $$ $$ a_x = 32t, \qquad a_y = 12 t^2, \qquad a_z = 5 $$

At $t = 2$:

$$ a_x = 32(2) = 64 $$ $$ a_y = 12 (2^2) = 48 $$ $$ a_z = 5 $$

Acceleration magnitude:

$$ a = \sqrt{ a_x^2 + a_y^2 + a_z^2 } $$ $$ a = \sqrt{ 64^2 + 48^2 + 5^2 } $$ $$ a \approx 80.156 \ \text{m/s}^2 $$

Step 2: Integrate velocity components to get position.

$$ x = \int 16 t^2 \, dt = \frac{16 t^3}{3} $$ $$ y = \int 4 t^3 \, dt = t^4 $$ $$ z = \int (5t + 2)\, dt = \frac{5 t^2}{2} + 2 t $$

Evaluate at $t = 2$:

$$ x(2) = \frac{16(2^3)}{3} = \frac{128}{3} \approx 42.67 $$ $$ y(2) = 2^4 = 16 $$ $$ z(2) = \frac{5(2^2)}{2} + 2(2) = 10 + 4 = 14 $$

Final coordinate position:

$$ (x, y, z) = (42.67,\ 16,\ 14) $$

Answer

1. Integrate $v_y$ to obtain $y(t)$.

$$ v_y = \frac{dy}{dt} = 2r \cos 2t $$ $$ y(t) = \int 2r \cos 2t \, dt = r \sin 2t $$

2. Use the circular path equation to find $x(t)$.

$$ x^2 + y^2 = r^2 $$ $$ x^2 = r^2 - (r \sin 2t)^2 = r^2 \cos^2 2t $$ $$ x = \pm r \cos 2t $$

3. Compute $v_x$.

$$ v_x = \frac{dx}{dt} $$ $$ v_x = \frac{d}{dt} \left( \pm r \cos 2t \right) $$ $$ v_x = \pm 2r \sin 2t $$

4. Compute the acceleration components.

$$ a_y = \frac{dv_y}{dt} $$ $$ a_y = \frac{d}{dt}(2r \cos 2t) = -4r \sin 2t $$

$$ a_x = \frac{dv_x}{dt} $$ $$ a_x = \frac{d}{dt} (\pm 2r \sin 2t) $$ $$ a_x = \pm 4r \cos 2t $$

Final Answers:

$$ a_x = \pm 4 r \cos 2t, \qquad a_y = -4 r \sin 2t $$

Answer

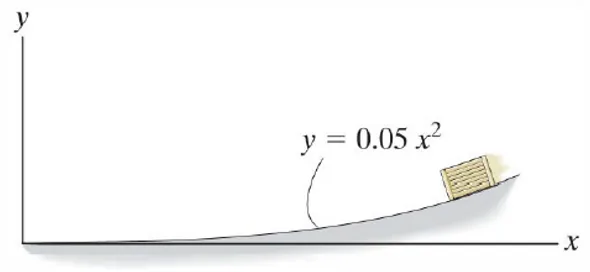

1. Differentiate $y = 0.05 x^2$ with respect to time to find $v_y$.

$$ y = 0.05 x^2 $$ $$ \frac{dy}{dt} = \frac{dy}{dx} \frac{dx}{dt} $$ $$ v_y = (2)(0.05)x \, v_x = 0.1 x v_x $$

At $x = 5$ and $v_x = -3$:

$$ v_y = 0.1(5)(-3) = -1.5 \, \text{m/s} $$

2. Differentiate $v_y$ to get $a_y$.

Since $v_y = 0.1 x v_x$, use the product rule:

$$ a_y = \frac{dv_y}{dt} $$ $$ a_y = 0.1 \left( x \, a_x + v_x^2 \right) $$

Evaluate at $x = 5$, $v_x = -3$, $a_x = -1.5$:

$$ a_y = 0.1\left( 5(-1.5) + (-3)^2 \right) $$ $$ a_y = 0.1(-7.5 + 9) $$ $$ a_y = 0.15 \, \text{m/s}^2 $$

Final Answers:

$$ v_y = -1.5 \, \text{m/s}, \qquad a_y = 0.15 \, \text{m/s}^2 $$

Question 2

Overview of Dynamics

Question 3

Kinematics

Question 4

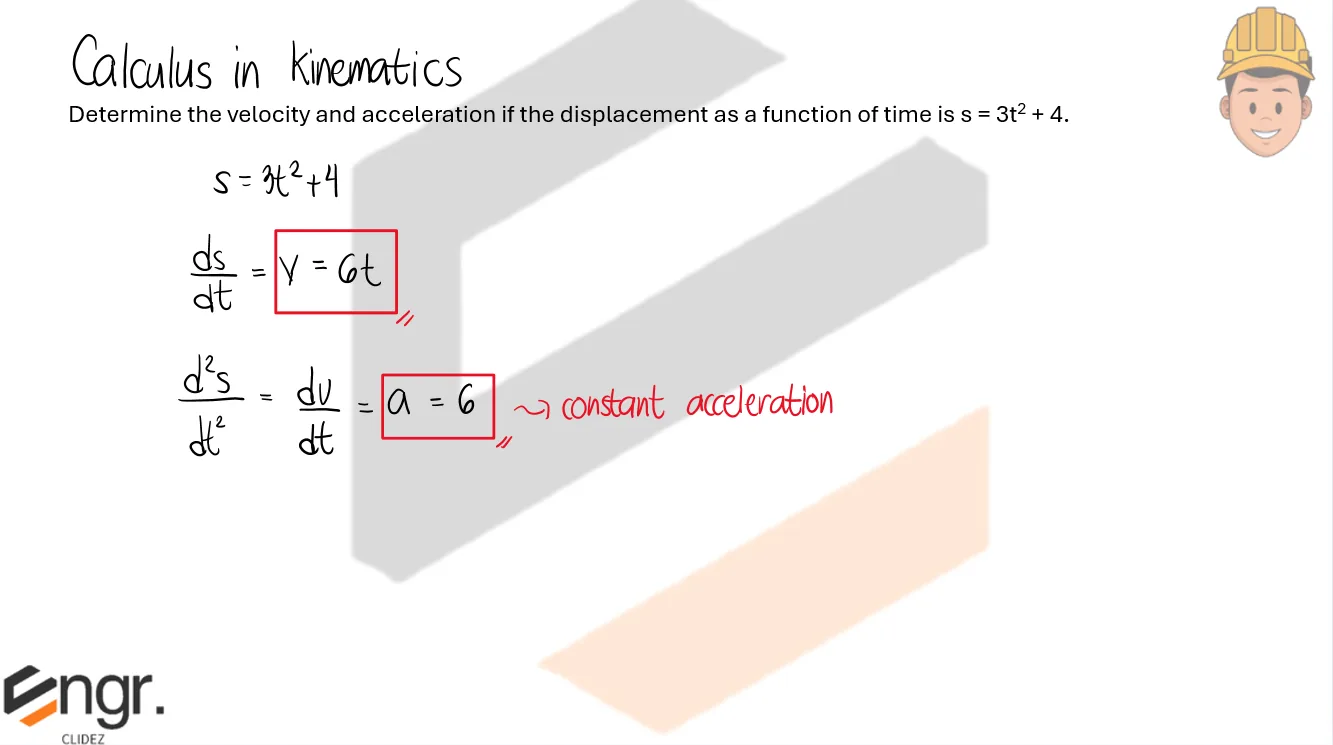

Problem: Velocity and Acceleration Given the Displacement Function

Determine the velocity and acceleration if the displacement as a function of time is $s=3t^2+4$

Question 5

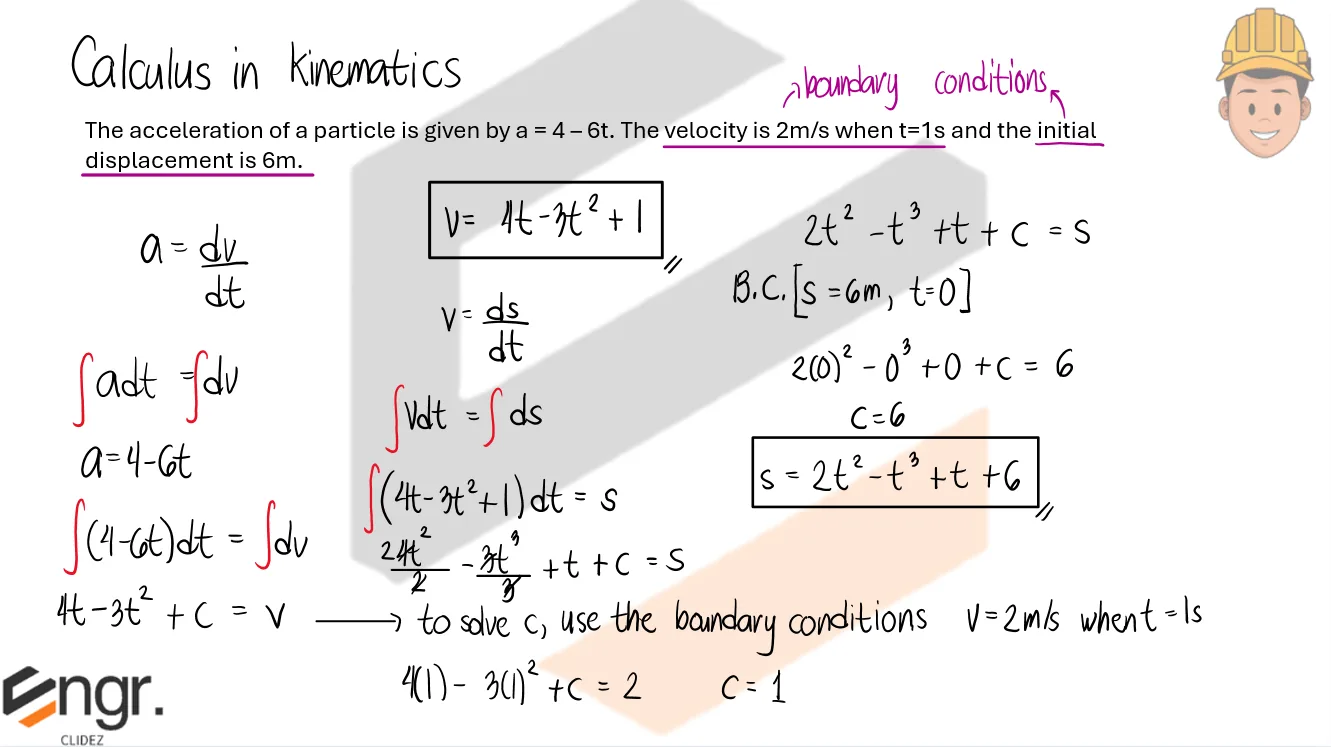

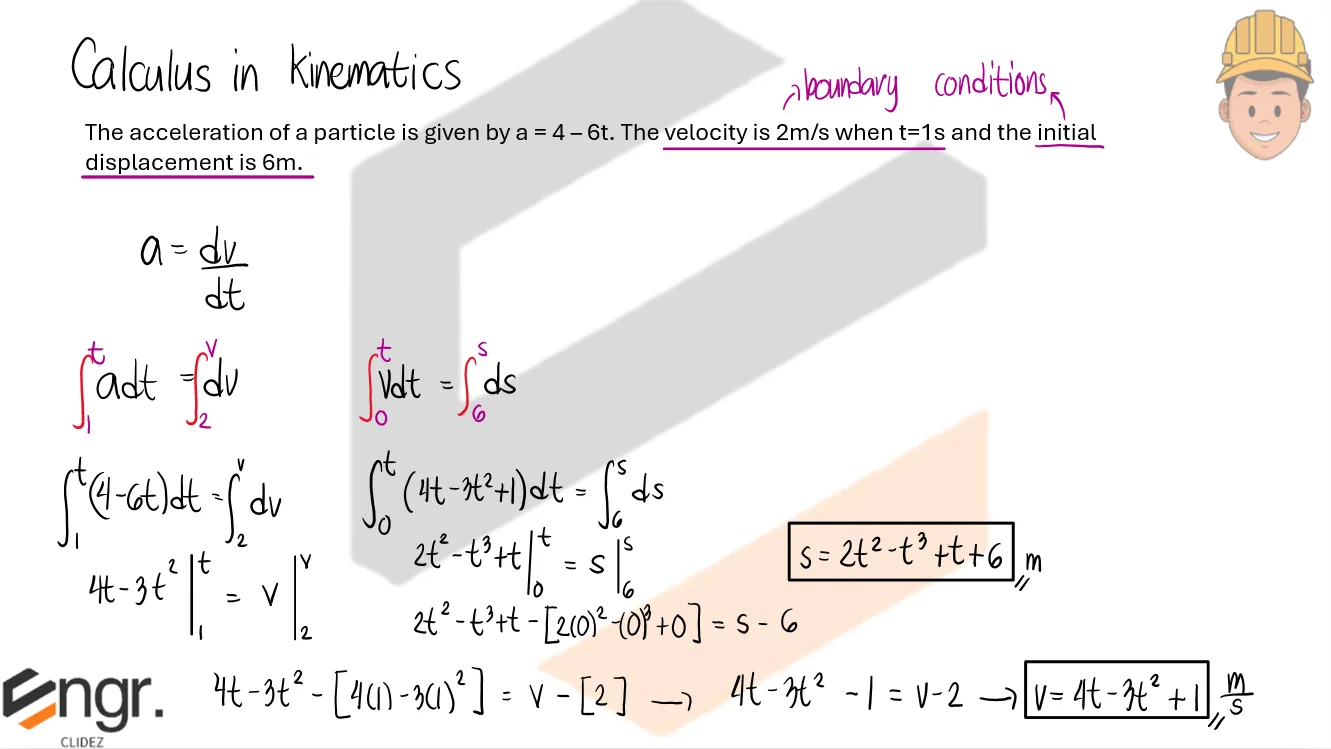

Problem: Displacement Equation and Velocity Equation Given the Acceleration and Two Boundary Conditions

The acceleration of a particle is given by $a=4-6t$. The velocity is 2m/s when t=1s and the initial displacement is 6m.

Question 6

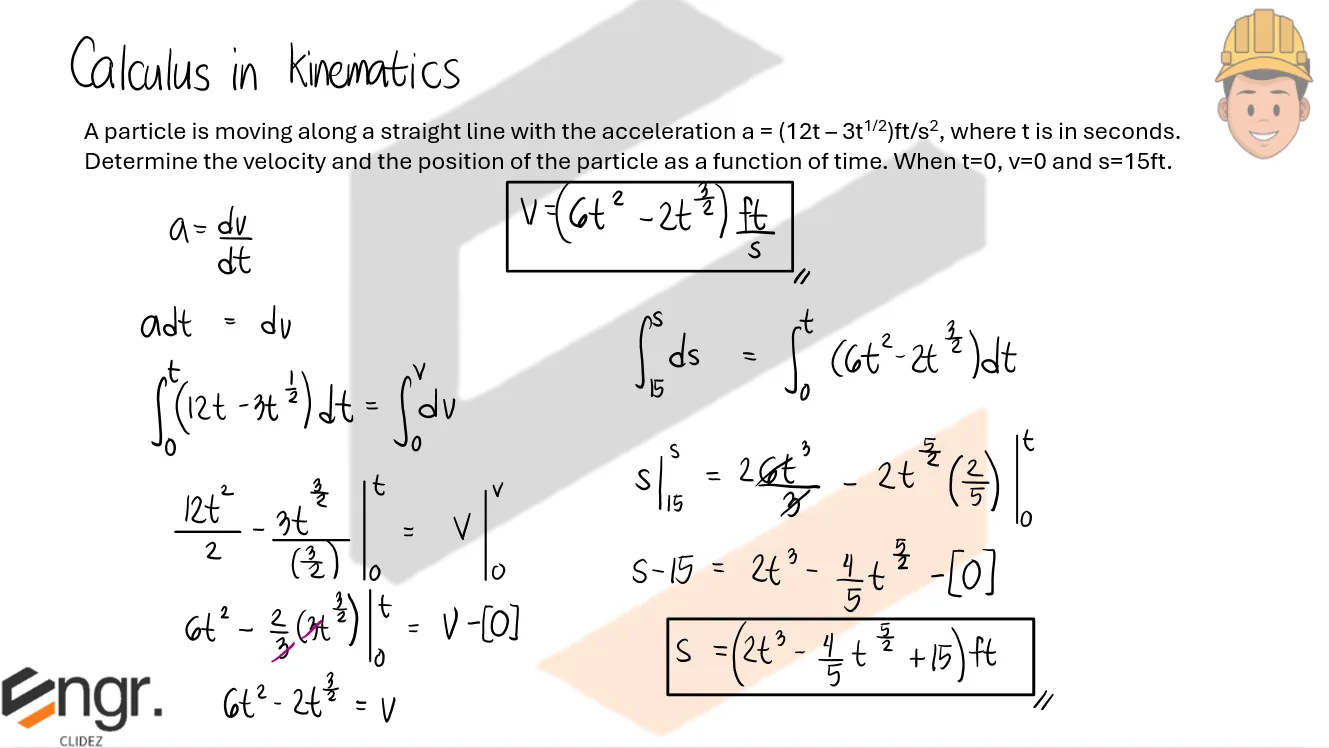

Problem: Velocity and Position as a Function of Time Given Two Boundary Conditions

A particle is moving along a straight line with the acceleration $a=(12t-3t^{1/2})ft/s^2$, where t is in seconds. Determine the velocity and the position of the particle as a function of time. When t=0, v=0 and s=15ft.

Question 7

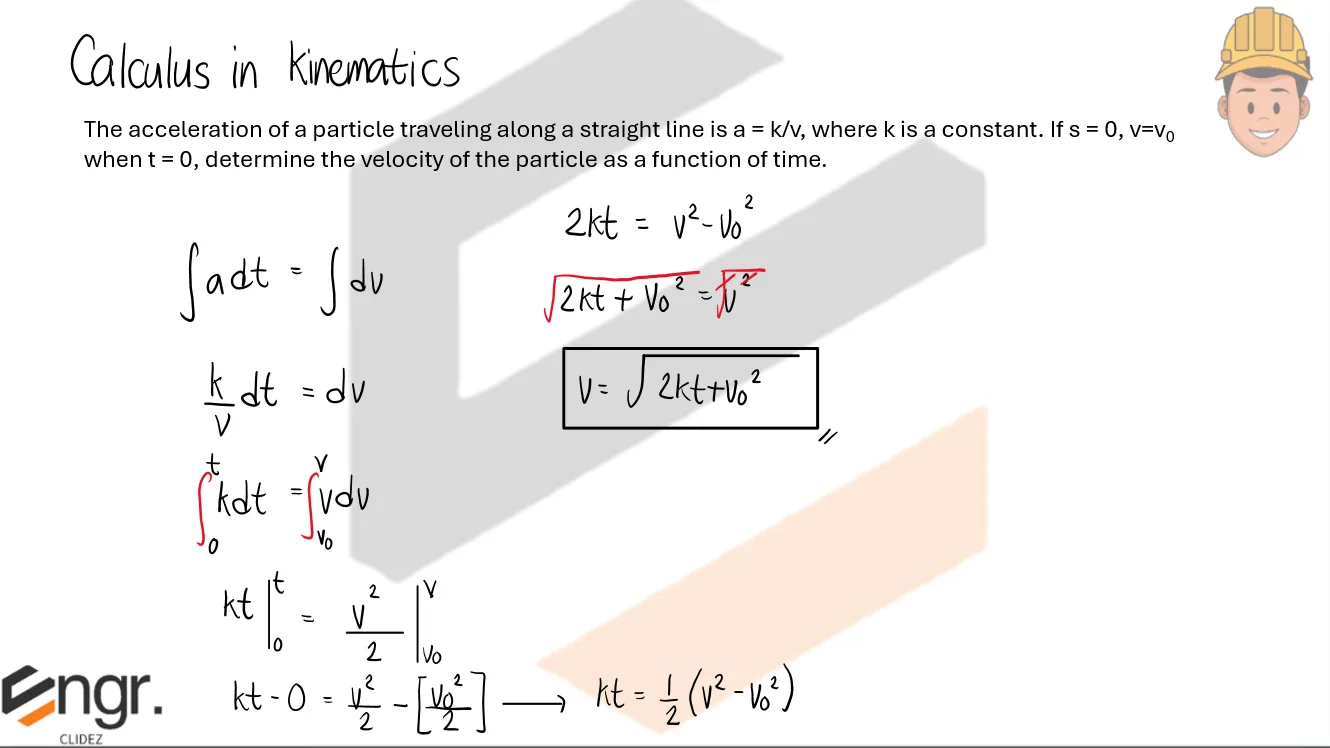

Problem: Velocity as a Function of Time Given a=k/v

The acceleration of a particle travelling along a straight line is $a=k/v$, where $k$ is a constant. If $s=0\text{, }v=v_0\text{, when }t=0$, determine the velocity of the particle as a function of time.

Question 8

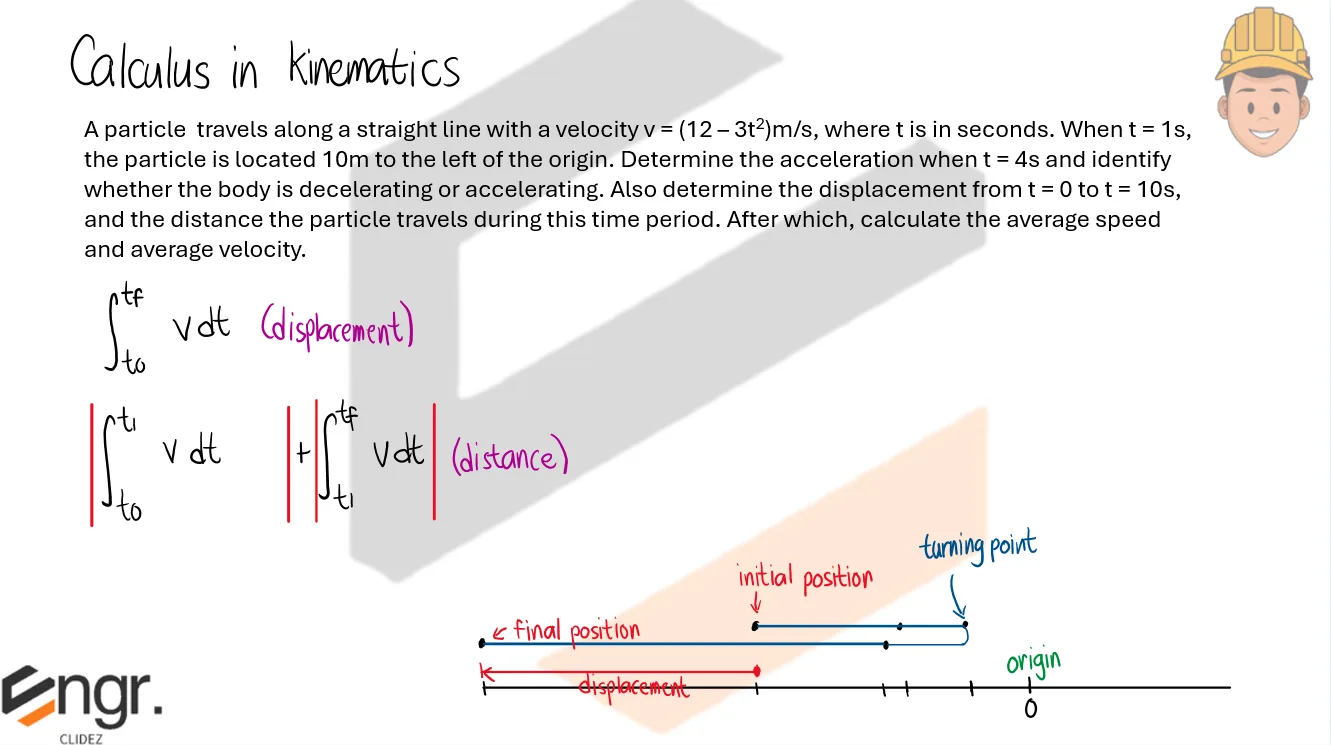

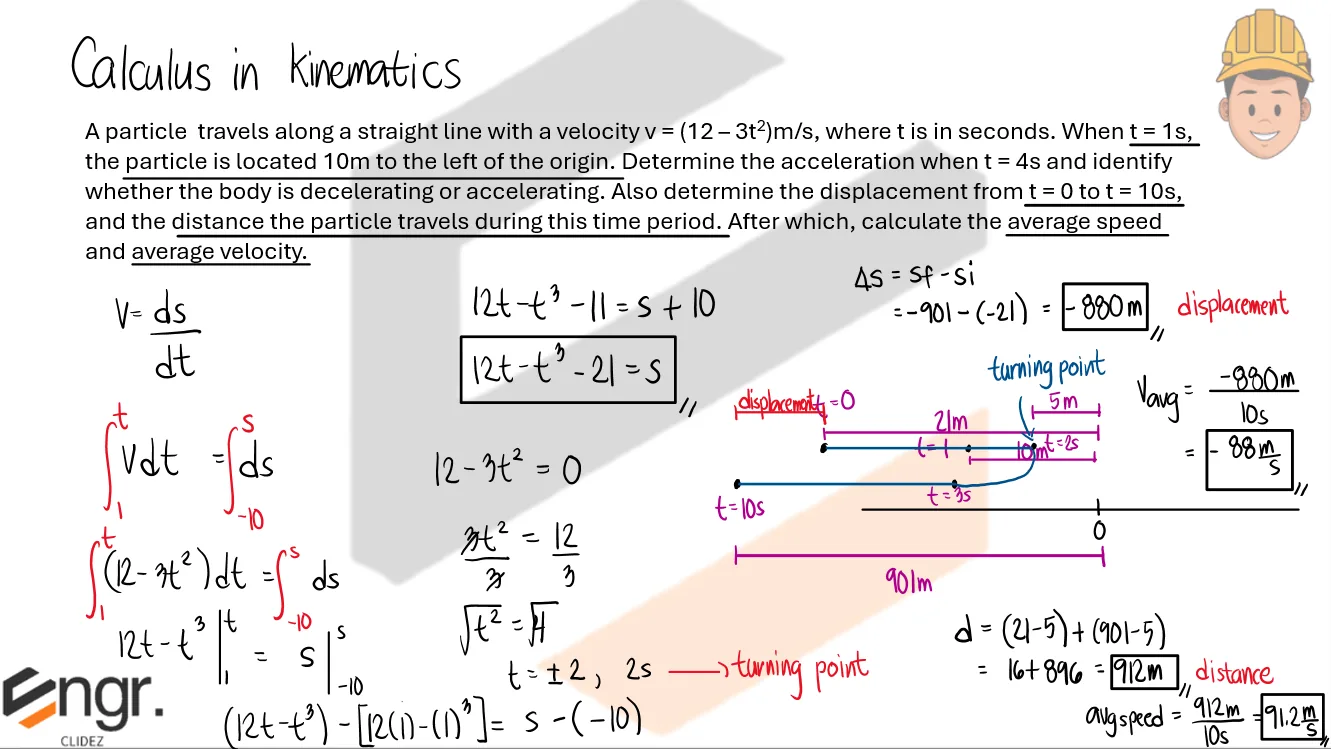

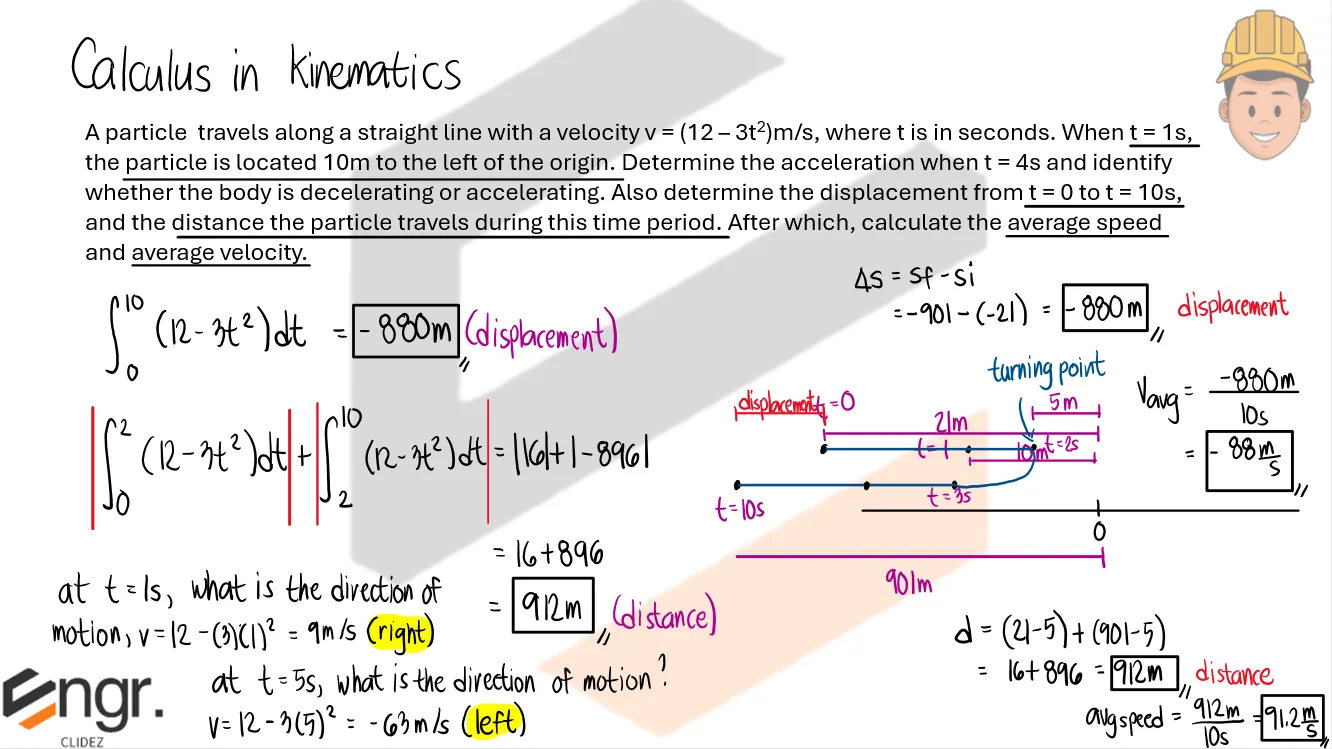

Problem: Displacement within a Time Interval, Total Distance Travelled, Average Speed, and Average Velocity

A particle travels along a straight line with a velocity $v = (12 – 3t^2)m/s$, where t is in seconds. When t = 1s, the particle is located 10m to the left of the origin. Determine the acceleration when t = 4s and identify whether the body is decelerating or accelerating. Also determine the displacement from t = 0 to t = 10s, and the distance the particle travels during this time period. After which, calculate the average speed and average velocity.

Question 9

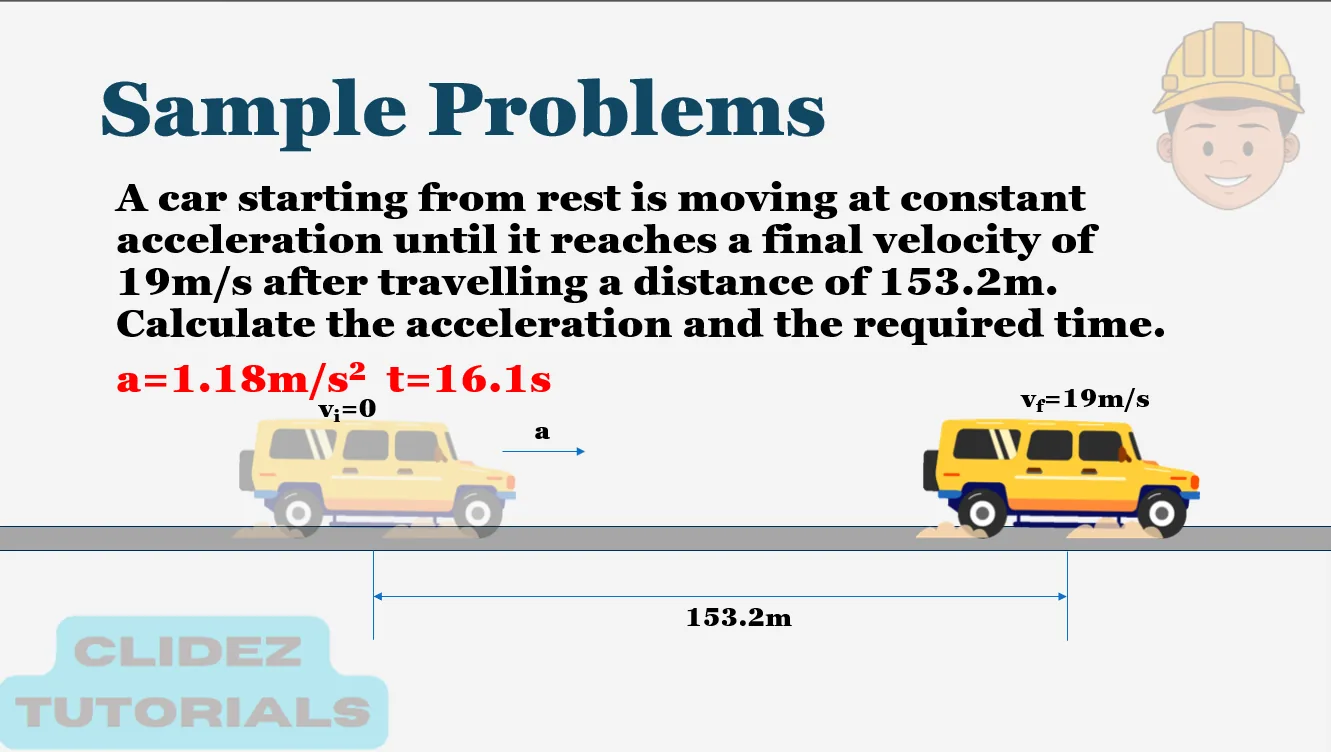

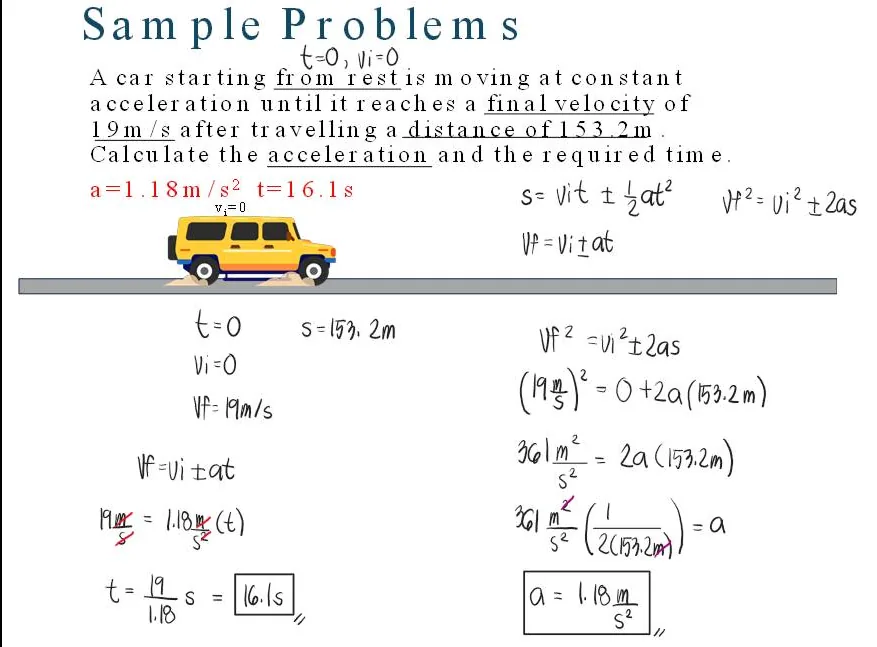

Problem: Kinematics Equations

A car starting from rest is moving at constant acceleration until it reaches a final velocity of 19m/s after travelling a distance of 153.2m. Calculate the acceleration and the required time.

Question 10

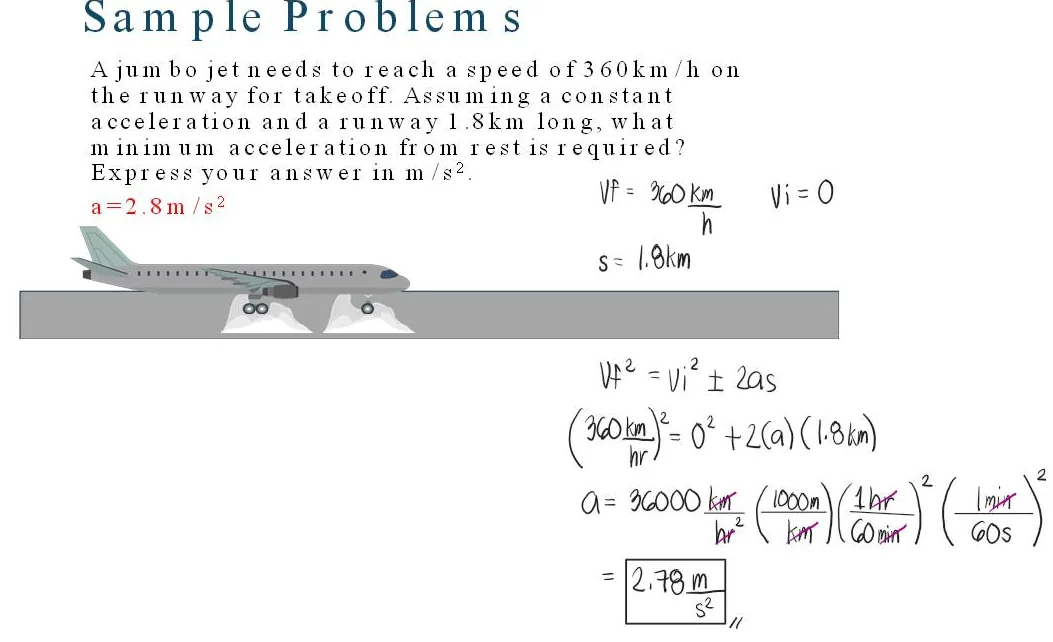

Problem: Kinematics Equations with Conversion

A jumbo jet needs to reach a speed of 360km/h on the runway for takeoff. Assuming a constant acceleration and a runway 1.8km long, what minimum acceleration from rest is required? Express your answer in m/s².

Question 11

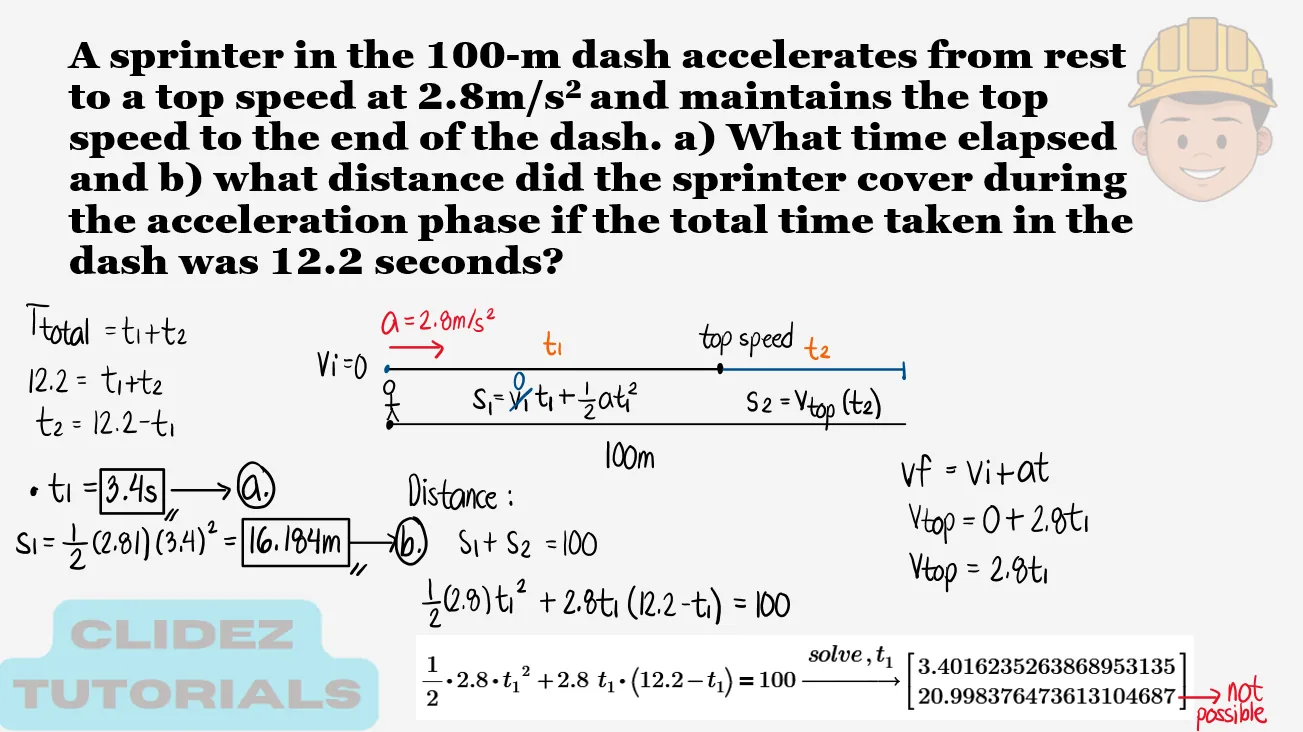

Sprinter Accelerating and Maintaining Top Speed

A sprinter in the 100-m dash accelerates from rest to a top speed at 2.8m/s² and maintains the top speed to the end of the dash. a) What time elapsed and b) what distance did the sprinter cover during the acceleration phase if the total time taken in the dash was 12.2 seconds?

Question 12

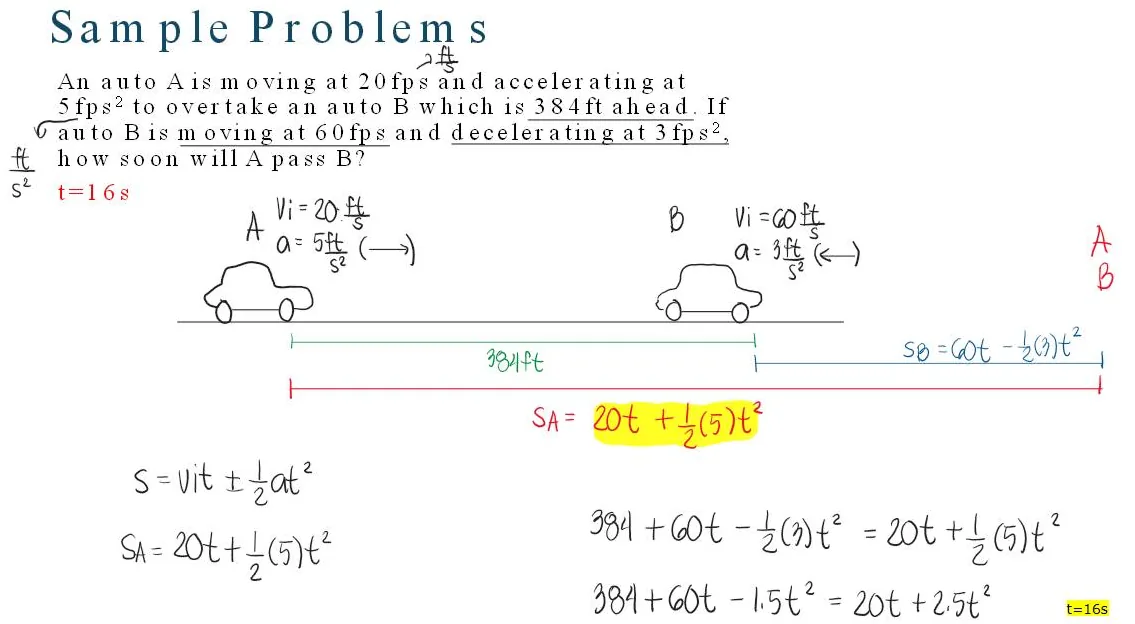

Problem: How Soon will Auto A pass Auto B?

An auto A is moving at 20fps and accelerating at 5fps² to overtake an auto B which is 384ft ahead. If auto B is moving at 60fps and decelerating at 3fps², how soon will A pass B?

Question 13

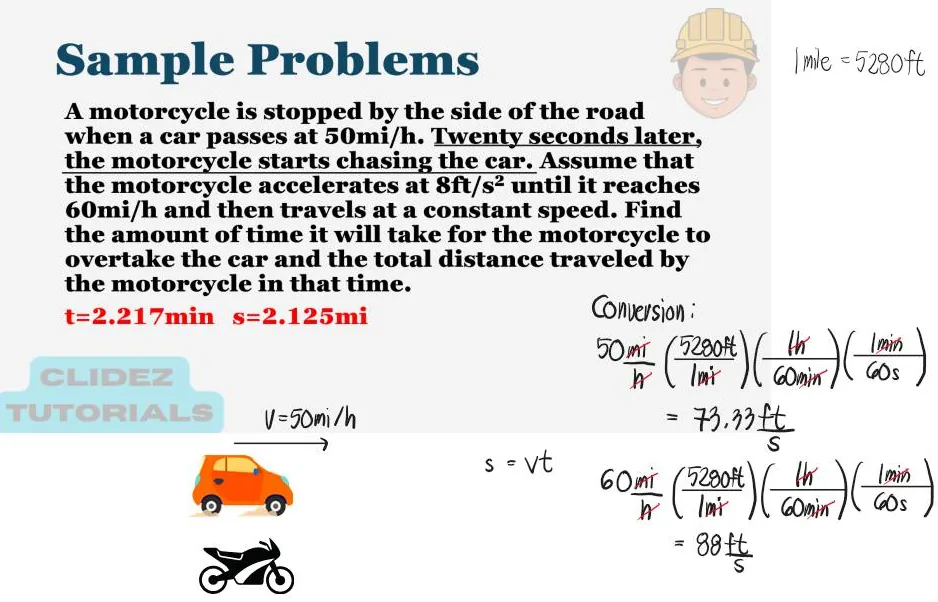

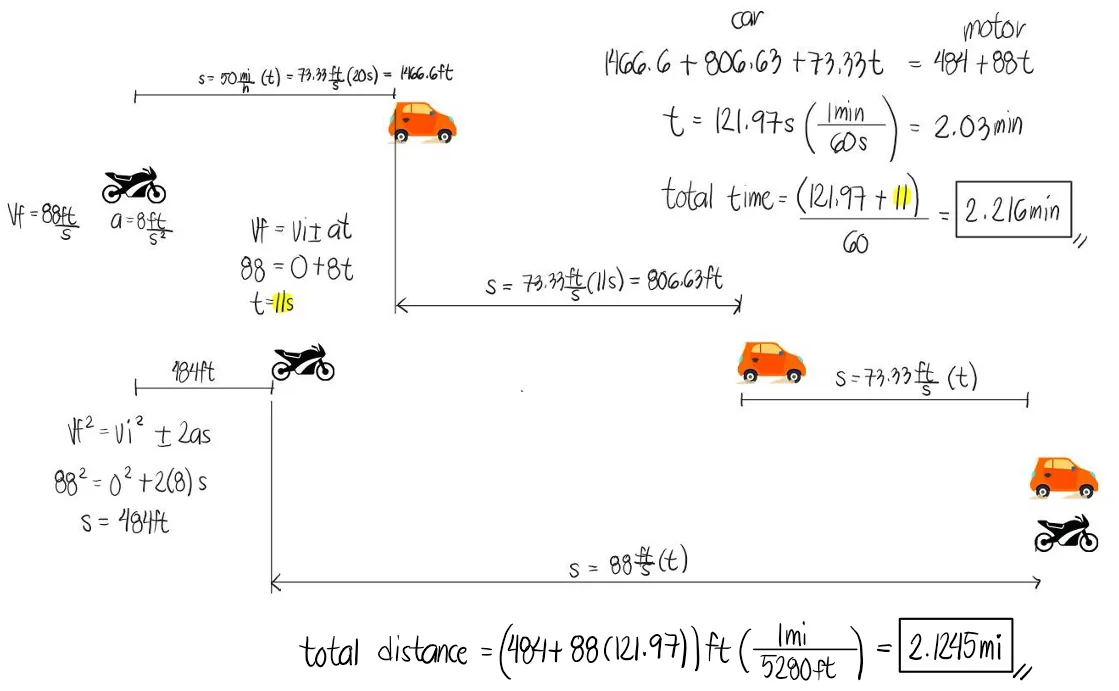

Problem: How Soon will the Motorcycle Overtake the Car?

A motorcycle is stopped by the side of the road when a car passes at 50mi/h. Twenty seconds later, the motorcycle starts chasing the car. Assume that the motorcycle accelerates at 8ft/s² until it reaches 60mi/h and then travels at a constant speed. Find the amount of time it will take for the motorcycle to overtake the car and the total distance traveled by the motorcycle in that time.

Question 14

Problem: Car Moving through Four Points, A-B-C-D

In travelling a distance of 3km between points A and D, a car is driven at 100km/h from A to B for t seconds and at 60km/h from C to D also for t seconds. If the brakes are applied for four seconds between B and C to give the car a uniform deceleration, calculate t and the distance s between A and B, in seconds and kilometers, respectively.

Question 15

Projectile Motion

Complementary Angles in Projectile Motion

In projectile motion without air resistance, two launch angles that add up to 90° (called complementary angles) will produce the same horizontal range when launched with the same initial speed.

The range of a projectile is given by:

$$ R = \frac{v_0^2}{g} \sin(2\theta) $$

Because the sine function satisfies:

$$ \sin(2\theta) = \sin\!\bigl(2(90^\circ - \theta)\bigr), $$

the range for angles such as 30° and 60° will be identical. These are called range pairs.

But what about the height?

Although complementary angles give the same range, they do not have the same:

maximum height
flight time
trajectory shape

A smaller angle (e.g., 30°) produces a lower, flatter path with a smaller height, while a larger angle (e.g., 60°) produces a higher trajectory with a greater maximum height.

Thus, complementary angles give the same range, but not the same height or time of flight.

Question 16

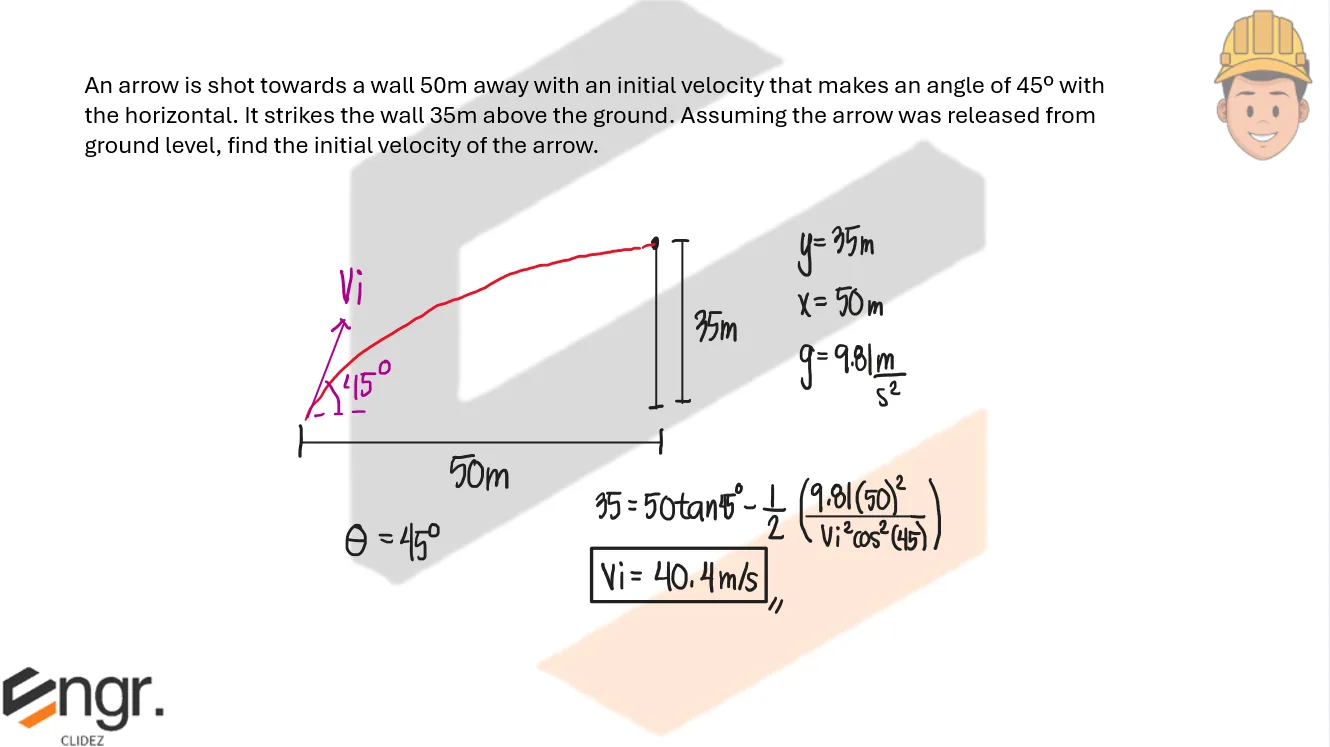

Problem: Arrow Shot Towards a Wall

An arrow is shot towards a wall 50m away with an initial velocity that makes an angle of 45° with the horizontal. It strikes the wall 35m above the ground. Assuming the arrow was released from ground level, find the initial velocity of the arrow.

Question 17

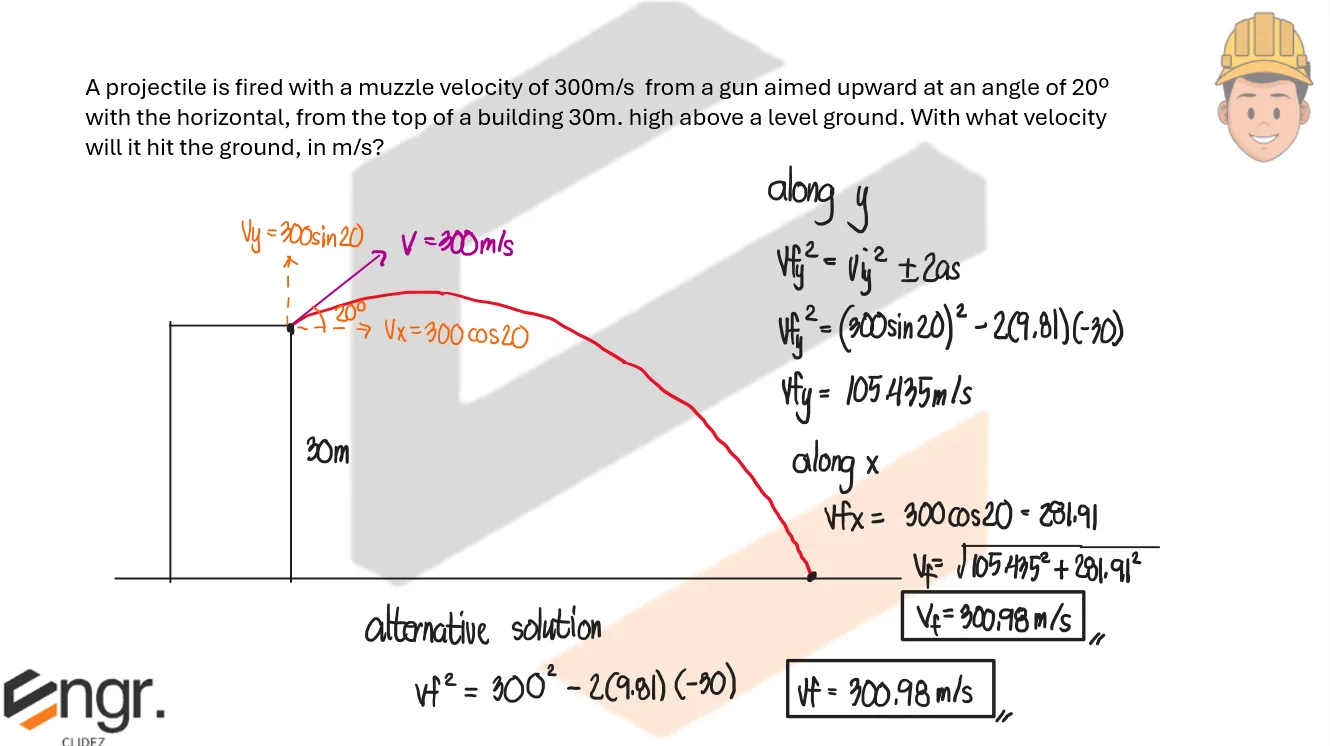

Problem: Projectile Fired from the Top of a Building at an Angle

A projectile is fired with a muzzle velocity of 300m/s from a gun aimed upward at an angle of 20° with the horizontal, from the top of a building 30m. high above a level ground. With what velocity will it hit the ground, in m/s?

Question 18

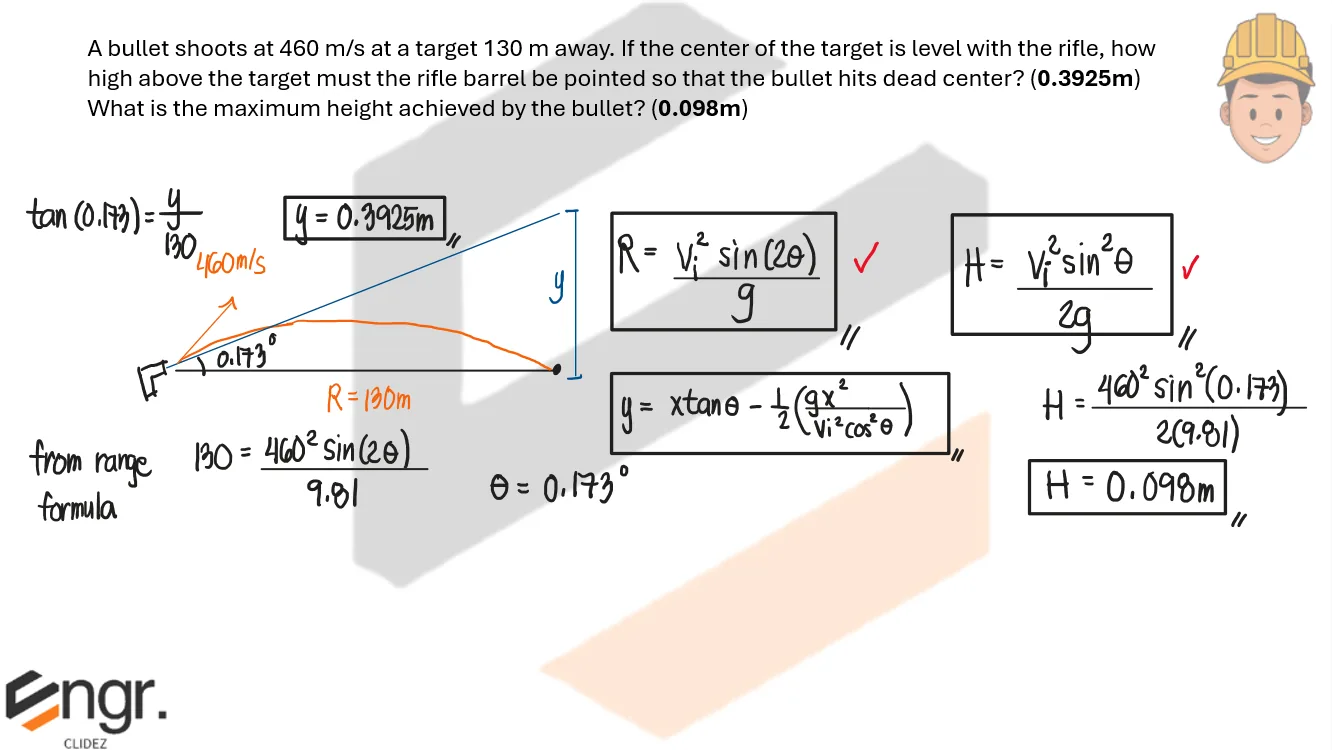

Problem: Bullet Shot Dead Center Toward a Target

A bullet shoots at 460 m/s at a target 130 m away. If the center of the target is level with the rifle, how high above the target must the rifle barrel be pointed so that the bullet hits dead center?
What is the maximum height achieved by the bullet?

Question 19

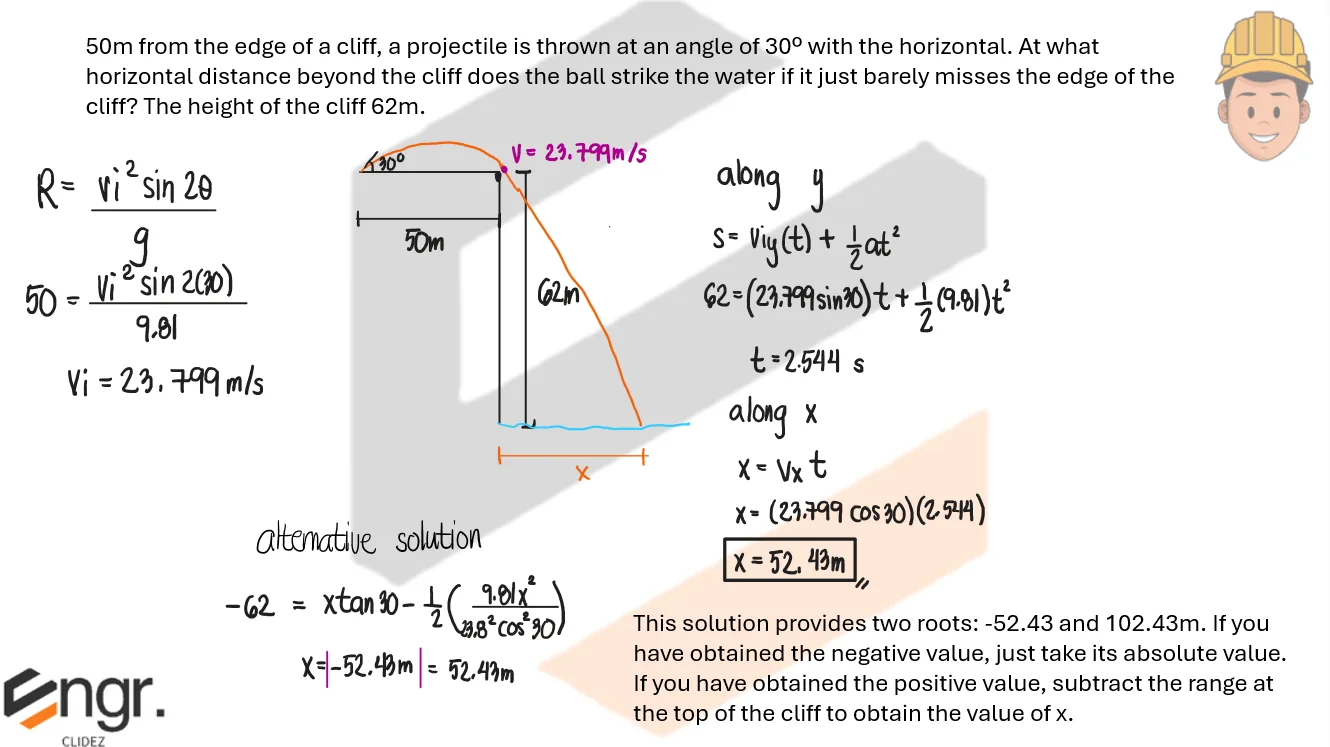

Problem: Projectile Fired at a Distance from the Edge of a Cliff

50m from the edge of a cliff, a projectile is thrown at an angle of 30° with the horizontal. At what horizontal distance beyond the cliff does the ball strike the water if it just barely misses the edge of the cliff? The height of the cliff 62m.

Question 20

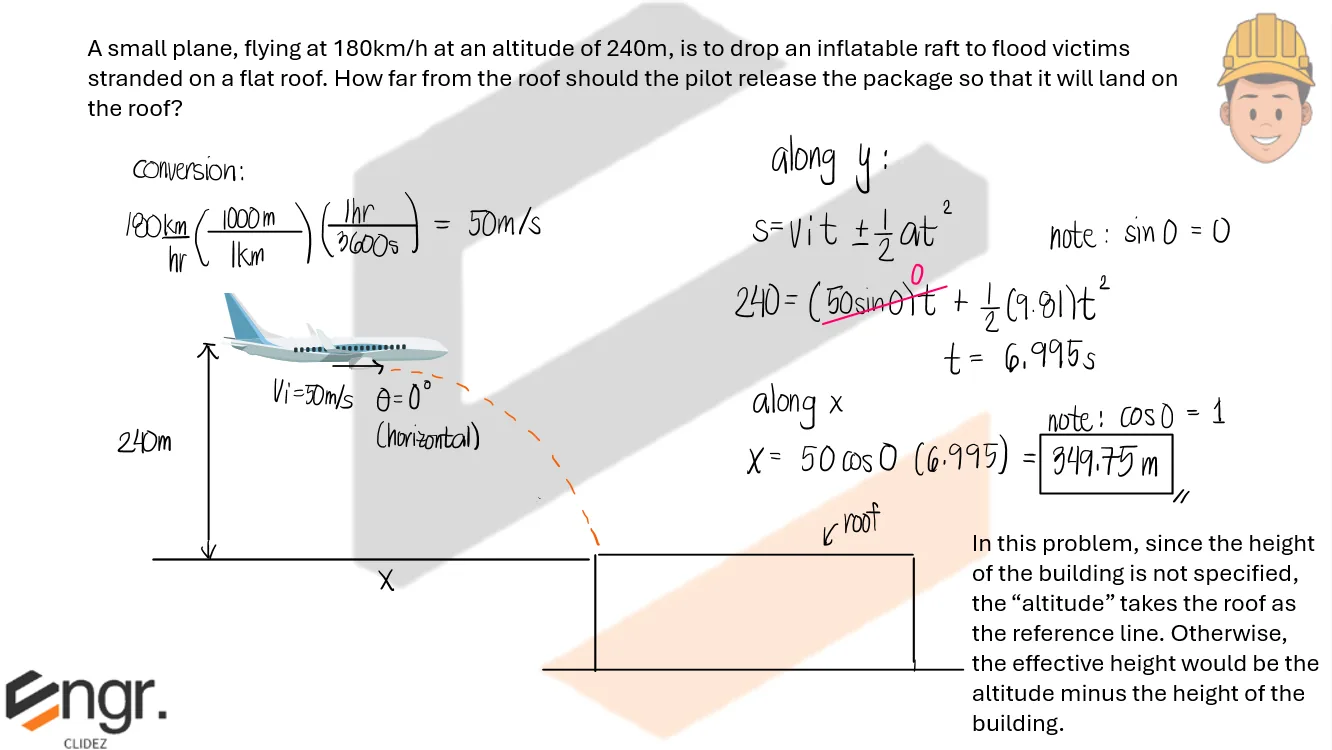

Problem: Dropping a Load at a Horizontal Velocity

A small plane, flying at 180km/h at an altitude of 240m, is to drop an inflatable raft to flood victims stranded on a flat roof. How far from the roof should the pilot release the package so that it will land on the roof?

Question 21

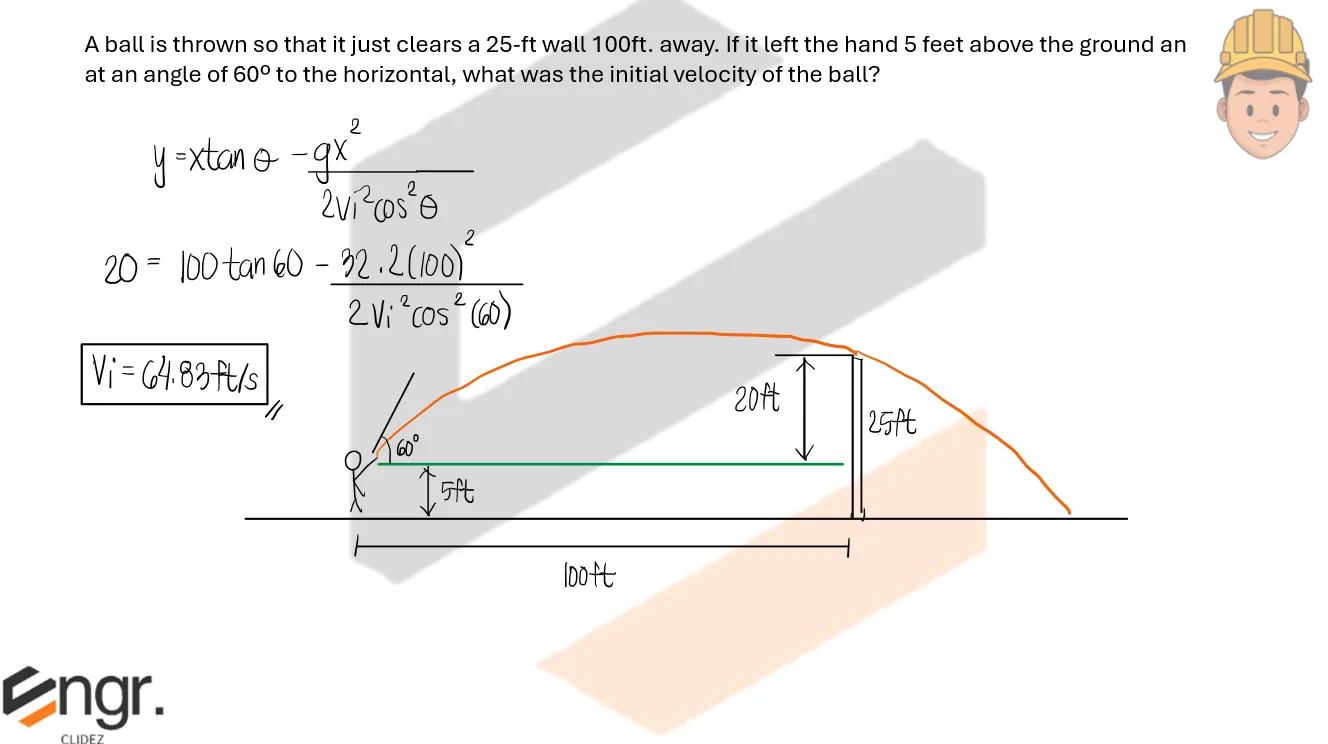

Problem: Ball Thrown just to Clear a Wall

A ball is thrown so that it just clears a 25-ft wall 100ft. away. If it left the hand 5 feet above the ground an at an angle of 60° to the horizontal, what was the initial velocity of the ball?

Question 22

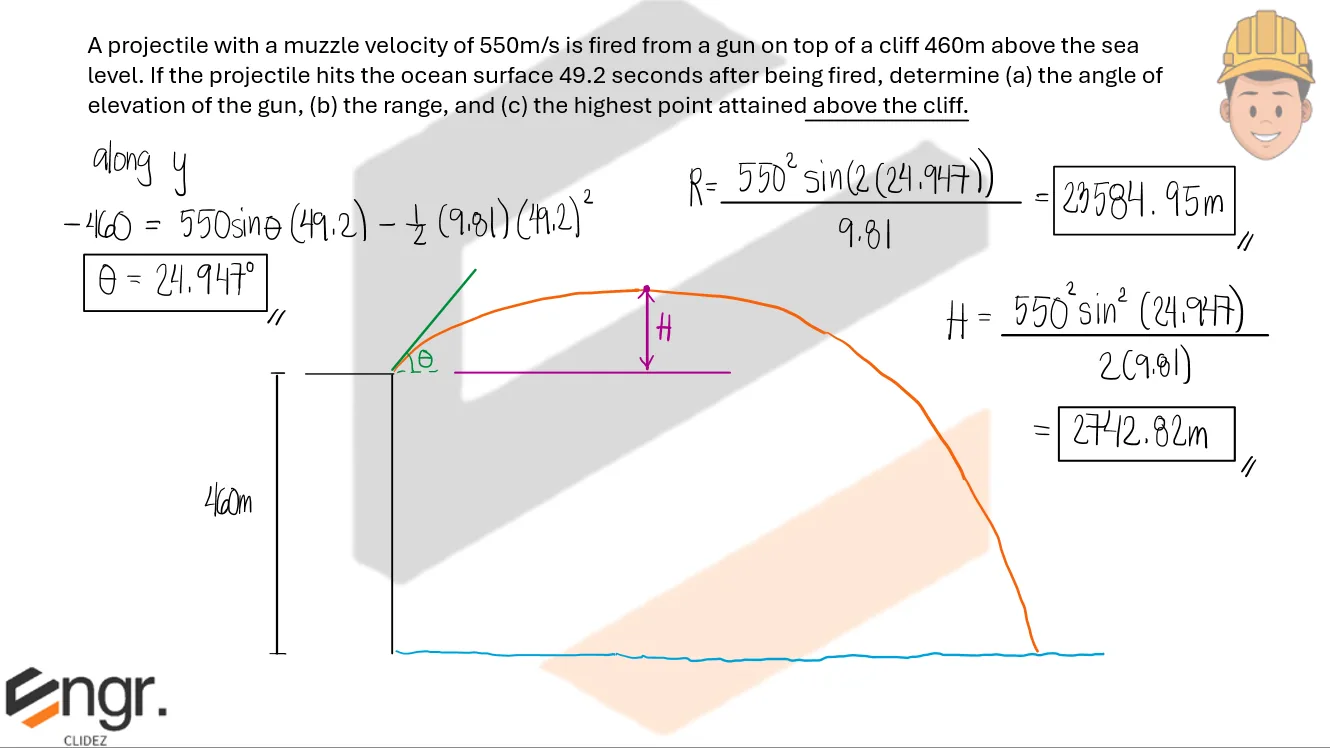

Problem: Projectile Thrown from the Edge of a Cliff

A projectile with a muzzle velocity of 550m/s is fired from a gun on top of a cliff 460m above the sea level. If the projectile hits the ocean surface 49.2 seconds after being fired, determine
(a) the angle of elevation of the gun,
(b) the range, and
(c) the highest point attained above the cliff.

Question 23

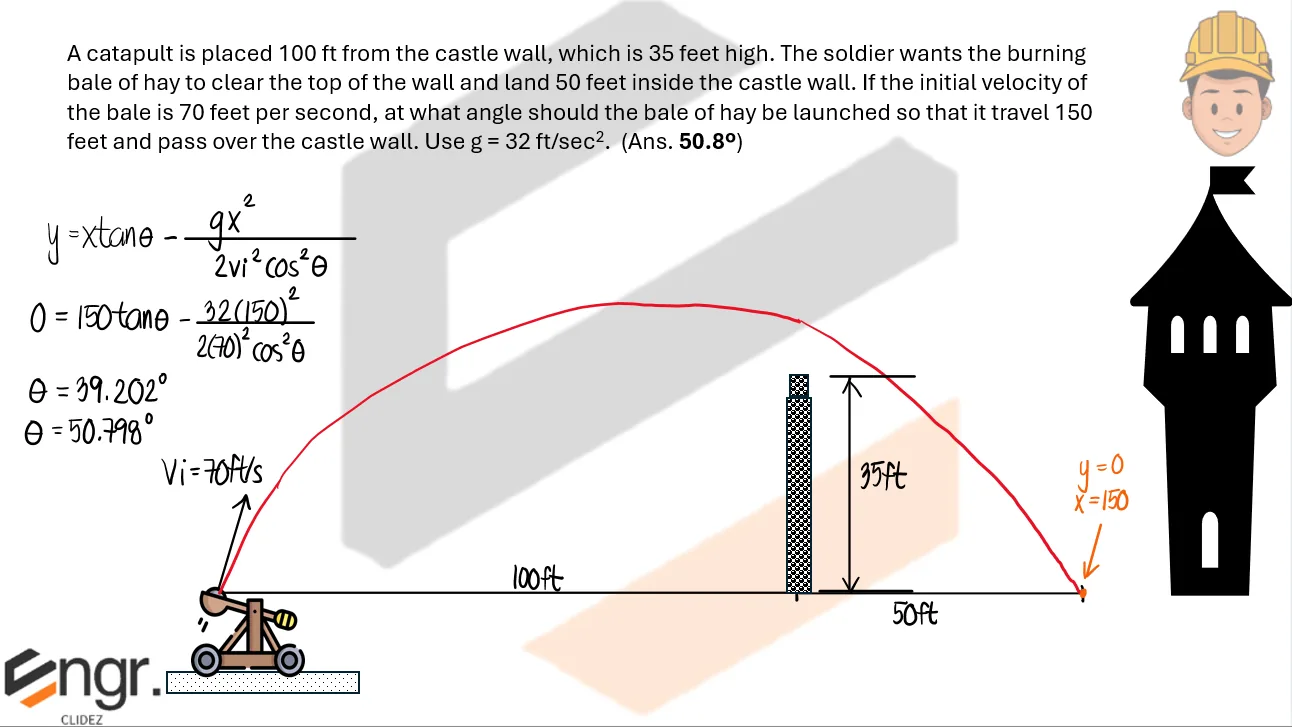

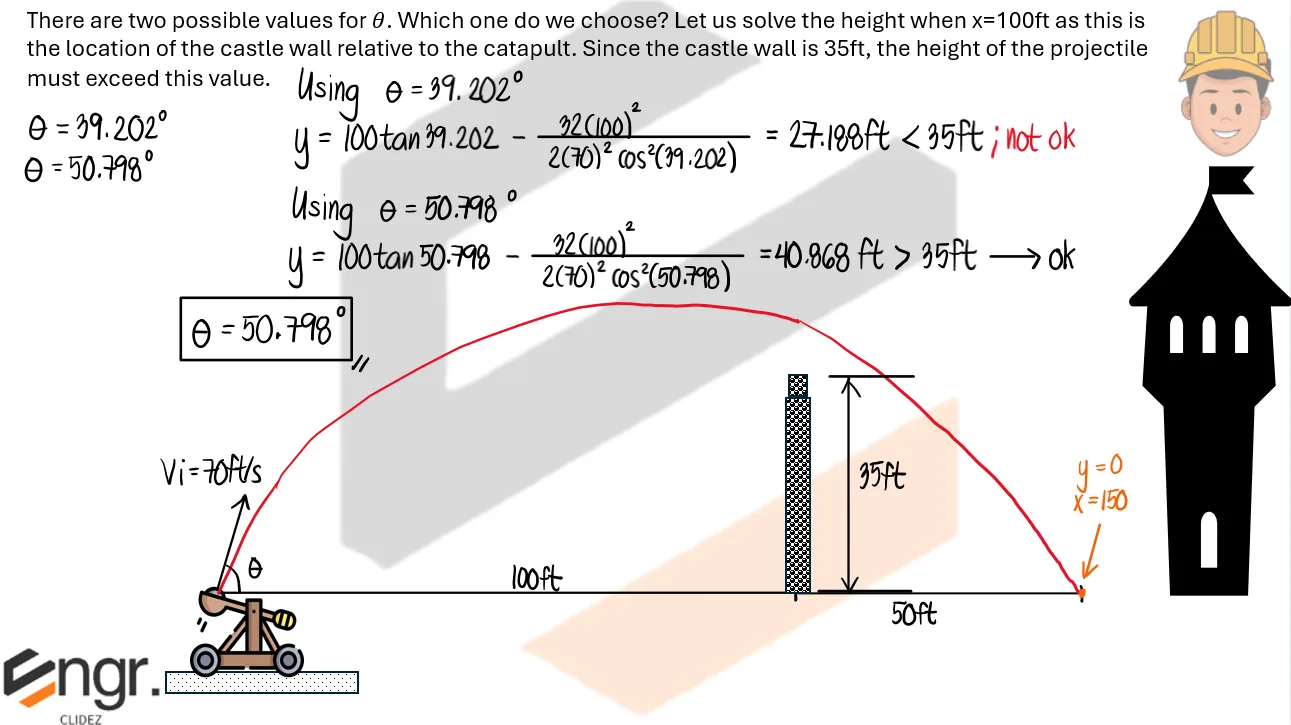

Problem: Concept of Complementary Angles Giving the Same Range

A catapult is placed 100 ft from the castle wall, which is 35 feet high. The soldier wants the burning bale of hay to clear the top of the wall and land 50 feet inside the castle wall. If the initial velocity of the bale is 70 feet per second, at what angle should the bale of hay be launched so that it travel 150 feet and pass over the castle wall. Use $g = 32 ft/sec^2$.

Question 24

Kinetics

Question 25

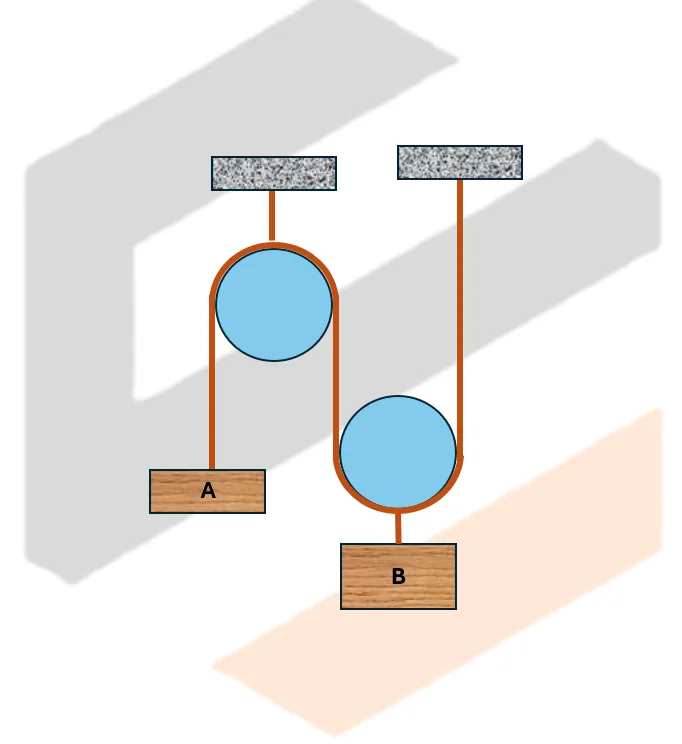

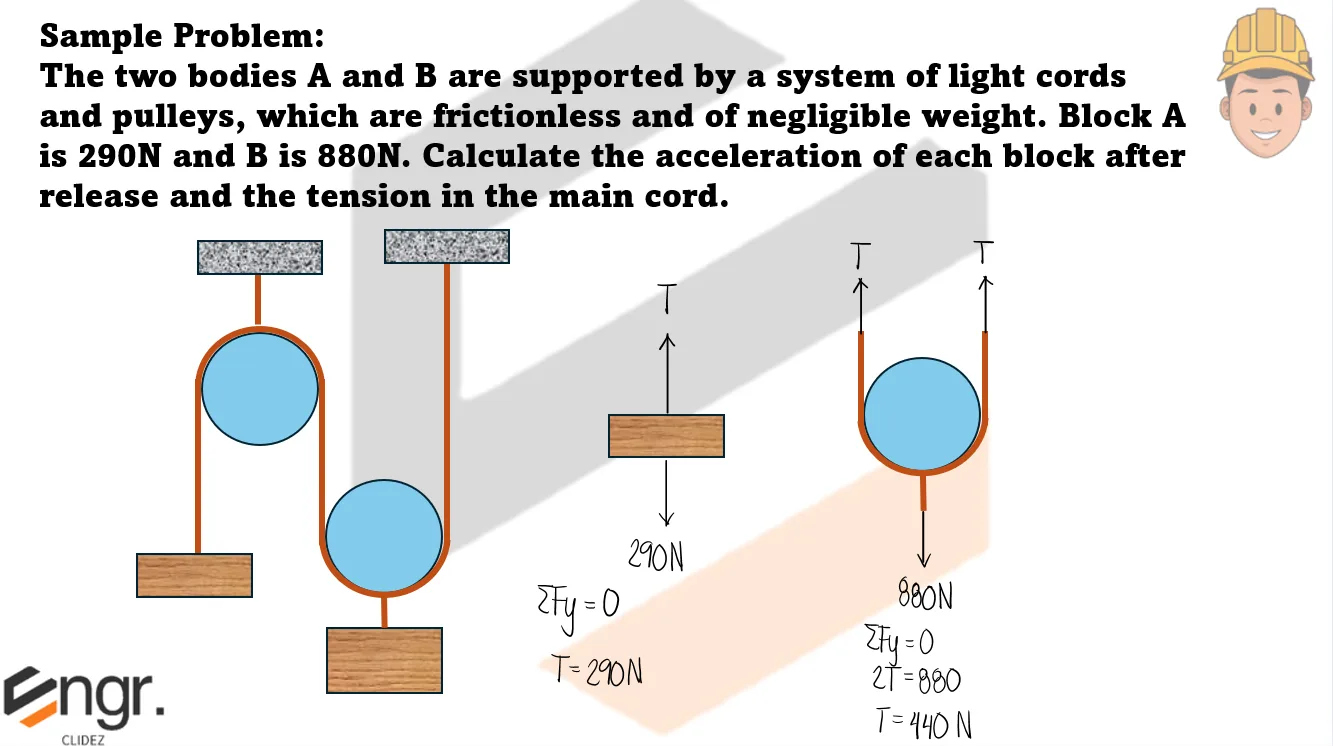

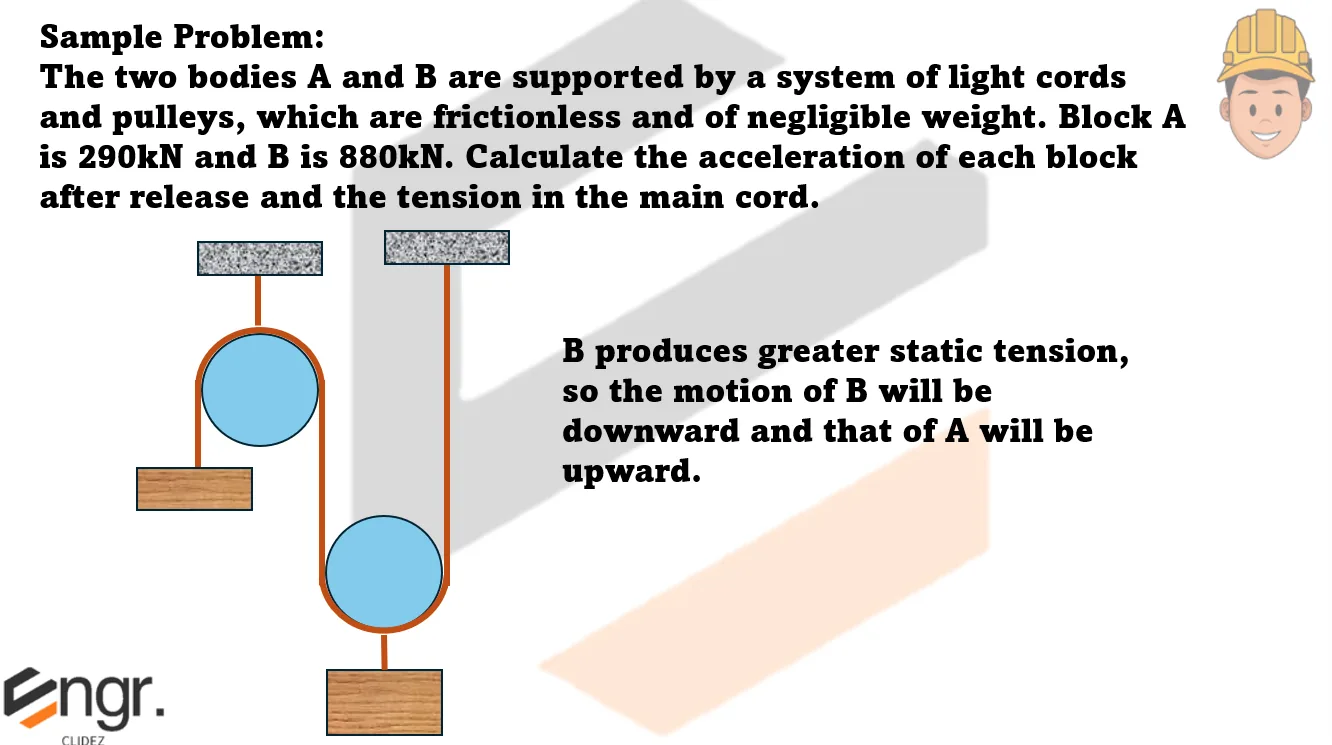

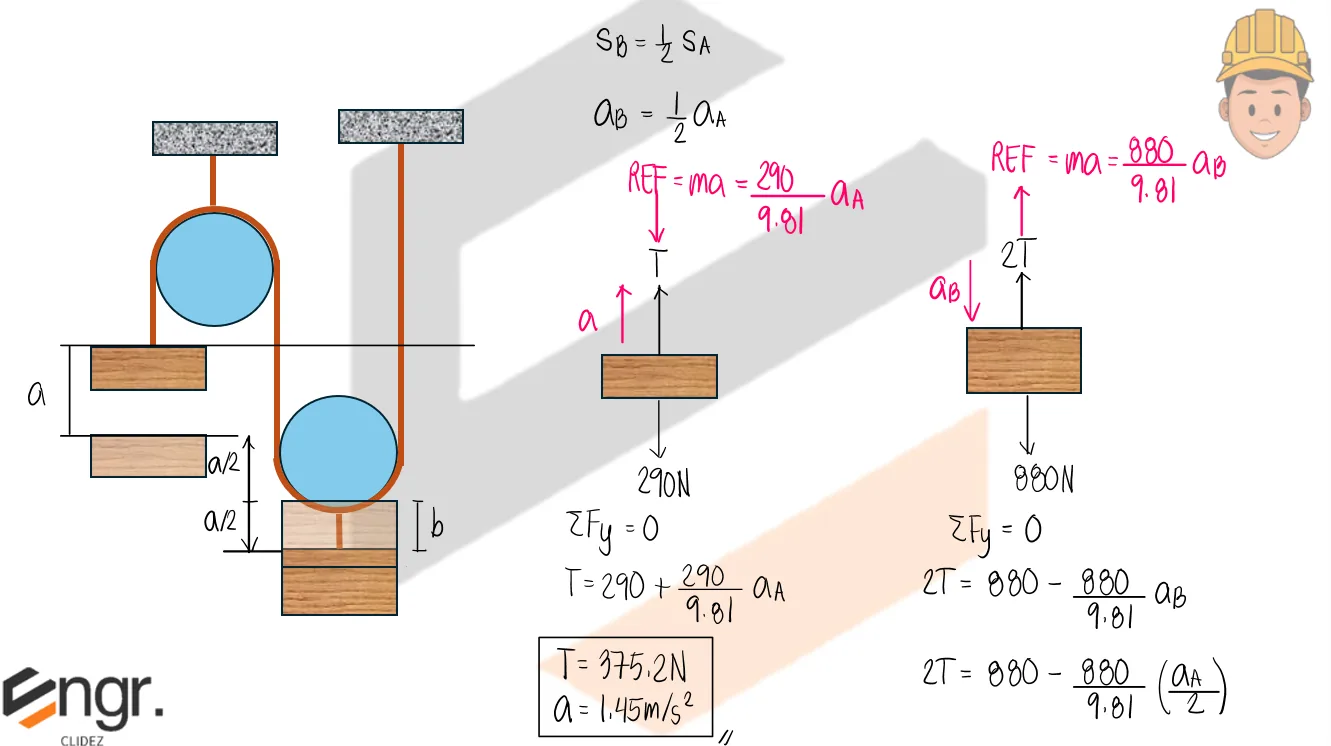

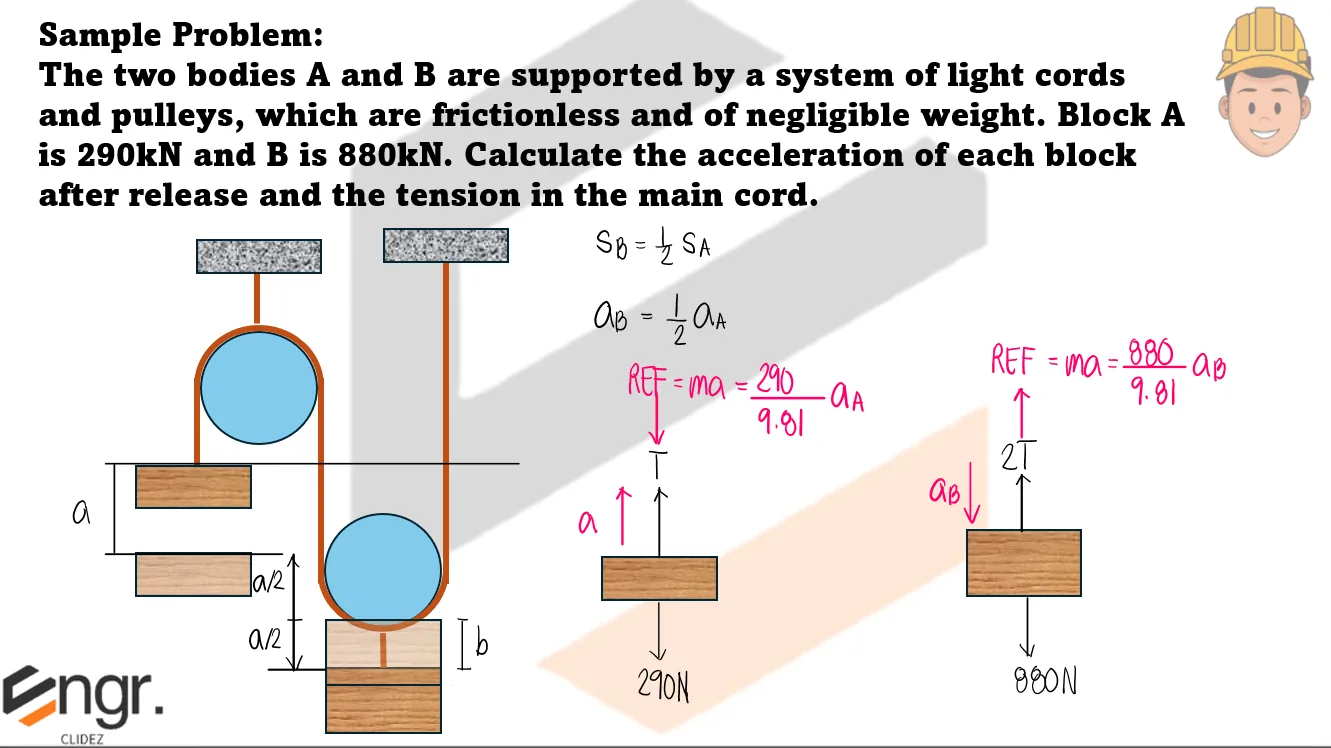

Problem: Two Bodies Supported by a Pulley System

The two bodies A and B are supported by a system of light cords and pulleys, which are frictionless and of negligible weight. Block A is 290N and B is 880N. Calculate the acceleration of each block after release and the tension in the main cord.

Question 26

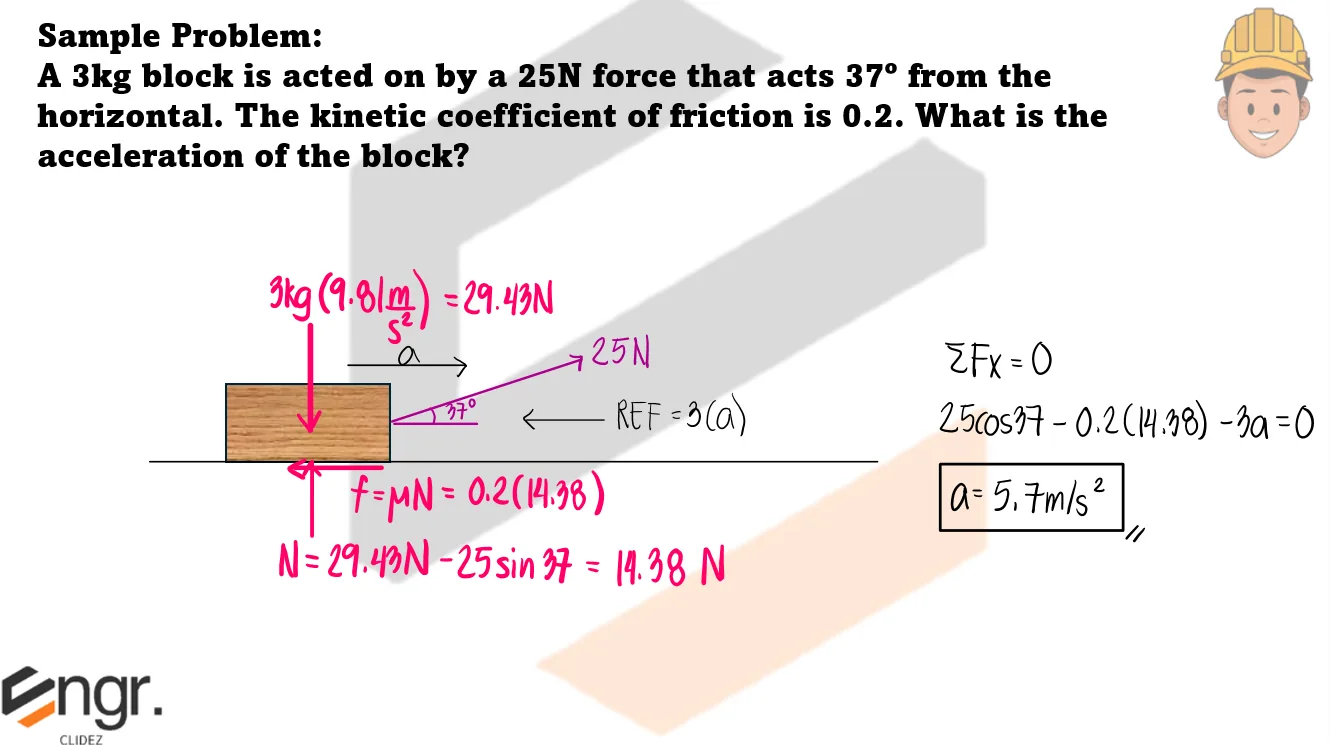

Problem: Block Acted on by an Inclined Force

A 3kg block is acted on by a 25N force that acts 37º from the horizontal. The kinetic coefficient of friction is 0.2. What is the acceleration of the block?

Question 27

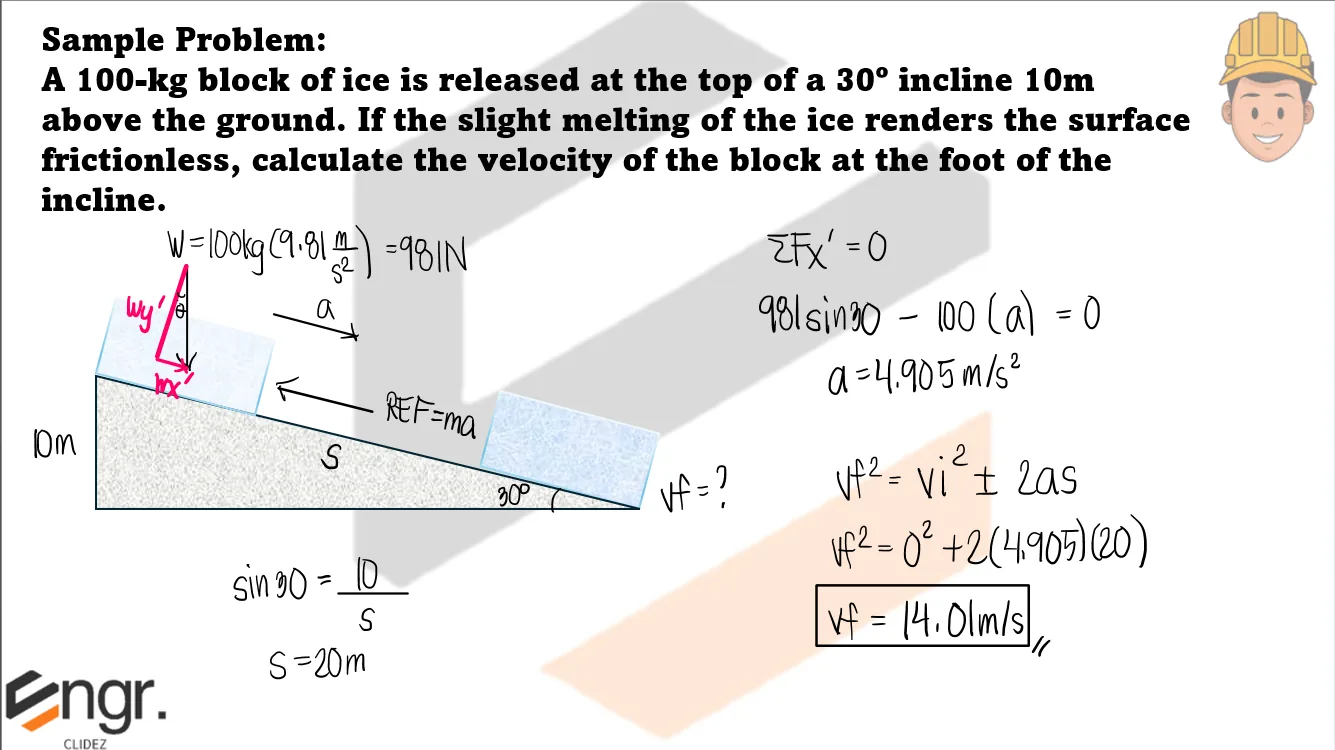

Problem: Block of Ice Sliding down an Incline

A 100-kg block of ice is released at the top of a 30º incline 10m above the ground. If the slight melting of the ice renders the surface frictionless, calculate the velocity of the block at the foot of the incline.

Question 28

Problem: Two Masses Connected by a Rope

A 5-kg block has a rope of mass 2kg attached to its underside and a 3-kg block is suspended from the other end of the rope. The whole system is accelerated upward at 2m/s² by an external force F. Determine:
a) The force F;
b) The net force in the rope;
c) The tension at the middle of the rope

Question 29

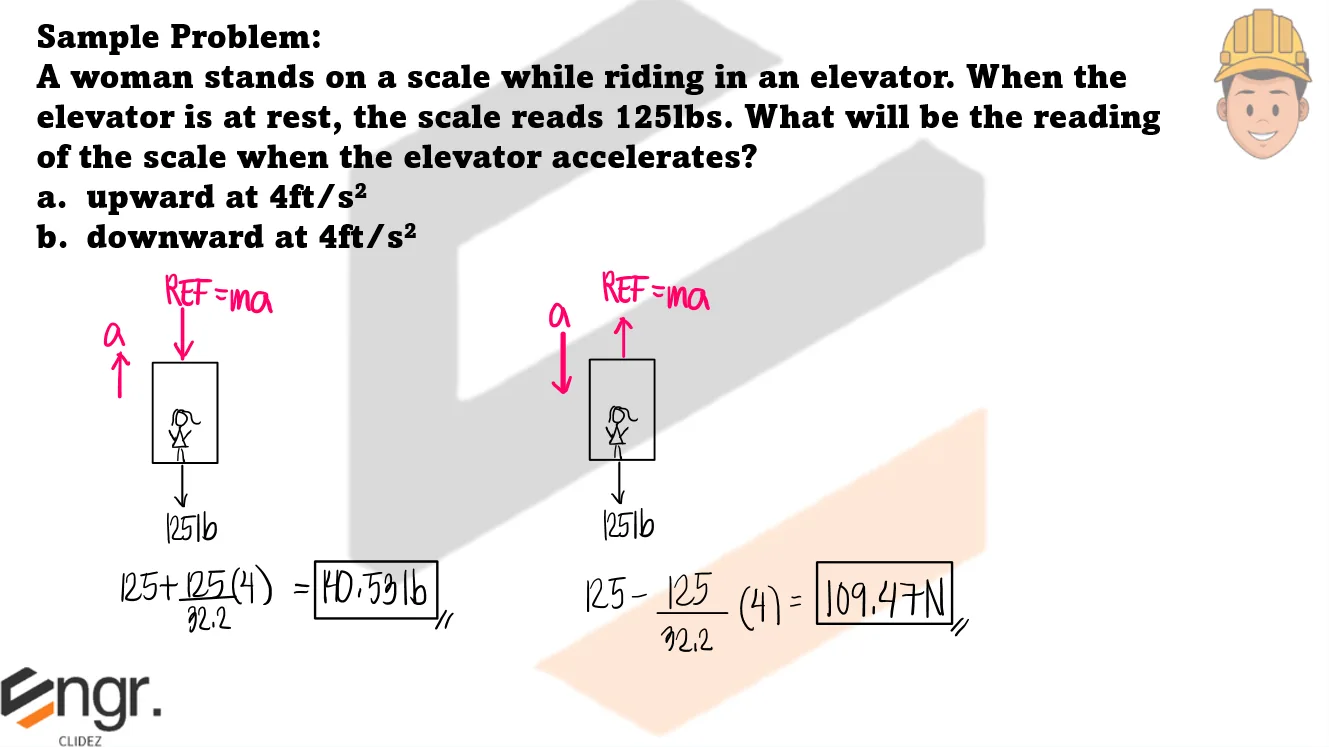

Problem: Scale Reading as Elevator Moves Up/Down

A woman stands on a scale while riding in an elevator. When the elevator is at rest, the scale reads 125lbs. What will be the reading of the scale when the elevator accelerates?
a. upward at 4ft/s²
b. downward at 4ft/s²

Question 30

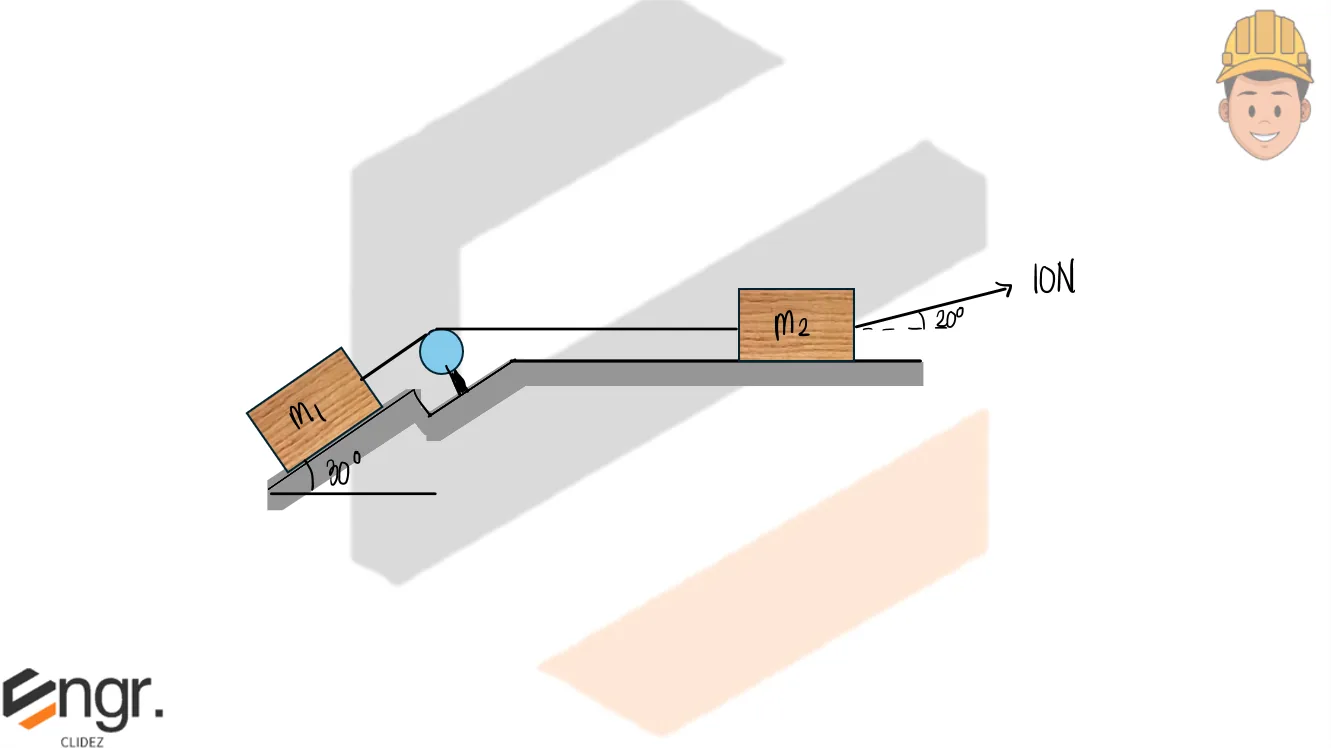

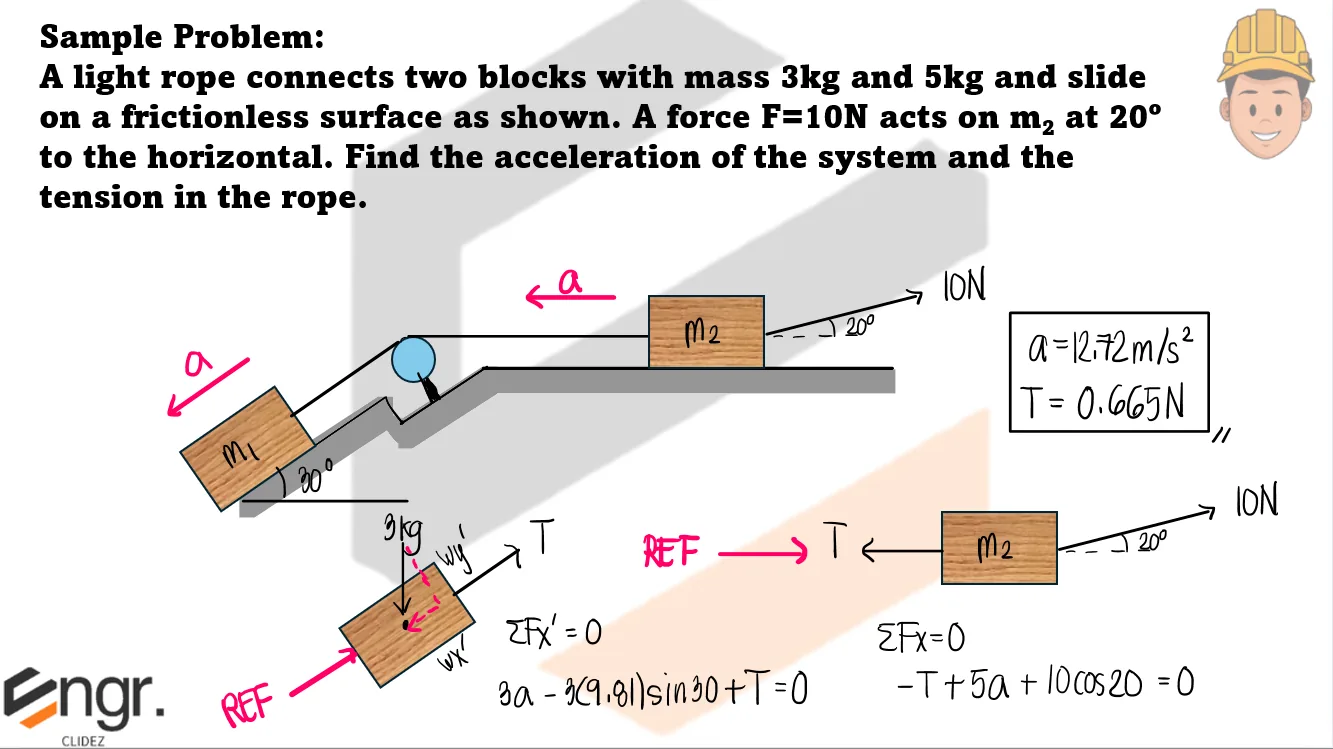

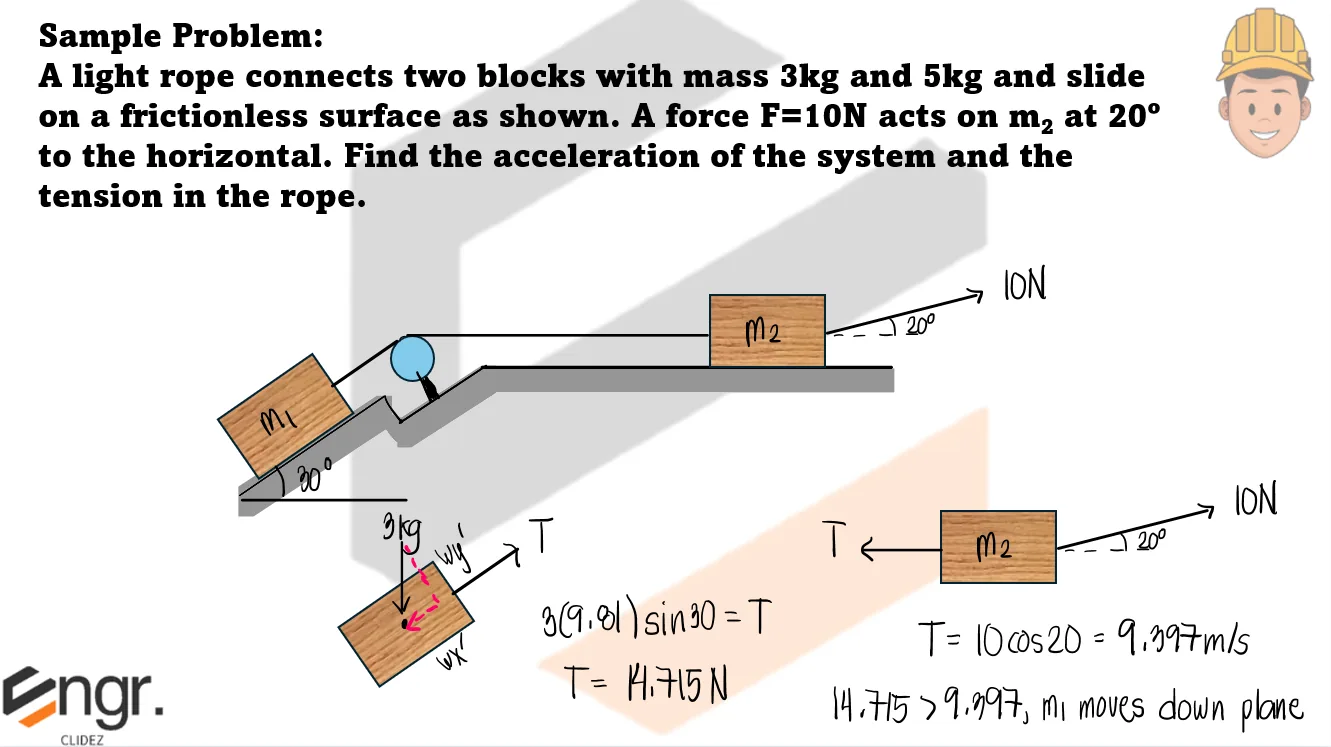

Problem:Rope Connecting Two Blocks on an Inclined and Horizontal Surface

A light rope connects two blocks with mass 3kg and 5kg and slide on a frictionless surface as shown. A force F=10N acts on m₂ at 20º to the horizontal. Find the acceleration of the system and the tension in the rope.

Question 31

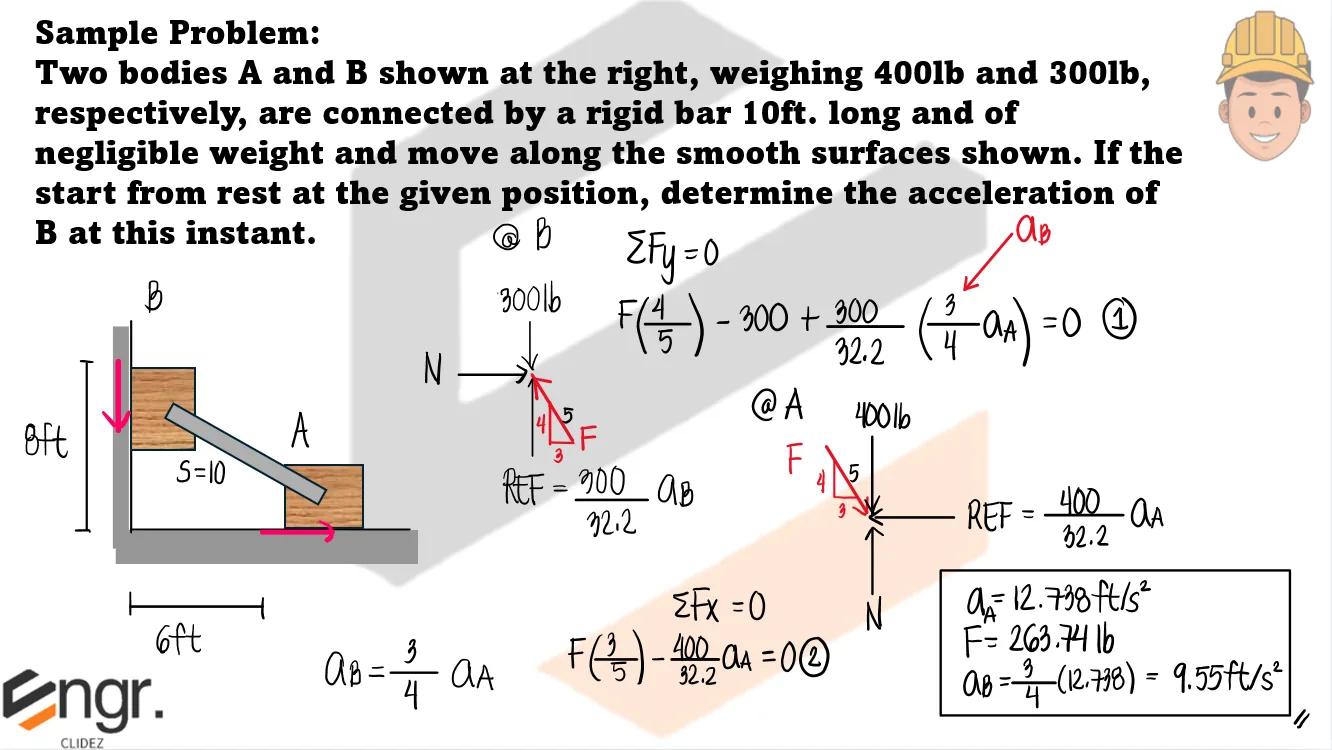

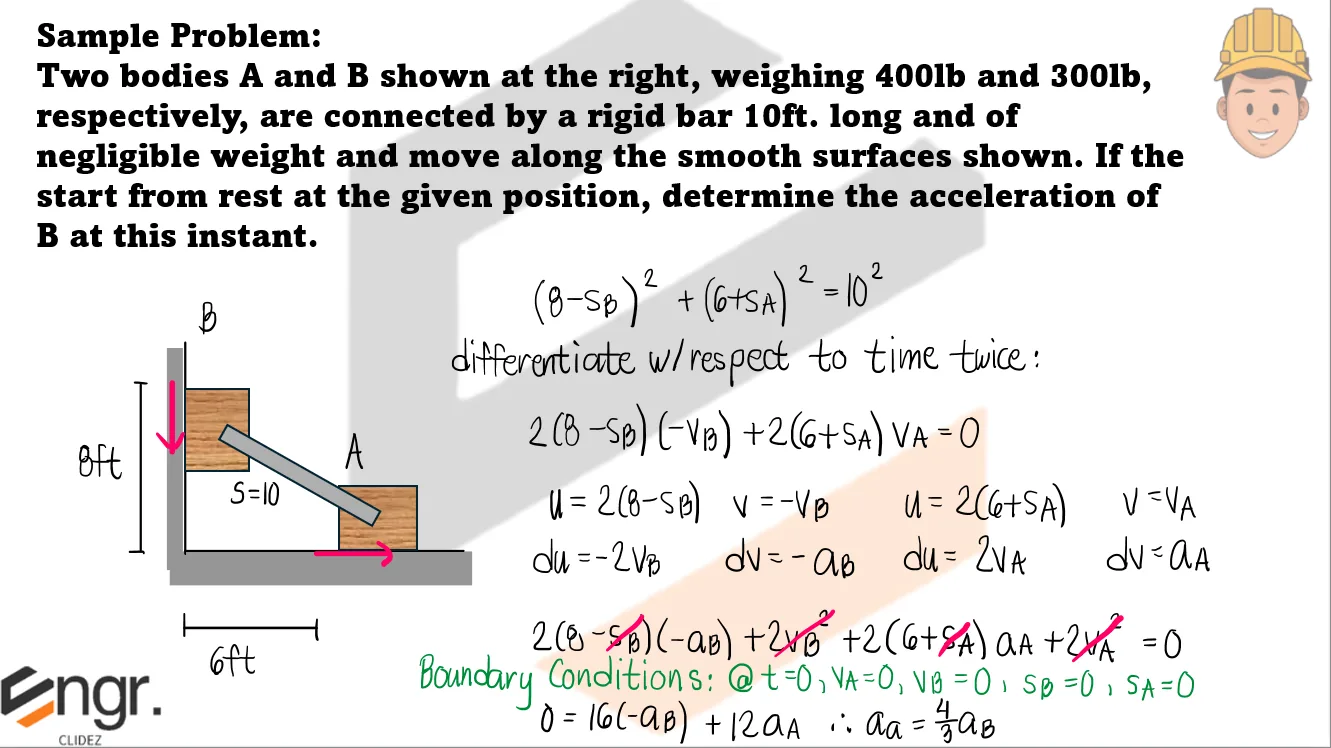

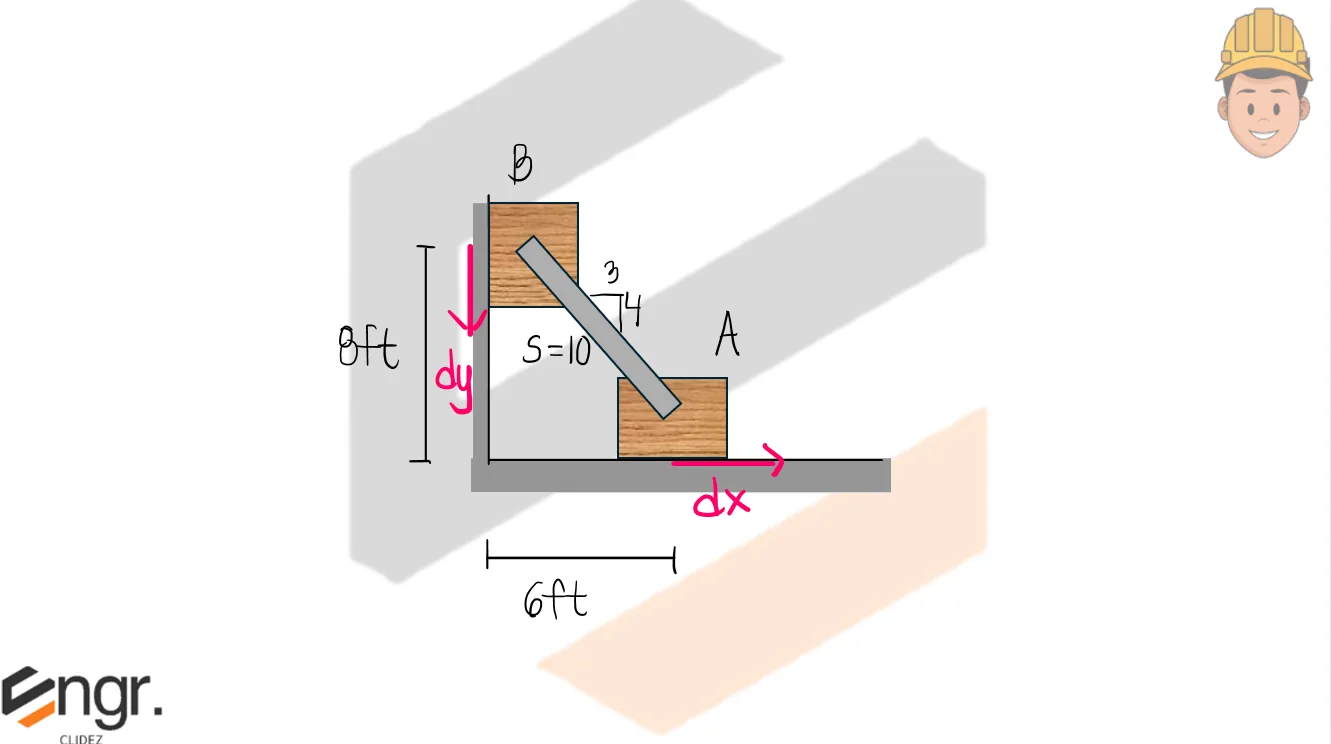

Problem:Two Bodies Connected by a Rigid Rod (Relative Motion)

Two bodies A and B shown at the right, weighing 400lb and 300lb, respectively, are connected by a rigid bar 10ft. long and of negligible weight and move along the smooth surfaces shown. If the start from rest at the given position, determine the acceleration of B at this instant.

Question 32

Work and Energy Principles

1. The work done by a force is the product of the magnitude of the force and the displacement it makes in the direction of the force.

$$ W = F \times d $$

Where:
  W → work done on a body (N·m)
  F → force
  d → displacement

2. Only forces in the direction of motion do work.

3. Forces that cause the motion do positive work.

4. Forces that retard the motion (e.g., friction) do negative work.

5. Energy is the capacity to do work.

6. Potential Energy is the energy of a body due to its position above a datum line.

7. Kinetic Energy is the capability of the body to do work due to its velocity.

$$ KE = \frac{1}{2} mv^2 $$

Question 33

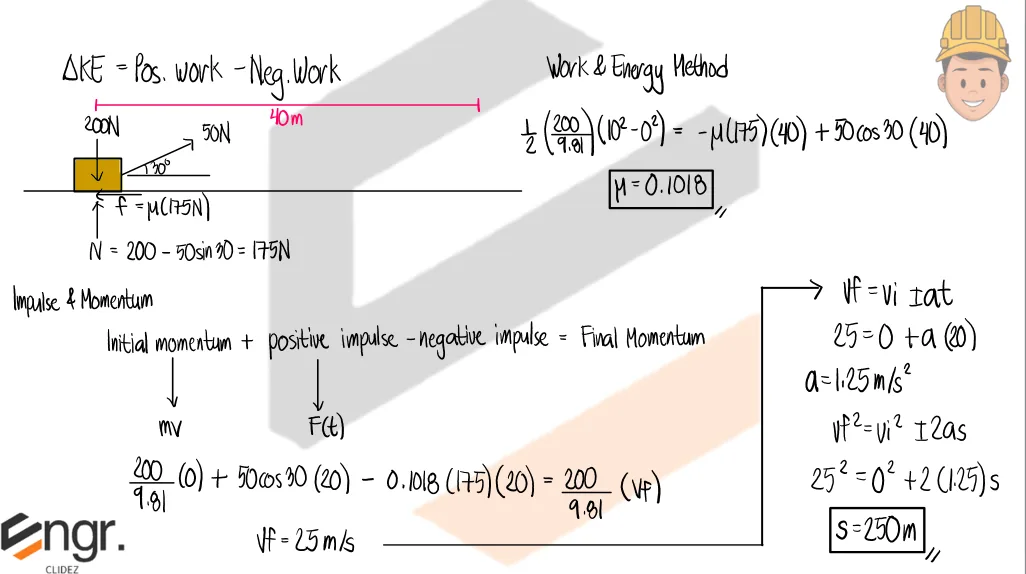

Work–Energy Method

The change in kinetic energy is equal to the positive work minus the negative work.

$$ \Delta KE = \text{Positive Work} \; - \; \text{Negative Work} $$

Question 34

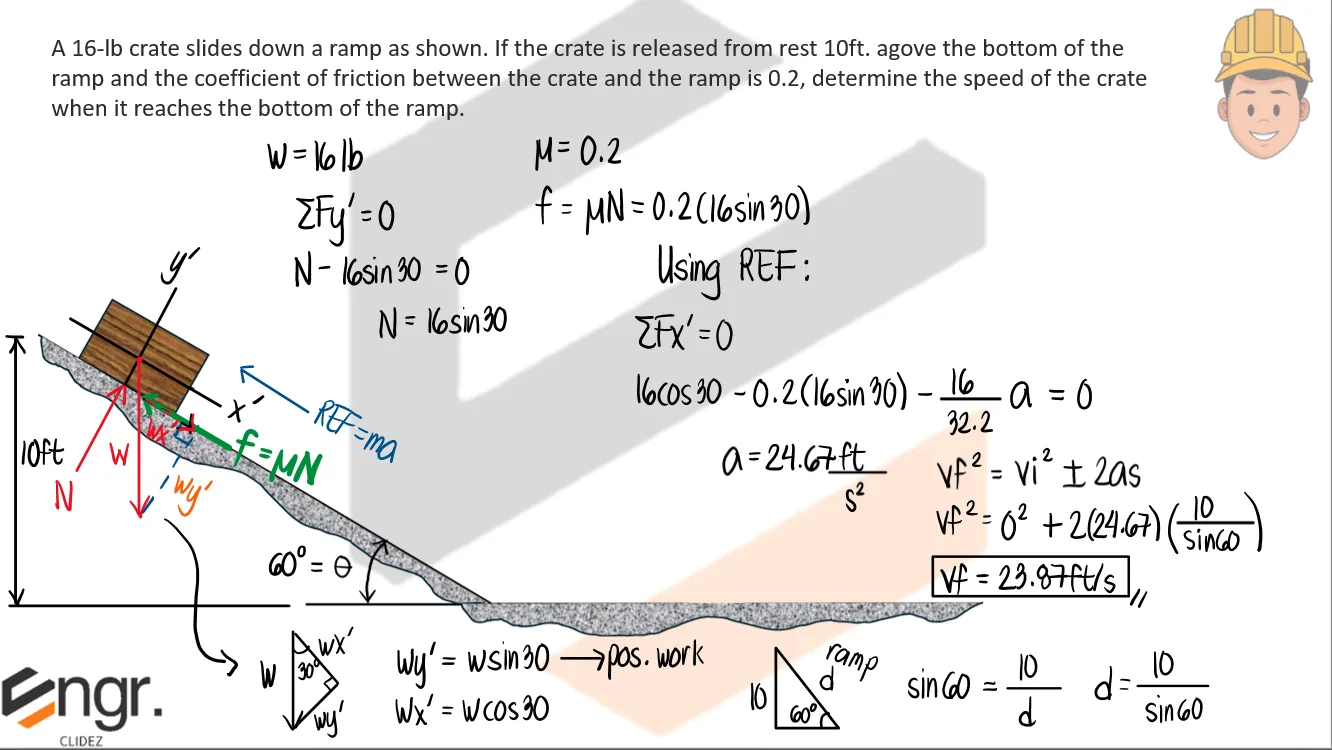

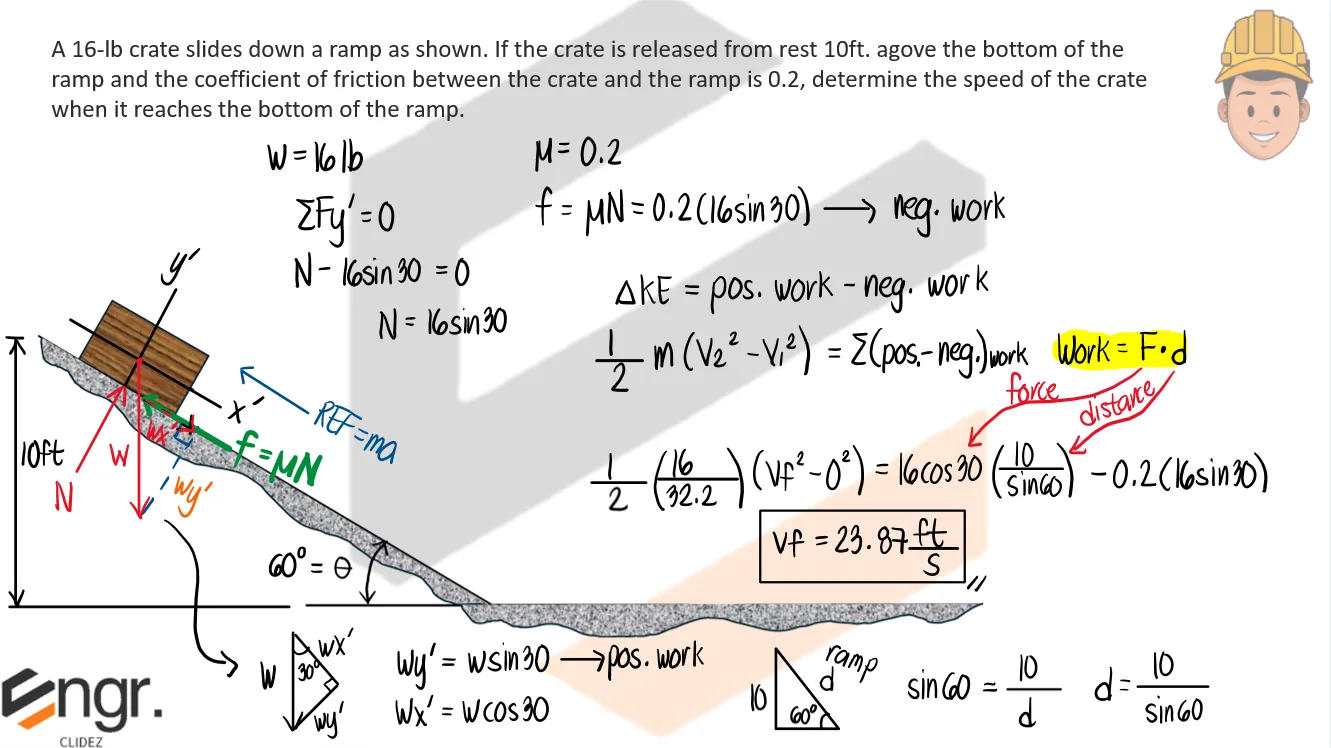

Problem: Crate Sliding Down a Ramp

A 16-lb crate slides down a ramp as shown. If the crate is released from rest 10ft. agove the bottom of the ramp and the coefficient of friction between the crate and the ramp is 0.2, determine the speed of the crate when it reaches the bottom of the ramp.

Question 35

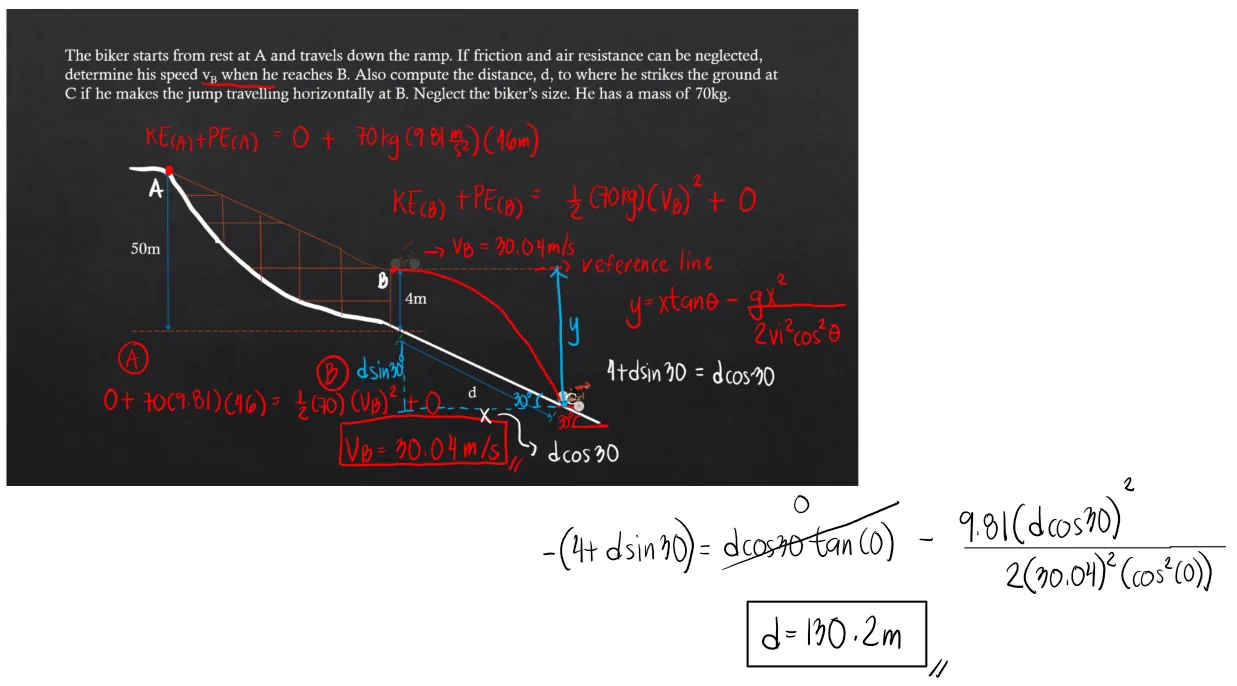

Problem: Biker Sliding Down a Ramp

The biker starts from rest at A and travels down the ramp. If friction and air resistance can be neglected, determine the biker's speed v_B when he reaches B. Also compute the distance, d, to where he strikes the ground at C if he makes the jump travelling horizontally at B. Neglect the biker's size. He has a mass of 70kg.

Question 36

Impulse and Momentum

Impulsive Force— a large force acting for a short period of time

The impulse of a force (I) is defined as the product of the force and the time during which it acts.

$$ I = F \times t $$

Where:
  I → impulse (N·s)
  F → force (N)
  t → time in seconds

Only external forces give impulses to a body. The direction of the impulse is the same as the direction of the force involved.
Momentum is a quantity of motion. It is the property of a body that determines the time required to bring it to rest. It is the product of its mass m and instantaneous velocity v.

$$ \text{Momentum} = m \times v $$

5. The unit of momentum derived from mass and velocity is kg·m/s.

Question 37

Conservation of Momentum

If two bodies collide, then the sum of the momenta before collision is equal to the sum of the momenta after collision.

$$ m_1 v_1 + m_2 v_2 = m_1 v_1' + m_2 v_2' $$

Where:

m1 → mass of the first body
m2 → mass of the second body
v1 → velocity of the first body before collision
v2 → velocity of the second body before collision
v1' → velocity of the first body after collision
v2' → velocity of the second body after collision

Sign Convention for Velocities:

v is positive (+) if its direction is to the right (before or after collision).
v is negative (−) if its direction is to the left (before or after collision).

Question 38

Linear Impulse–Momentum Equation

Initial momentum + Positive Impulse − Negative Impulse = Final momentum

$$ m v_1 + F_{\text{pos}} \, t \; - \; F_{\text{neg}} \, t = m v_2 $$

Question 39

Coefficient of Restitution

The relative velocity of two bodies before collision is v₁ − v₂ and the relative velocity after collision is v₁′ − v₂′.

The coefficient of restitution (e) is the ratio of the relative velocity after impact to that before impact.

$$ e = \frac{(v_2' - v_1')}{(v_1 - v_2)} $$

Question 40

Problem: Work and Energy Method & Impulse and Momentum

A tensile force of 50N inclined 30° from the horizontal is applied on a 200N block which is at rest.
a. Determine the coefficient of friction between the block and the horizontal plane if after it moves a distance of 40 meters, its velocity is 10m/s.
b. Compute the distance (meters) traveled by the block at the end of 20 seconds.

Question 41

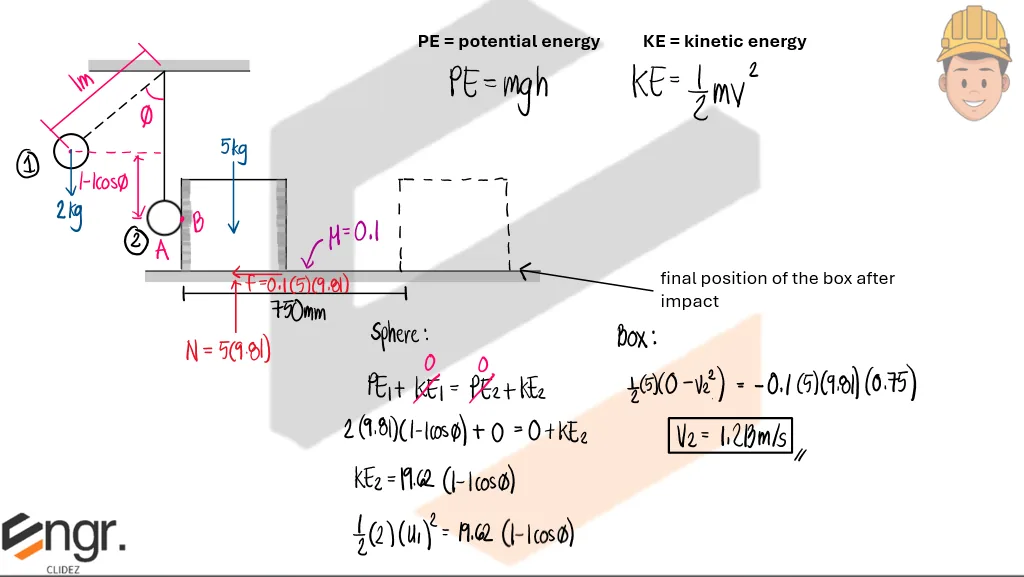

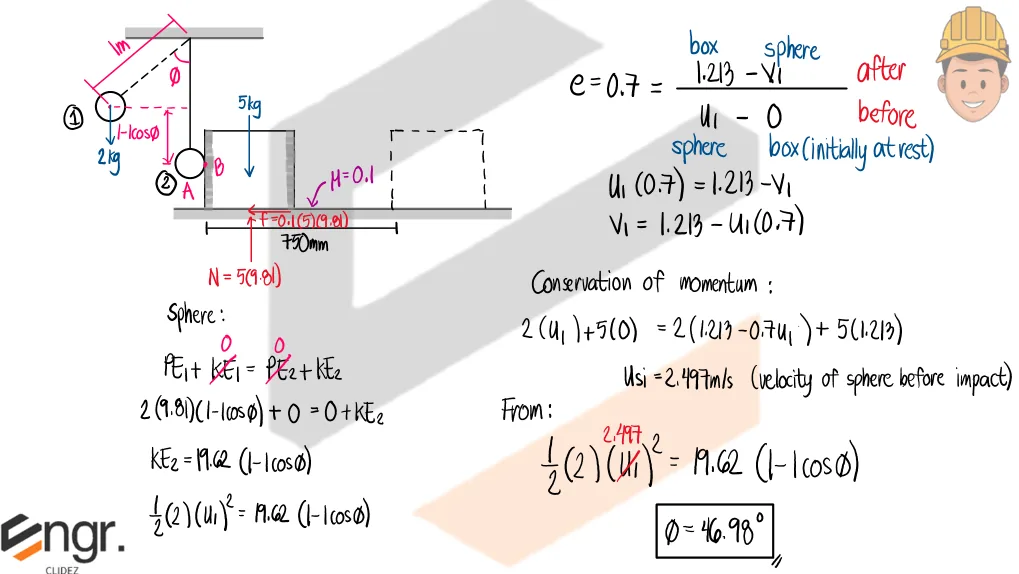

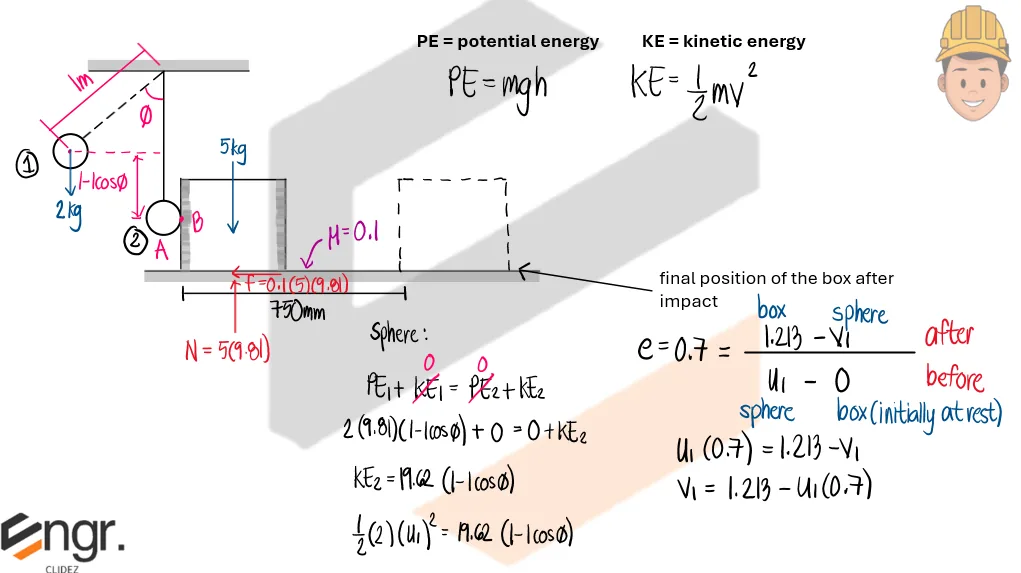

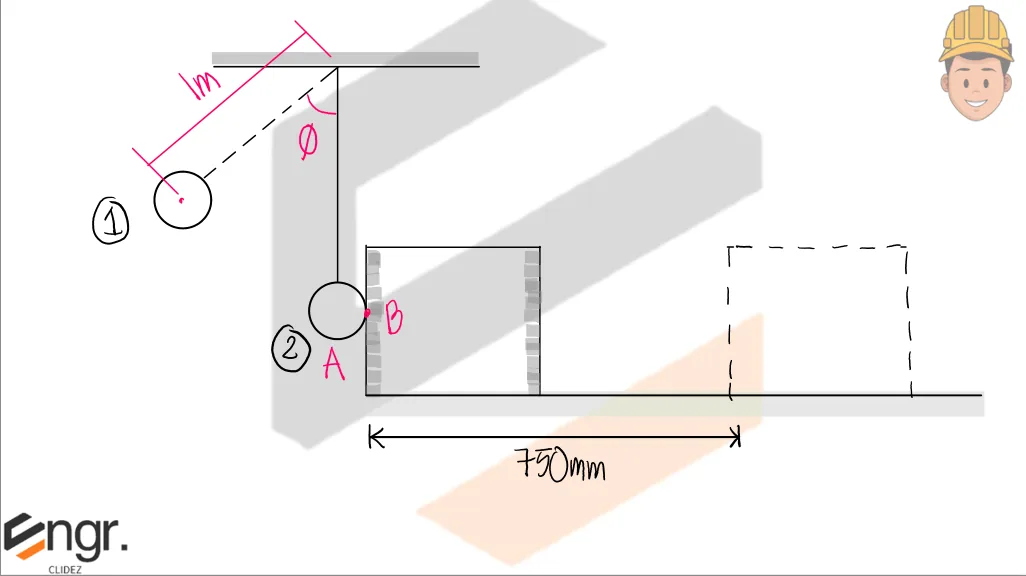

Problem: Sphere Swinging down to Hit a Box

The 2-kg sphere is released from rest and swings down, striking the 5-kg box B. The distance from the ceiling to the center of the sphere is 1 meter. The coefficient of restitution for the collision is 0.70 and the coefficient of friction between the box and the floor is 0.10. If the box slides 750mm after the impact before it comes to rest again,
a. Determine the velocity (in m/s) of the box immediately after the impact.
b. Determine the angle 𝜙 at which the sphere A was released.

Question 42

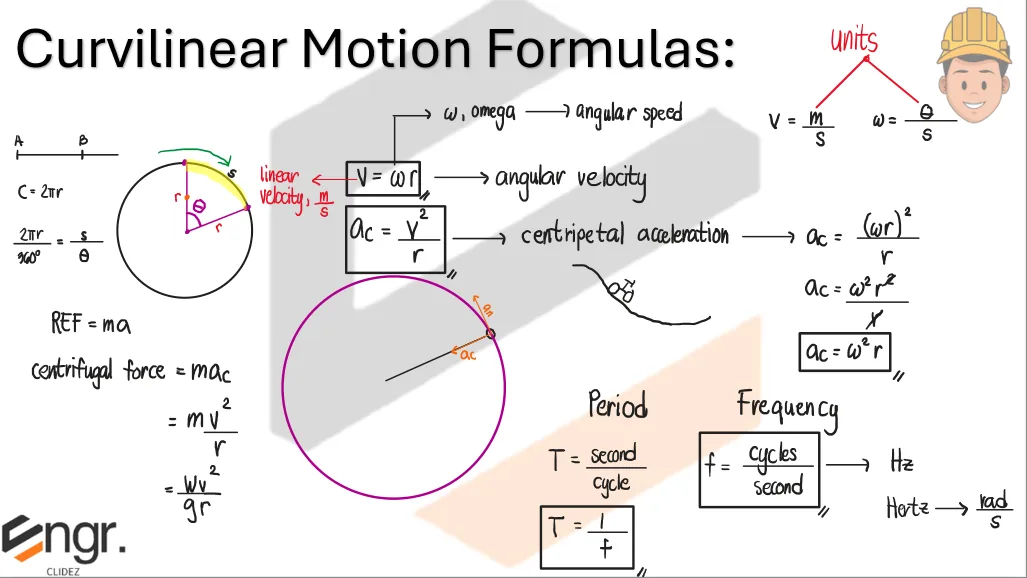

Curvilinear Motion — Summary of Formulas

Curvilinear motion refers to the motion of a particle along a curved path. At any point on the path, the motion can be described using tangential and normal components, involving angular speed, angular displacement, and centripetal acceleration.

The following are the fundamental formulas used to describe circular and curvilinear motion.

Variable Definitions

r → radius of circular path (meters)
s → arc length (meters)
θ → angular displacement (radians)
ω → angular speed (rad/s)
v → linear speed (m/s)
a_c → centripetal (normal) acceleration (m/s²)
T → period — time for one revolution (seconds)
f → frequency (Hz)
m → mass of object (kg)
F_c → centripetal force (N)

1. Angular Kinematics

$$ \omega = \frac{\theta}{t} $$

$$ s = r \theta $$

2. Linear and Angular Velocity Relationship

$$ v = \omega r $$

3. Centripetal (Normal) Acceleration

$$ a_c = \frac{v^2}{r} $$

$$ a_c = \omega^2 r $$

$$ a_c = \frac{\omega^2 r^2}{r} $$

4. Centripetal Force

$$ F_c = m a_c $$

$$ F_c = m \frac{v^2}{r} $$

$$ F_c = m \omega^2 r $$

5. Period and Frequency

$$ T = \frac{1}{f} $$

$$ f = \frac{1}{T} $$

$$ f = \frac{\text{cycles}}{\text{second}} $$

Frequency is measured in Hz (Hertz), where 1 Hz = 1 cycle per second.

Question 43

Problem:

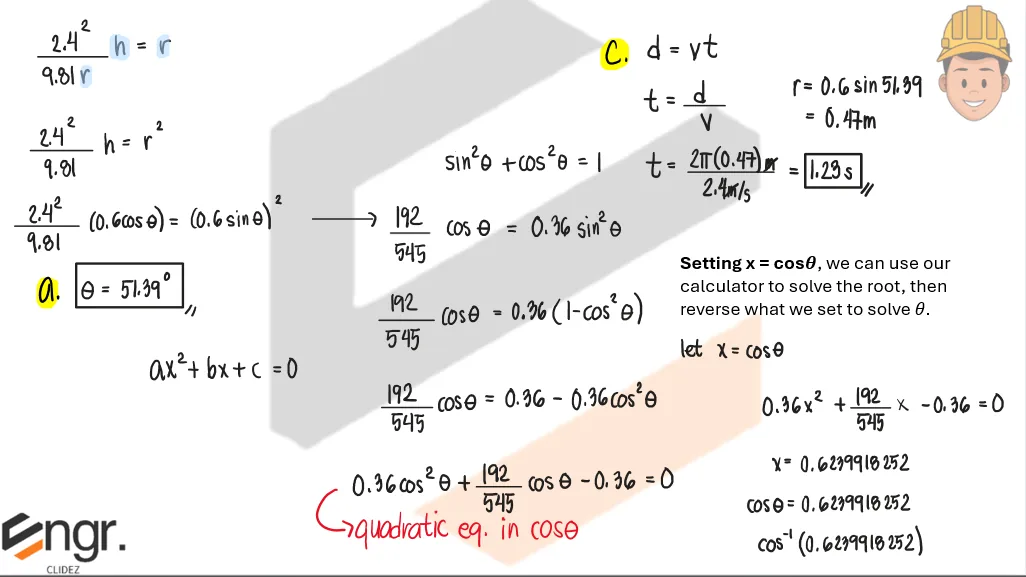

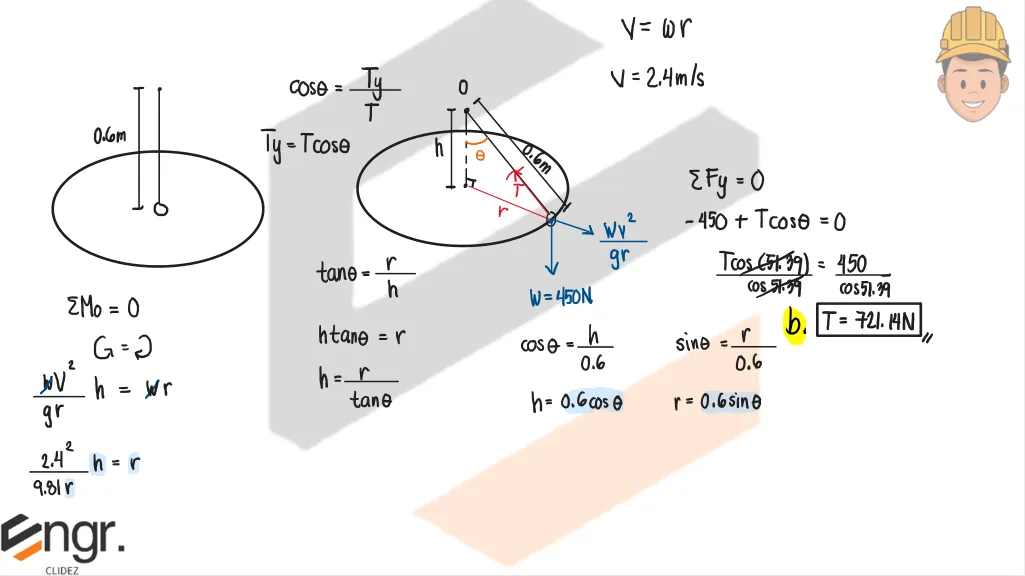

A bob of weight W is moving with a constant velocity of 2.4m/s and is suspended on a 0.6m string. If the weight of the bob is 450N, compute the required inclination, θ, Tension T in the string, and the time required for one complete revolution.

Question 44

Curvilinear Motion in Vectors

Question 45

Problem:

The position of a particle is given by:

$$ \mathbf{r}(t) = (3t^3 - 2t)\,\mathbf{i} - (4t^{1/2} + t)\,\mathbf{j} + (3t^2 - 2)\,\mathbf{k} $$

where $t$ is in seconds. Determine the magnitude of the velocity and the magnitude of the acceleration when $t = 2$ s.

Question 46

Problem:

Problem:

The velocity of a particle is

$$ \mathbf{v}(t) = 3\mathbf{i} + (6 - 2t)\mathbf{j} \;\text{m/s} $$

If $\mathbf{r} = 0$ when $t = 0$, determine the displacement of the particle during the time interval from $t = 1\;\text{s}$ to $t = 3\;\text{s}$.

Question 47

Problem:

A particle travels along the parabolic path

$$ y = b x^2 $$

If its component of velocity along the y-axis is

$$ v_y = c t^2 $$

determine the x- and y-components of the particle's acceleration. Here, b and c are constants.

Question 48

Problem:

The velocity of a particle is given by $$ \mathbf{v} = \{ 16 t^2 \} \mathbf{i} + \{ 4 t^3 \} \mathbf{j} + \{ 5t + 2 \} \mathbf{k} \ \text{m/s}, $$ where $t$ is in seconds. If the particle is at the origin when $t = 0$, determine the magnitude of the particle's acceleration when $t = 2$ s. Also, find the $x$, $y$, and $z$ coordinate position of the particle at this instant.

Question 49

Problem:

A particle travels along the circular path $ x^2 + y^2 = r^2. $ If the y-component of the particle's velocity is $ v_y = 2r \cos 2t, $ determine the $x$ and $y$ components of its acceleration at any instant.

Question 50

Problem:

The box slides down the slope described by the equation $$ y = 0.05 x^2 $$ Classical Physics – Problem: – Diagram where $x$ is in meters. If the box has $x$ components of velocity and acceleration of $v_x = -3 \, \text{m/s}$ and $a_x = -1.5 \, \text{m/s}^2$ at $x = 5$ m, determine the $y$ components of the velocity and acceleration of the box at this instant.

Question 51

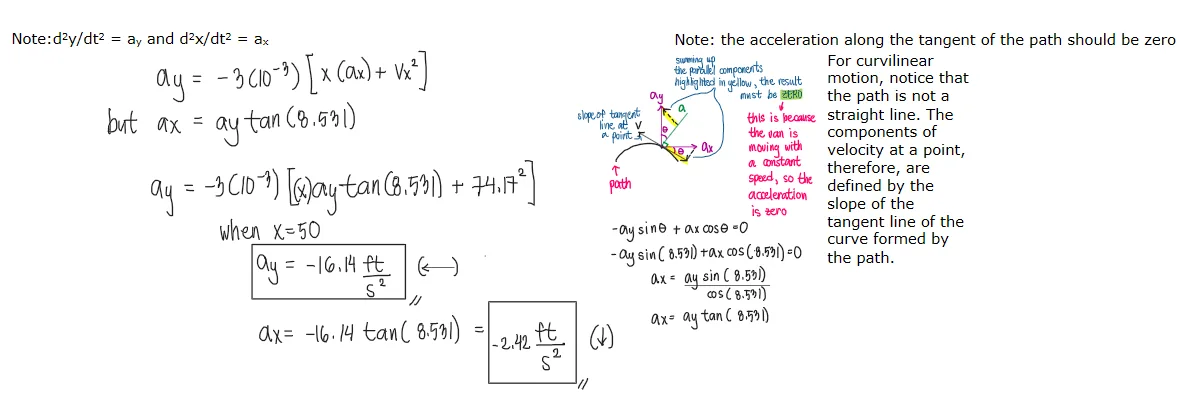

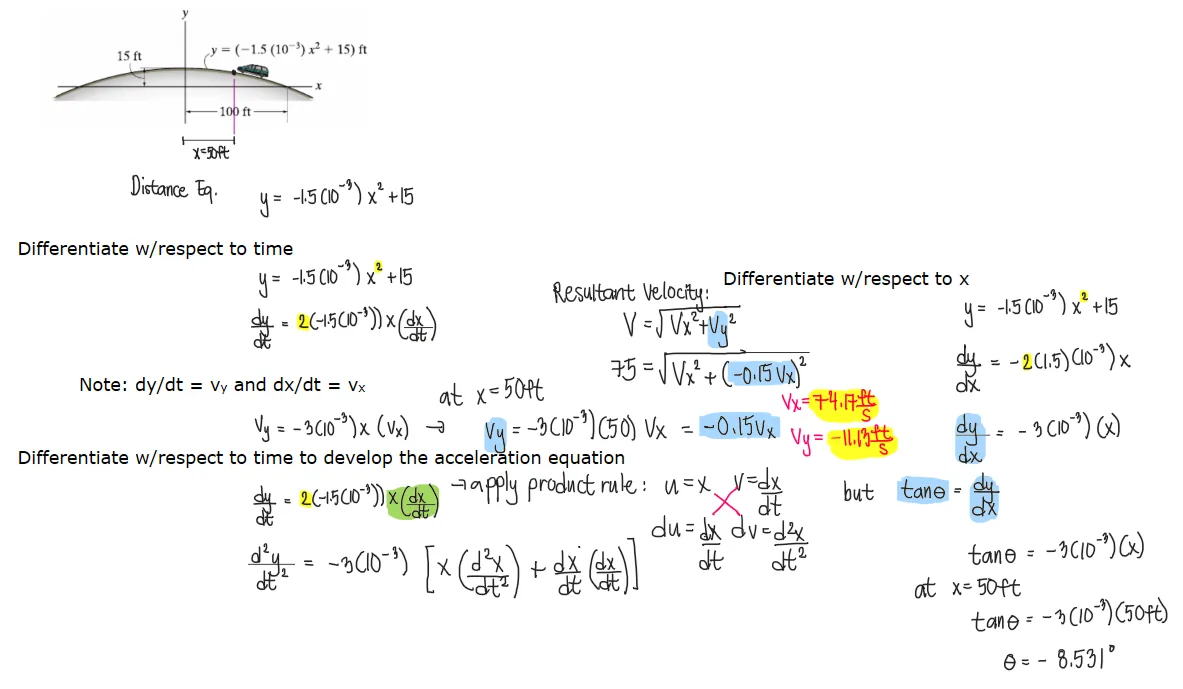

Problem: Van Travels Over the Hill

The van travels over the hill described by $y=[-1.5x10^{-3}x^2+15]ft$. If it has a constant speed of 75ft/s, determine the x and y components of the van's velocity and acceleration when x=50ft.

Question 52

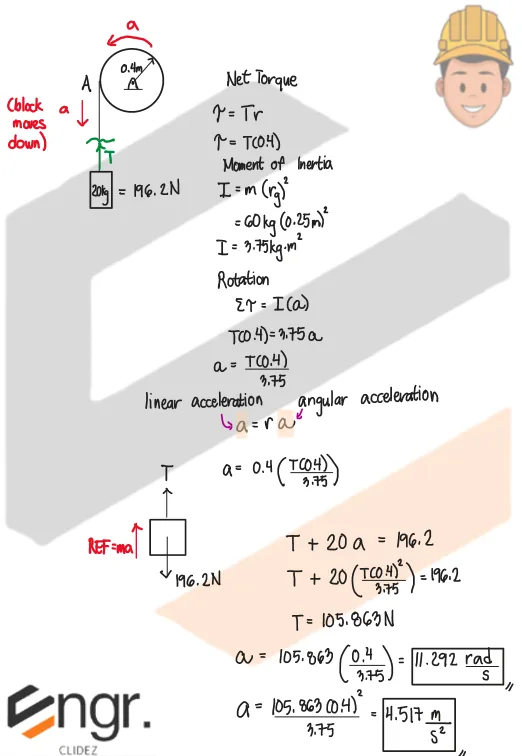

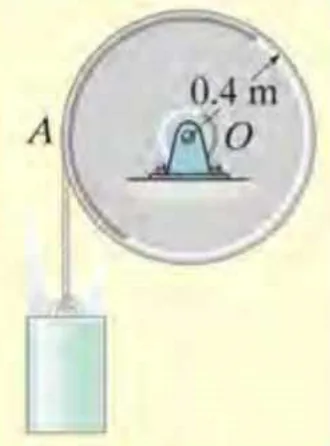

Problem: Rotated Drum

A 60kg drum shown has a radius of gyration of 0.25m. A cord of negligible mass is wrapped around the periphery of the drum and attached to the block having a mass of 20kg. How long will the block reach a distance of 4 meters starting from rest, if the velocity is given by $v={8s^2-2s)m/s$, where is is in meters?

Question 53

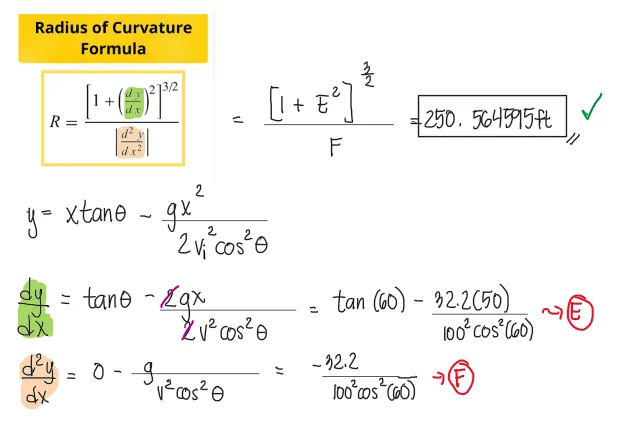

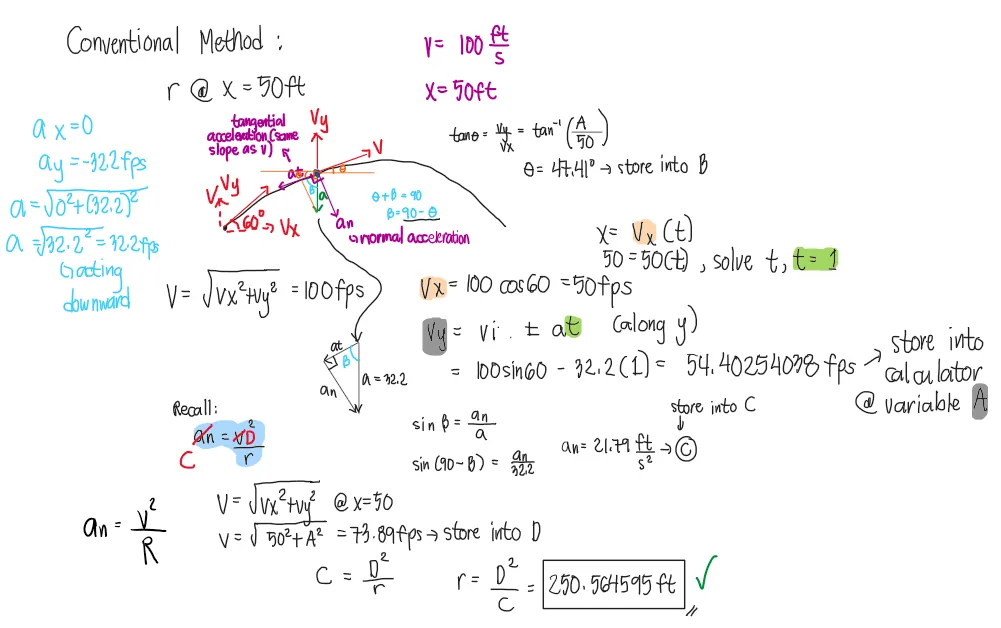

Problem: Radius of Curvature of the Path of a Stone Thrown at an Angle

A stone is thrown with an initial velocity of 100ft per second upward at 60° to the horizontal. Compute the radius of curvature of its path at the point where it is 50ft horizontally from its initial position.

Question 54

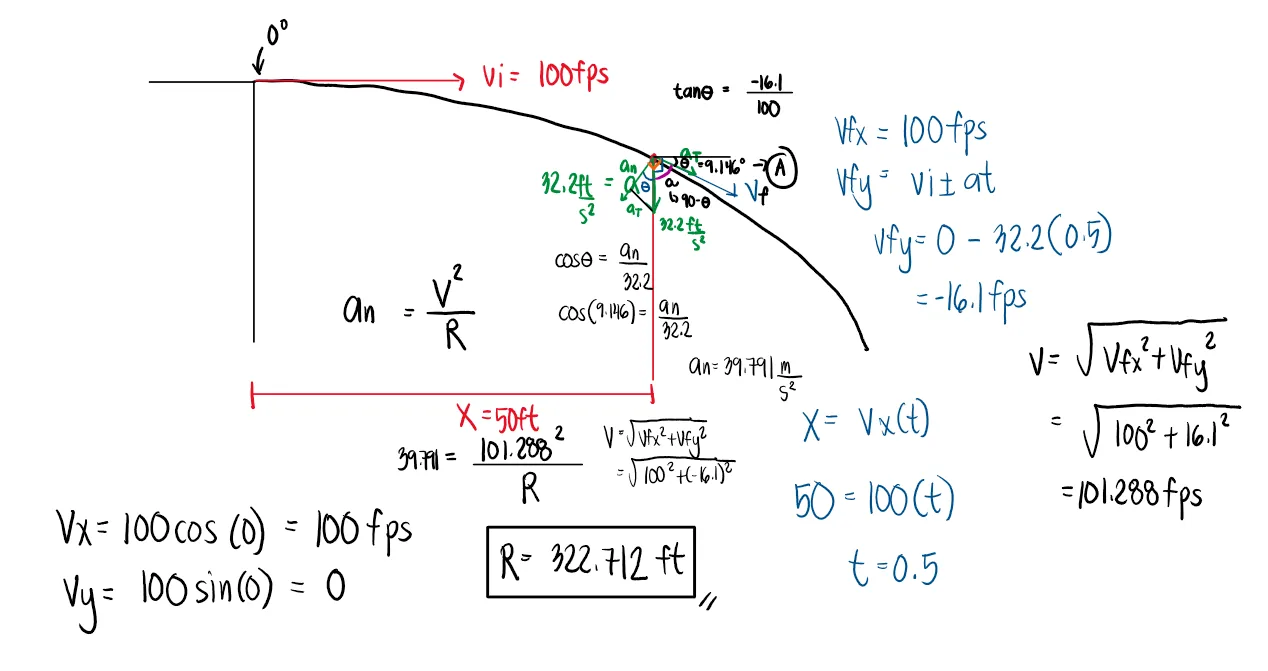

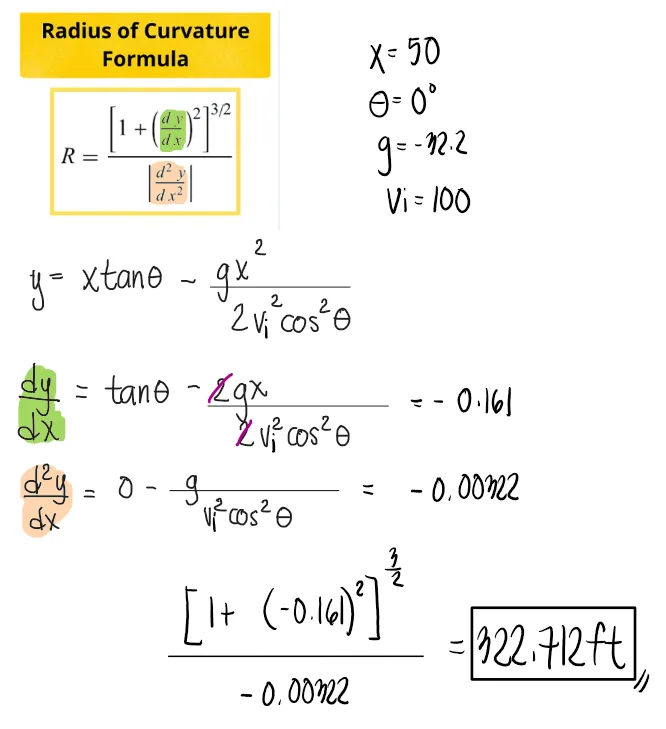

Problem: Radius of Curvature of the Path of a Stone Thrown Horizontally

A stone is thrown with an initial velocity of 100ft per second with the horizontal. Compute the radius of curvature of its path at the point where it is 50ft horizontally from its initial position.
