Question 1

Shear and Moment Equation

Answer

See images:

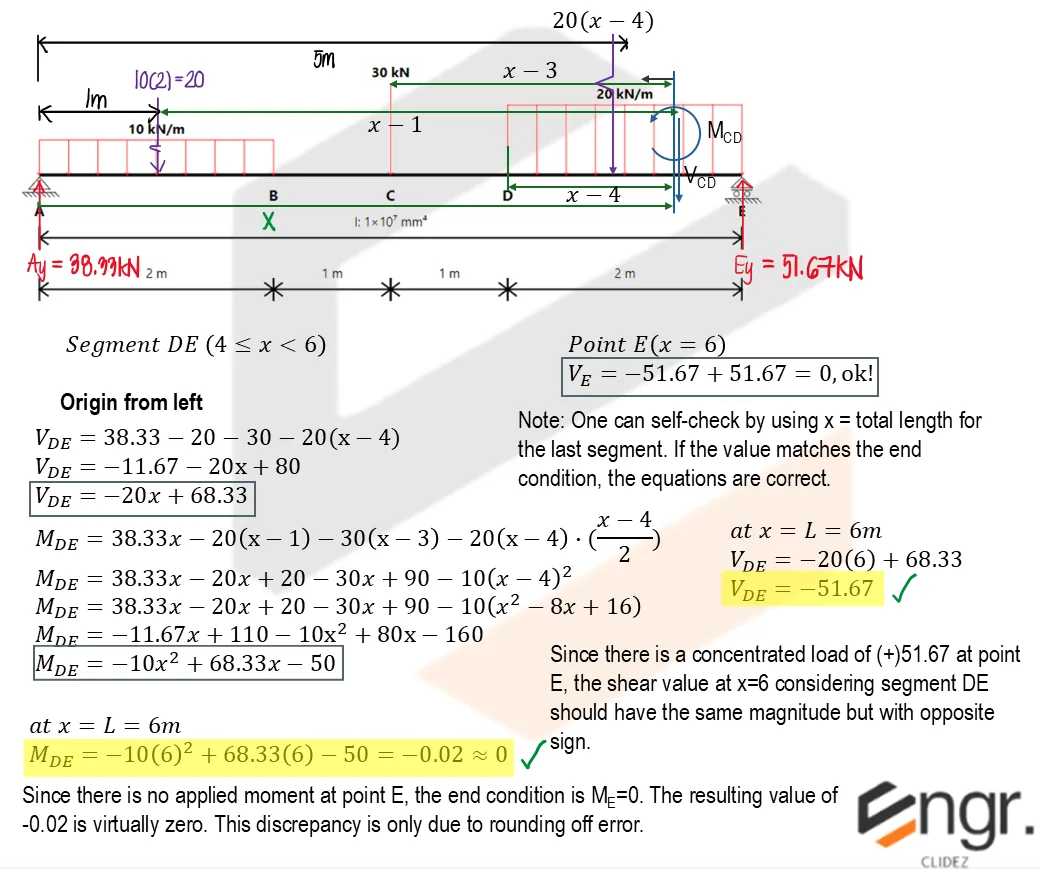

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 4: – Diagram

Answer

See images:

Answer

See images:

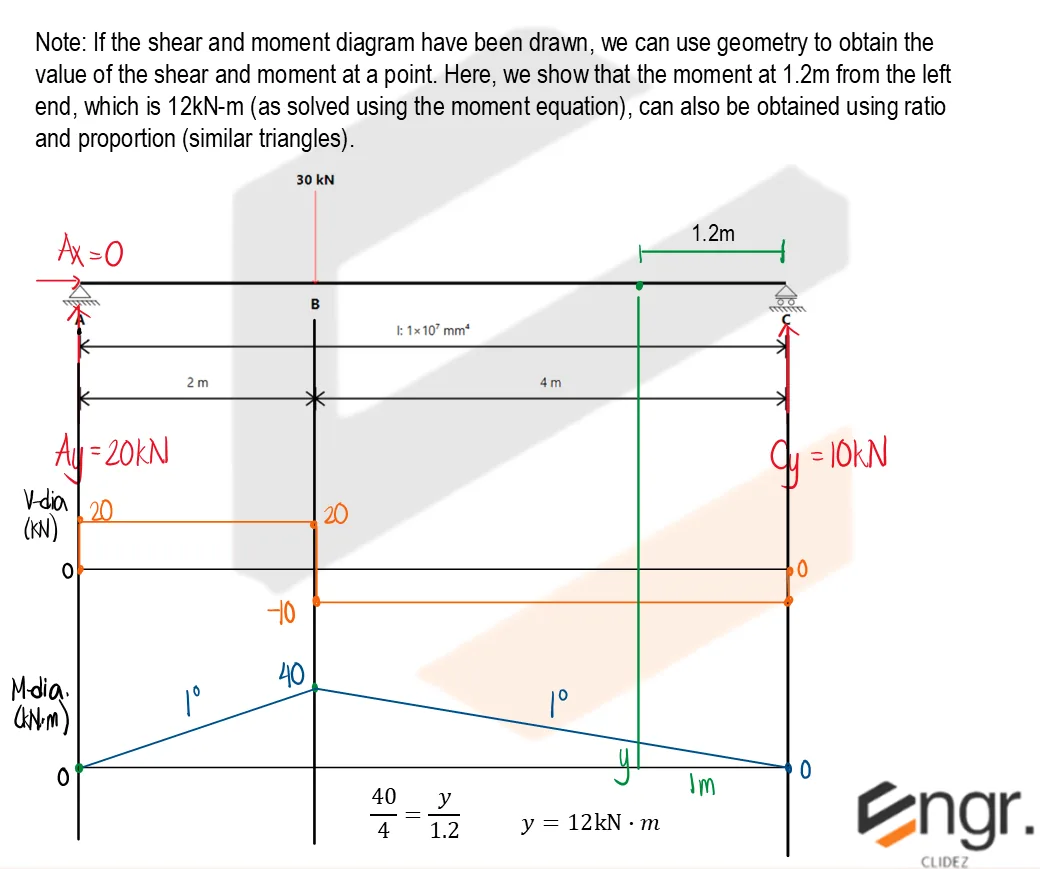

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 1: Shear and Moment Equation of Trapezoidal Load – Diagram

Answer

See images:

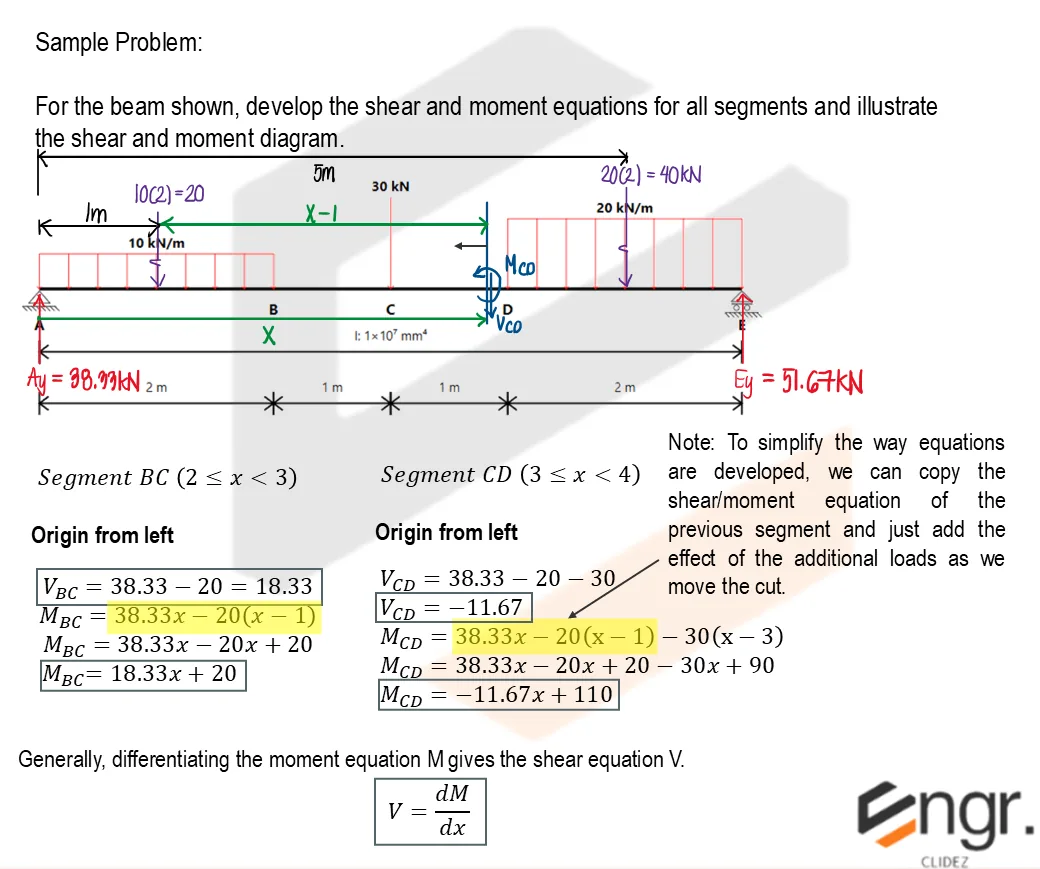

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 2: – Diagram

Answer

See images:

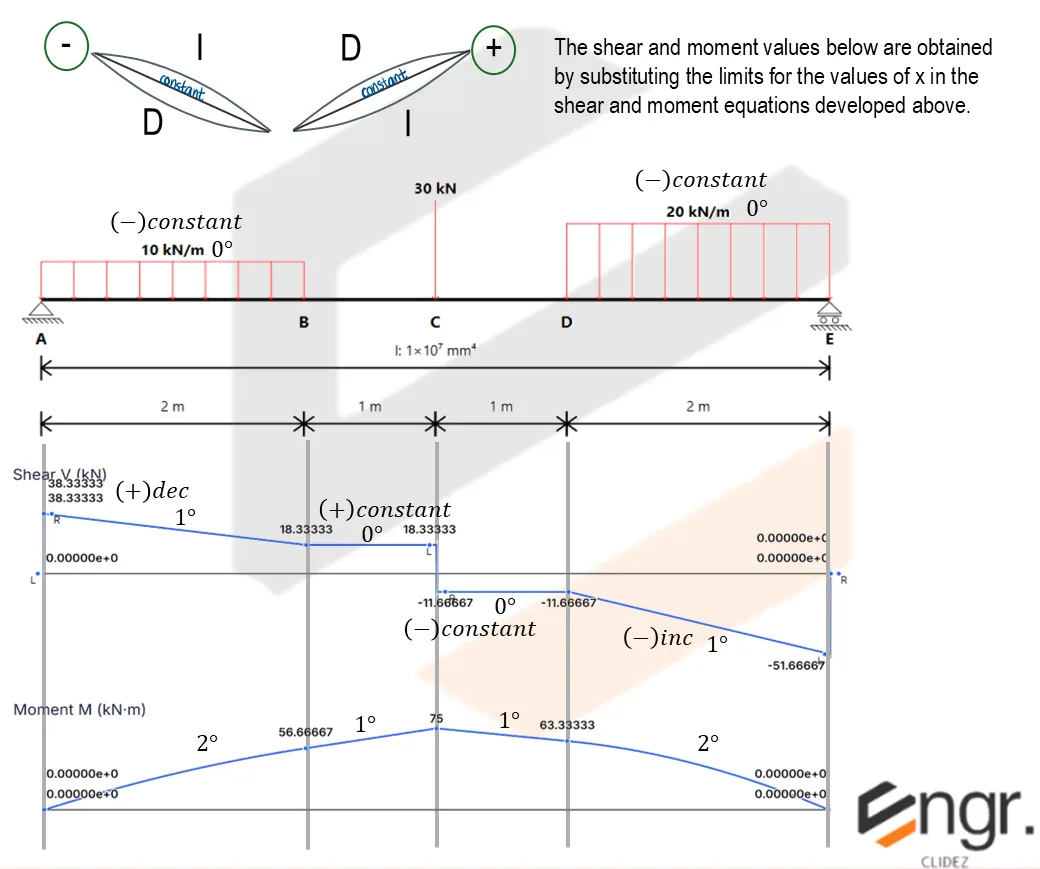

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 5: – Diagram

From our beam calculator:

Answer

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 6: – Diagram

Answer

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 7: – Diagram

Answer

See images:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem 8: – Diagram

Question 2

Problem: Fundamentals of Setting the Origin and Developing Equations

Refer to the image shown:

Shear and Moment Equation | Mechanics of Deformable Bodies – Problem: – Diagram

Question 3

Problem: Two Uniform Loads

Refer to the image shown:

Question 4

Problem: Shear and Moment Equation of Trapezoidal Load

Develop the shear and moment equation of segment AB and BC of the beam shown. Calculate also the location and value of the maximum moment.

Question 5

Problem: Concrete Girder Supporting Two Column Loads

The concrete girder 30 meters in length supports the two column loads shown. If the soil pressure under the girder is assumed to be uniform,
a. Compute the intensity of the soil pressure.
b. Compute the value of "x" in meters.
c. Determine the maximum negative moment of the concrete girder in kN-m.

Question 6

Problem: Triangular Load on Overhanging Beam

For the beam shown, if w=30kN/m, compute the following:
a. The maximum shear force of the beam in kN
b. The moment at the right support in kN-m
c. The maximum moment of the beam in kN-m

Question 7

Problem:

Refer to the image shown:

Question 8

Problem:

Refer to the image shown:

Question 9

Problem:

Refer to the image shown:

Question 10

Question Bank: q151

PSAD - Mechanics of Deformable Bodies / Shear and Moment / Engr. Janclyde Espinosa (Clidez)

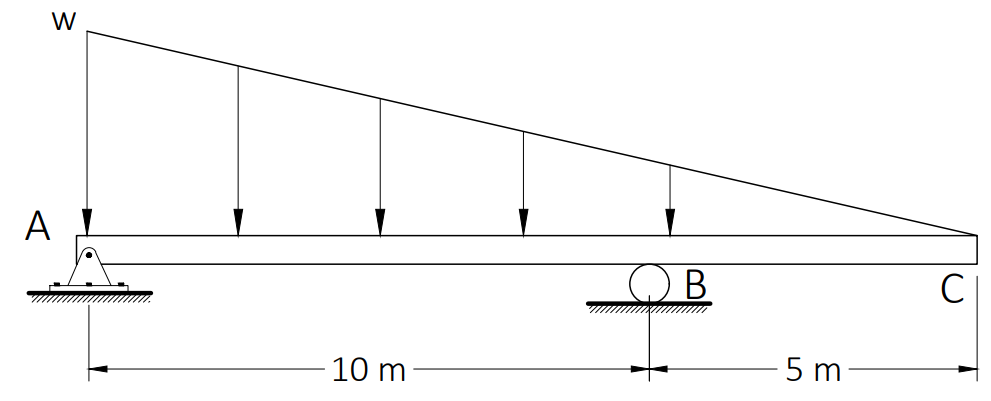

For the beam shown, if w = 30kN/m

Which of the ff. most nearly gives the the maximum shear(KN) of the beam?

112.5
117.5
121.5
87.5

Which of the ff. most nearly gives the moment at the right support in KN-m?

41.67
0
52.25
33.67

Which of the ff. most nearly gives the maximum moment (kN-m) of the beam?

233
262
223
266

Solution pending in psadquestions/q151.json.
